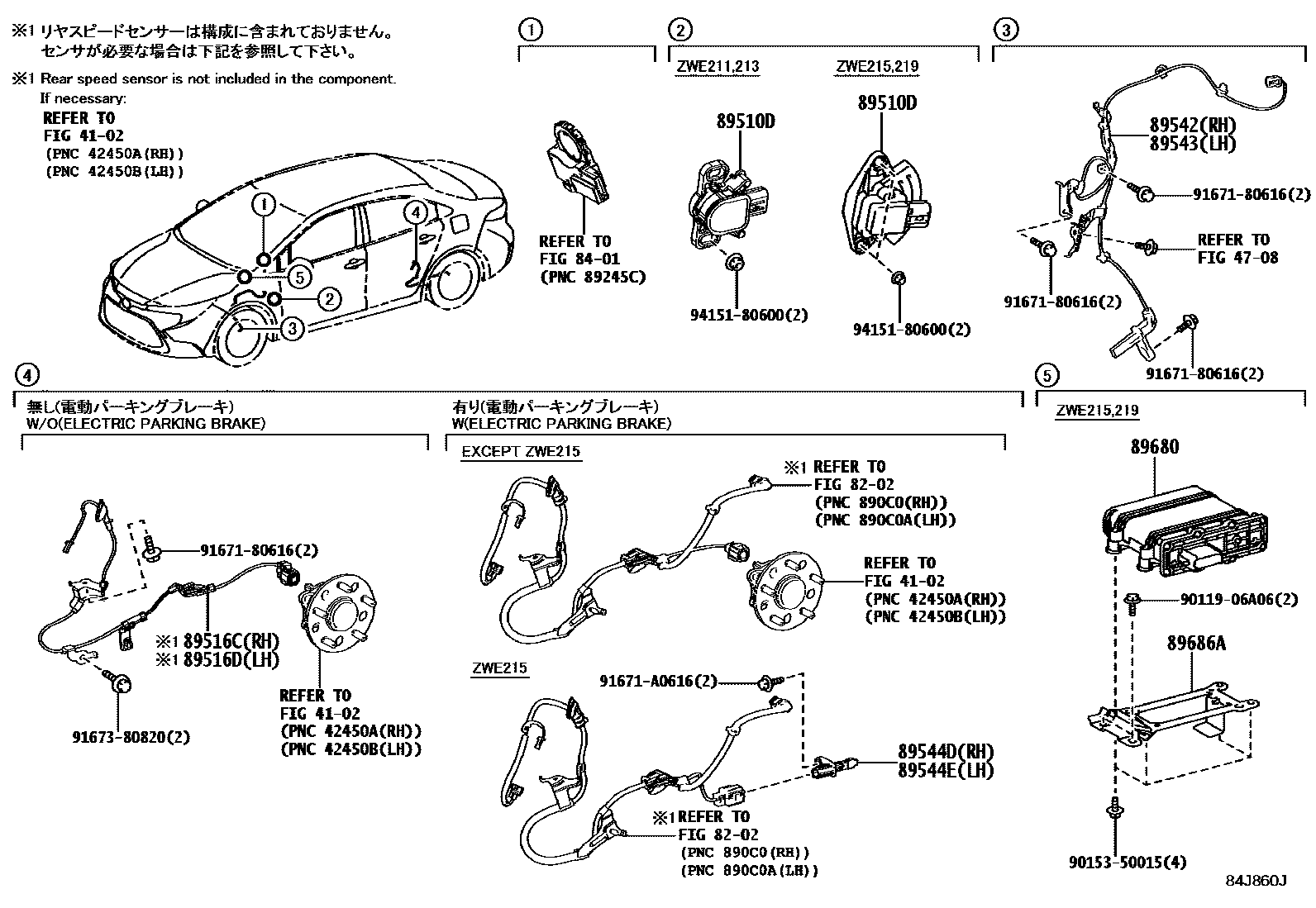

Toyota COROLLA ABS 和 VSC — Figure 8414
Toyota COROLLA EPC diagram 8414, ABS 和 VSC, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89510D | Brake pedal stroke sensor assembly | 89510-47040 · 89510-K0010 · 89510-K0011 |
| 89516C | Right anti-skid control sensor harness | 89516-47110 |
| 89516D | Left anti-skid control sensor wiring harness | 89516-47120 |
| 89542 | Right front wheel speed sensor | 89542-12110 |
| 89543 | Left front wheel speed sensor | 89543-12110 |
| 89544D | CAPTEUR, CONTROLE DERAPAGE, ARR MD | 89544-0D110 · 89544-F4020 |
| 89544E | CAPTEUR, CONTROLE DERAPAGE, ARR MG | 89544-0D110 · 89544-F4020 |
| 89680 | Brake control power supply assembly | 89680-48030 |
| 89686A | No. 1 brake control power bracket | 89686-12010 |
