Toyota COROLLA 燃油箱和燃油管 — Figure 7701

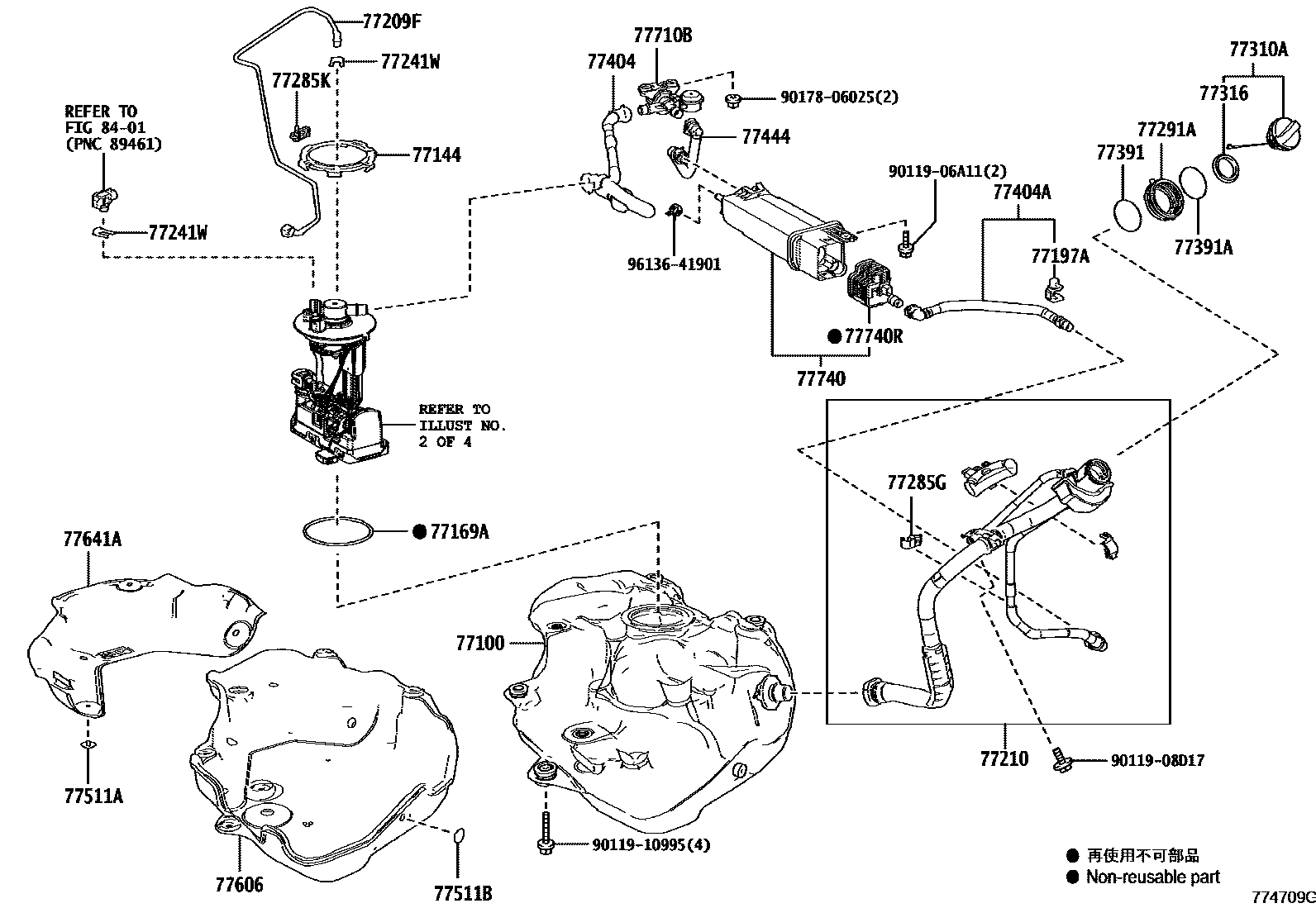

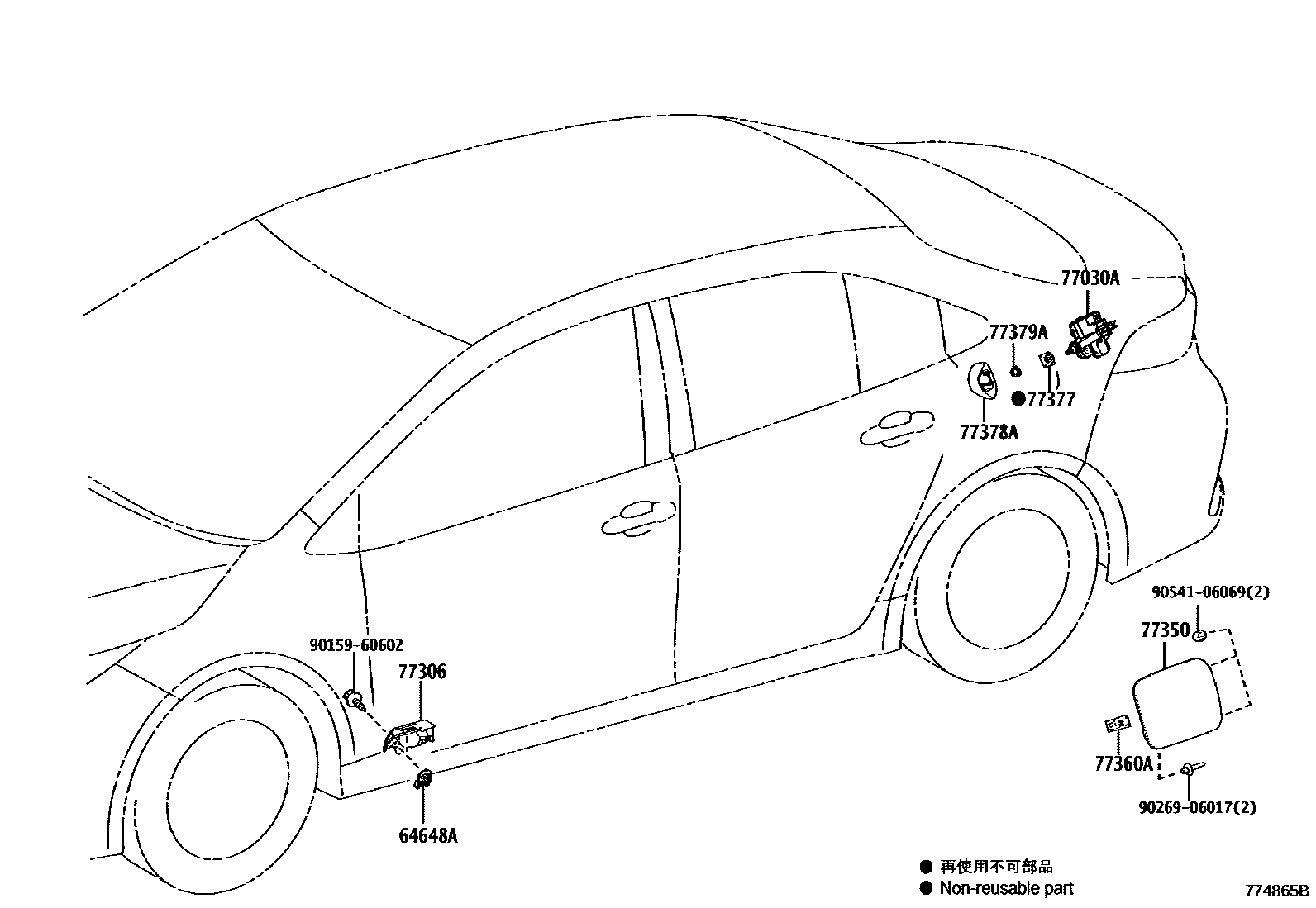

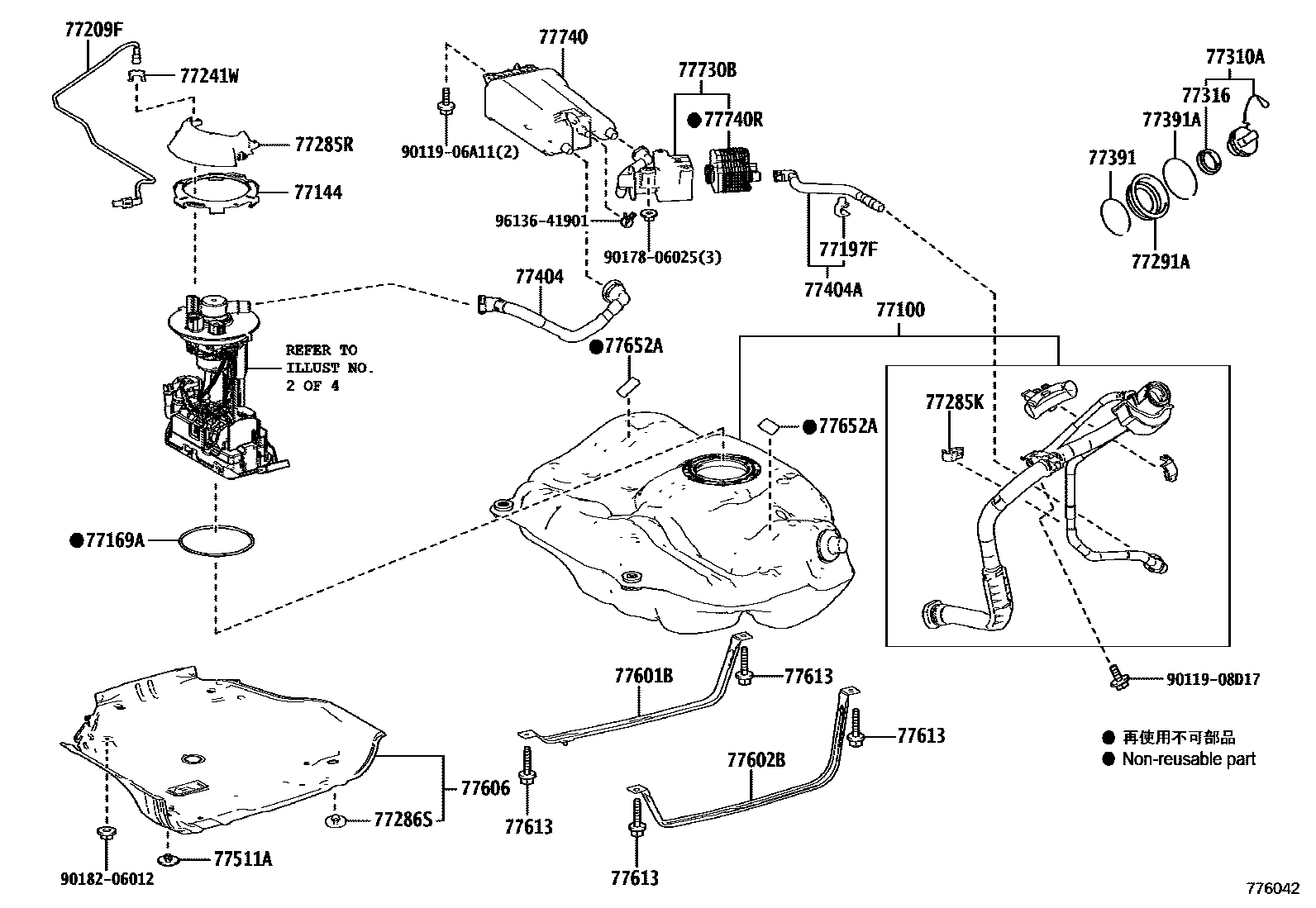

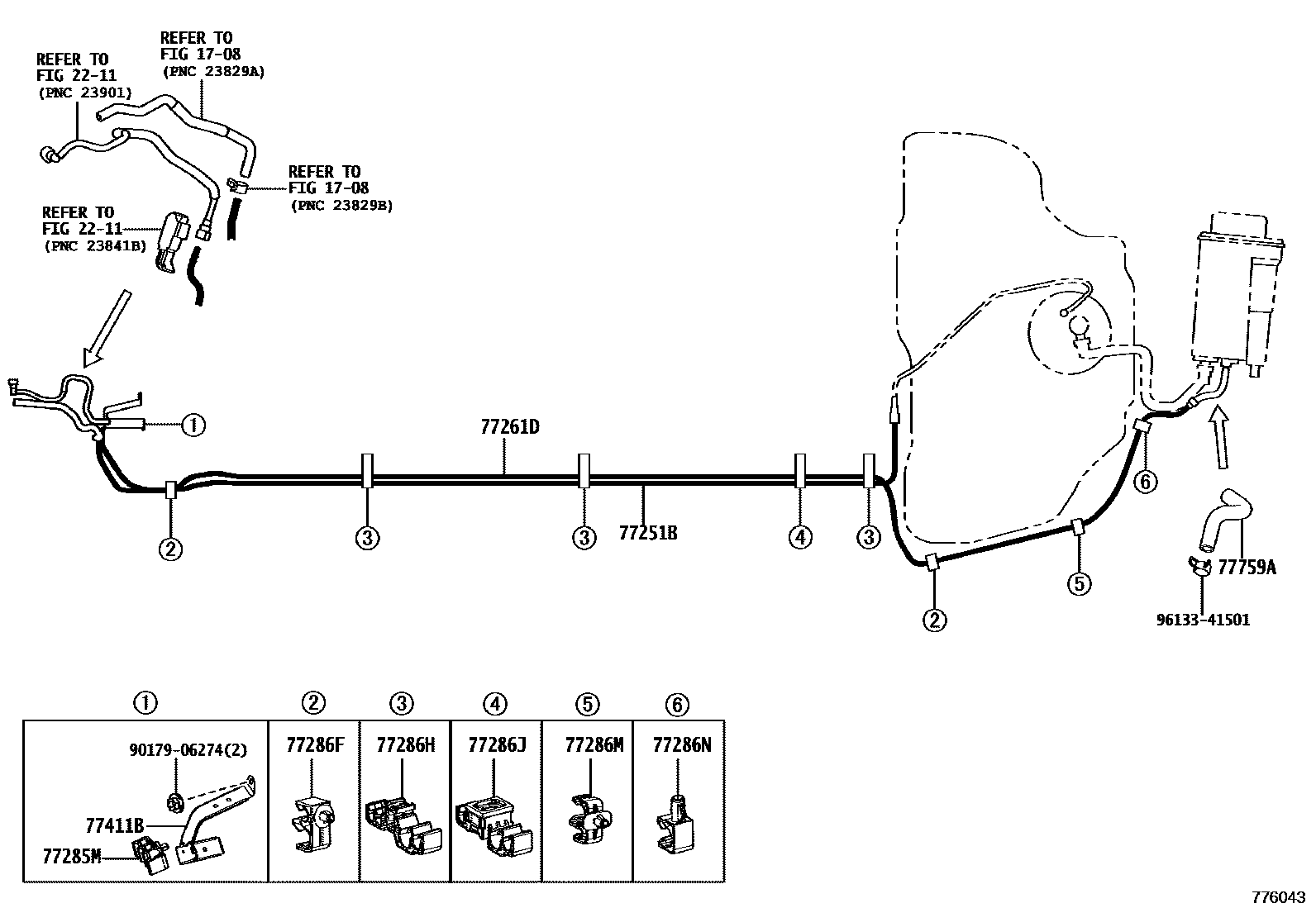

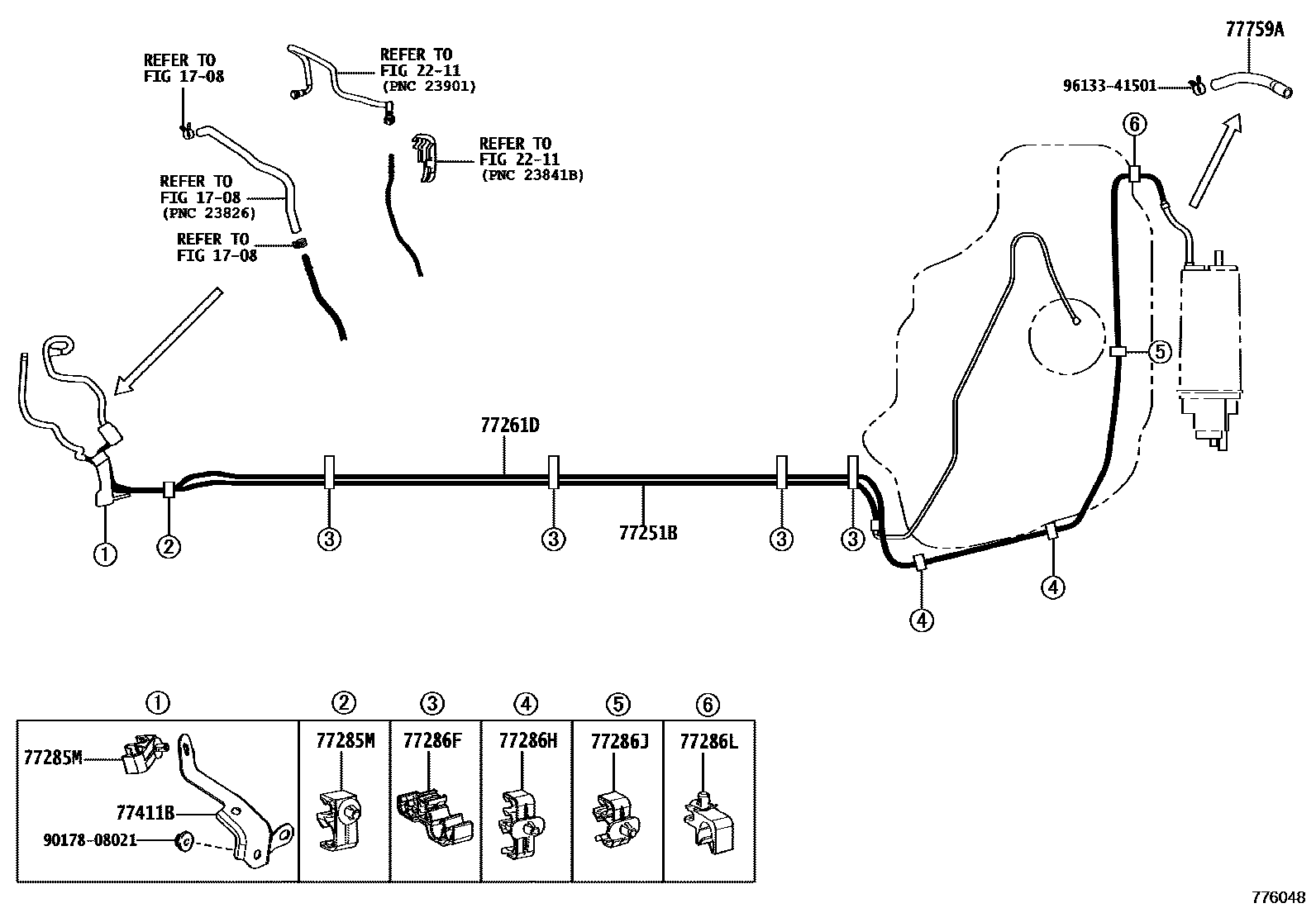

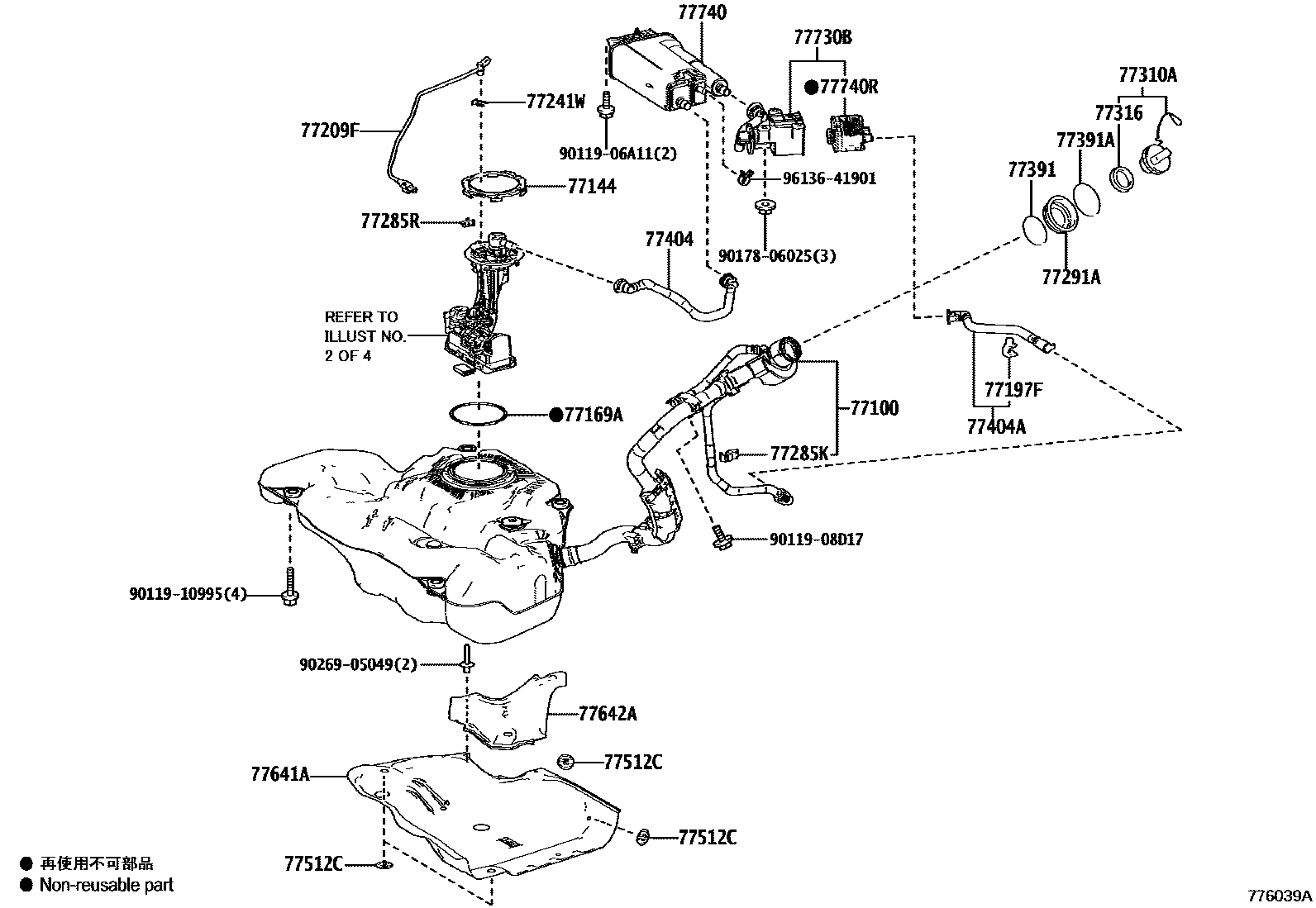

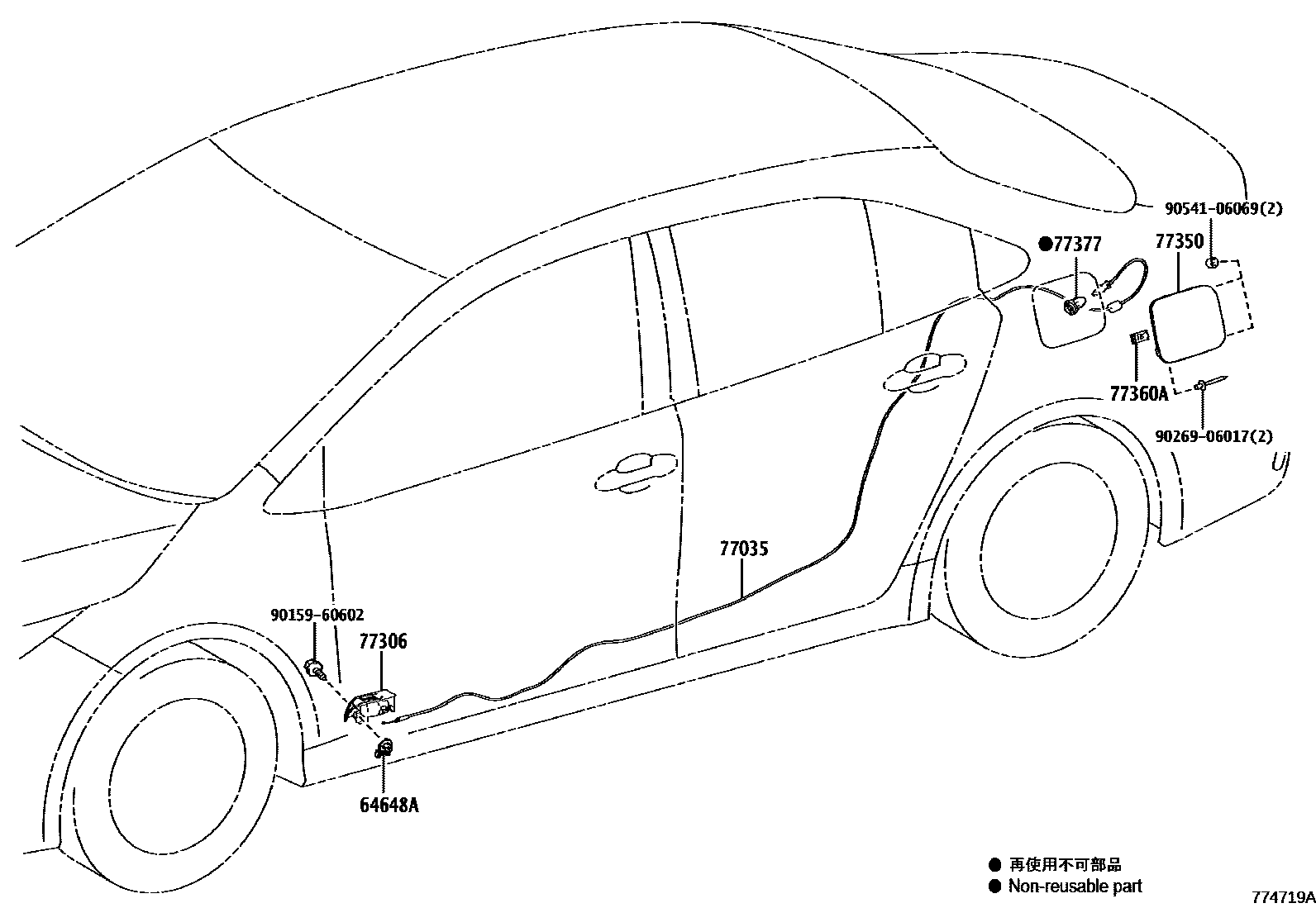

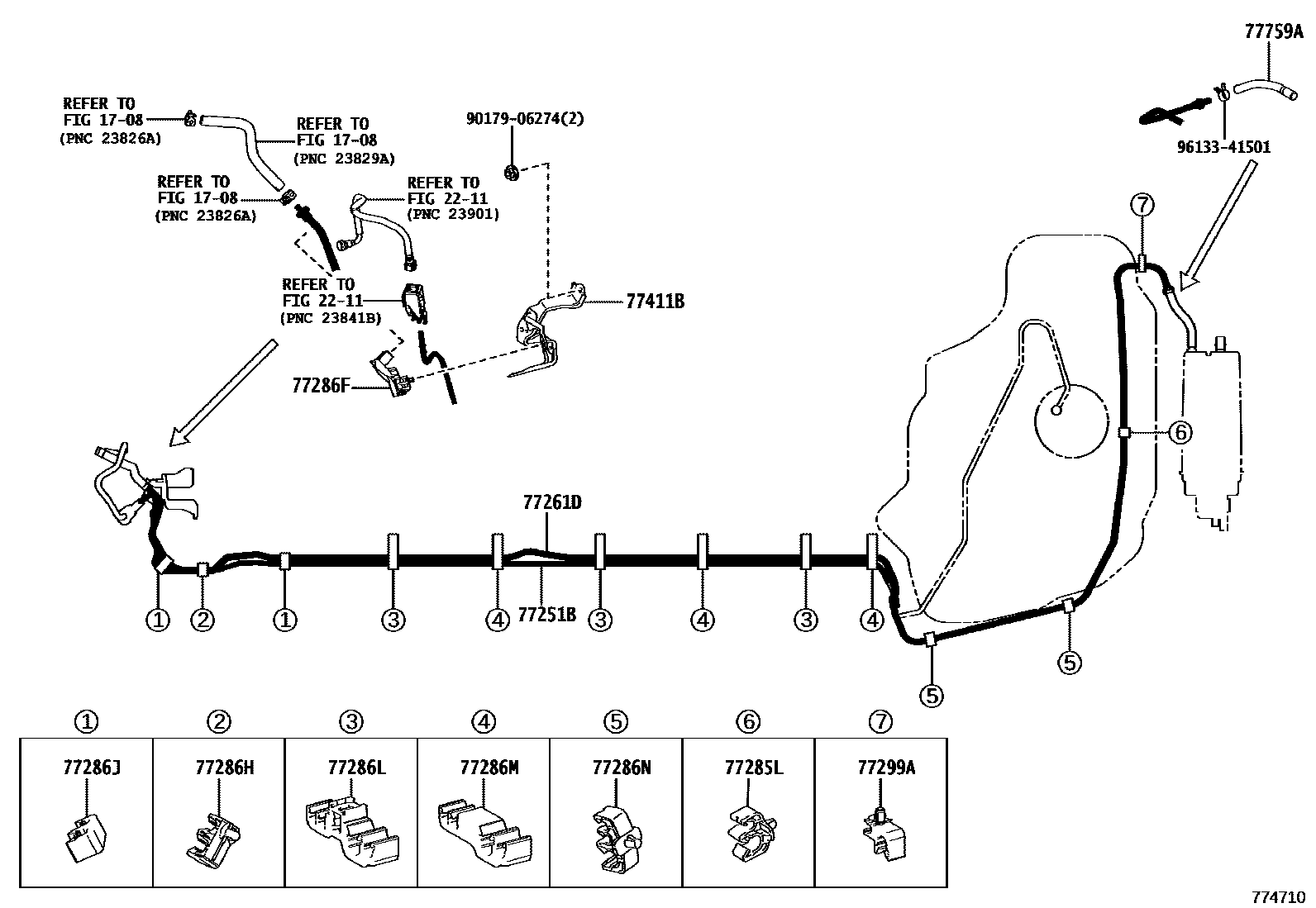

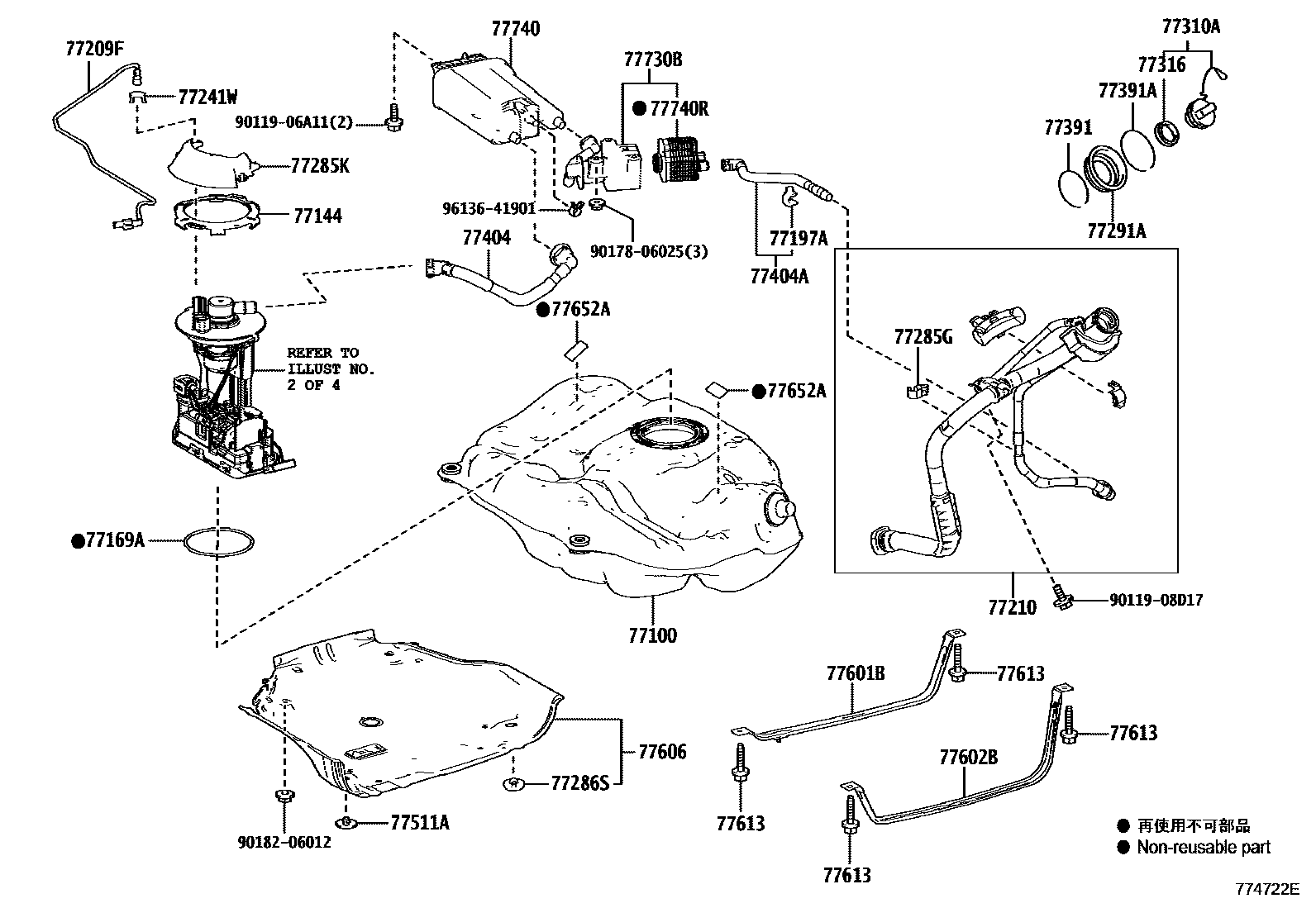

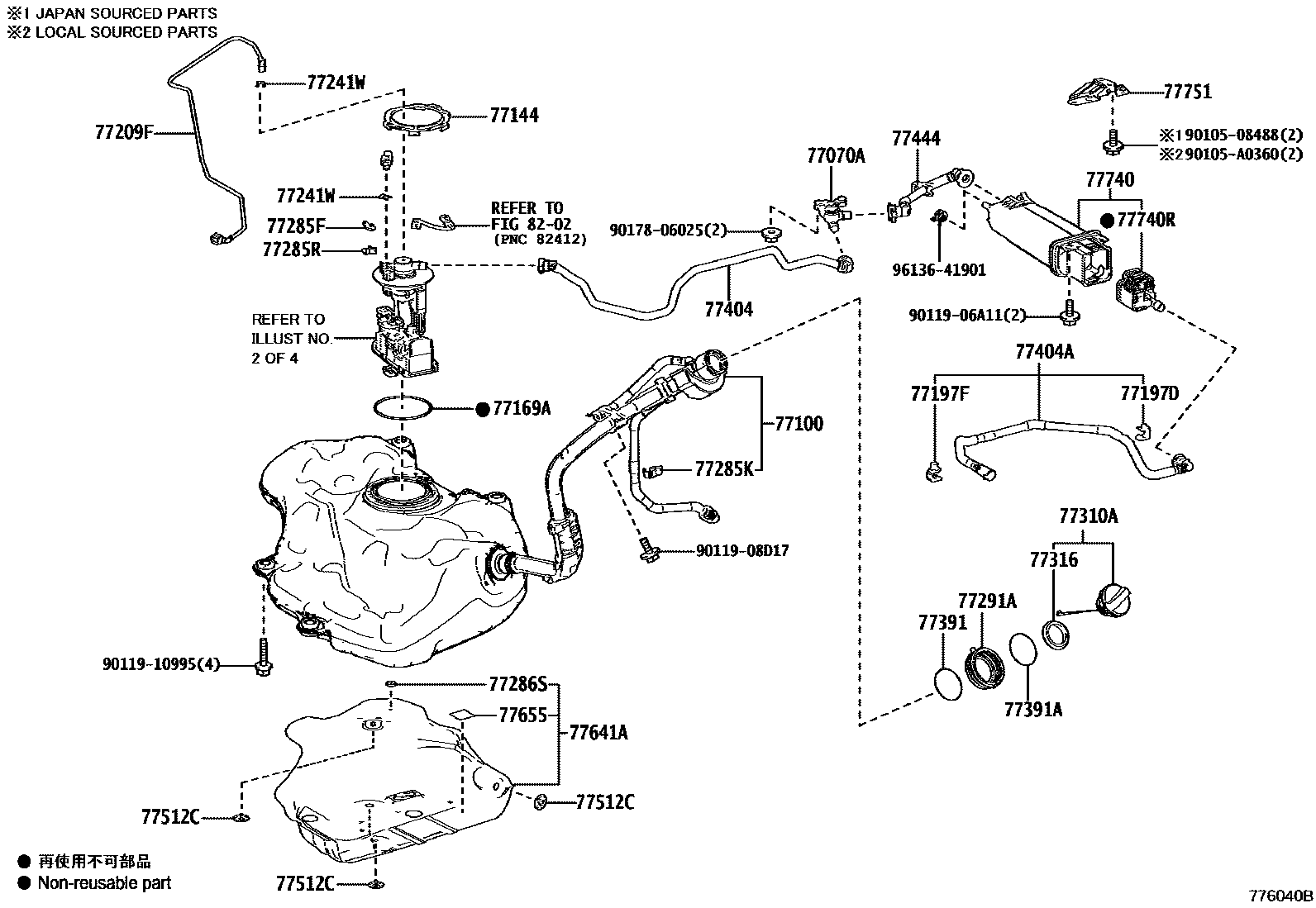

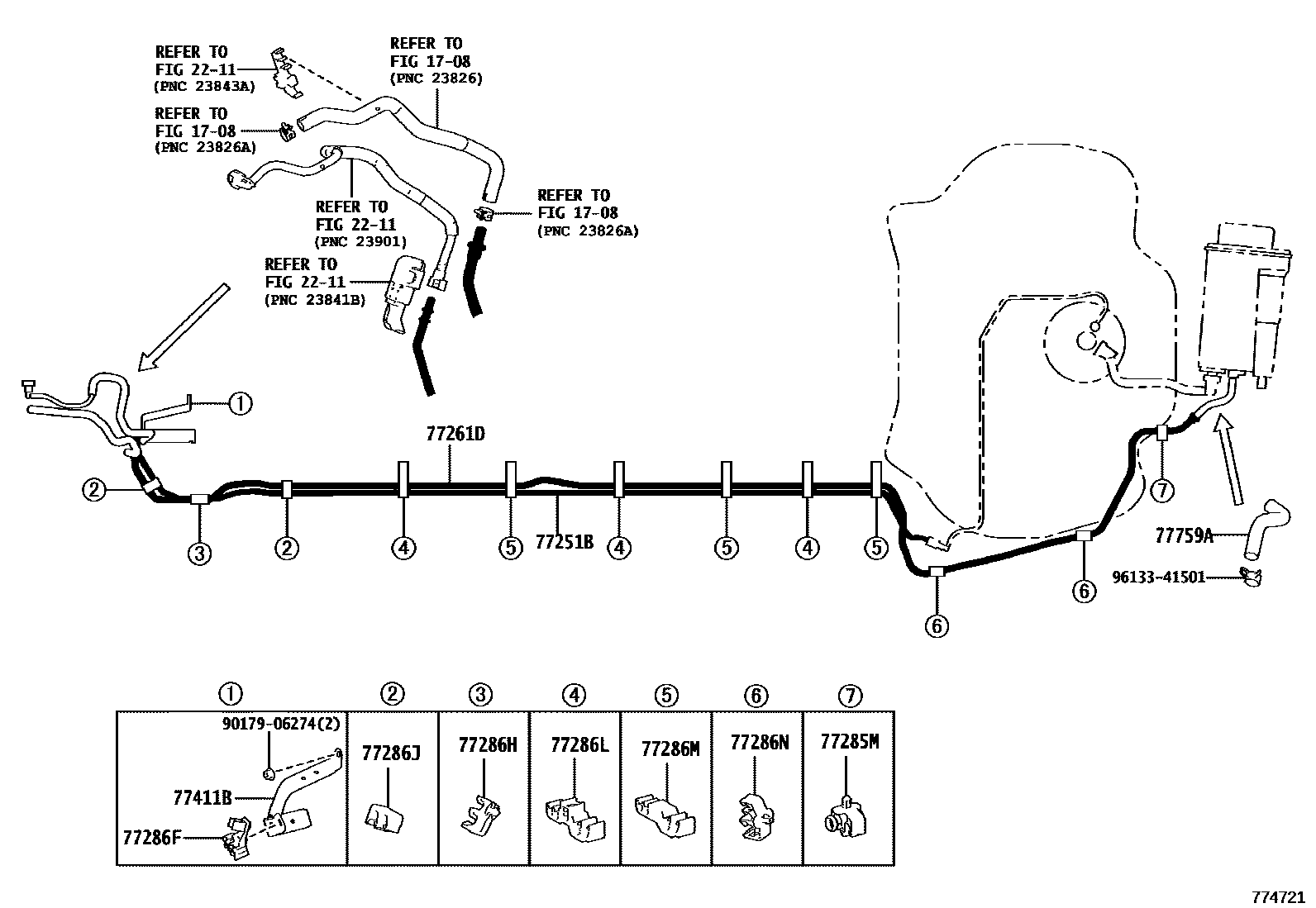

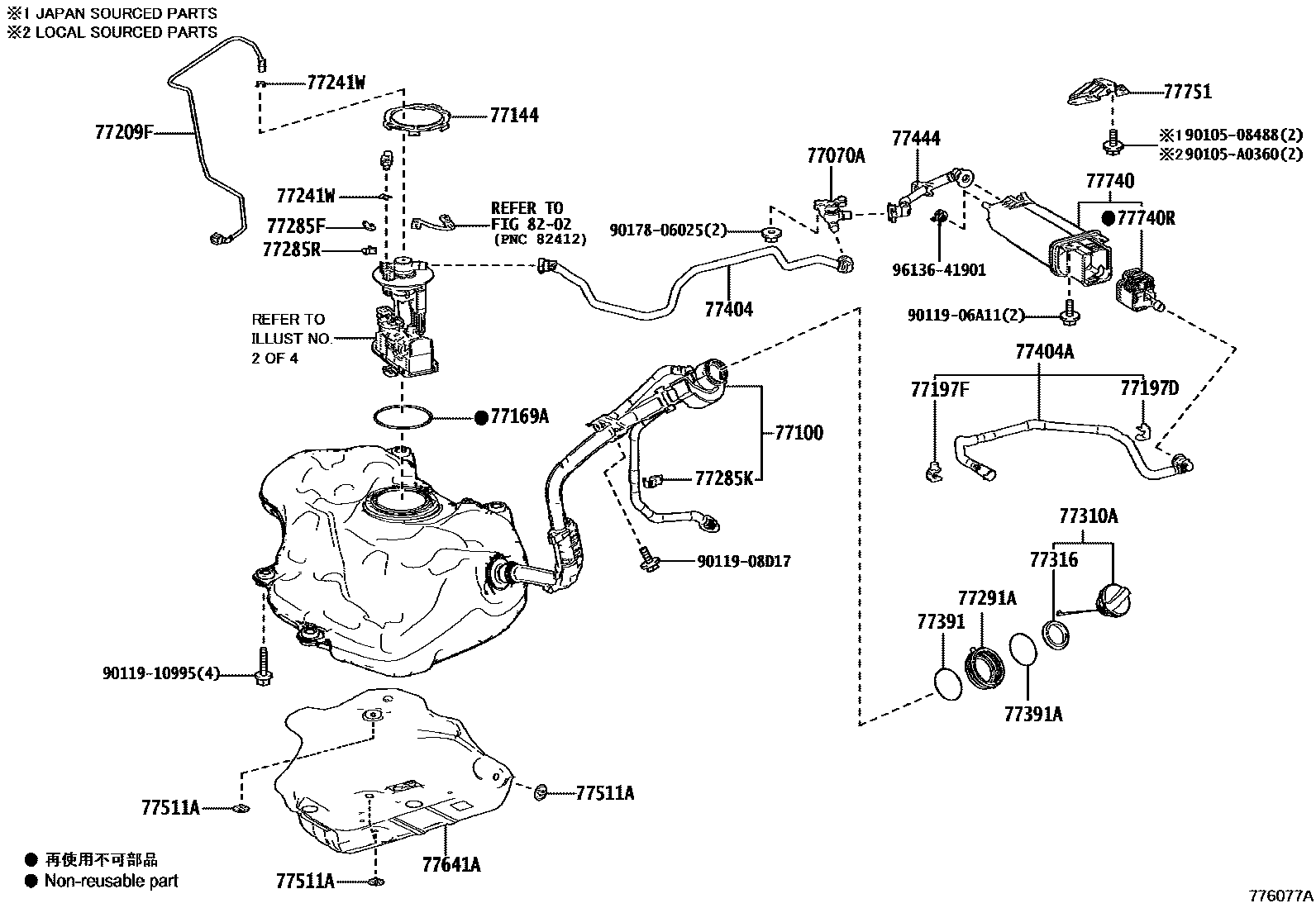

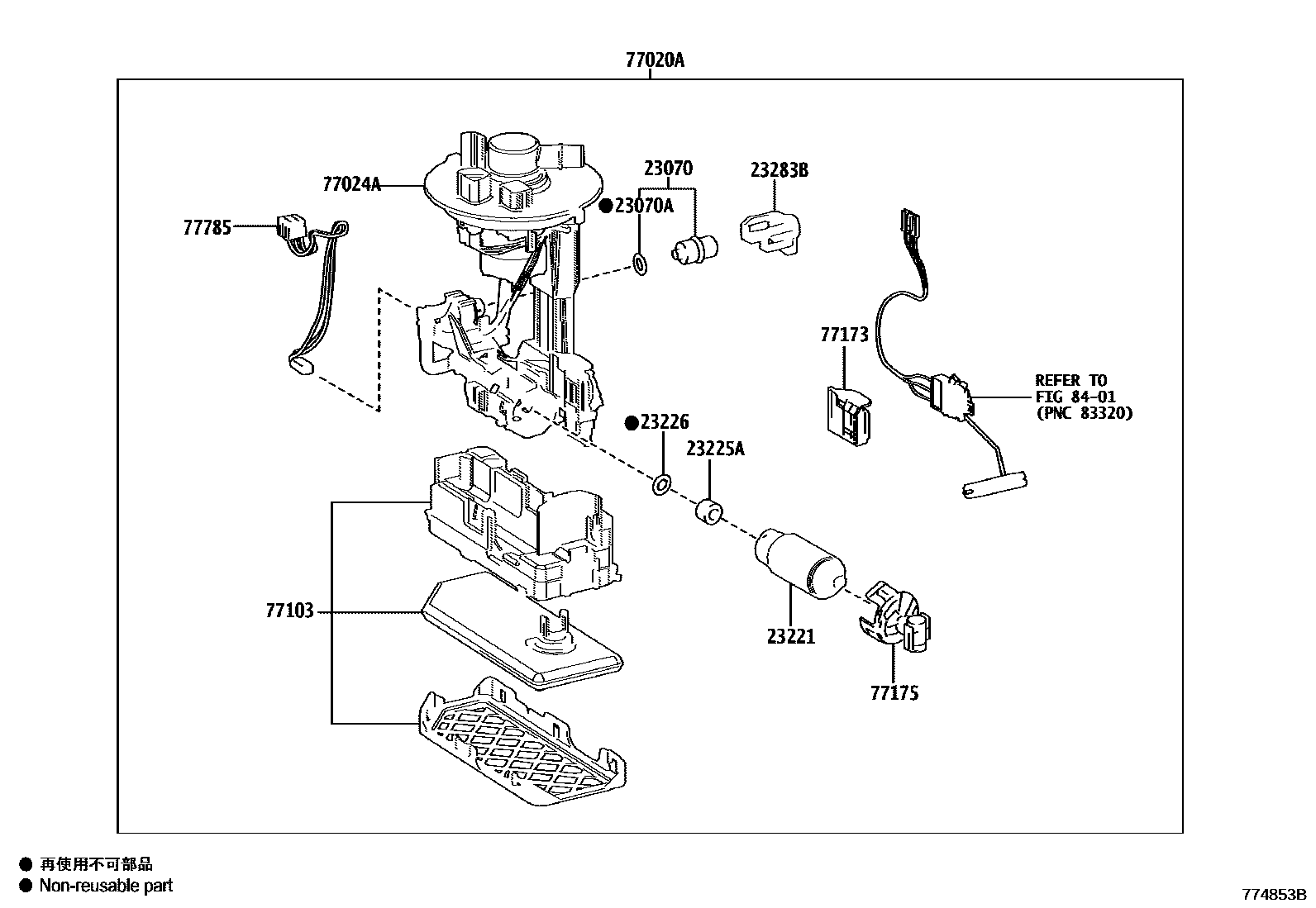

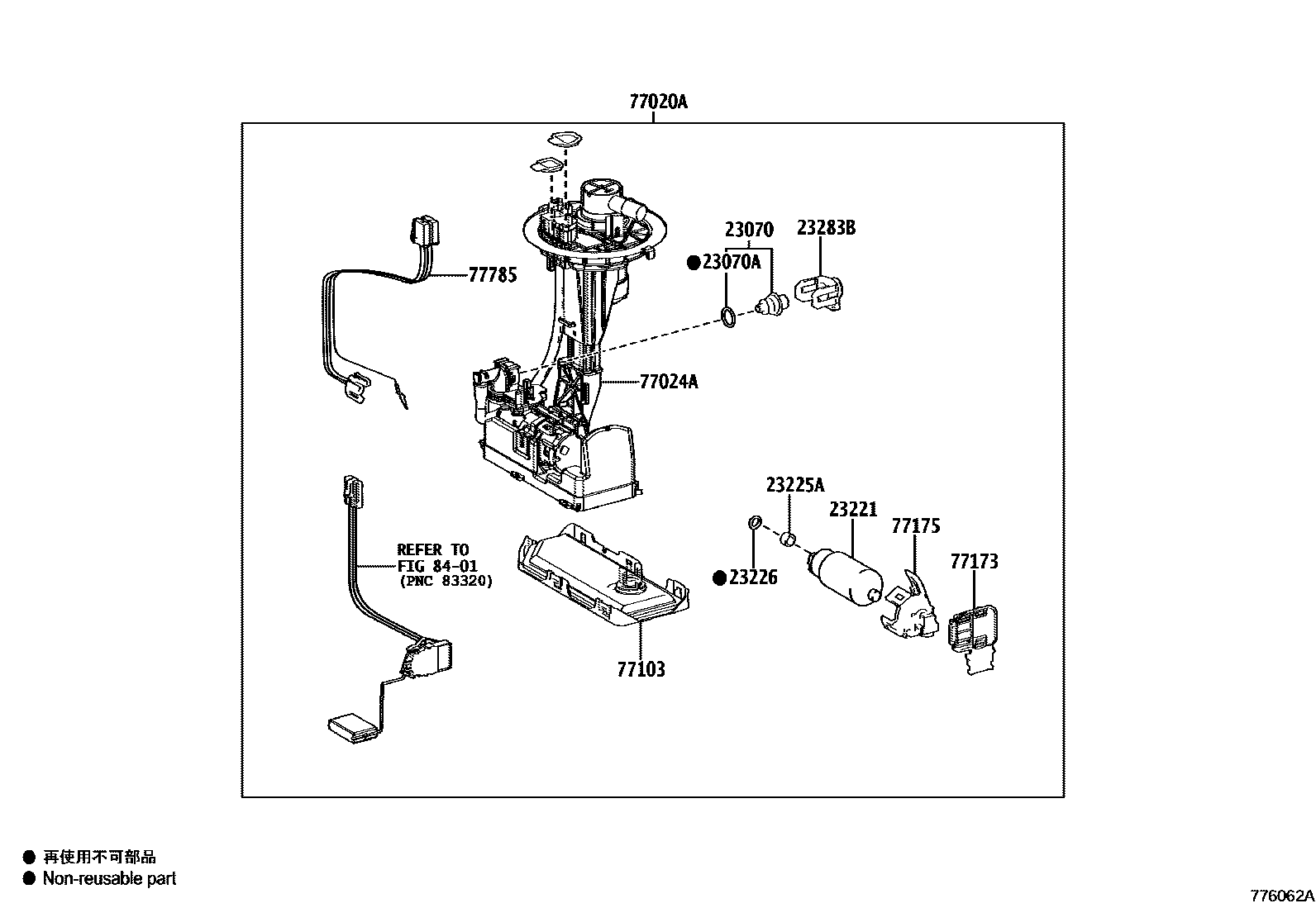

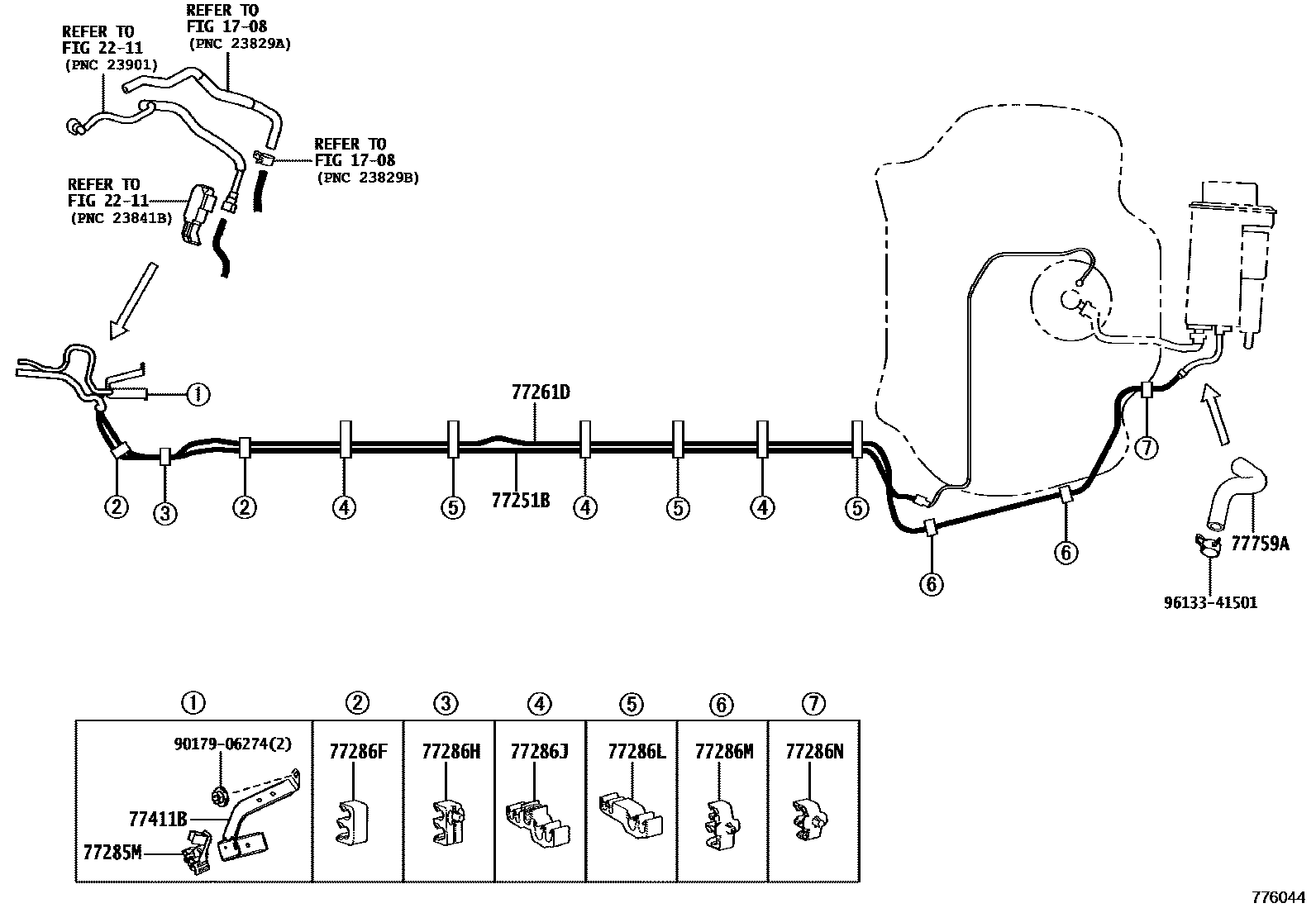

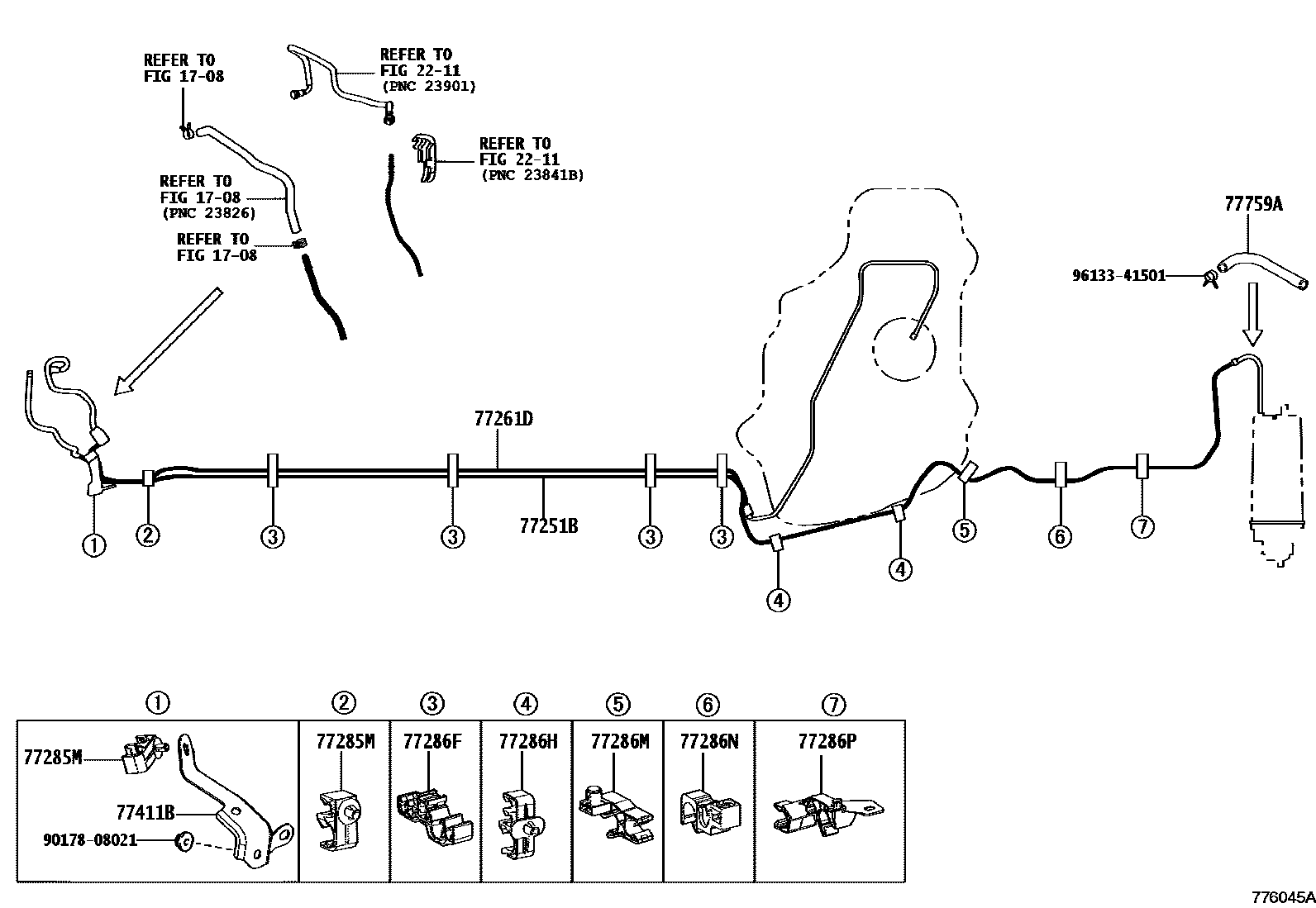

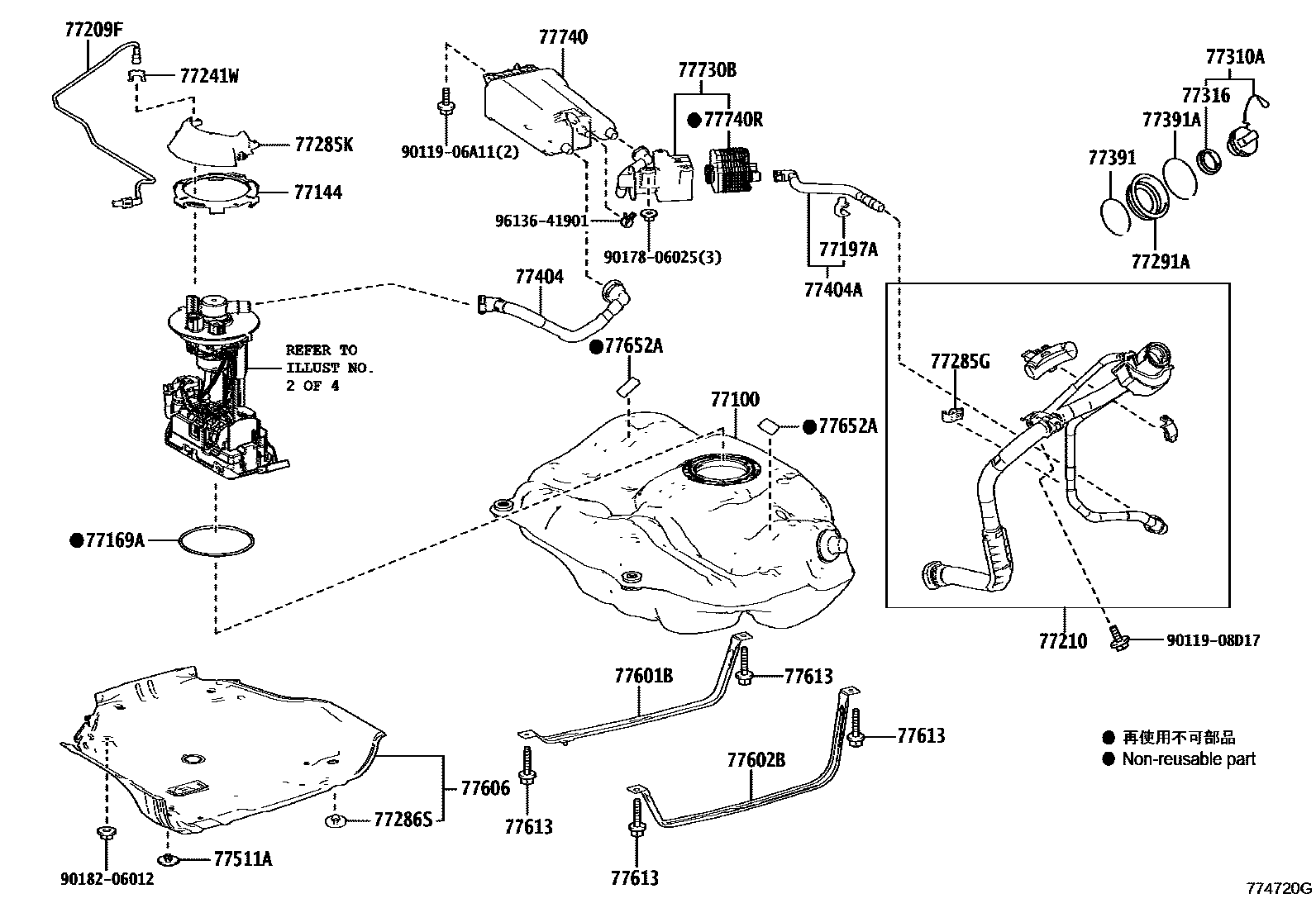

Toyota COROLLA EPC diagram 7701, 燃油箱和燃油管, with 20 images and 77 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23070 | Main fuel valve assembly | 23070-25020 |
| 23070A | JOINT, TORIQUE, NO.1(POUR SOUP PRINC CARB) | 90301-15024 |
| 23221 | fuel pump | 23221-25030 · 23221-37040 · 23221-47031 |
| 23225A | fuel pump septum | 23225-21020 · 23225-31020 |
| 23226 | O-ring (for fuel pump) | 90301-08019 · 90301-08020 |
| 23280J | Fuel pressure regulator assembly | 23280-21010 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-04013 |
| 23280N | JOINT TORIQUE (DE REGULATEUR PRESSION ESSENCE), NO.2 | 90301-15024 |
| 23283B | SUPPORT REGULATEUR PRESSION ESSENCE | 23283-24010 · 23283-37010 |
| 64648A | Trunk door lock opener seal | 64648-12020 |

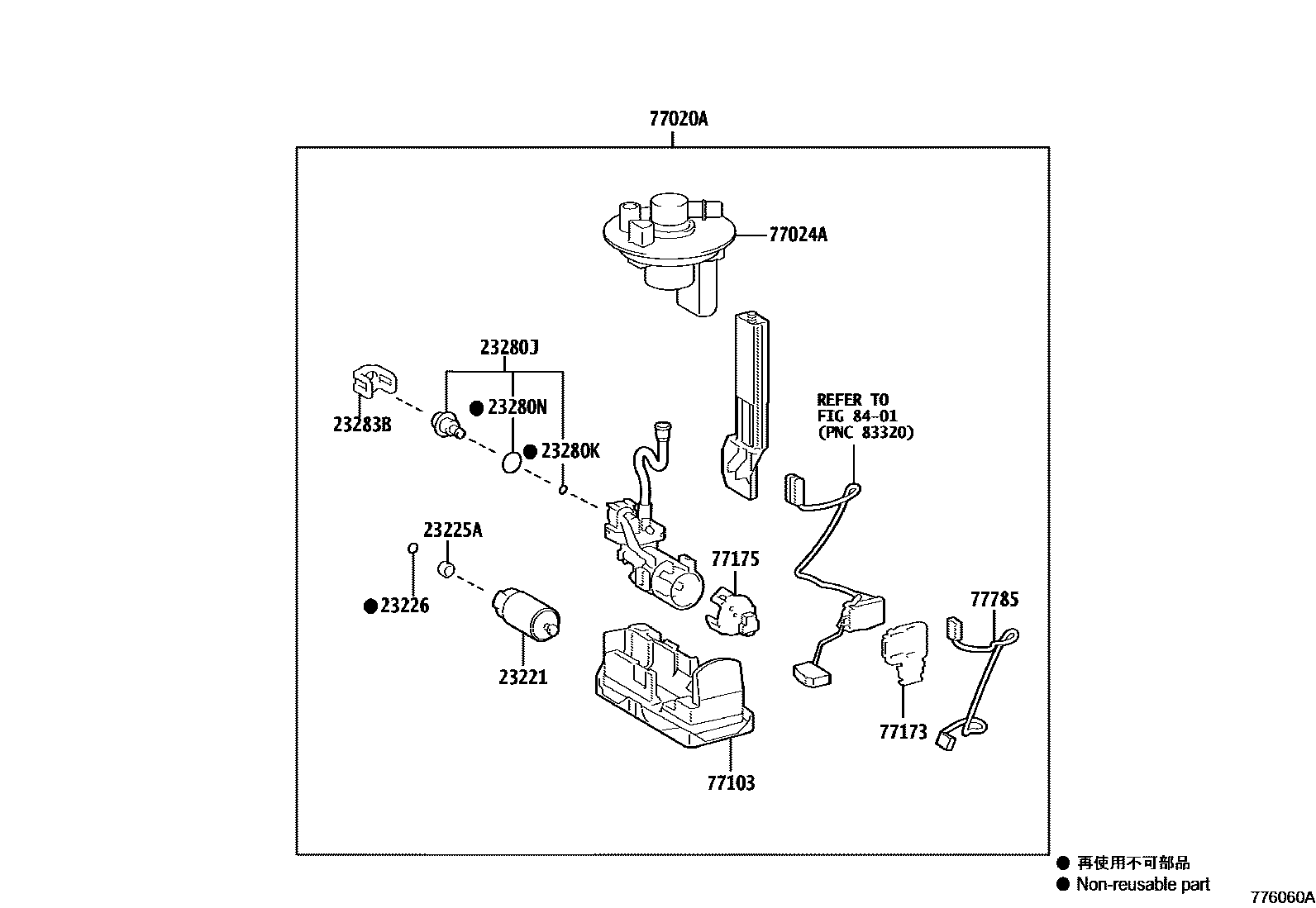

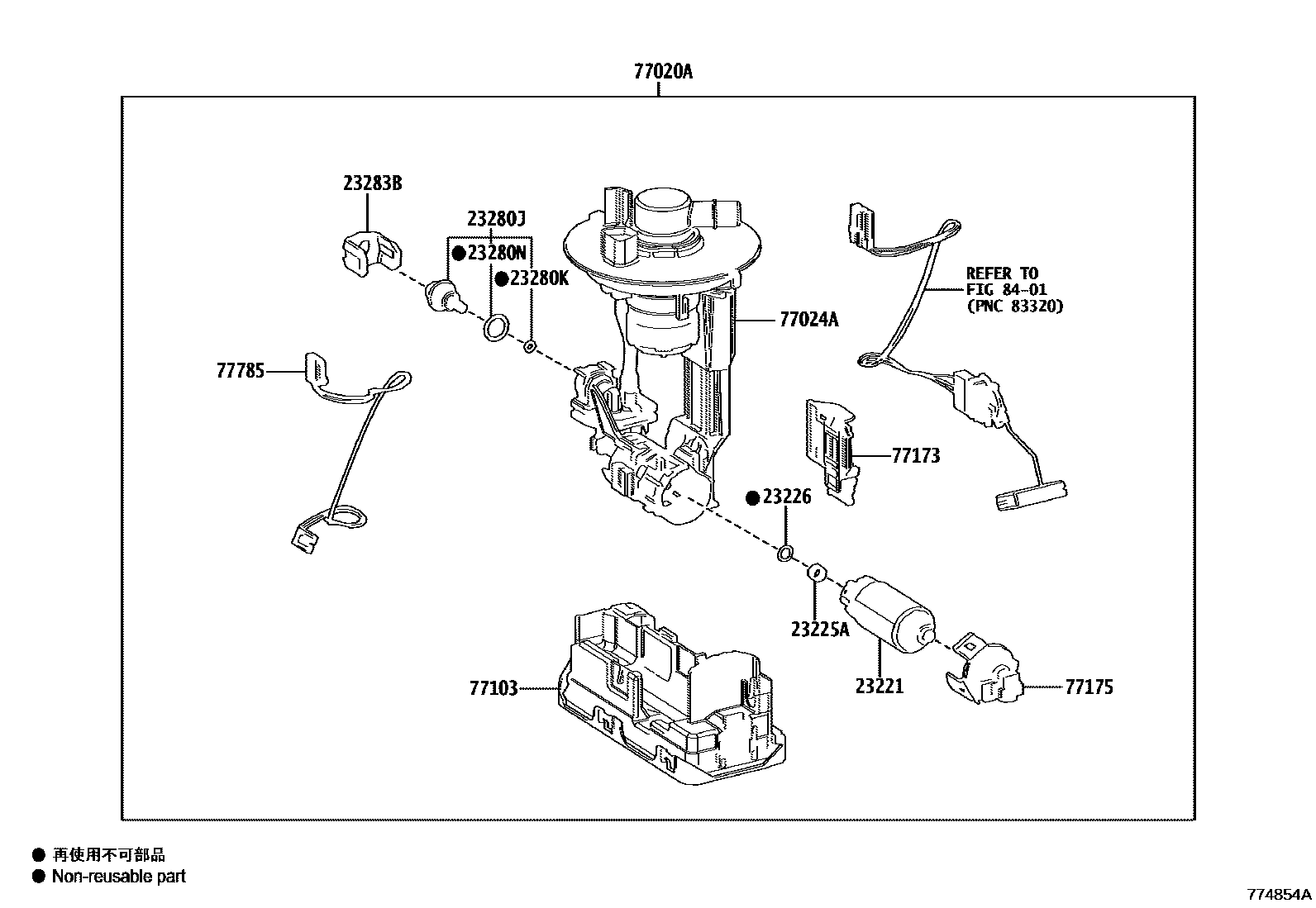

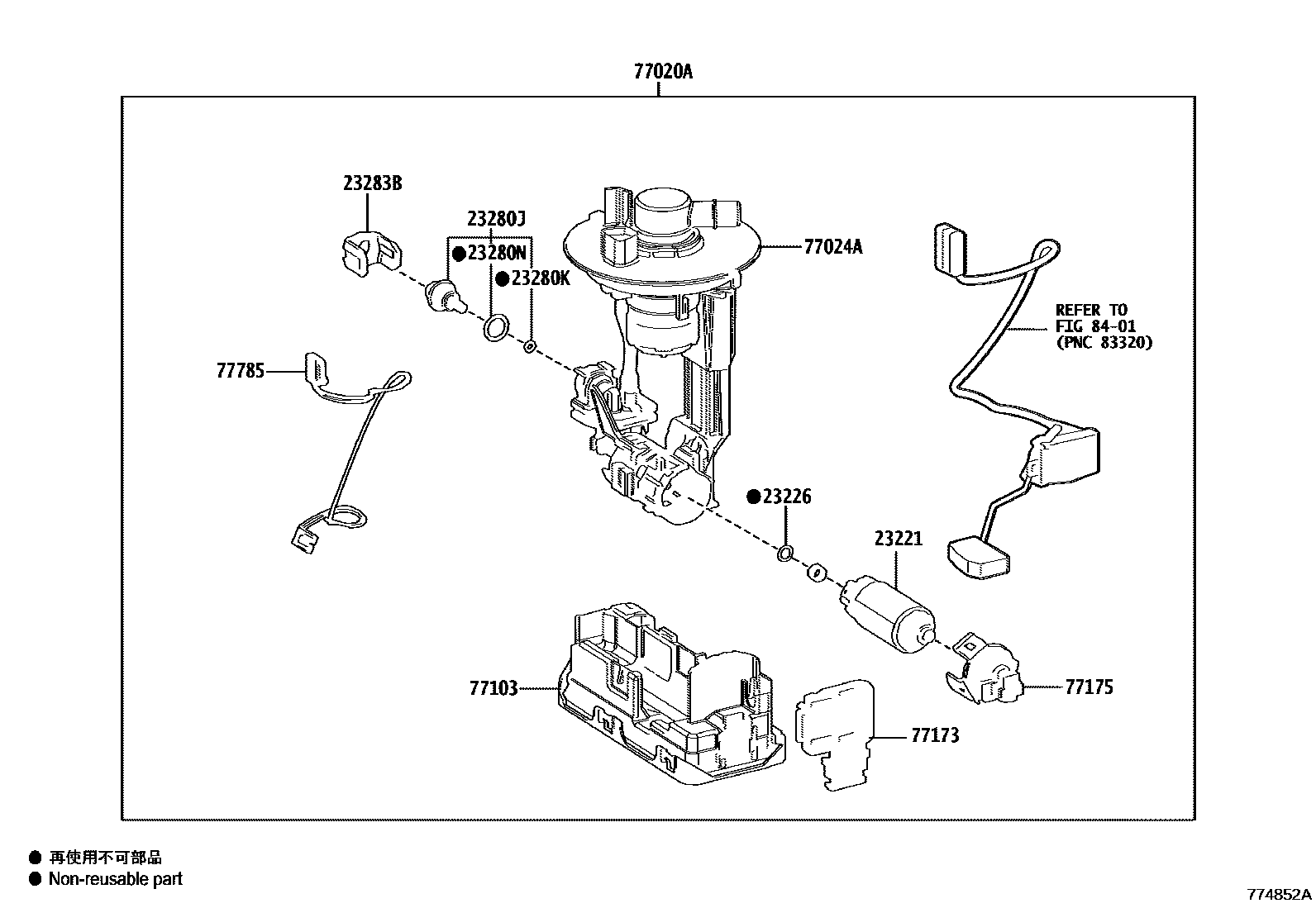

| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-12A00 · 77020-12A20 · 77020-12A70 · 77020-12A80 · 77020-47180 |
| 77024A | Fuel absorber sub-assembly | 77024-12250 · 77024-12340 · 77024-12350 · 77024-12360 · 77024-47120 |
| 77030A | Fuel filler cap lock assembly with motor | 77030-12010 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-12620 |
| 77070A | ENS. SOUPAPE, FERM RESERVOIR | 90910-15087 |
| 77100 | fuel tank assembly | 77001-12D60 · 77001-12E90 · 77001-12F00 · 77001-12F20 · 77001-12F21 · 77001-12F40 · 77001-12F41 · 77001-47170 |
| 77103 | SOUS-ENS. RESERVOIR AUX, CARB | 77103-12150 · 77103-12160 · 77103-12190 |
| 77144 | Fuel pump instrument fixture | 77144-30030 |
| 77169A | Fuel suction pipe fixed gasket | 77169-47040 |
| 77173 | SUPPORT, JAUGE CARB | 77173-12010 · 77173-12020 |
| 77175 | No. 2 oil suction pipe bracket | 77175-12030 · 77175-12040 |
| 77197A | No. 2 evaporation vent pipe clamp | 77197-47010 |
| 77197D | No. 2 evaporation vent pipe clamp | 77197-42020 |
| 77197F | No. 2 evaporation vent pipe clamp | 77197-47010 |
| 77209F | Fuel tank main pipe sub-assembly | 77209-12310 · 77209-12320 · 77209-12340 · 77209-12390 · 77209-76010 |
| 77210 | ENS. TUYAU, REMPLISSAGE DU RESERVOIR A CARBURANT | 77210-12610 · 77210-12611 |
| 77241W | Pipe joint clip | 77241-33011 · 77241-60550 |
| 77251B | main fuel pipe | 77251-12A00 · 77251-12A10 · 77251-12A20 · 77251-12A70 · 77251-12A80 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-12660 · 77261-12680 · 77261-12780 · 77261-12800 · 77261-12810 |
| 77285F | No. 1 fuel pipe clamp | 77285-42240 |
| 77285G | No. 1 fuel pipe clamp | 77285-47120 |
| 77285K | No. 1 fuel pipe clamp | 77285-10060 · 77285-30350 · 77285-47120 |
| 77285L | No. 1 fuel pipe clamp | 77285-12170 |
| 77285M | No. 1 fuel pipe clamp | 77285-12170 · 77285-78010 · 77286-12290 · 77286-78040 |
| 77285R | No. 1 fuel pipe clamp | 77285-10060 · 77285-30350 |
| 77286F | No. 2 fuel pipe clamp | 77286-12260 · 77286-12280 · 77286-12290 · 77286-75010 · 77289-12070 · 77298-10050 |
| 77286H | No. 3 fuel pipe clamp | 77286-12220 · 77286-12240 · 77286-47050 · 77298-10070 |
| 77286J | No. 4 fuel pipe clamp | 77285-47110 · 77289-12070 · 77289-12080 · 77298-10080 · 77298-12160 |
| 77286L | No. 5 fuel pipe clamp | 77298-12160 · 77298-12170 · 77298-12180 · 77299-47020 |
| 77286M | No. 6 fuel pipe clamp | 77285-47110 · 77286-12230 · 77298-12170 · 77298-12190 · 77299-12070 |
| 77286N | No. 7 fuel pipe clamp | 77285-12170 · 77285-60J00 · 77286-12230 · 77299-30070 |
| 77286P | No. 8 fuel pipe clamp | 77299-12080 |
| 77286S | Fuel tank protective shell cushion | 77286-12110 |
| 77291A | Fuel tank filler pipe cover | 77291-12250 |
| 77299A | No. 5 fuel pipe clamp | 77299-12040 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 64606-12120 · 64606-12130 |
| 77310A | Fuel tank cap assembly | 77300-53030 · 77300-53040 |
| 77316 | fuel tank cap gasket | 77316-75020 |
| 77350 | Fuel filler cap assembly | 77350-12570 |
| 77360A | ENS. RESSORT, COUVERCLE OUVERTURE DU REMPLISSAGE RESERVOIR | 77360-30080 |
| 77377 | Fuel filler cap lock retainer | 77377-12100 · 77377-12110 |
| 77378A | Fuel filler cap lock cover | 77378-12020 |
| 77379A | ENTRETOISE, LEVIER OUV TRAPPE CARB | 77379-12030 |
| 77391 | fuel inlet ring | 77391-12020 |
| 77391A | fuel inlet ring | 77391-20040 |
| 77404 | Fuel tank vent hose sub-assembly | 77404-12090 · 77404-12210 · 77404-12260 · 77404-12270 · 77404-12290 |
| 77404A | Fuel tank vent hose sub-assembly | 77404-12100 · 77404-12200 · 77404-12300 |
| 77411B | No. 1 fuel pipe retaining ring bracket | 77411-12020 · 77411-12030 · 77411-47040 |
| 77444 | fuel tank vent hose | 77404-12320 · 77404-47180 |
| 77511A | fuel tank bracket | 77512-35140 |
| 77511B | fuel tank bracket | 77512-47030 |
| 77512C | SUPPORT, RESERVOIR CARB | 77512-35140 |
| 77601B | No. 1 fuel tank right side band sub-assembly | 77601-10080 |
| 77602B | No. 1 fuel tank left side band sub-assembly | 77602-10030 |
| 77606 | No. 1 fuel tank protective shell sub-assembly | 77606-10060 · 77606-47030 |
| 77613 | Fuel tank strap fixing bolts | 90119-10995 |
| 77641A | No. 1 fuel tank protective shell | 77641-16040 · 77641-47060 · 77641-47100 · 77641-47140 |
| 77642A | No. 2 fuel tank protective shell | 77642-16020 |
| 77652A | No. 2 fuel tank liner | 77652-10070 |
| 77655 | No. 3 fuel tank liner | 77653-10060 |
| 77710B | Fuel tank solenoid valve main valve assembly | 77710-47020 |
| 77730B | ENS. CARTOUCHE, CHARBON AV TUYAU SORTIE | 77730-12010 |
| 77740 | Carbon canister assembly | 77740-12770 · 77740-33220 |
| 77740R | Leak detection pump sub-assembly | 90910-14008 · 90910-AF006 |
| 77751 | Carbon canister base bracket | 77751-12340 |
| 77759A | Carbon canister hose | 77759-12110 · 77759-12120 · 77759-12140 |
| 77785 | fuel pump wiring harness | 77785-12040 · 77785-12050 · 77785-12060 |
