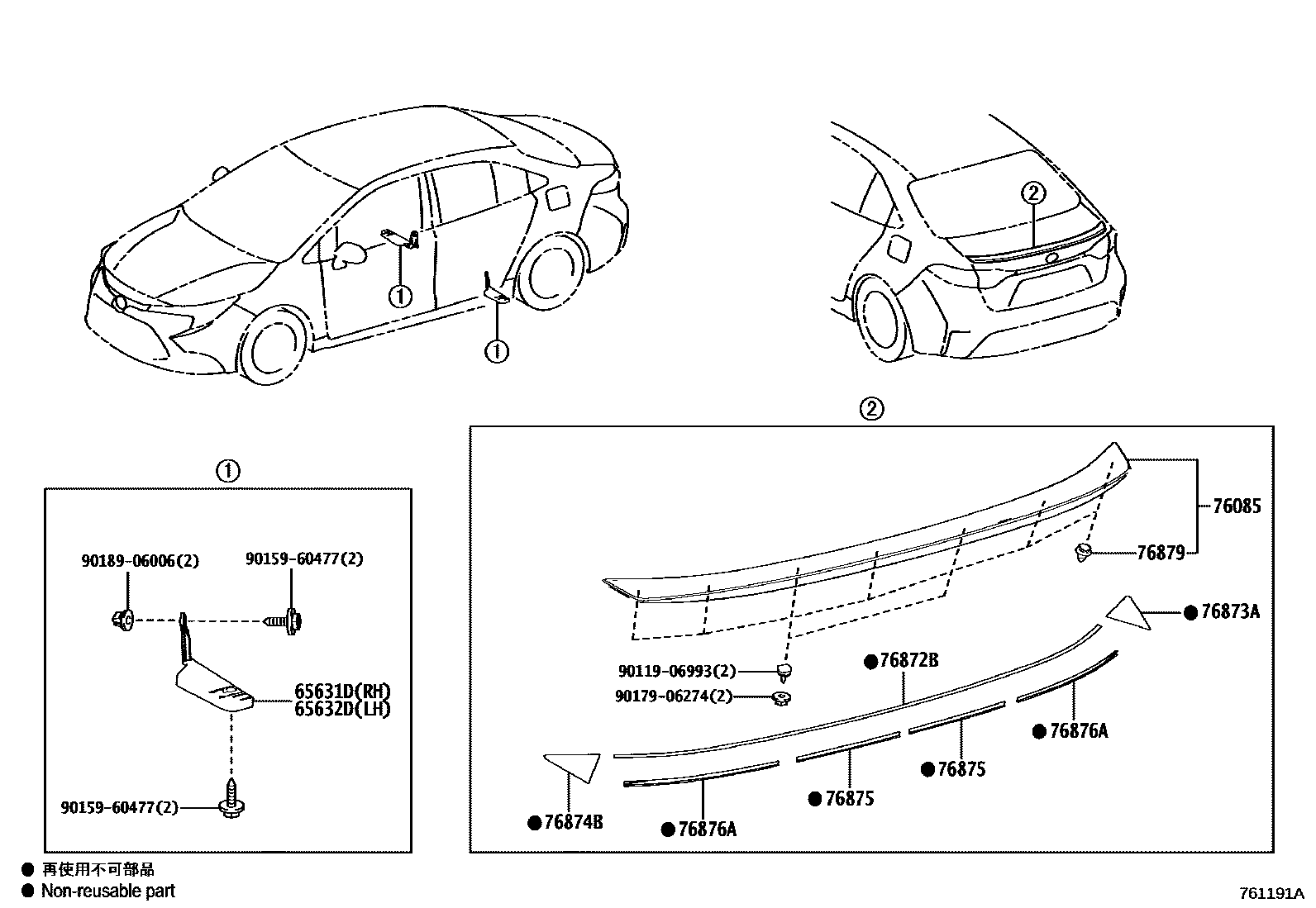

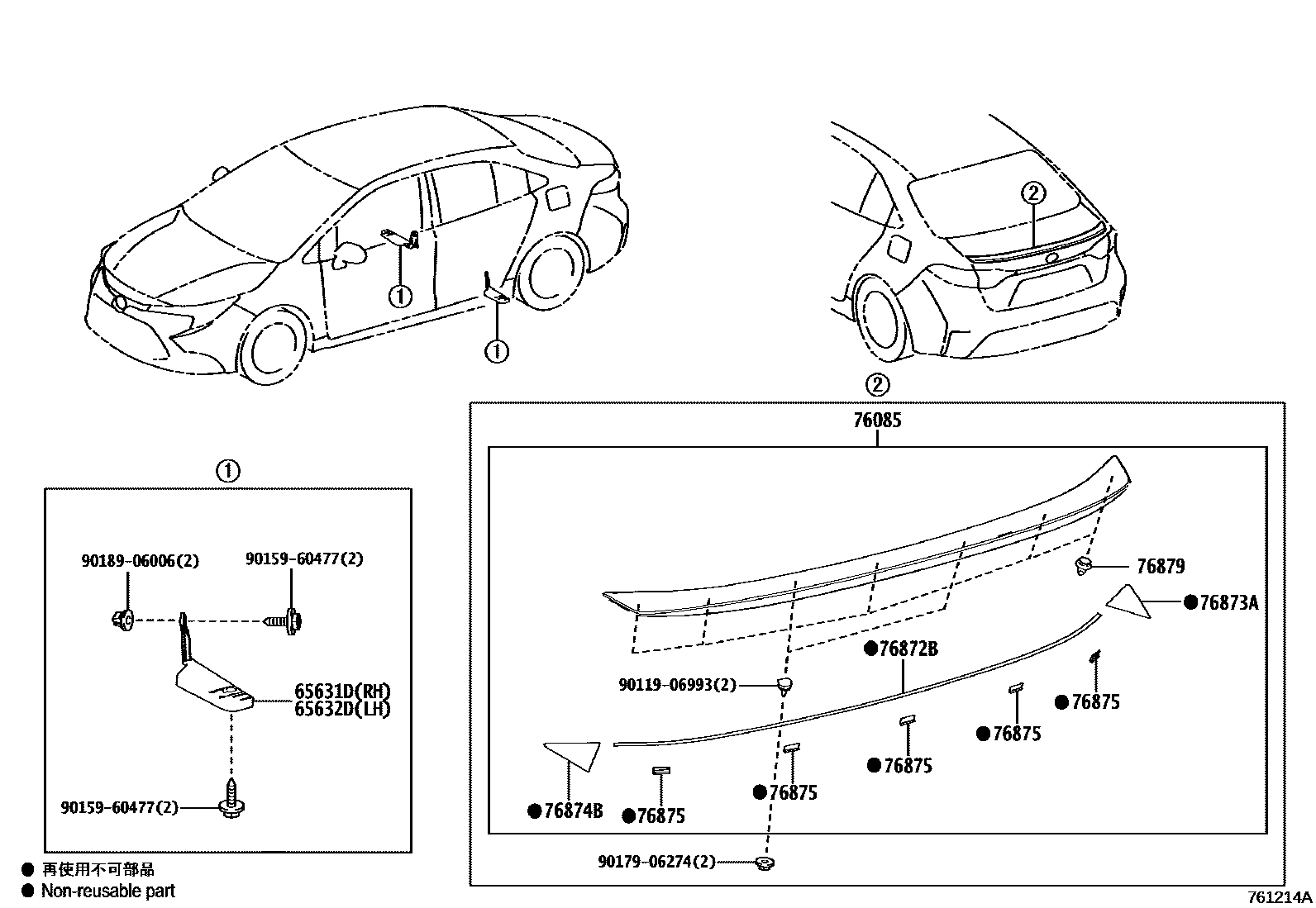

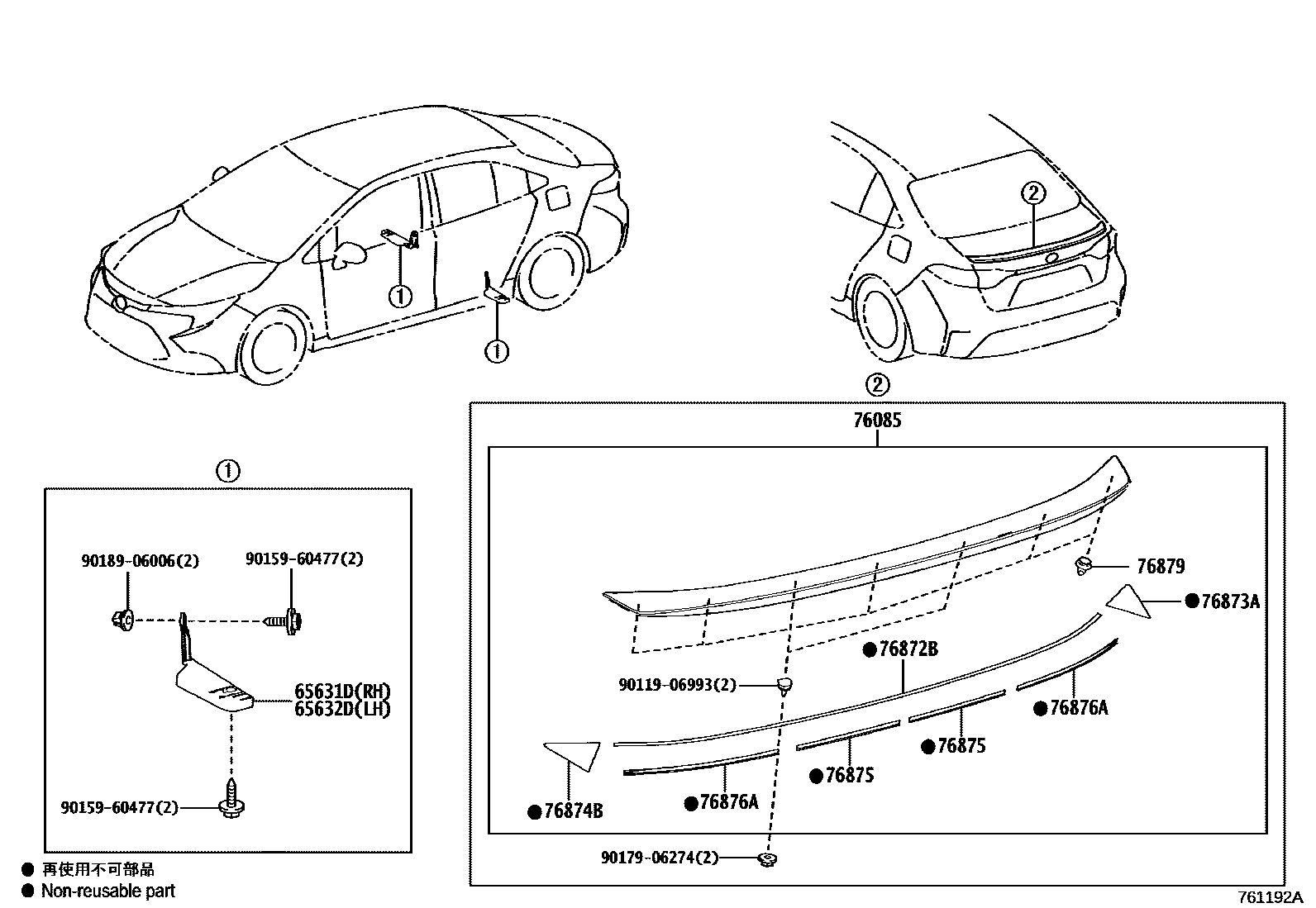

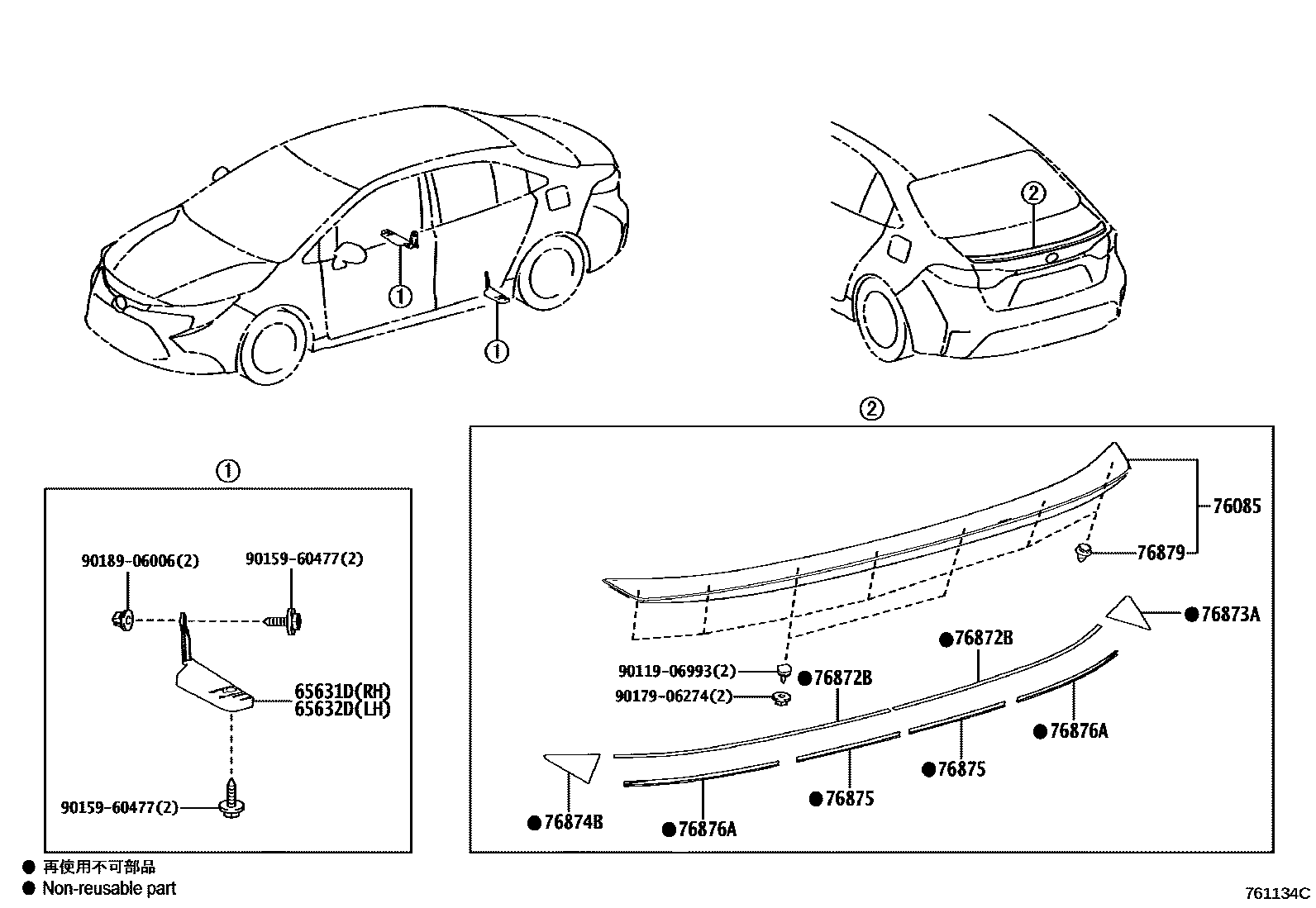

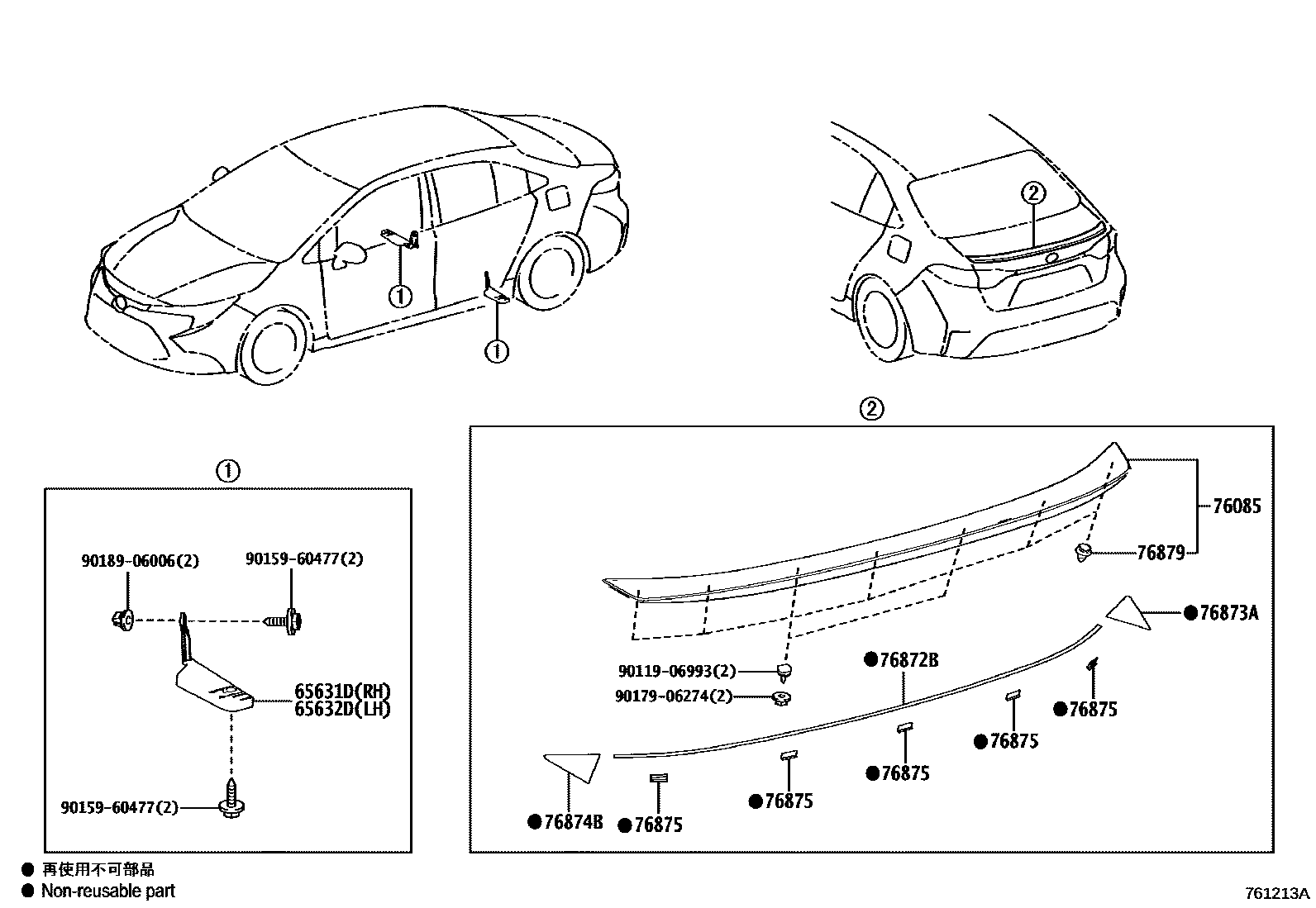

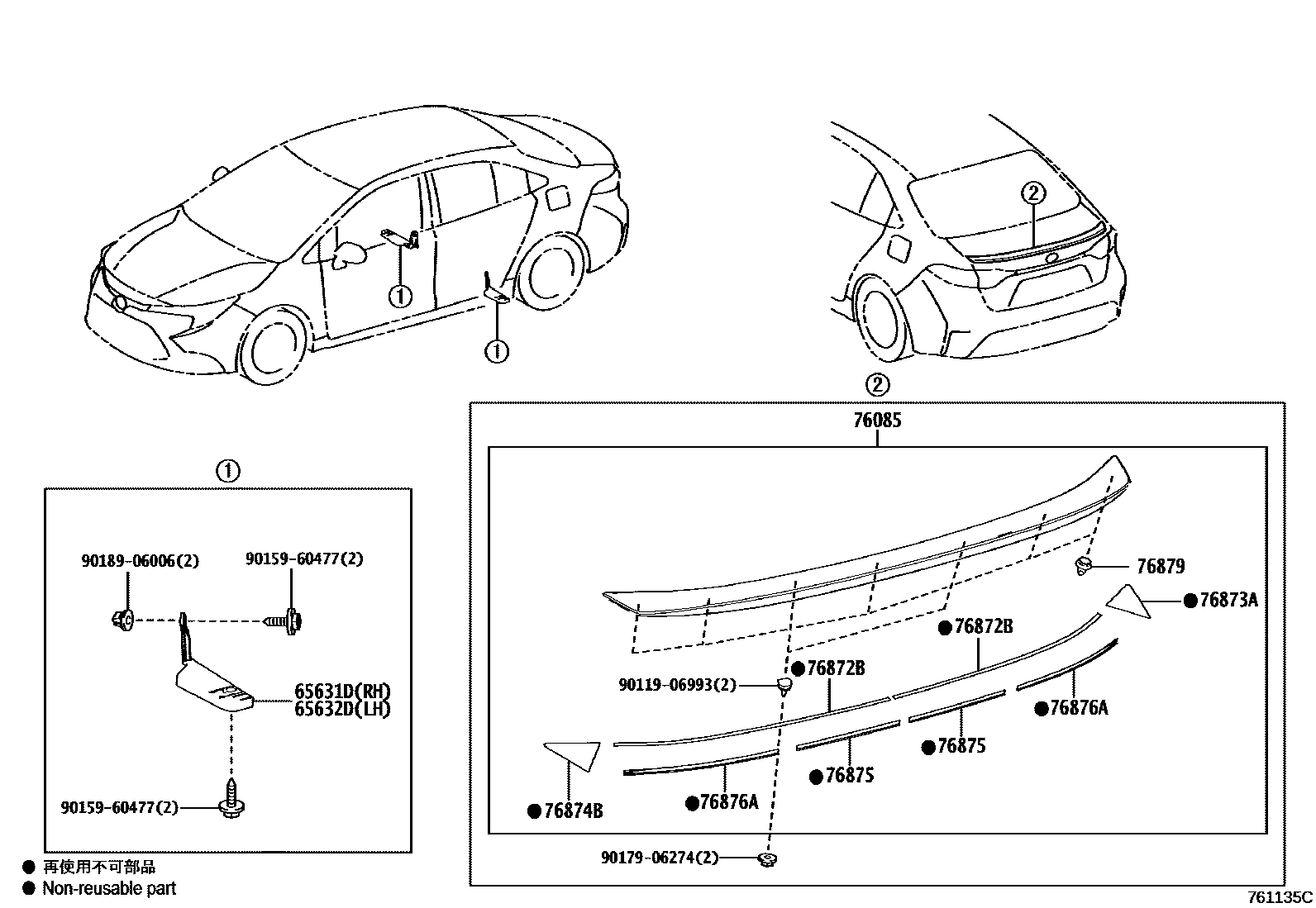

Toyota COROLLA 挡泥板和扰流板 — Figure 7601
Toyota COROLLA EPC diagram 7601, 挡泥板和扰流板, with 6 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65631D | Right rear wheel house front panel | 65631-12110 |
| 65632D | Left rear wheel house front panel | 65632-12110 |
| 76085 | Rear spoiler sub-assembly | 76085-12600 · 76085-12620 · 76085-12926 |
| 76872B | Rear center spoiler protective strip | 76872-12250 |
| 76873A | Right rear spoiler protective strip | 76873-12250 |
| 76874B | Left rear spoiler protective strip | 76874-12250 |
| 76875 | No. 4 rear spoiler protective strip | 76875-12160 |
| 76876A | No. 10 rear spoiler protective strip | 76876-12080 |
| 76879 | No. 1 rear spoiler clip | 90467-09206 |
