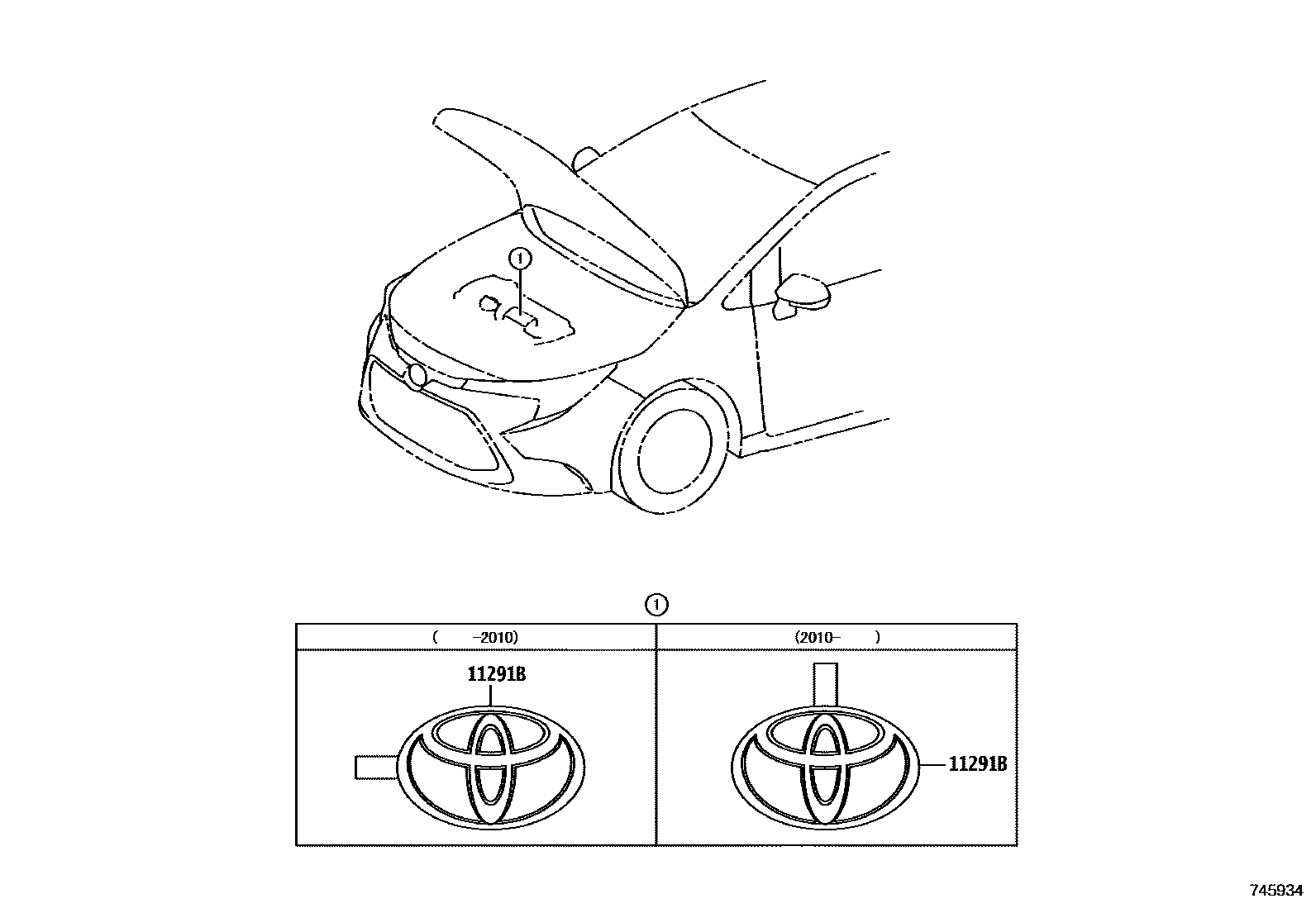

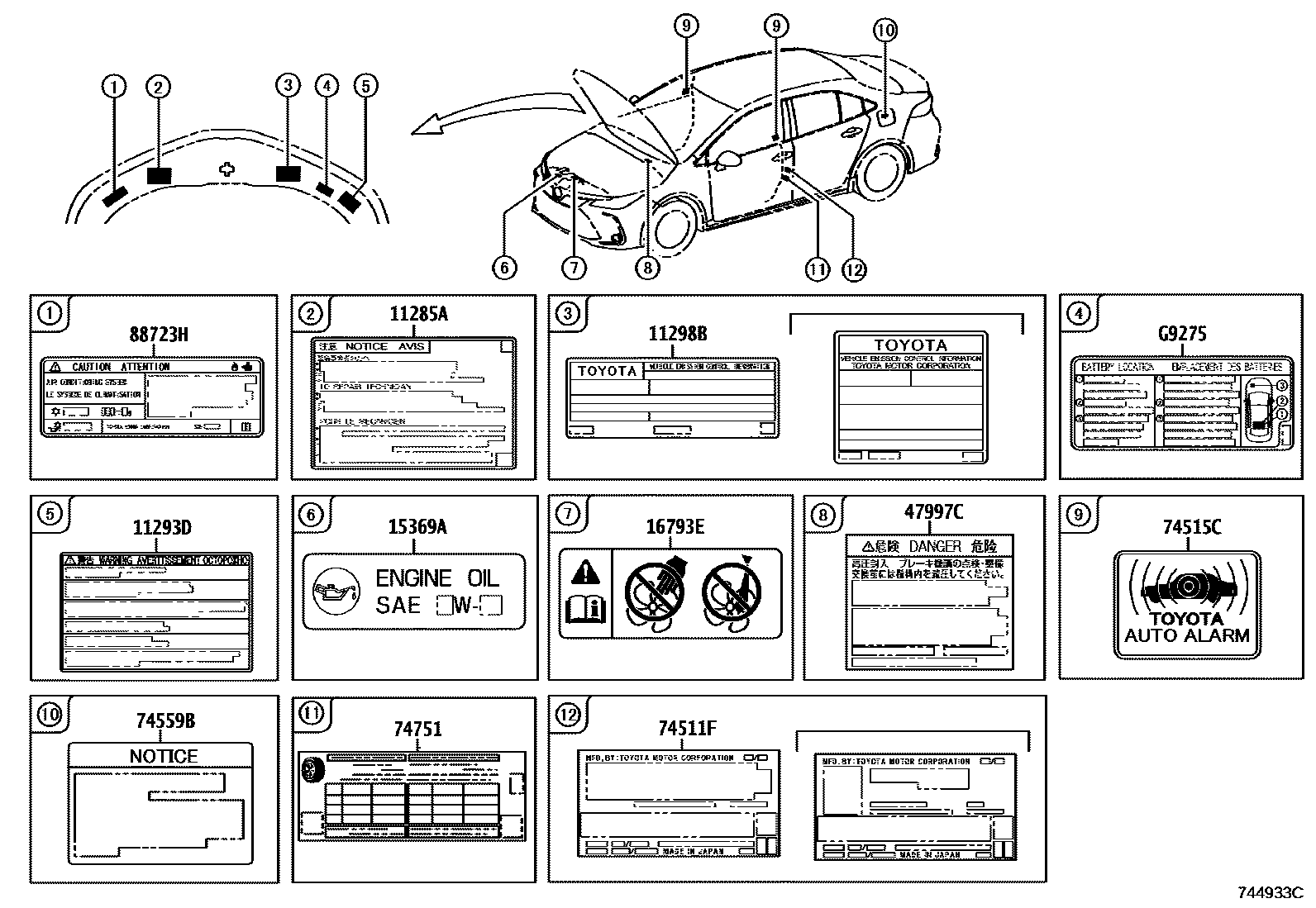

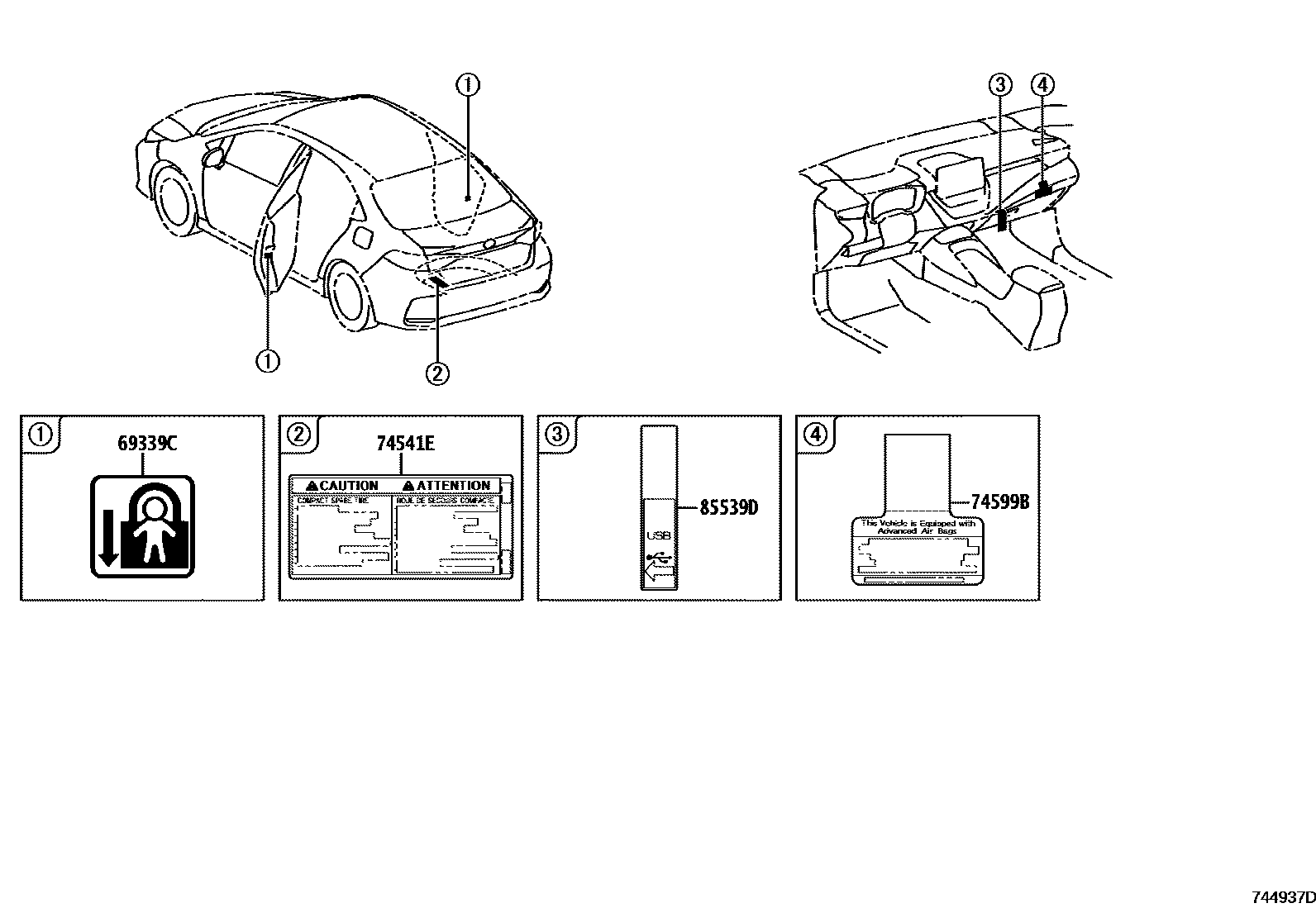

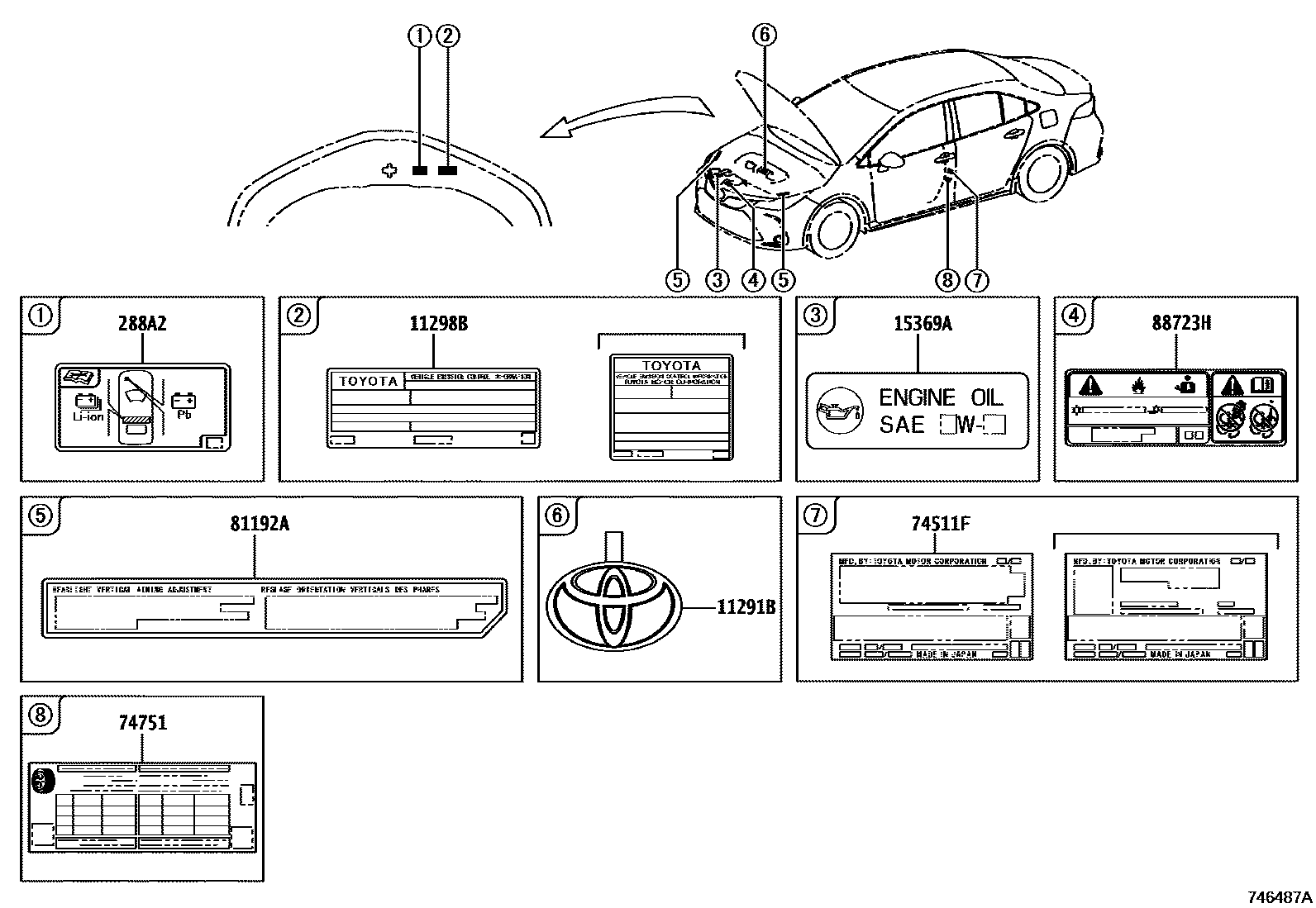

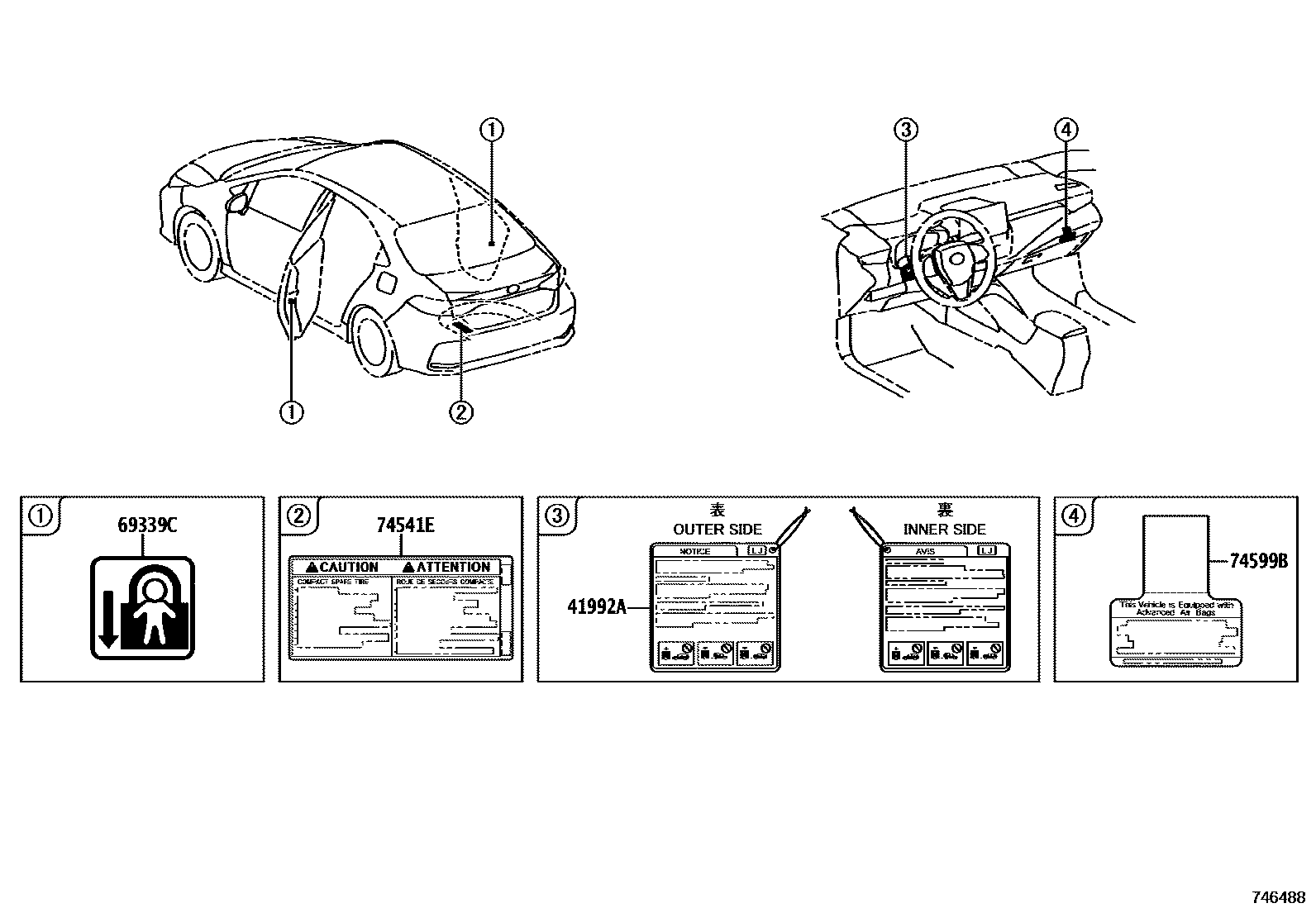

Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403
Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 5 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11285A | Coolant System Caution Labels | 11285-33030 · 11285-33040 |
| 11291B | PLAQUE INDICATRICE DE MOTEUR | 11290-37010 · 11291-37100 · 11291-37130 |
| 11293D | engine warning label | 11293-36070 · 11293-37070 |
| 11298B | Emission Control Information Label | 11298-24120 · 11298-24121 · 11298-24122 · 11298-24123 · 11298-24124 · 11298-24125 · 11298-24126 · 11298-37150 · 11298-37590 · 11298-37600 · 11298-37740 · 11298-37750 · 11298-37760 · 11298-37780 · 11298-37850 · 11298-37A50 |
| 15369A | Engine oil information label | 15369-25010 · 15369-25020 |
| 16793E | ETIQUETTE, PRECAUTION VENT REFROIDISSEMENT | 16793-36030 |
| 288A2 | ETIQUETTE, EMPLACEMENT BATT | 288A2-37020 |
| 41992A | ETIQUETTE, AVERTISSEMENT DIFFERENTIEL, NO.2 | 41992-42030 |
| 47997C | Accumulator No. 1 Warning Label | 47997-76010 |
| 69339C | Child Restraint Information Label | 69339-33040 |
| 74511F | Nameplate (laser identification label) | 74514-33010 · 74514-33020 |
| 74515C | Anti-theft warning information label | 74515-33020 |
| 74541E | Small spare tire warning plate | 42668-28090 · 42668-58070 |
| 74559B | fuel information label | 74559-47030 |
| 74599B | Driver and passenger air bag information labels | 74599-48020 |
| 74751 | tire pressure information label | 42661-12L80 · 42661-12N20 · 42661-12R40 · 42661-12R90 · 42661-12S00 · 42661-12S10 · 42661-12S20 · 42661-12S30 · 42661-12T40 · 42661-12U30 · 42661-12U40 · 42661-12U50 · 42661-12U60 · 42661-12U70 |
| 81192A | headlight seal | 81192-50010 |
| 85539D | Power socket attention labels | 85539-12010 |
| 88723H | Cooler maintenance warning label | 88723-12280 · 88723-12290 · 88723-12350 · 88723-12390 · 88723-16150 |
| G9275 | No. 1 battery warning label | G9275-47110 · G9275-47140 |
