Toyota COROLLA battery holder — Figure 7402

Toyota COROLLA EPC diagram 7402, battery holder, with 4 images and 4 PNC and OE references.

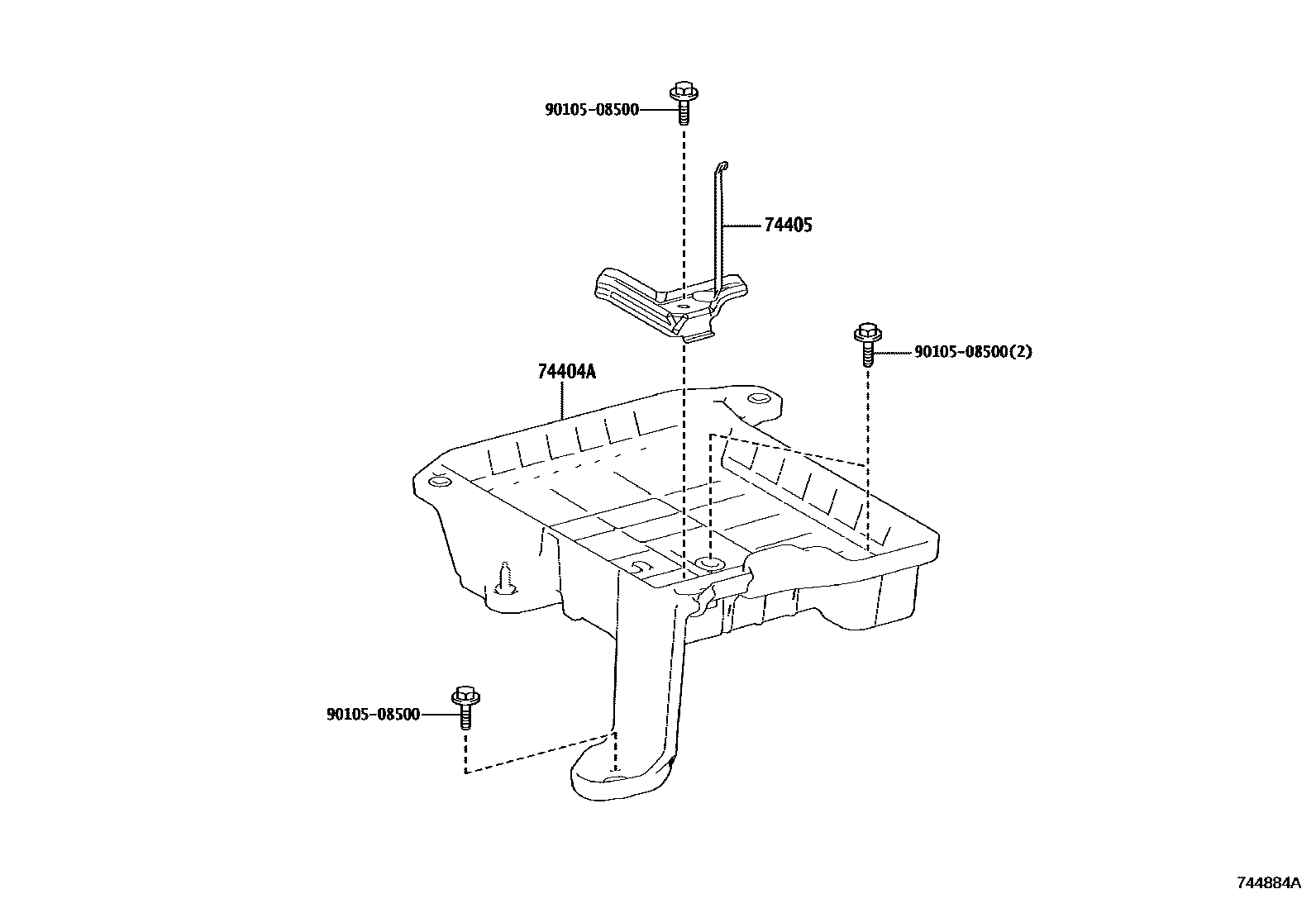

Toyota COROLLA battery holder EPC diagram — 744884A
battery holder — 744884A (201901 – 999999)

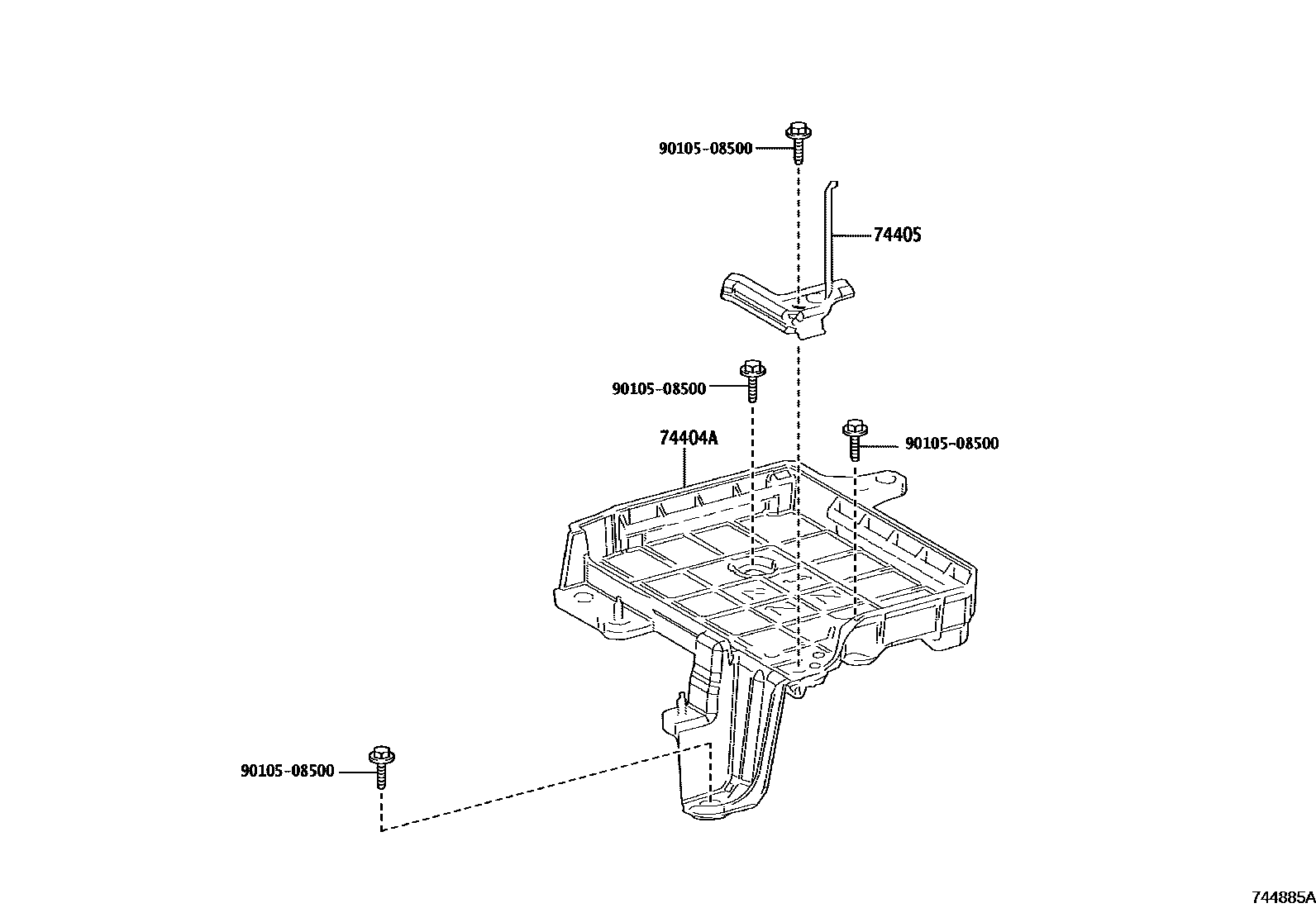

Toyota COROLLA battery holder EPC diagram — 744885A
battery holder — 744885A (201901 – 999999)

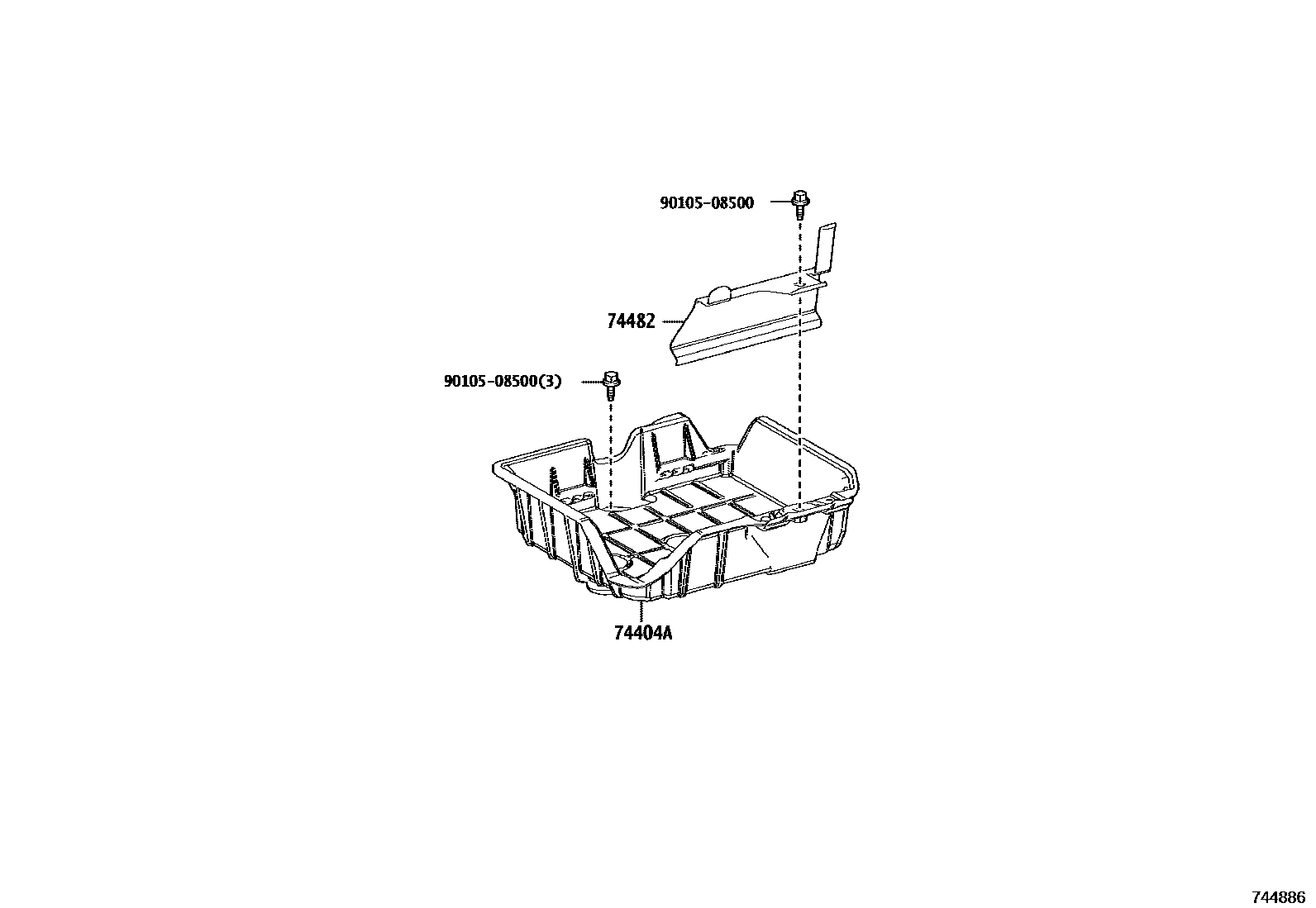

Toyota COROLLA battery holder EPC diagram — 744886
battery holder — 744886 (201901 – 999999)

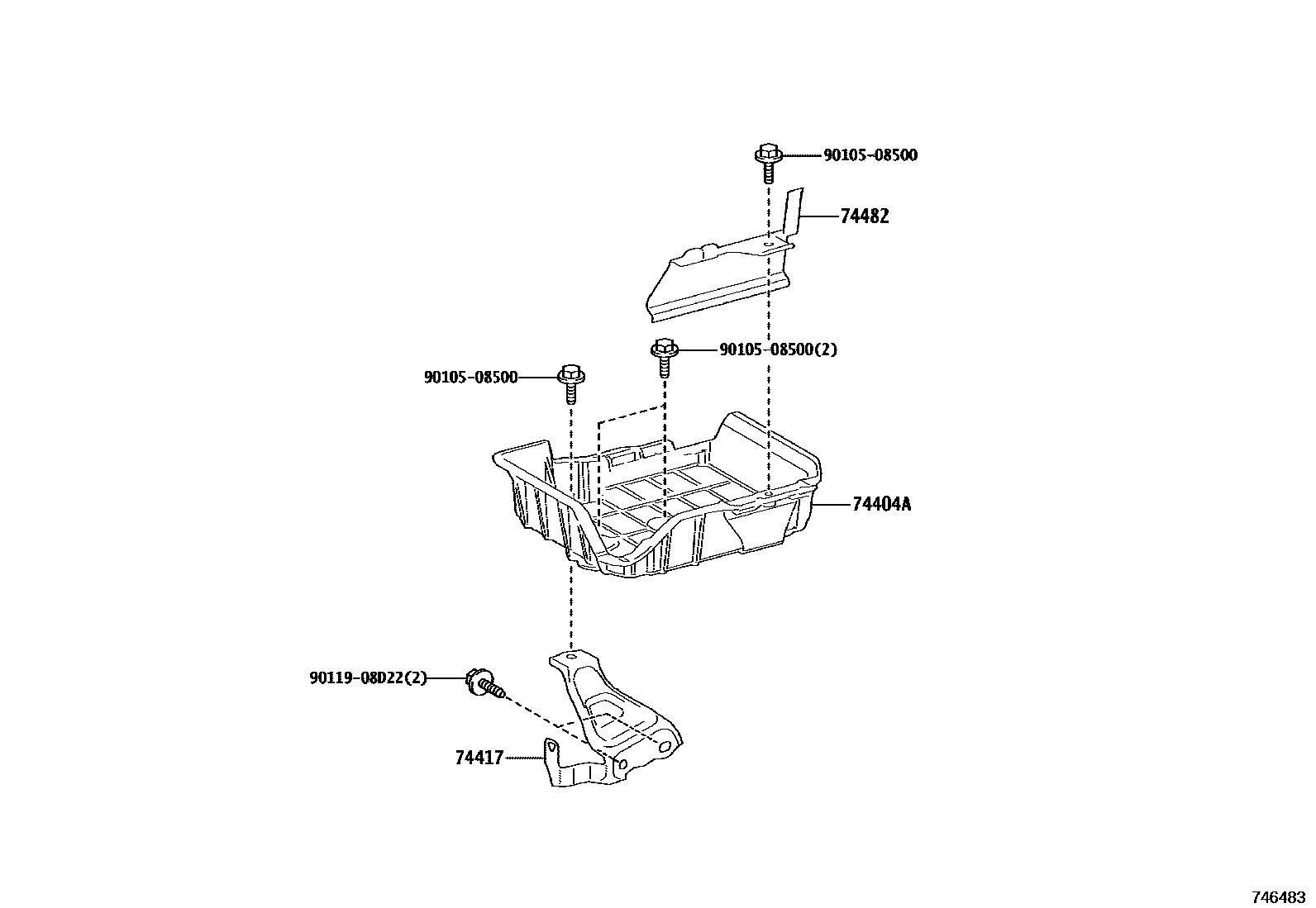

Toyota COROLLA battery holder EPC diagram — 746483
battery holder — 746483 (202209 – 999999)

PNC and OE references

PNCPart nameOE numbers
74404ABattery clip sub-assembly74404-12540 · 74404-12560 · 74404-12590 · 74404-12600 · 74404-12610 · 74404-47030
74405No. 2 battery clip sub-assembly74405-76021
74417battery holder bracket74417-12060
74482No. 2 battery clip74482-47010
