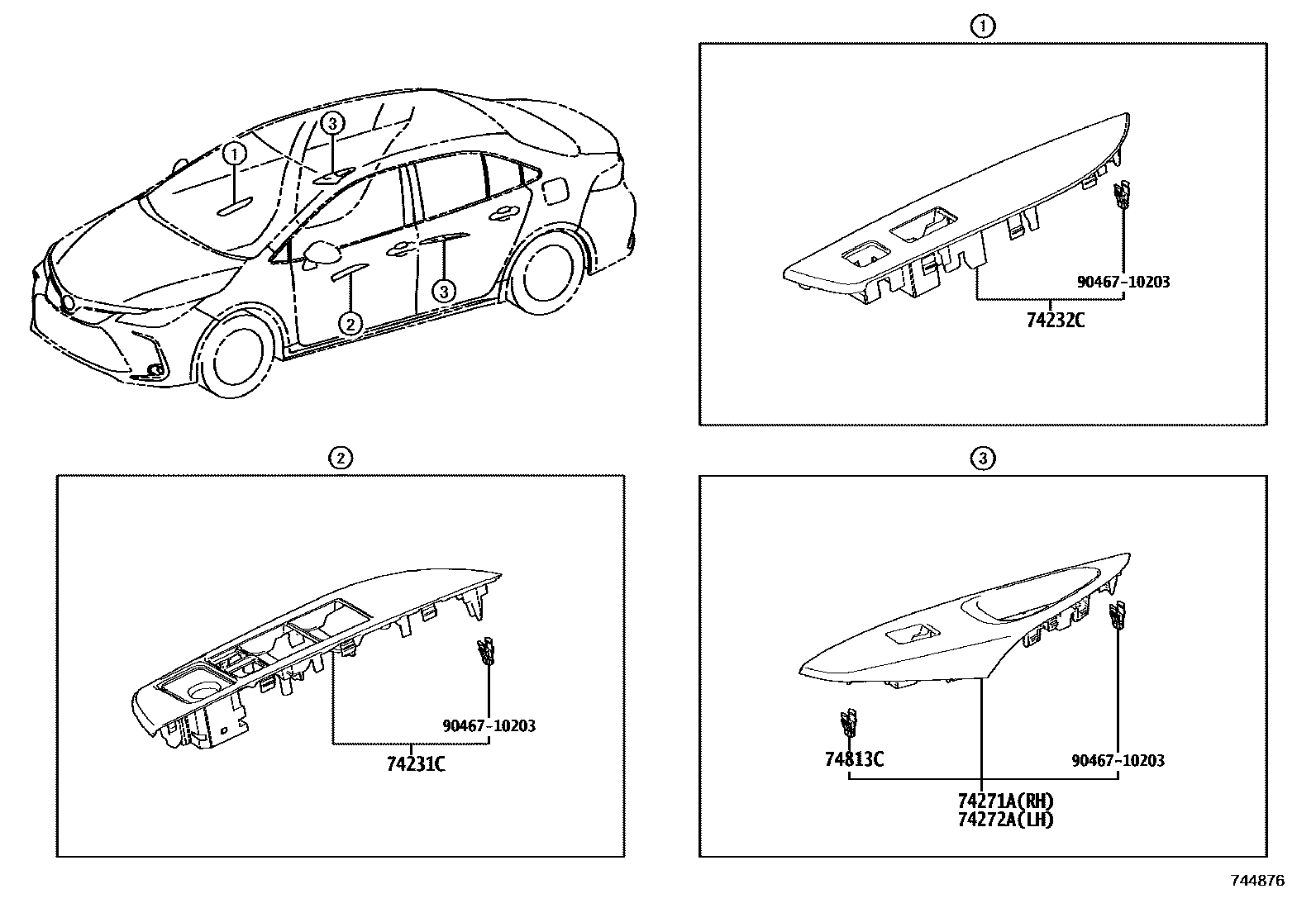

Toyota COROLLA 扶手和遮阳板 — Figure 7401
Toyota COROLLA EPC diagram 7401, 扶手和遮阳板, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74231C | Driver's side front armrest upper panel | 74232-12A80 · 74232-12A90 |
| 74232C | Passenger side front armrest seat upper panel | 74231-12C90 · 74231-12D00 |
| 74271A | Right rear door armrest upper panel | 74271-12500 · 74271-12510 · 74271-12600 · 74271-12610 |
| 74272A | Left rear door armrest upper panel | 74272-12390 · 74272-12480 · 74272-12600 · 74272-12610 |
| 74614C | PLAQUE, VERROUIL. POIGNEE ASSISTANCE | 74614-12020 |
| 74813C | clip | 55416-60030 |
