Toyota COROLLA 安全带和儿童保护座椅 — Figure 7104

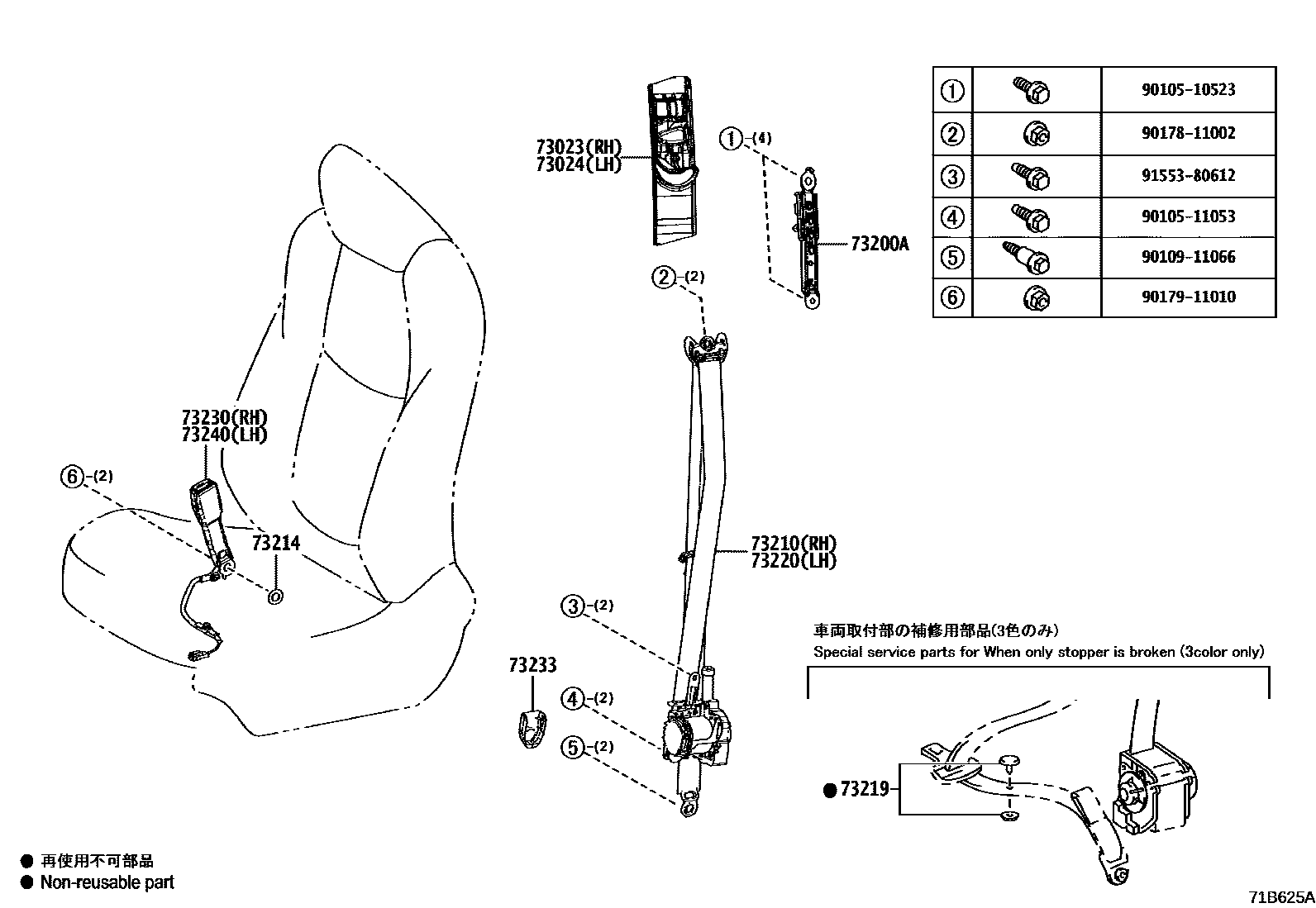

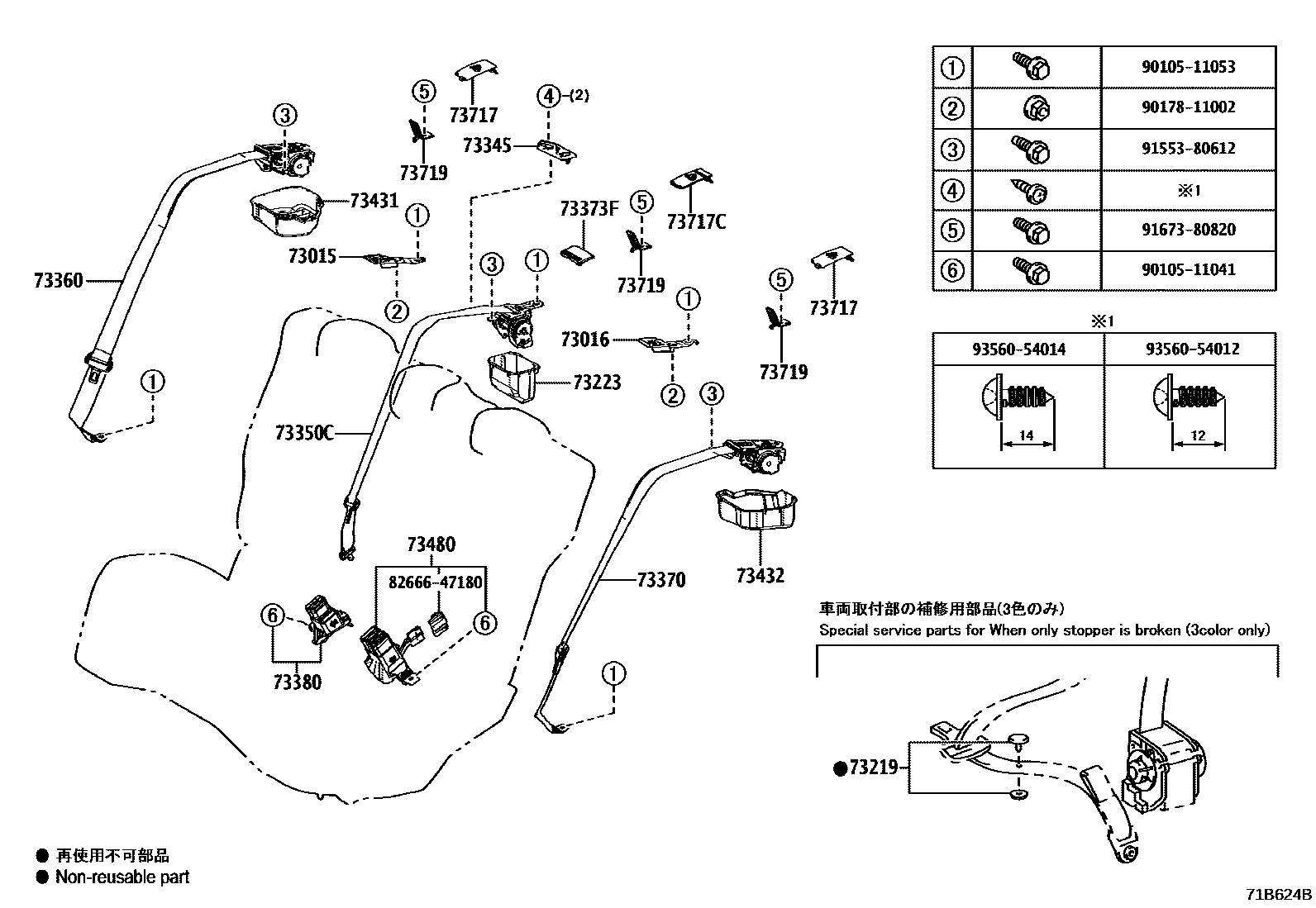

Toyota COROLLA EPC diagram 7104, 安全带和儿童保护座椅, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 73015 | Right seat belt outer anchor bracket sub-assembly | 73015-12070 · 73015-12090 |
| 73016 | Left side seat belt outer anchor bracket sub-assembly | 73016-12060 · 73016-12080 |
| 73200A | Front shoulder seat belt anchor adjuster assembly | 73200-12070 · 73200-42020 |
| 73214 | Front seat belt anchor plate | 73214-75010 |
| 73219 | Tongue plate stop | 73219-02010 · 73219-02020 · 73219-02030 |
| 73223 | seat belt retractor cover | 73223-12070 |
| 73431 | Rear right seat belt retractor cover | 73431-12010 · 73431-12020 · 73431-12060 |
| 73432 | Rear left seat belt retractor cover | 73432-12010 · 73432-12020 · 73432-12060 |
| 73719 | Child restraint seat tether anchor bracket | 73719-12050 |
