Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102

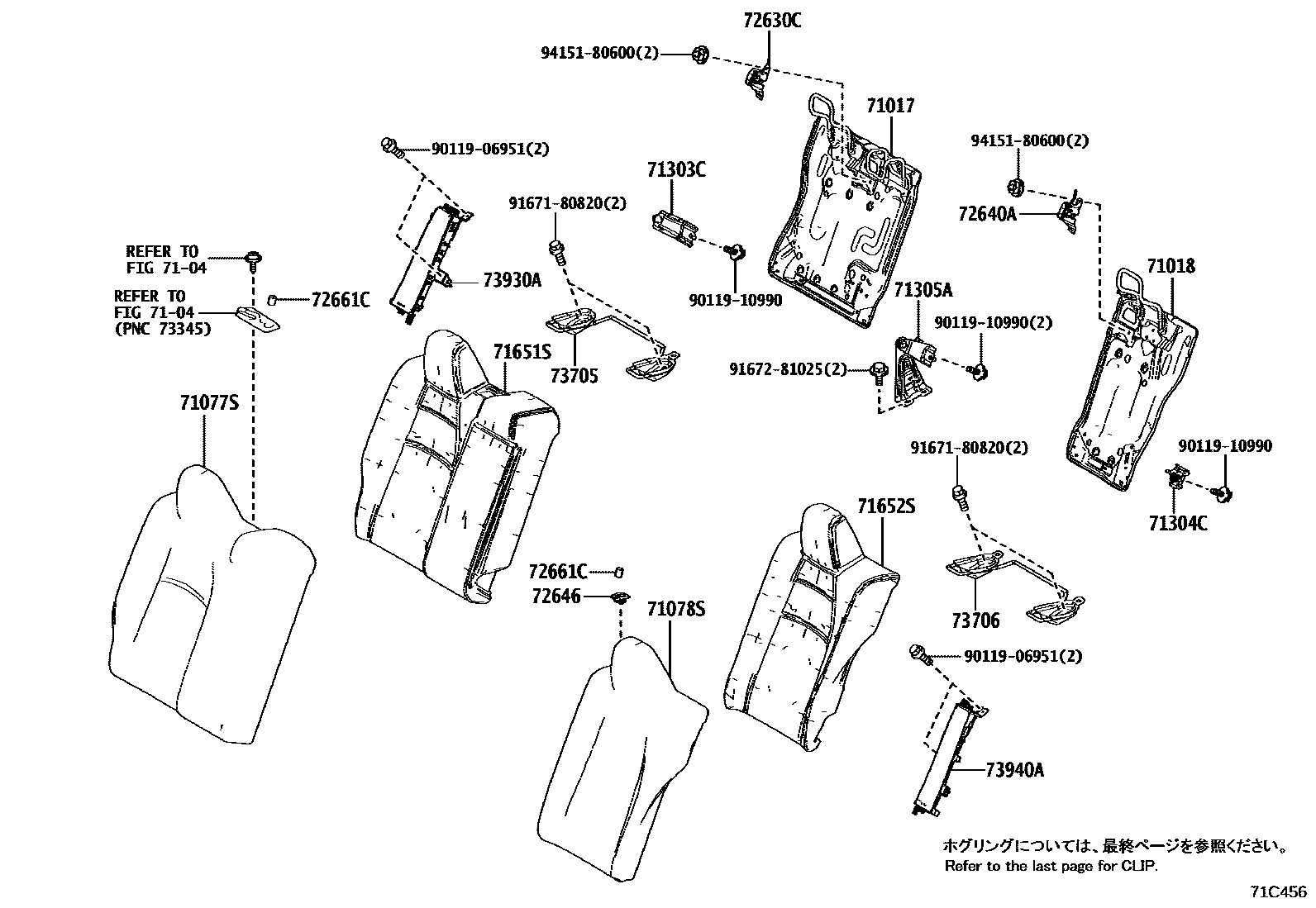

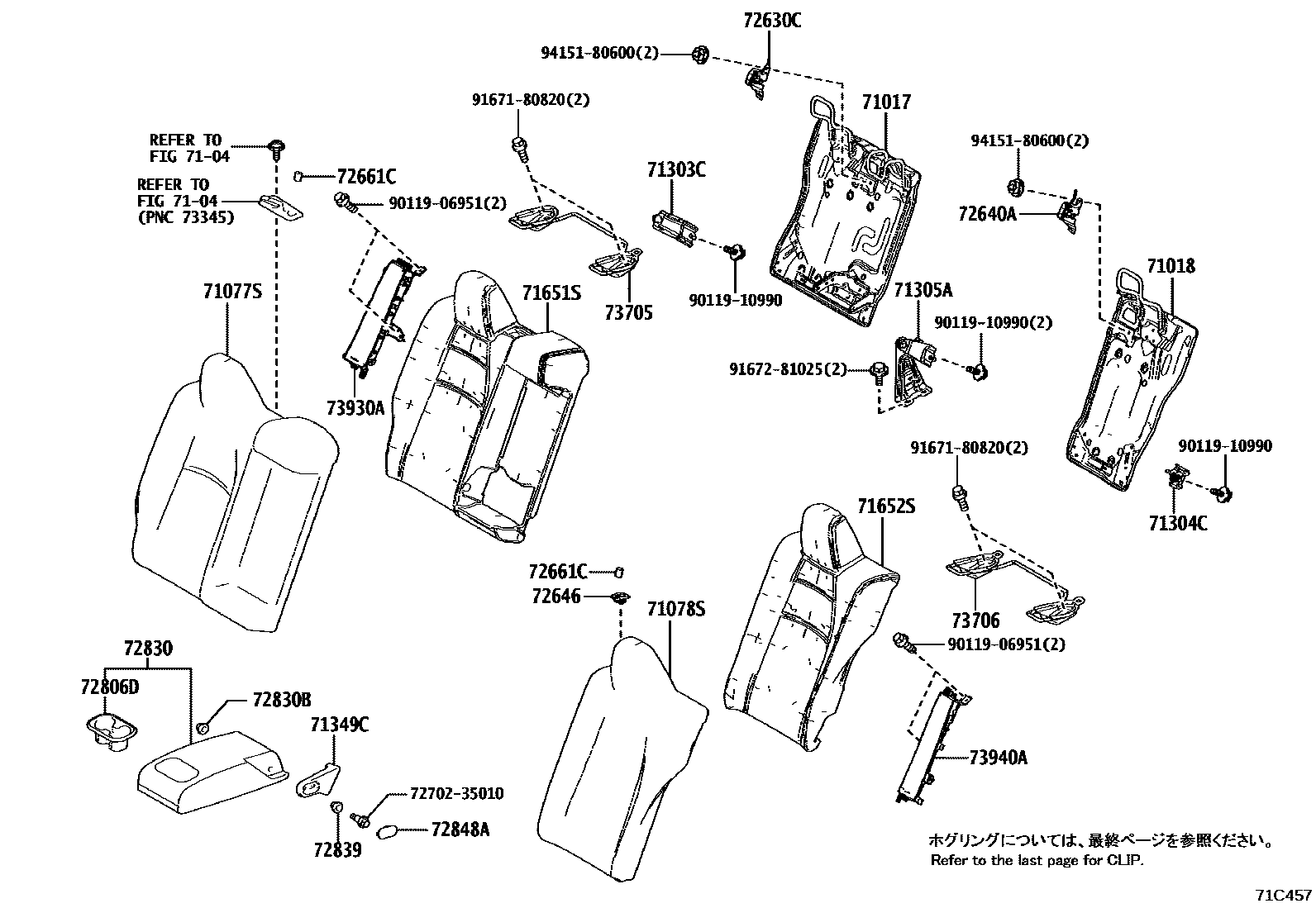

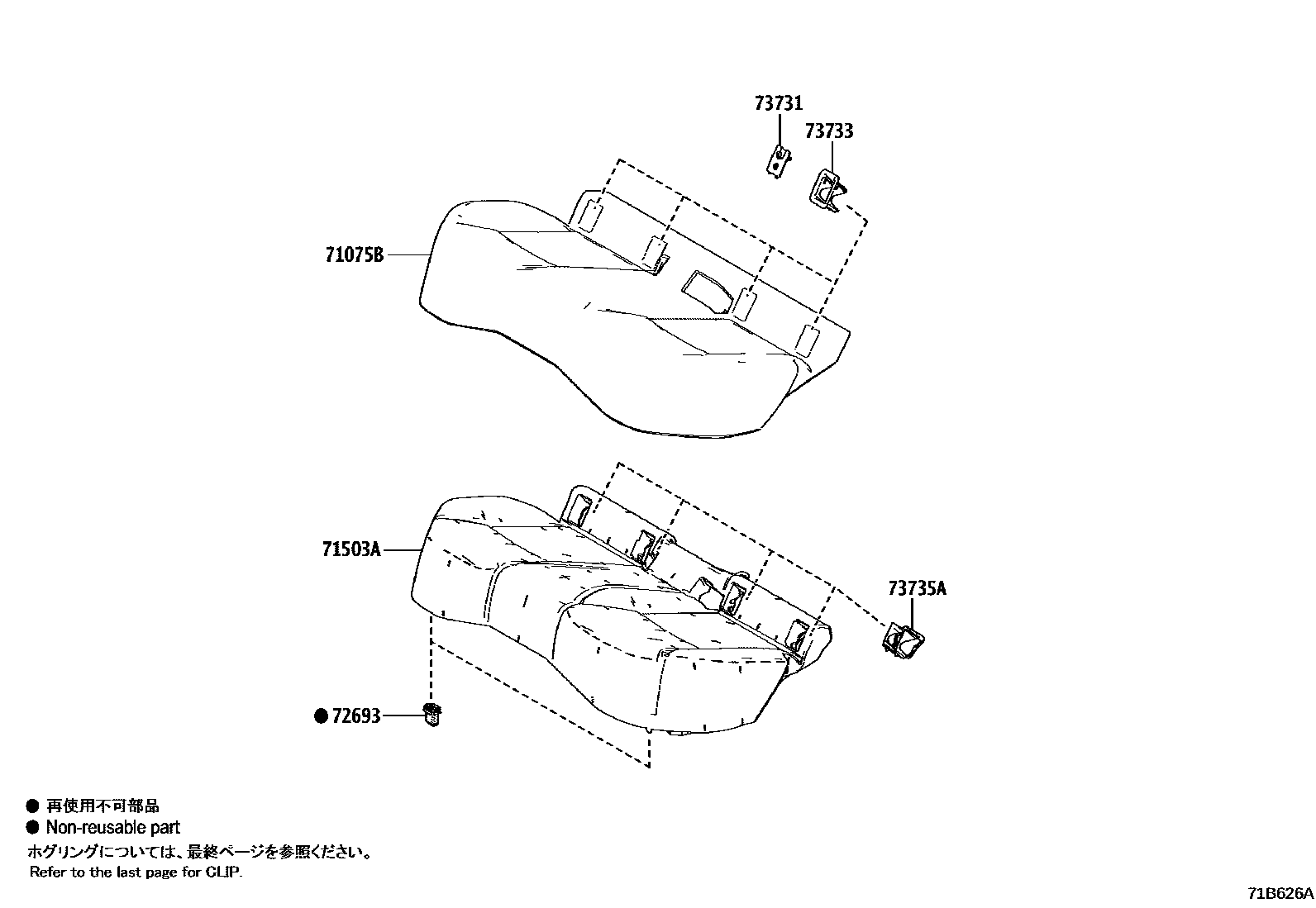

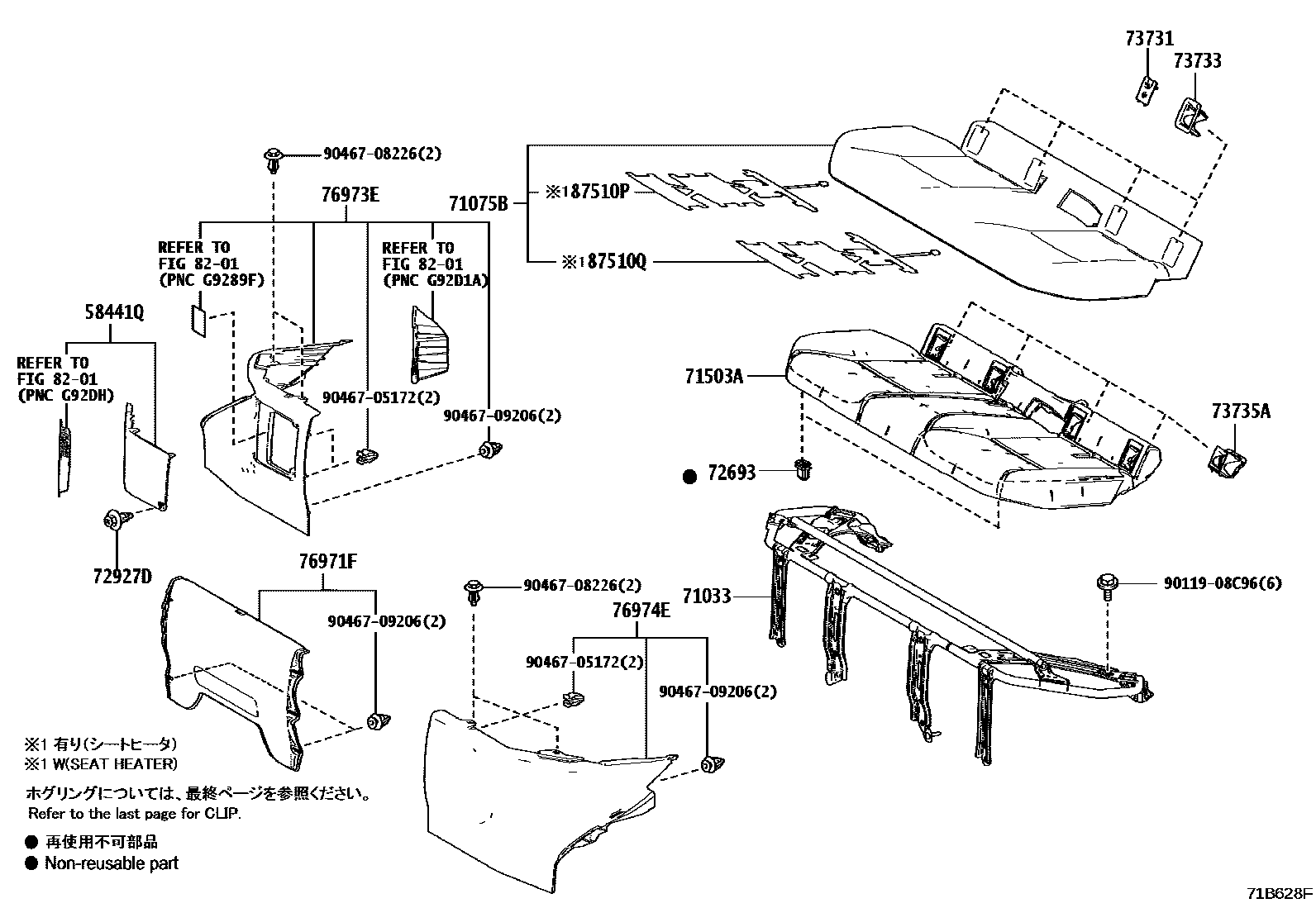

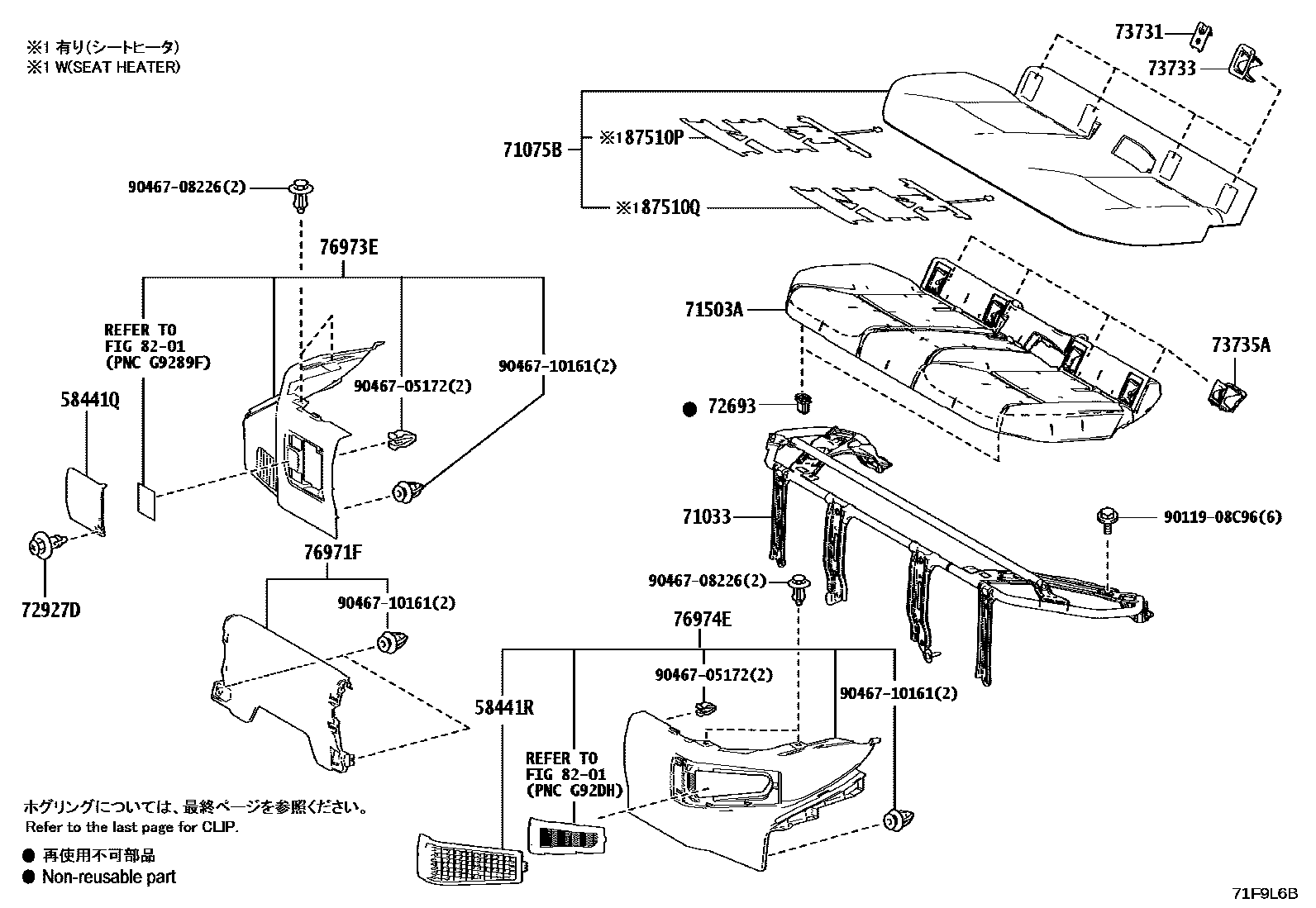

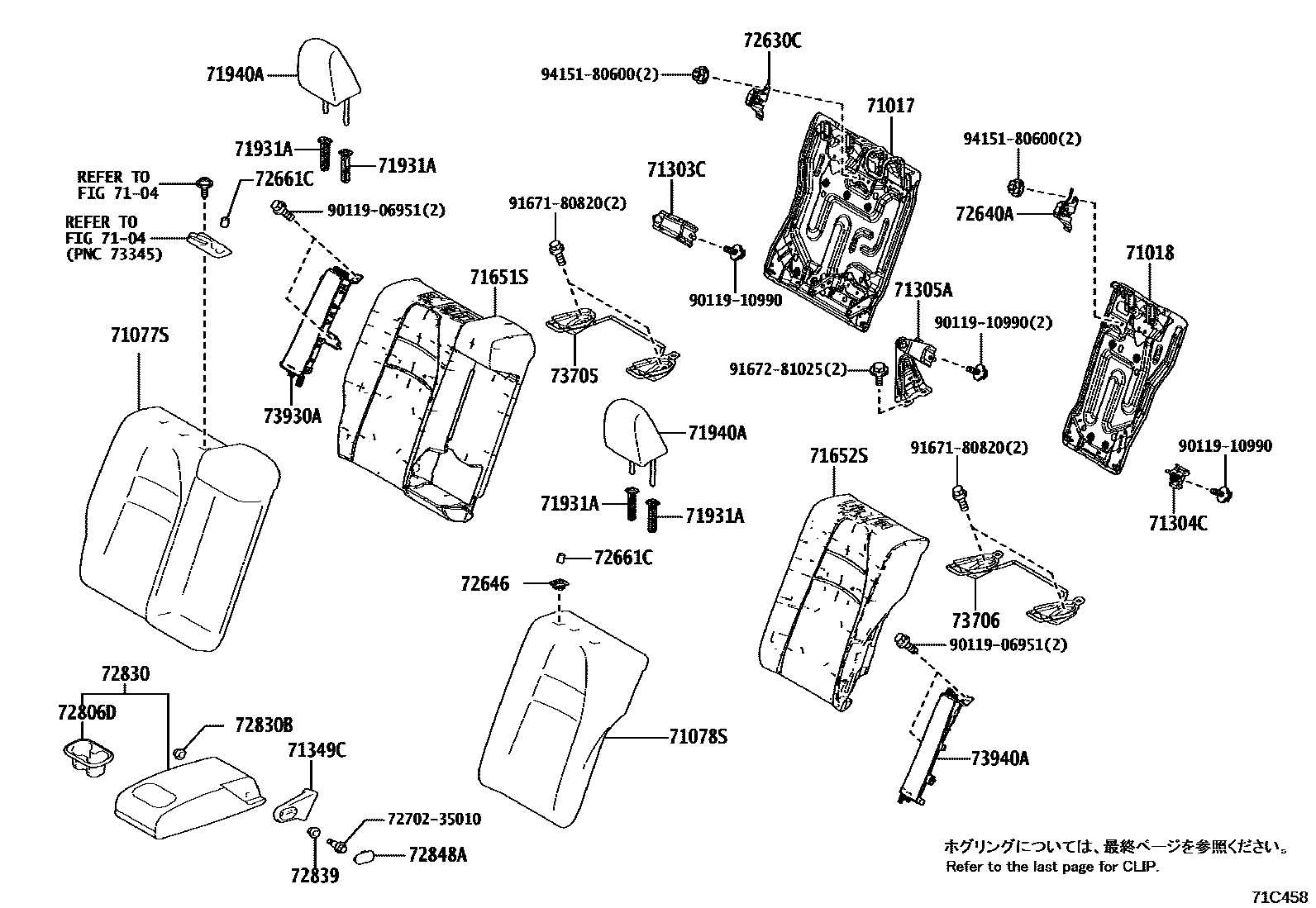

Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 7 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-12B50 · 71017-12B60 · 71017-12B70 |
| 71018 | Rear left seat back frame sub-assembly | 71018-12490 · 71018-12510 |
| 71033 | Rear seat cushion and leg sub-assembly | 71033-12040 · 71033-12050 · 71033-16010 · 71033-47020 · 71033-47060 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71303-12200 |
| 71304C | Rear left seat back hinge sub-assembly | 71304-12070 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-12250 |
| 71503A | SS-ENS. REMBOURRAGE, COUSSIN SIEGE ARRIERE | 71503-12310 · 71503-12420 · 71503-12430 · 71503-12440 · 71503-12450 · 71503-12460 · 71503-12480 · 71503-12560 · 71503-12570 · 71503-12580 · 71503-12620 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-12B10 · 71651-12B50 · 71651-12B60 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-12860 · 71652-12870 |
| 72630C | Rear right seat back lock assembly | 72630-12380 |
| 72640A | Rear left seat back lock assembly | 72640-12350 |
| 72693 | Rear seat cushion hook | 72693-12080 |
| 72830B | Bushing (for rear seat center armrest) | 90386-06009 |
| 72839 | Rear seat armrest hinge gasket | 72839-12010 |
| 73705 | Child restraint seat anchor right side bracket sub-assembly | 73705-12170 |
| 73706 | Child restraint seat anchor left bracket sub-assembly | 73705-12180 |
| 73735A | Child restraint seat belt guide cover | 73735-12020 · 73735-12030 · 73735-16010 |
| 87510P | Seat heater assembly | 87510-12340 · 87510-12450 |
| 87510Q | Seat heater assembly | 87510-12430 |
