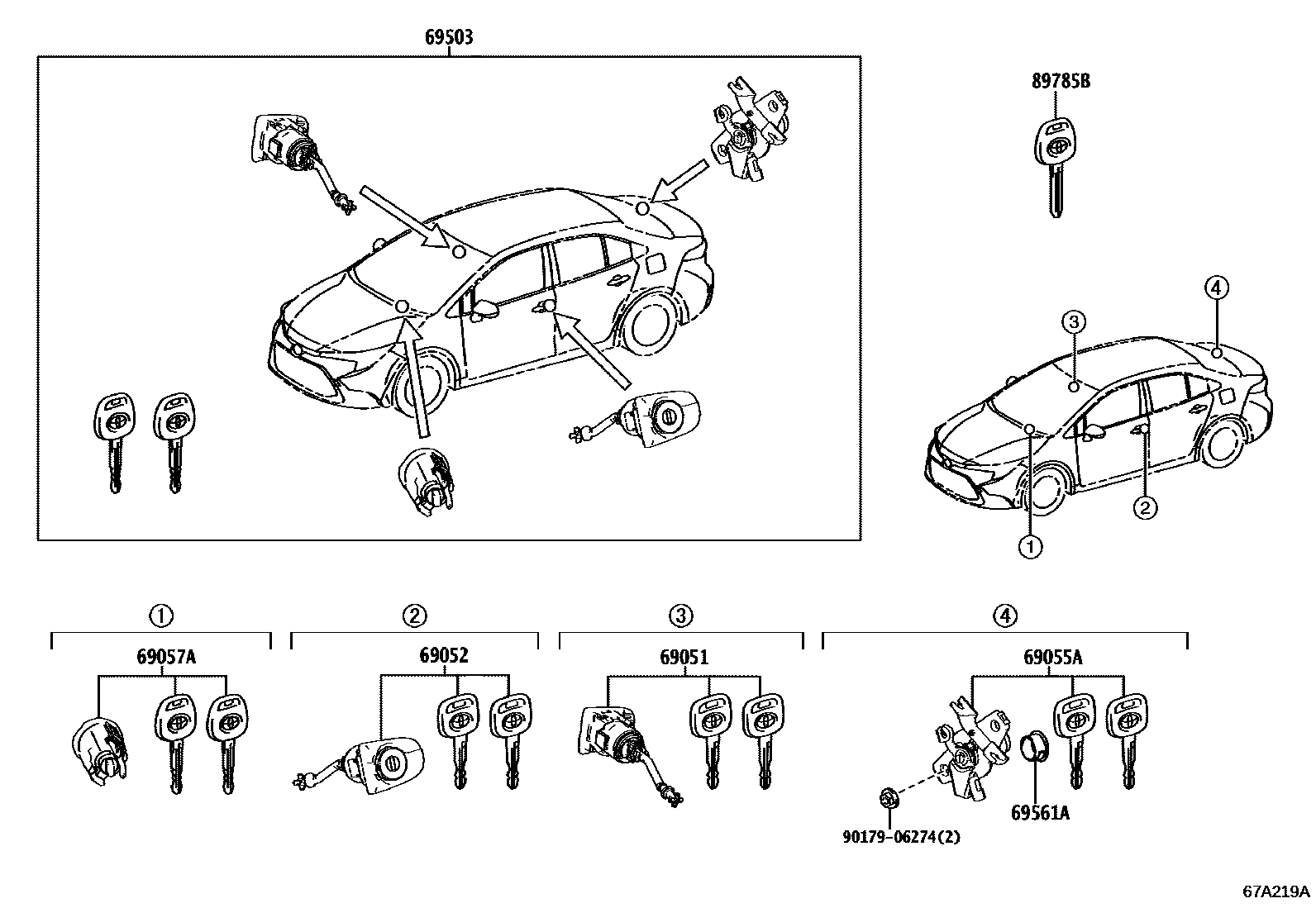

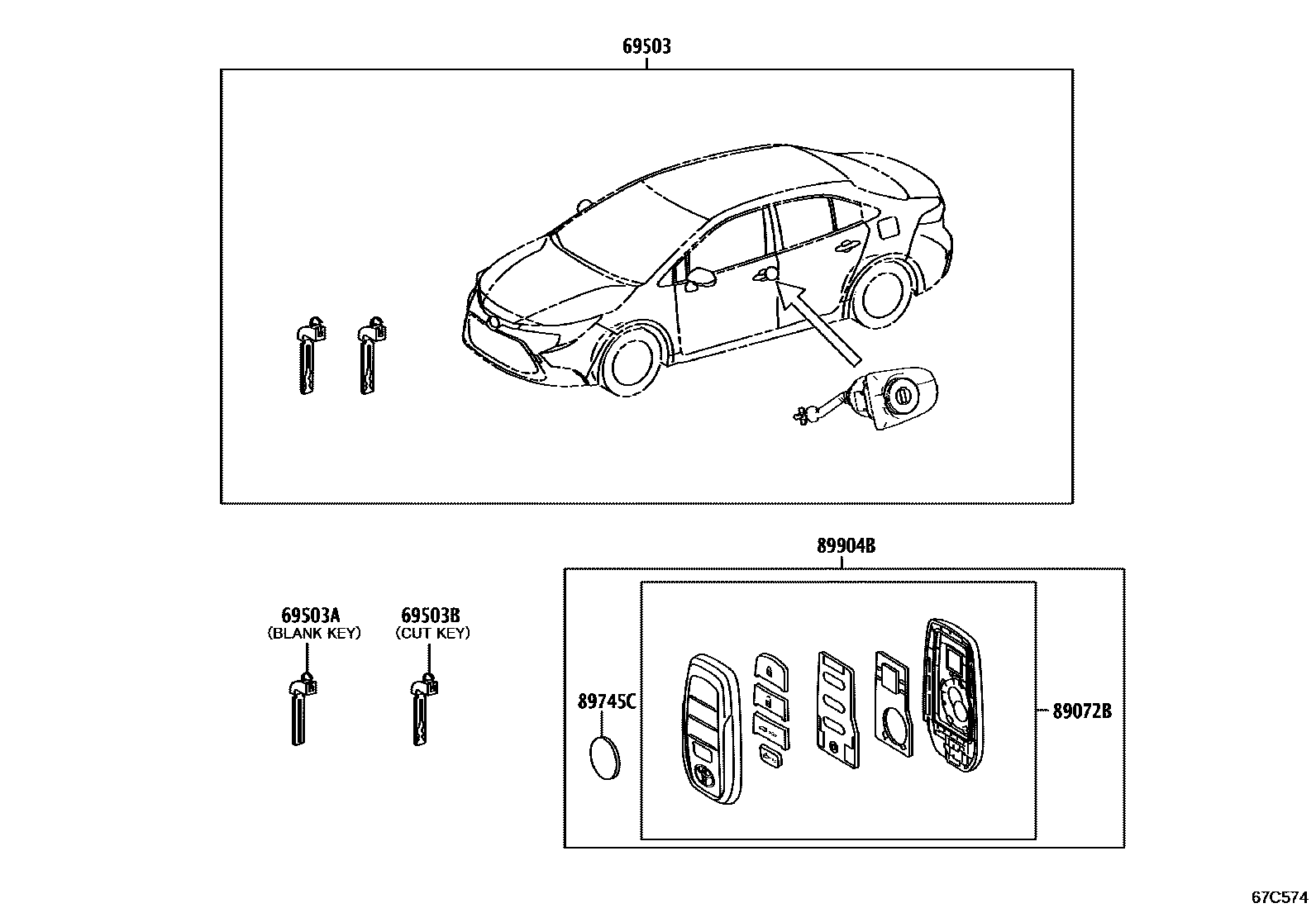

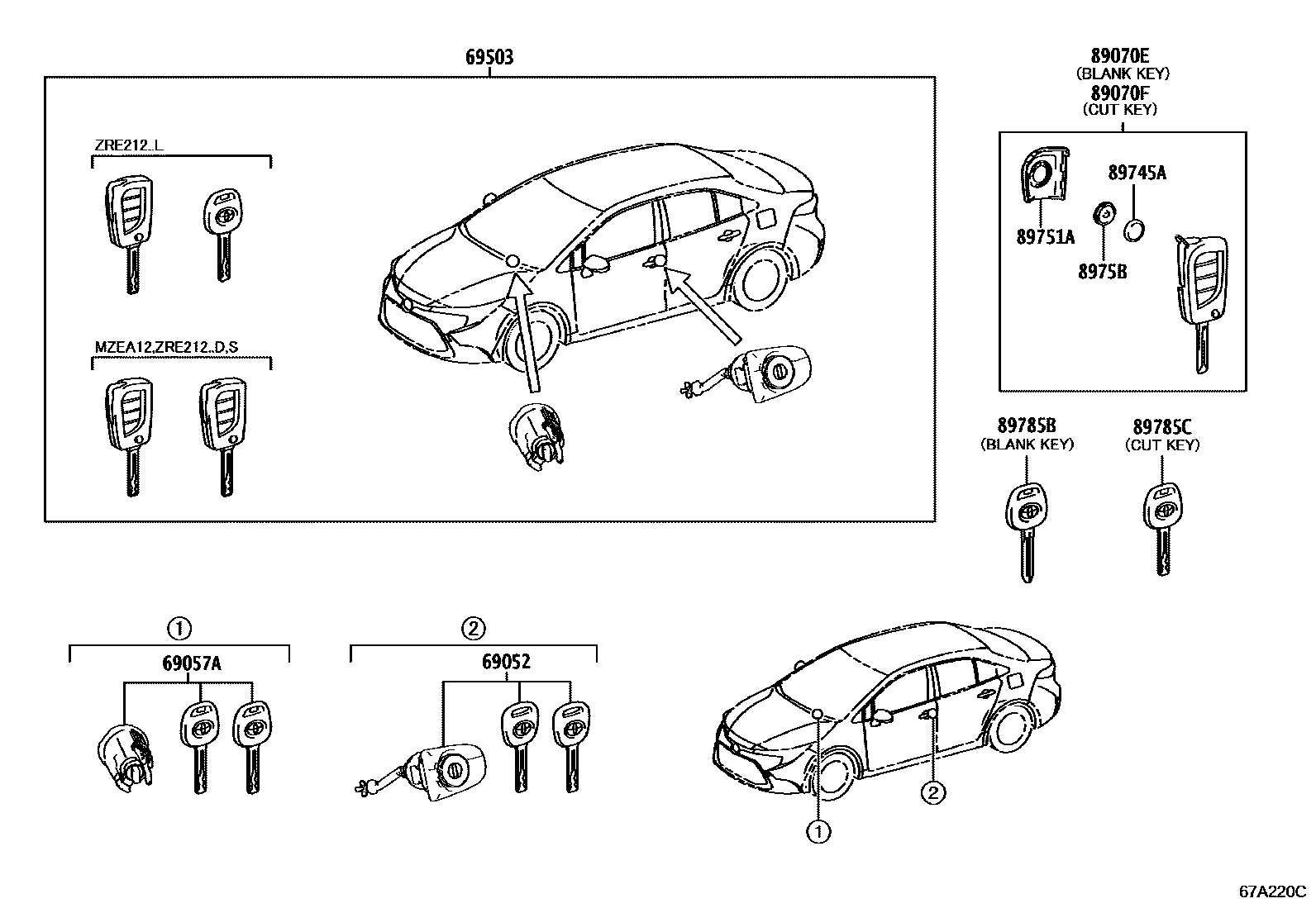

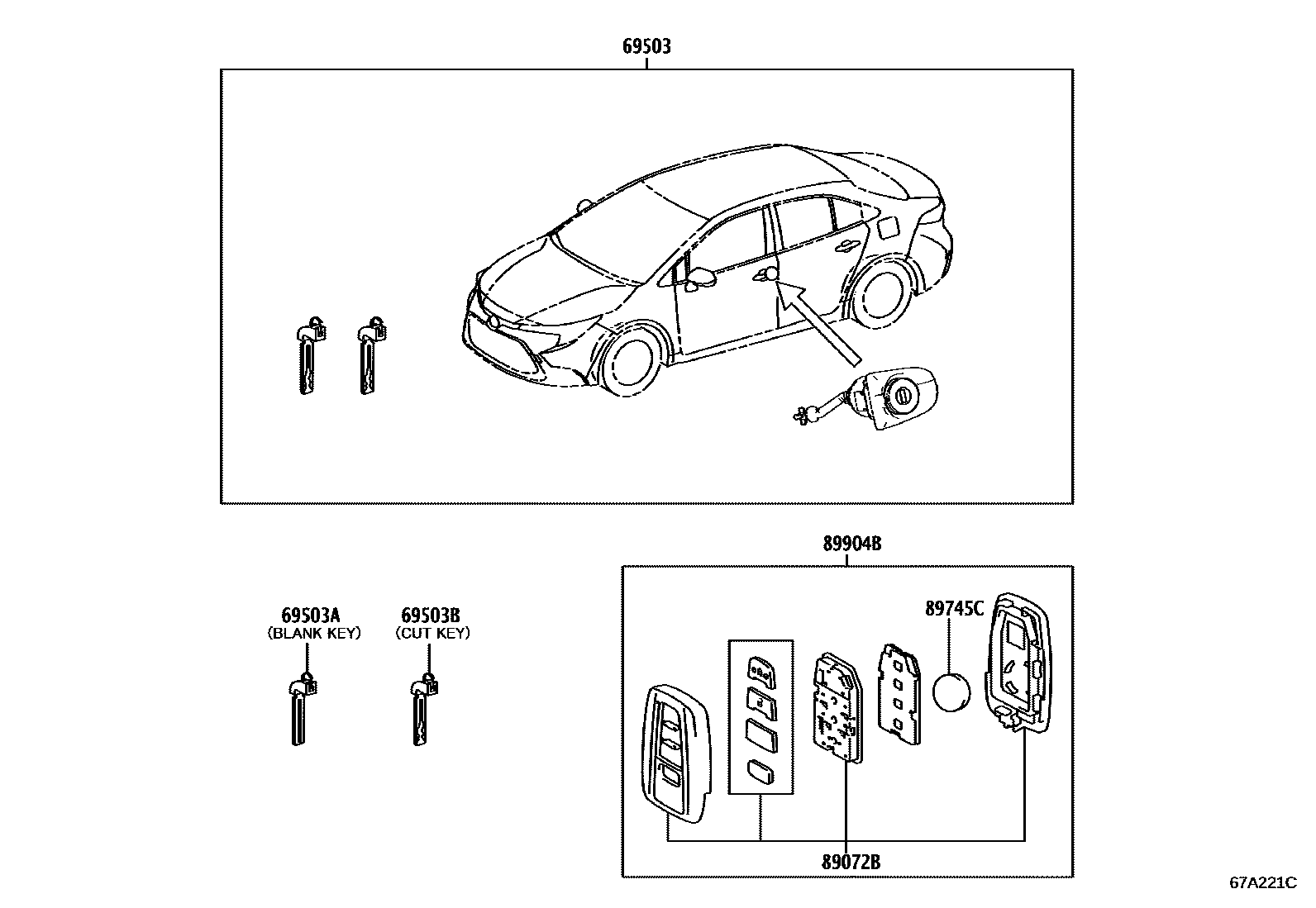

Toyota COROLLA 锁芯组件 — Figure 6712
Toyota COROLLA EPC diagram 6712, 锁芯组件, with 4 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-12800 |
| 69052 | Left door lock cylinder and key assembly | 69052-12680 · 69052-12690 |
| 69055A | Luggage lock cylinder and key assembly | 69055-12A70 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-12A70 · 69057-33410 · 69057-K0020 |
| 69503 | Door lock cylinder components | 69005-12J20 · 69005-12J21 · 69005-12J30 · 89704-12F50 · 89704-12J20 |
| 69503A | external tooth key | 69515-16110 · 69515-47030 · 69515-K0020 |
| 69503B | internal tooth key | 69515-16100 · 69515-47020 · 69515-K0010 |
| 69561A | Luggage lock core fixing parts | 69561-33900 |
| 89070E | Remote key assembly | 89070-33E91 |
| 89070F | Remote key assembly (internal tooth key) | 89070-33F51 |
| 89072B | Remote key shell assembly (for smart key) | 89072-12330 · 89072-12410 · 89072-12810 · 89072-12C00 |
| 89745A | Transmitter battery | 89745-50020 |
| 89745C | Transmitter battery | 89745-12020 · 89745-45010 · 89745-50020 · 89745-K0010 |
| 89751A | Transmitter housing cover | 89751-33200 |
| 8975B | Remote control battery case cover | 8975B-33050 |
| 89785B | transceiver key master transmitter | 89785-26040 · 89785-28060 |
| 89785C | transceiver key master transmitter | 89785-28070 |
| 89904B | Electronic key transmitter sub-assembly | 8990H-12010 · 8990H-12040 · 8990H-12350 · 8990H-12351 · 8990H-12640 |
