Toyota COROLLA 杂物箱板和行李箱垫 — Figure 6403

Toyota COROLLA EPC diagram 6403, 杂物箱板和行李箱垫, with 2 images and 9 PNC and OE references.

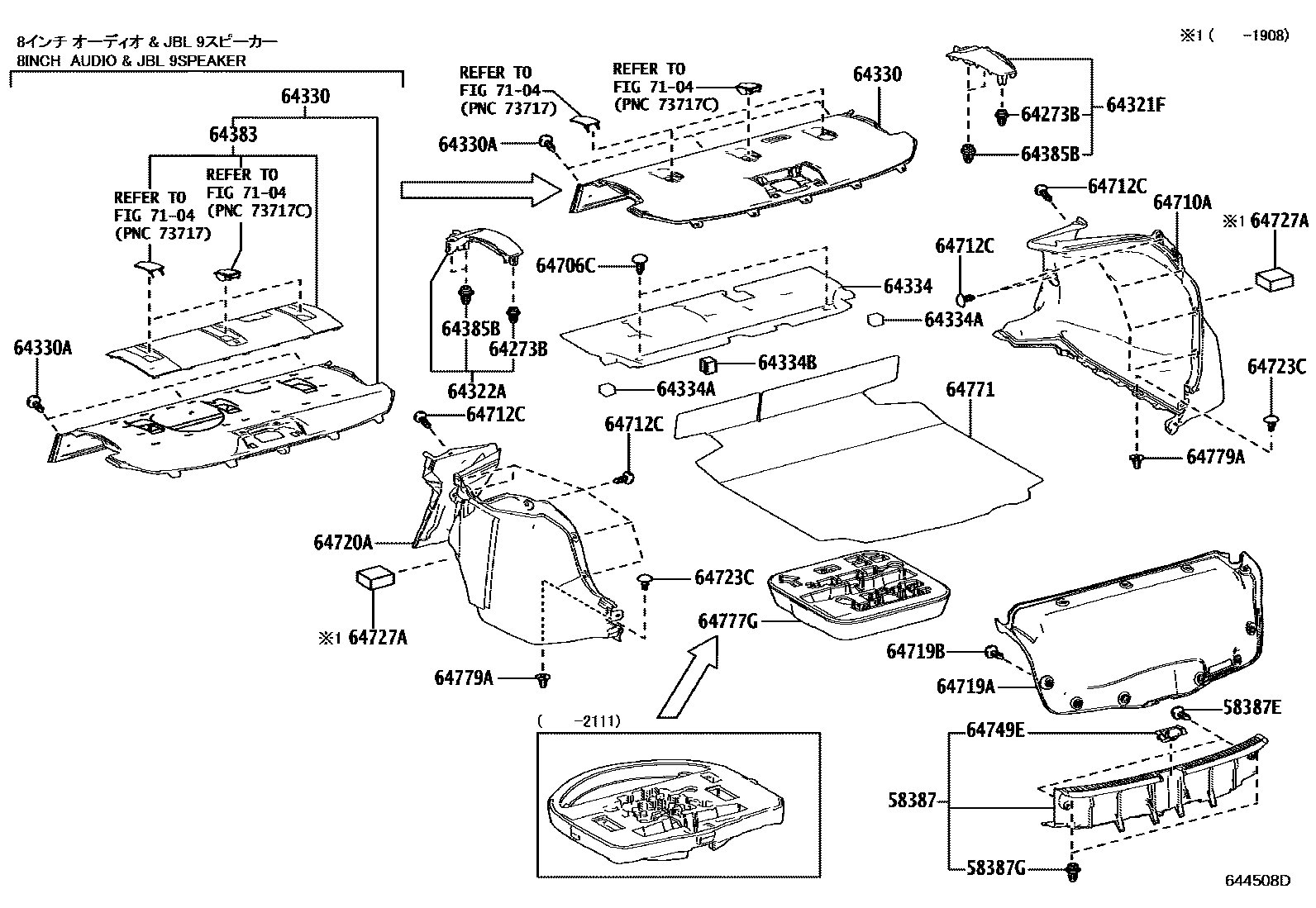

Toyota COROLLA 杂物箱板和行李箱垫 EPC diagram — 644508D
杂物箱板和行李箱垫 — 644508D (201901 – 999999)

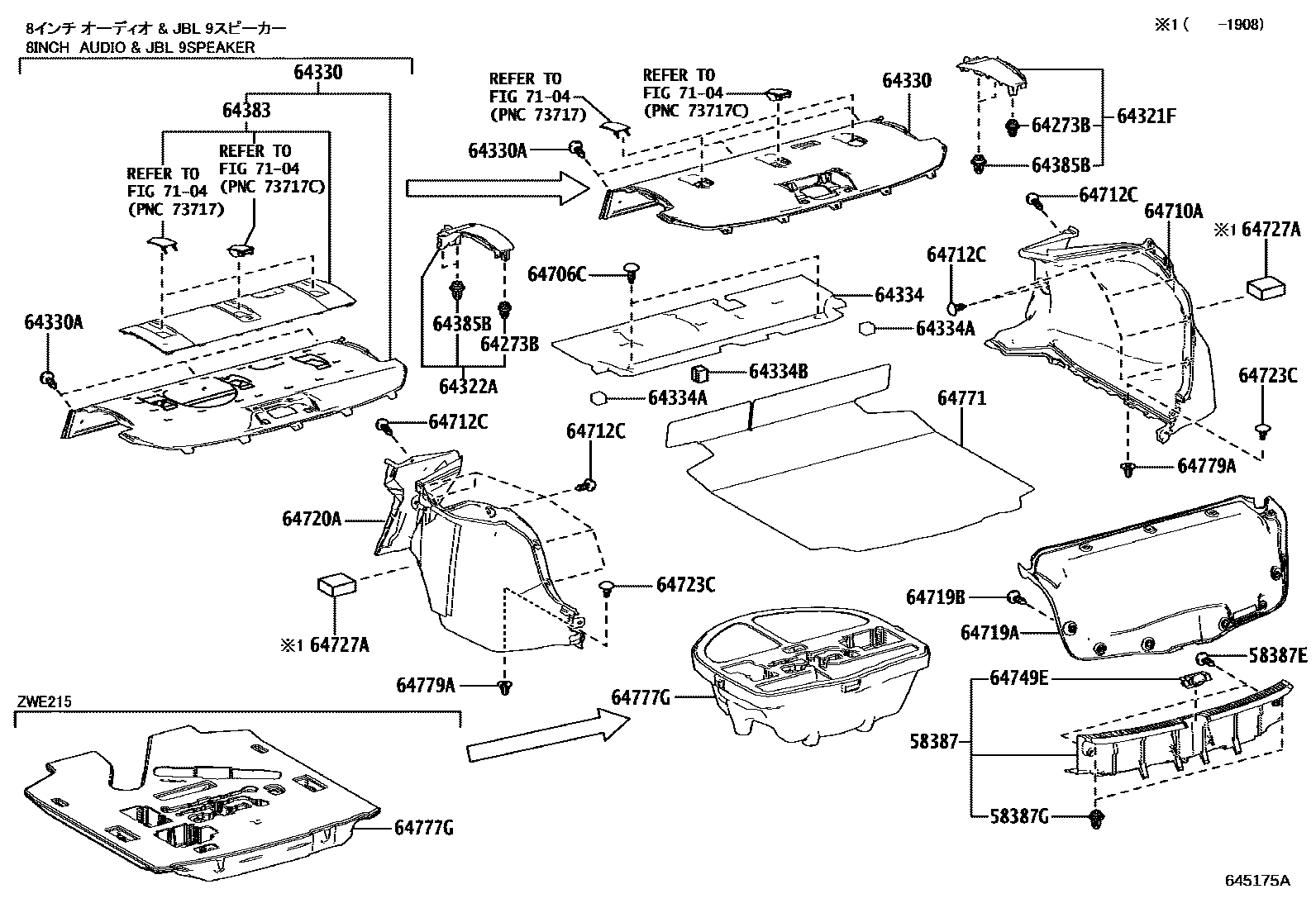

Toyota COROLLA 杂物箱板和行李箱垫 EPC diagram — 645175A
杂物箱板和行李箱垫 — 645175A (201901 – 999999)

PNC and OE references

PNCPart nameOE numbers
58387GClip (for rear floor trim panel)90467-10161
64273BBack panel decorative bag90467-09240
64334Glove box decorative panel muffler pad64334-12420 · 64334-12430
64334AGlove box decorative mat64334-12450
64334BREMB., GARNITURE VIDE-POCHES, NO.264334-12460
64385Bclip90467-10161
64727ALuggage interior decorative mat64727-12080
64777GSpare tire cushion64777-12180 · 64777-12270 · 64777-12271 · 64777-12370 · 64777-12550
64779ASpare tire cover stop64779-26010
