Toyota COROLLA 车顶内衬和消声垫 — Figure 6402

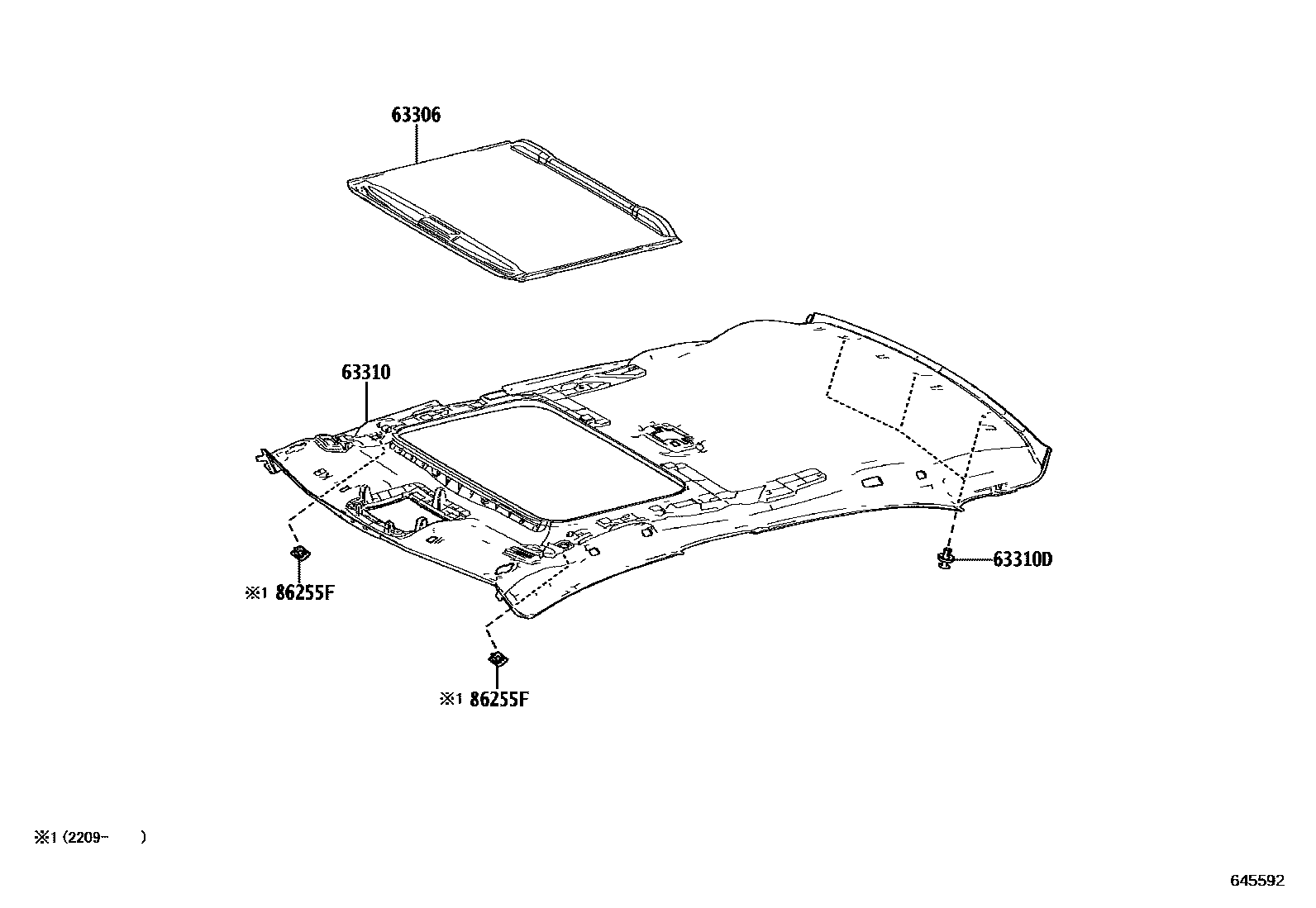

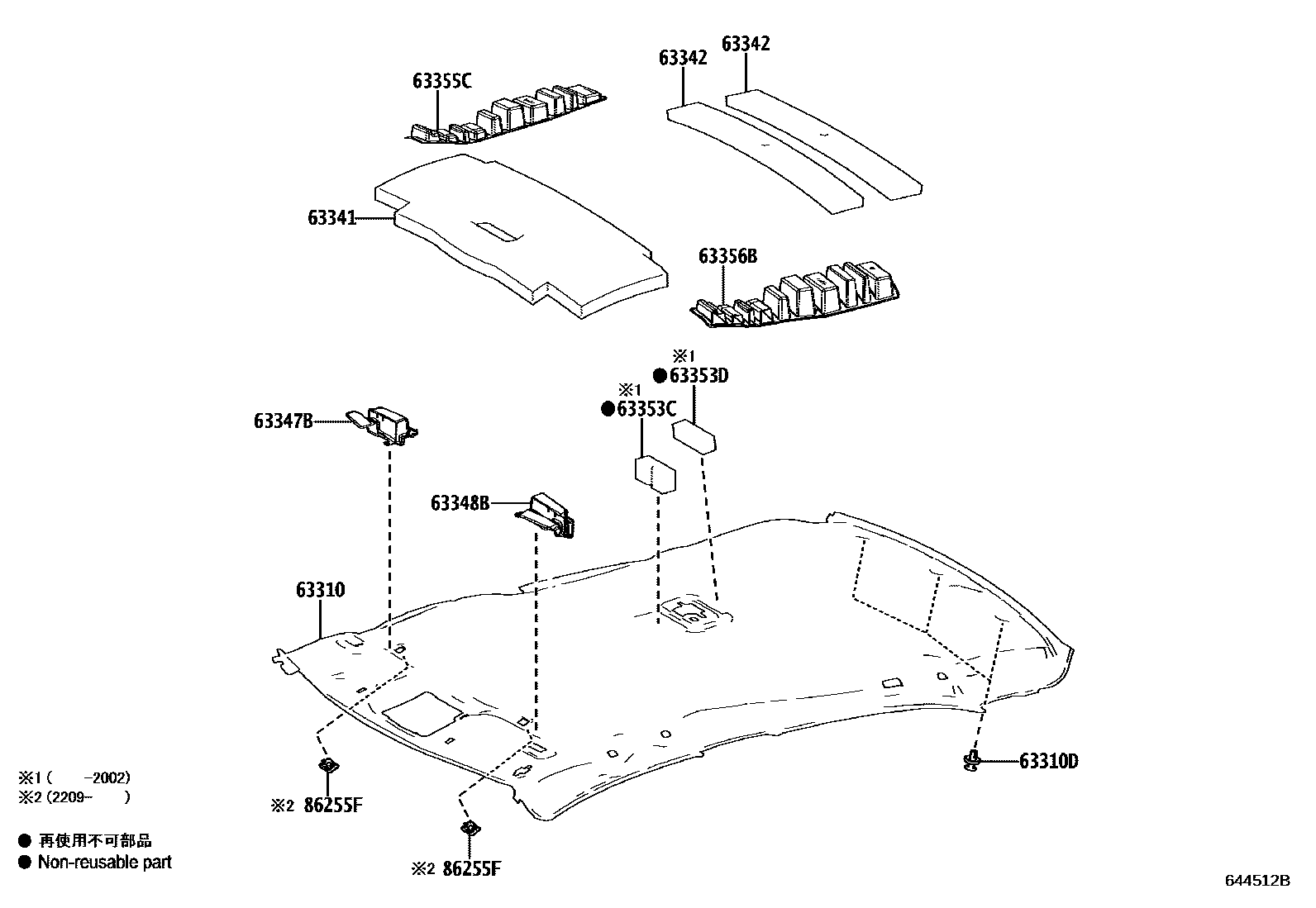

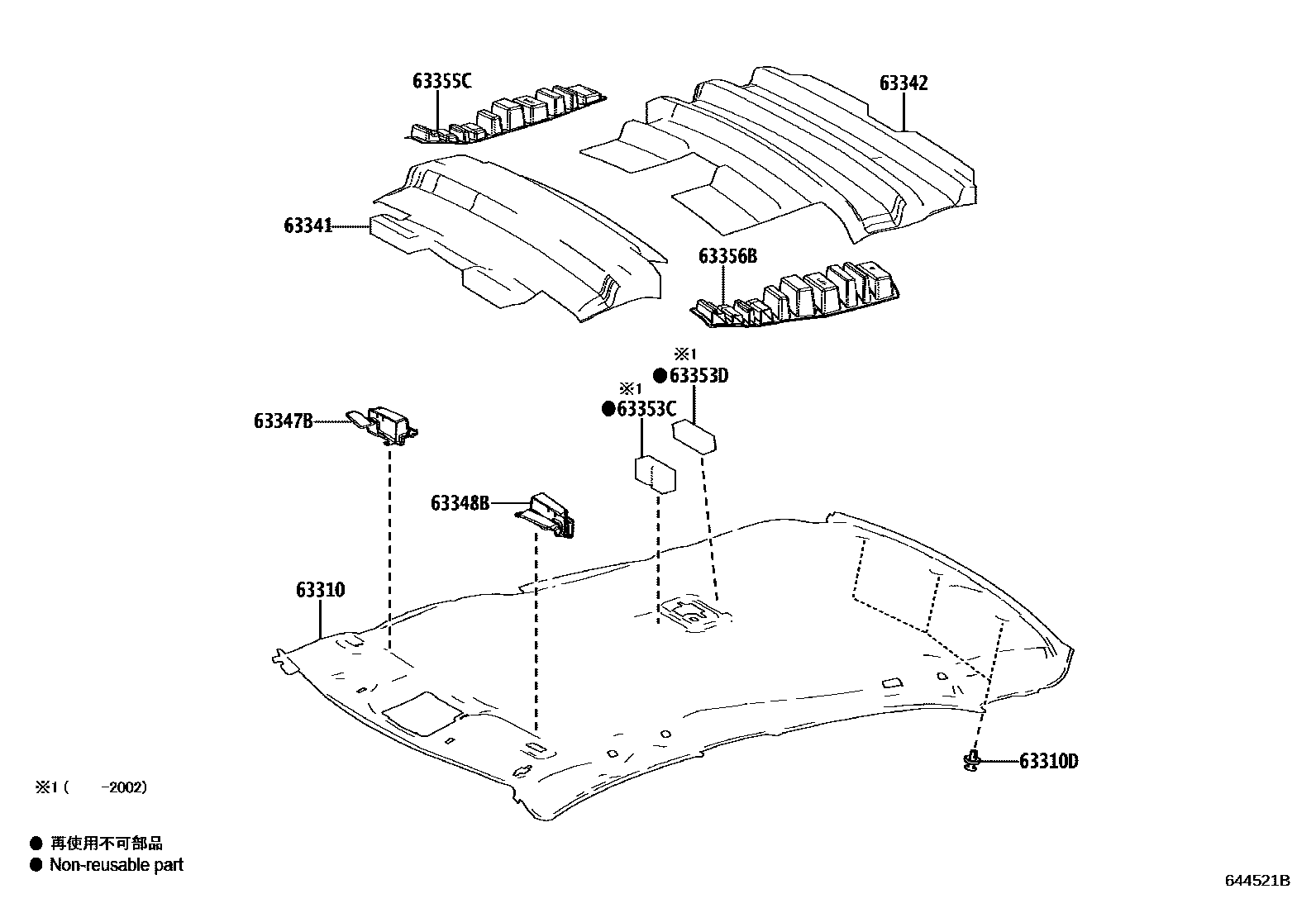

Toyota COROLLA EPC diagram 6402, 车顶内衬和消声垫, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63341 | No. 1 roof silencer mat | 63341-12370 · 63341-12380 · 63341-12381 |
| 63342 | No. 2 roof muffler pad | 63342-12370 · 63342-12390 |
| 63347B | Roof right longitudinal beam muffler pad | 63347-12050 |
| 63348B | Roof left side rail silencer pad | 63348-12030 |
| 63353C | Center roof lining lining | 63353-12030 |
| 63353D | Center roof lining lining | 63353-12040 |
| 63355C | Right side roof lining | 63355-12070 |
| 63356B | Roof left inner lining block | 63356-12050 |
