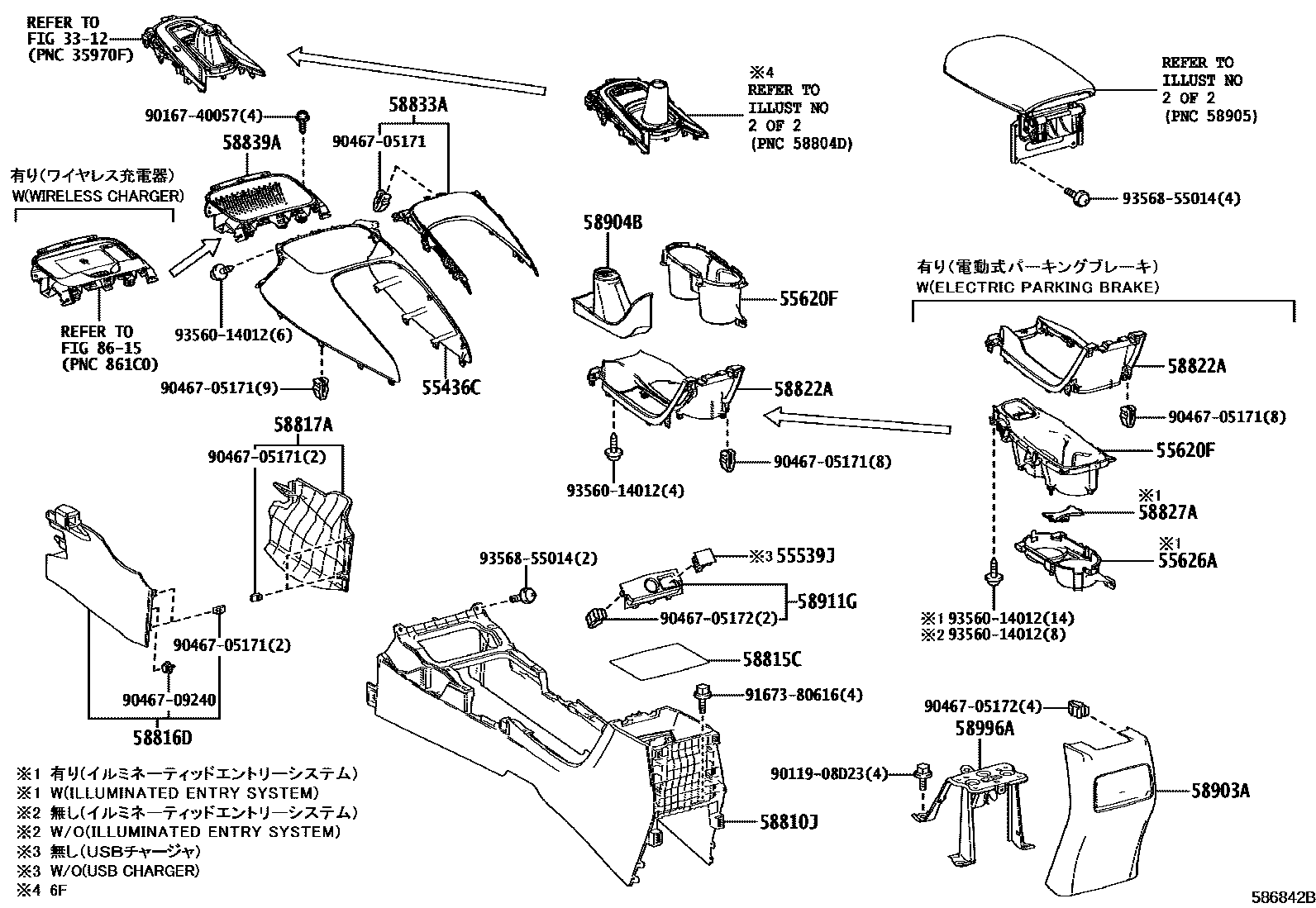

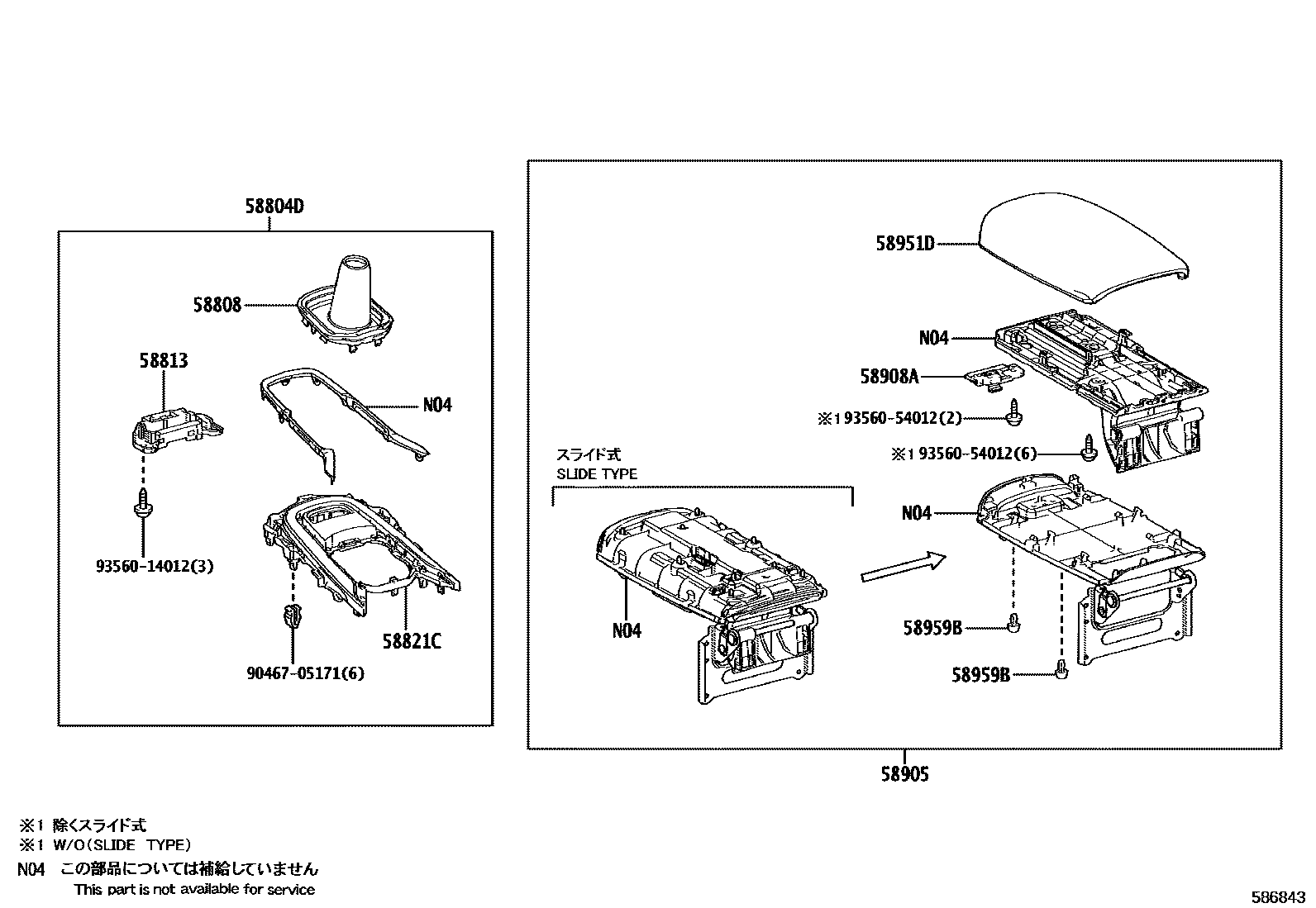

Toyota COROLLA 中央扶手箱和支架 — Figure 5806
Toyota COROLLA EPC diagram 5806, 中央扶手箱和支架, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55620F | ENS. SUPPORT, GOBELET BOITIER DE CONSOLE | 55620-12270 · 55620-12320 · 55620-12340 · 55620-12350 |
| 55626A | ARRETOIR, TABLEAU DE BORD SOUS CAISSON | 55626-12050 |
| 58813 | Upper armrest box | 58813-12180 |
| 58815C | Armrest box felt pad | 58815-12240 |
| 58821C | Armrest box upper panel | 58821-12370 |
| 58822A | Rear armrest box upper panel | 58822-12300 · 58822-12340 · 58822-12370 · 58822-12380 |
| 58827A | Armrest box groove decorative parts | 58827-12020 |
| 58908A | Armrest box lid lock assembly | 58908-33030 |
| 58959B | Armrest box cover cushion | 58959-60060 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-12240 |
