Toyota COROLLA 悬架横梁和发动机底罩 — Figure 5102

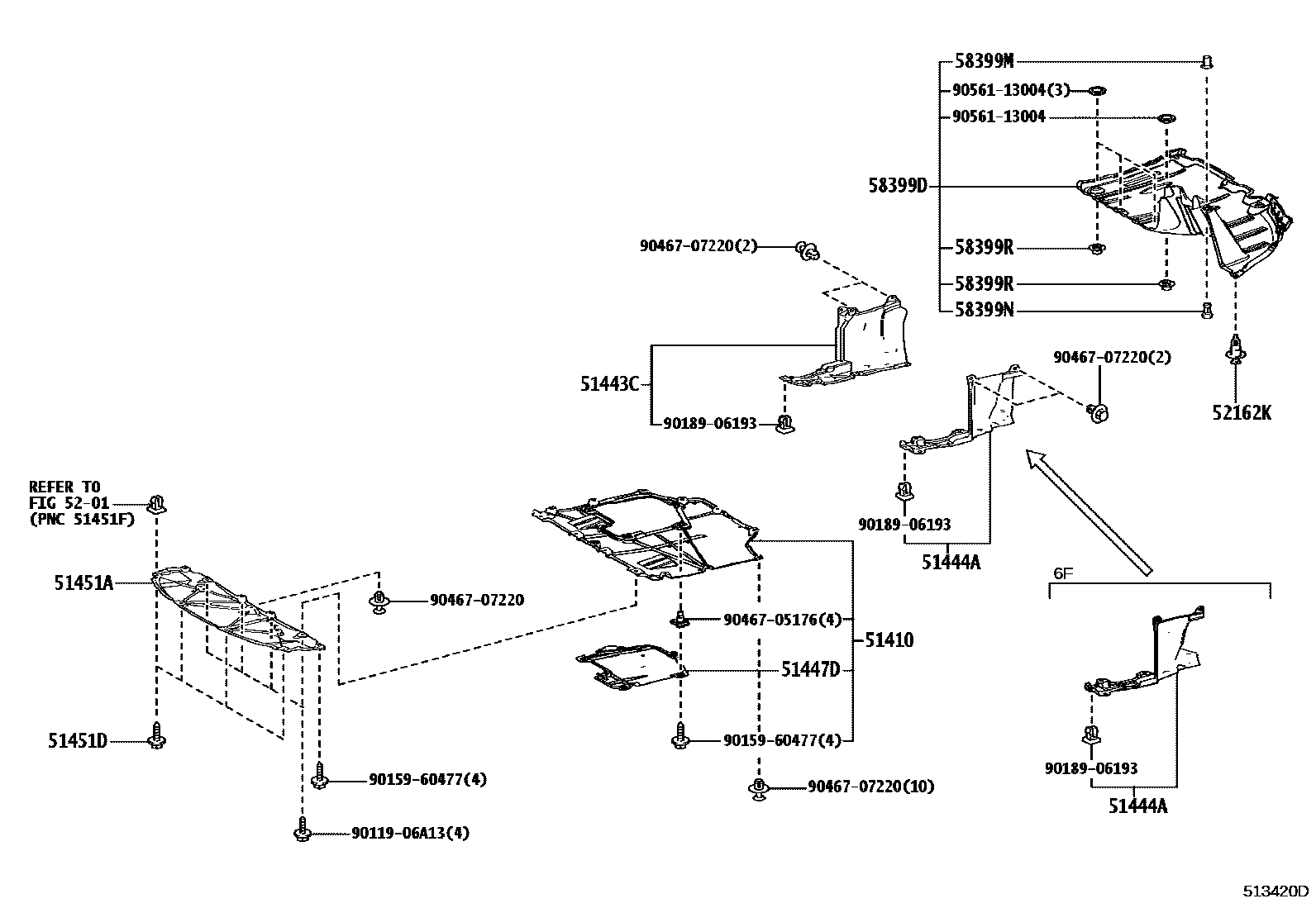

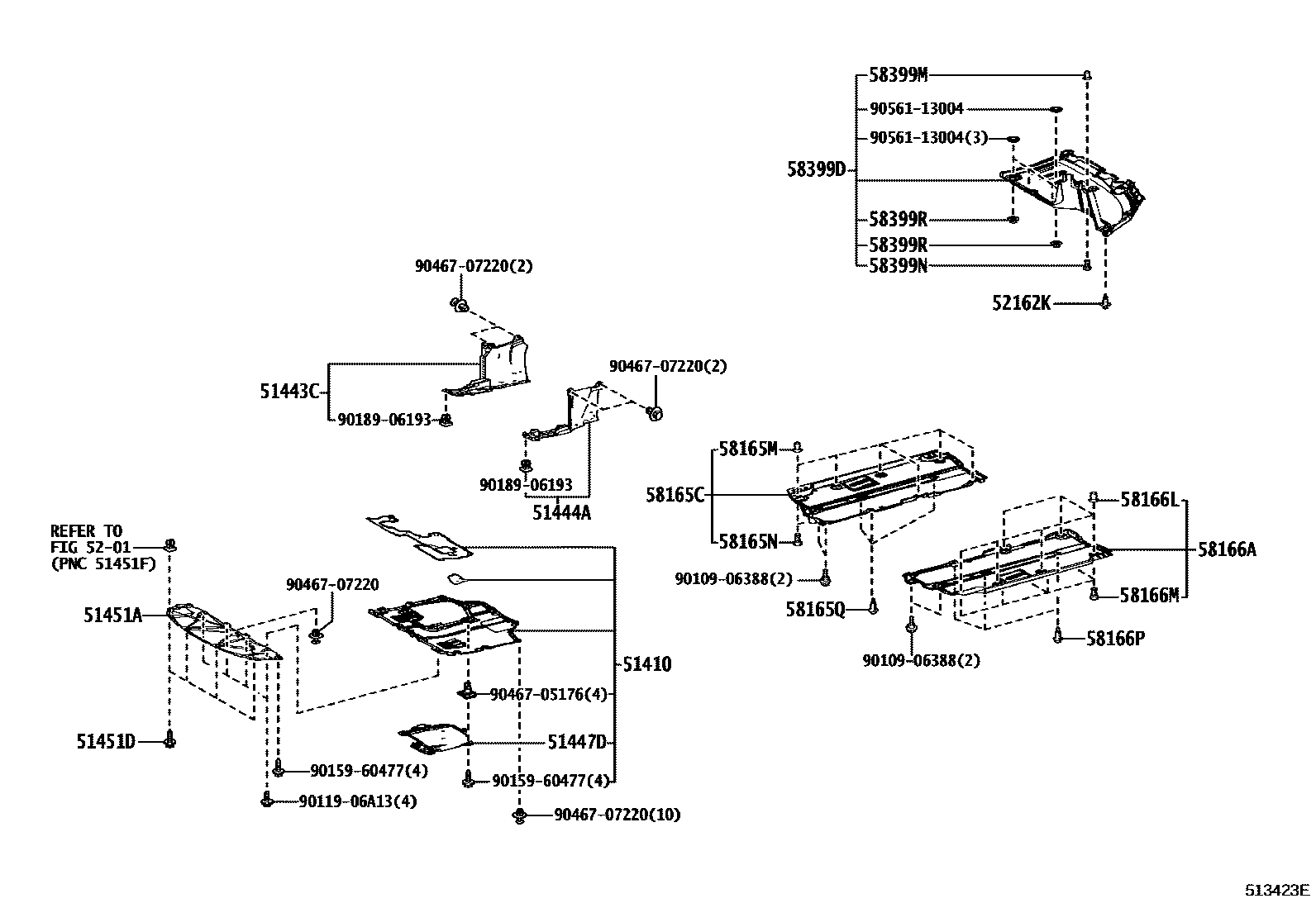

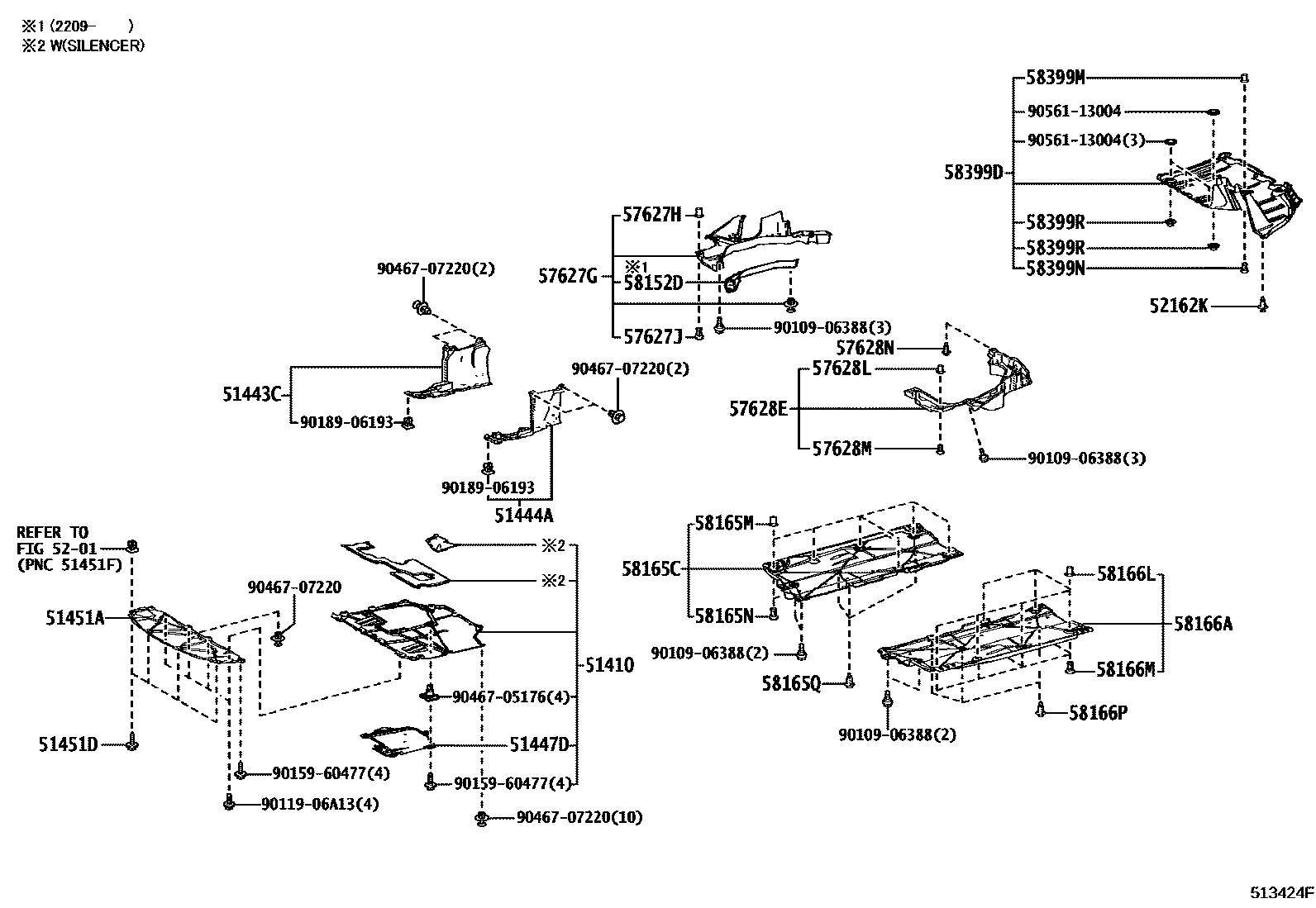

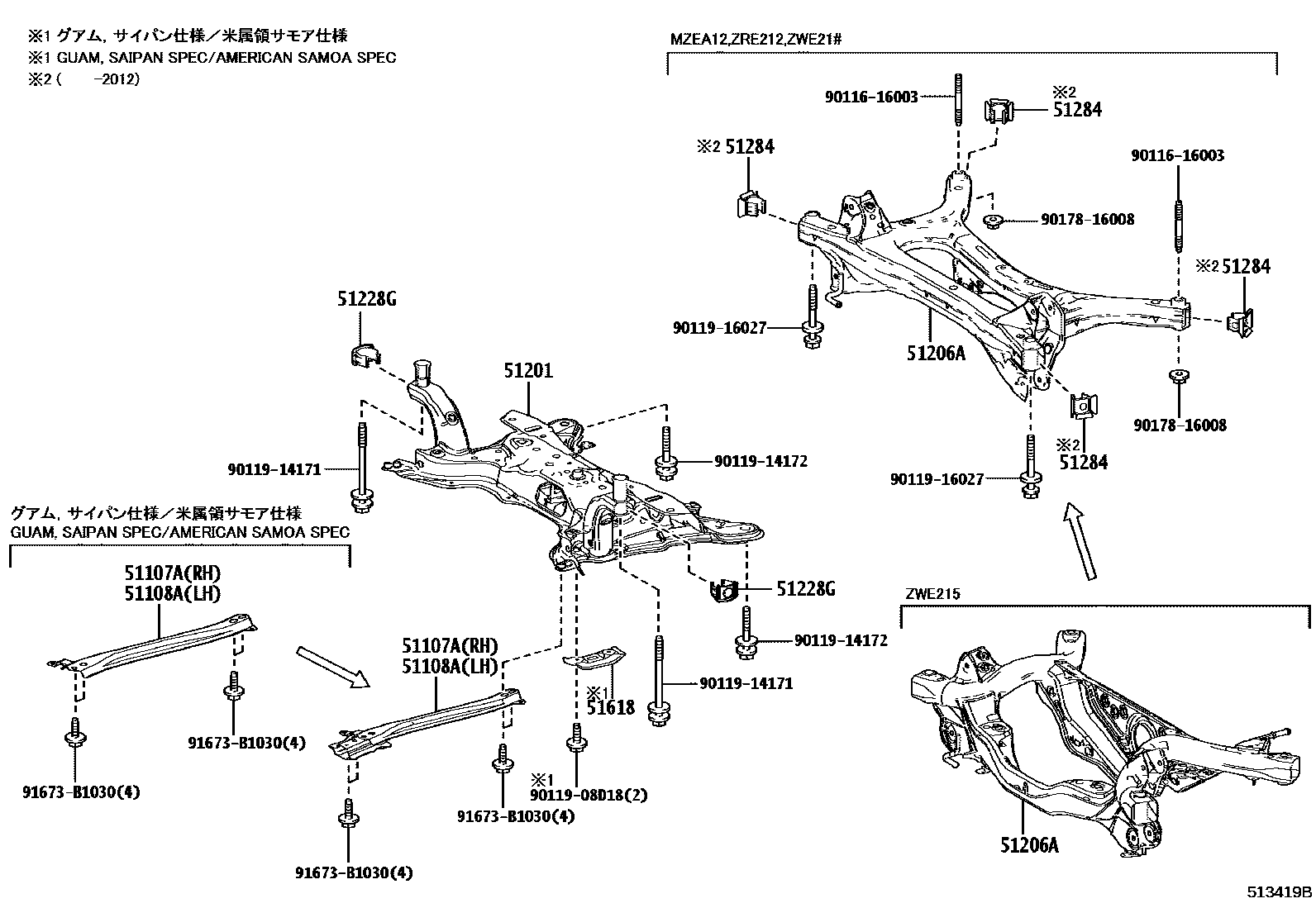

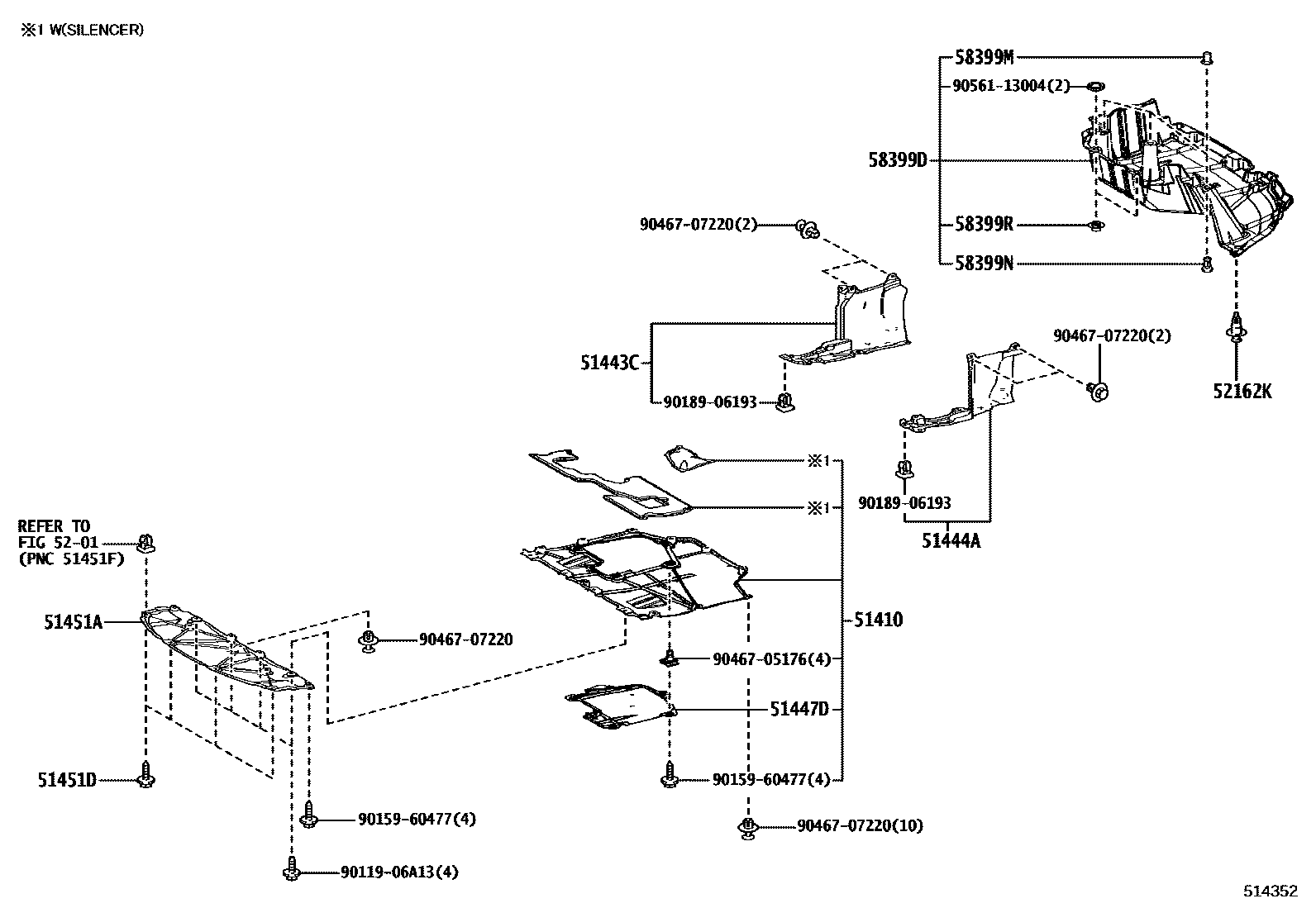

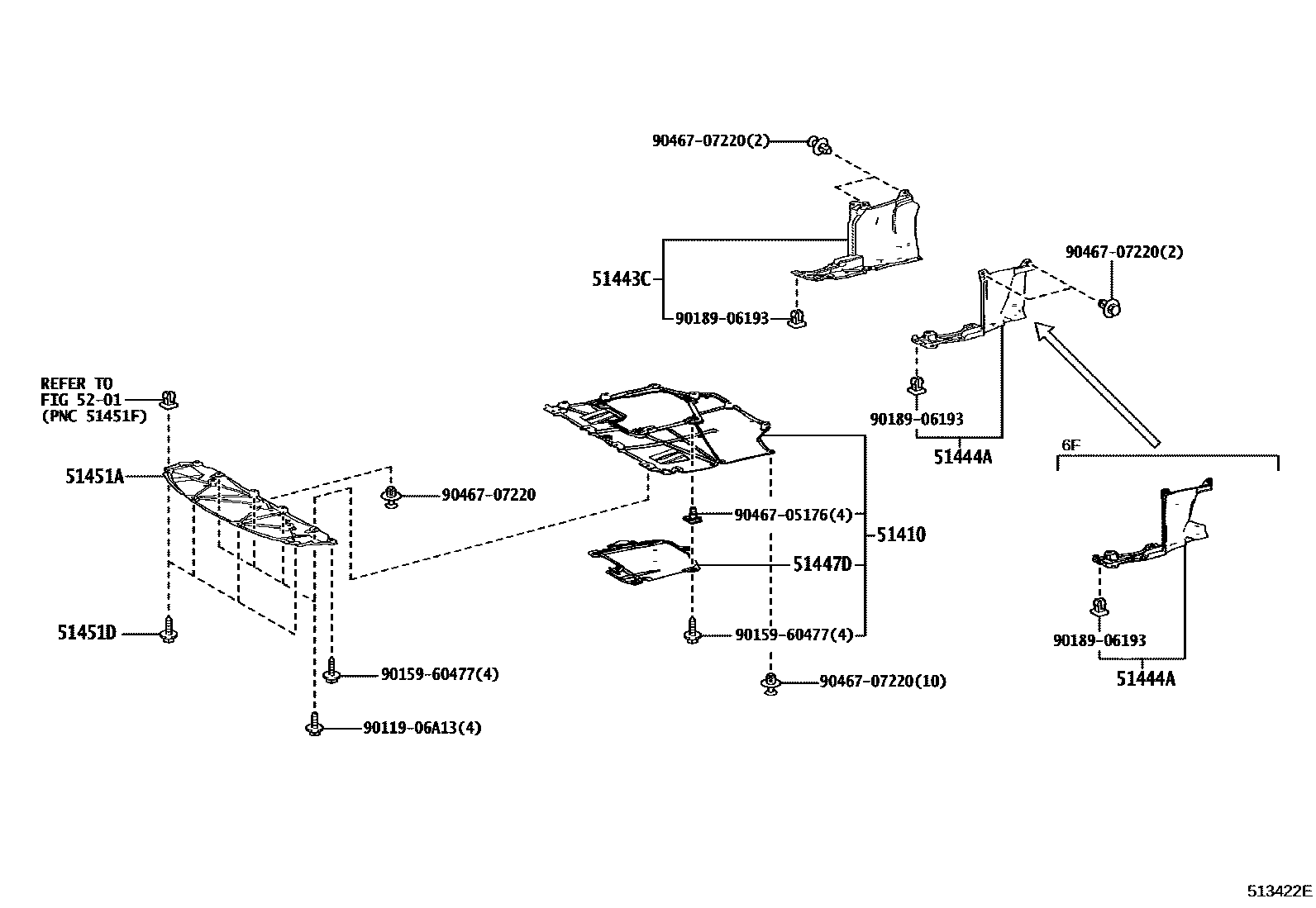

Toyota COROLLA EPC diagram 5102, 悬架横梁和发动机底罩, with 6 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51107A | Right rear longitudinal beam reinforcement sub-assembly | 51107-47010 · 51107-47020 |
| 51108A | Left rear longitudinal beam reinforcement sub-assembly | 51108-47010 · 51108-47020 |
| 51201 | Front suspension cross member sub-assembly | 51201-47071 · 51201-47072 |
| 51206A | Rear suspension cross member sub-assembly | 51206-12200 · 51206-12201 · 51206-12211 |
| 51228G | PLAQUE LONGERON SUSPENSION AVANT | 51228-47010 |
| 51284 | Rear suspension cross member hole cover | 51284-47010 |
| 51410 | Engine No. 1 bottom cover assembly | 51410-12120 · 51410-12181 |
| 51443C | Engine right rear bottom cover | 51443-12110 |
| 51444A | Engine left rear bottom cover | 51444-12080 · 51444-12090 |
| 51447D | No. 4 engine center bottom cover | 51447-12090 · 51447-12121 |
| 51451A | Engine center cover | 51451-12120 |
| 51451D | VIS, NO.1 | 90159-60477 |
| 51618 | Left front differential bracket guard | 51618-47010 |
| 52162K | PIECE PARE-CHOCS ARRIERE | 52161-16010 |
| 57627G | COUVERCLE DE MEMBRE LATERAL DROIT DE PLANCHER AR | 58390-12010 |
| 57628E | Rear floor left longitudinal member cover | 57628-12180 |
| 57628N | CLIP, CACHE LONGERON PLANCHER ARR | 90467-07220 |
| 58152D | ISOLANT, THERMIQUE PLANCHER AVANT, INFERIEUR NO.1 | 58152-47010 |
| 58165C | Front floor right cover | 58165-12140 · 58165-12210 |
| 58165Q | CLIP, CACHE PLANCHER AVANT | 90467-07220 |
| 58166A | Front floor left cover | 58166-12040 · 58166-12050 |
| 58166P | CLIP, CACHE PLANCHER AVANT | 90467-07220 |
| 58399D | Floor No. 2 lower cover | 58399-12050 · 58399-12060 · 58399-12110 |
| 58399R | ATTACHE, CACHE SOUS PLANCHER, NO.3 | 90467-14053 · 90467-14054 |
