Toyota COROLLA 点火线圈和火花塞 — Figure 1901

Toyota COROLLA EPC diagram 1901, 点火线圈和火花塞, with 3 images and 2 PNC and OE references.

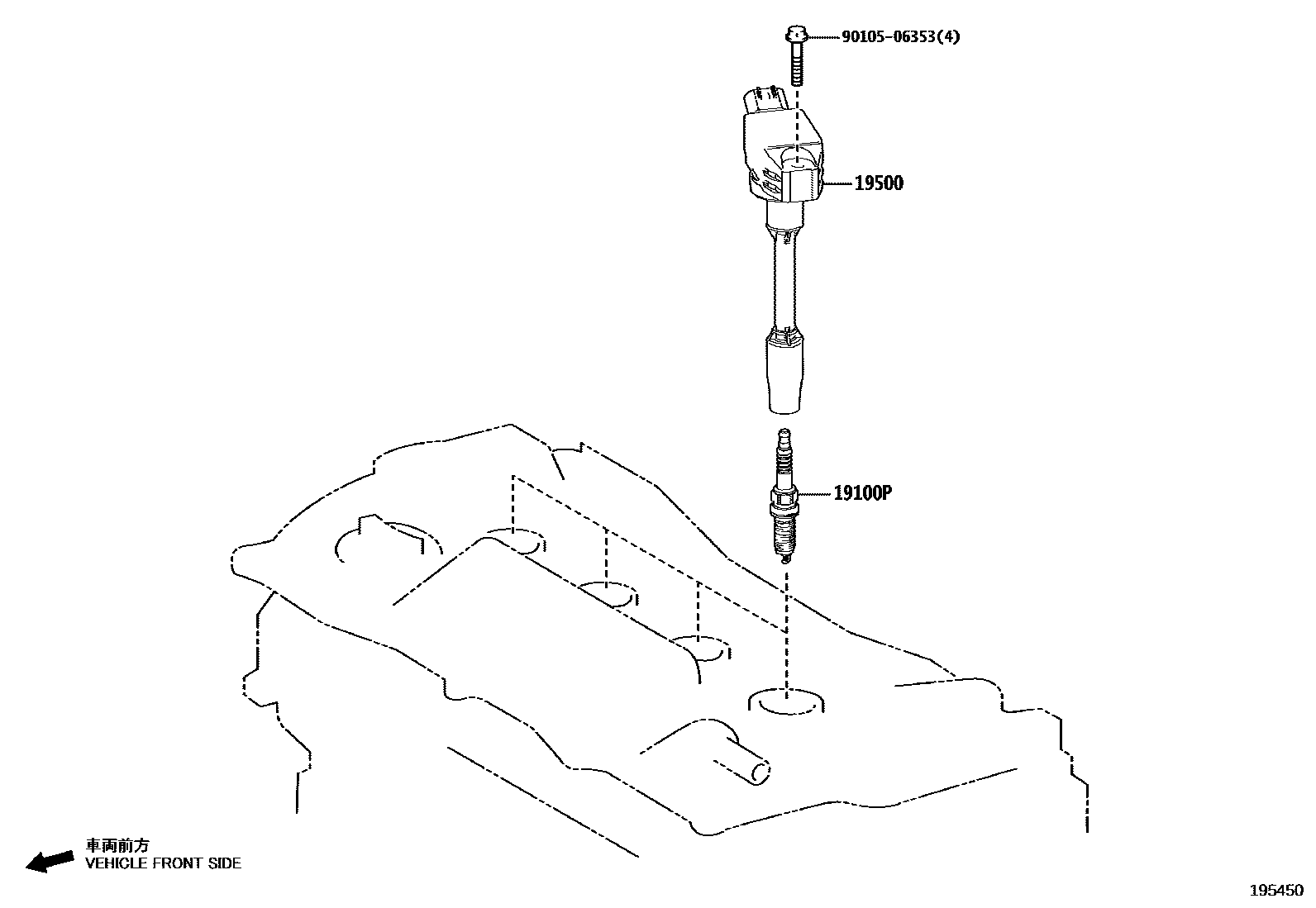

Toyota COROLLA 点火线圈和火花塞 EPC diagram — 195450
点火线圈和火花塞 — 195450 (201901 – 999999)

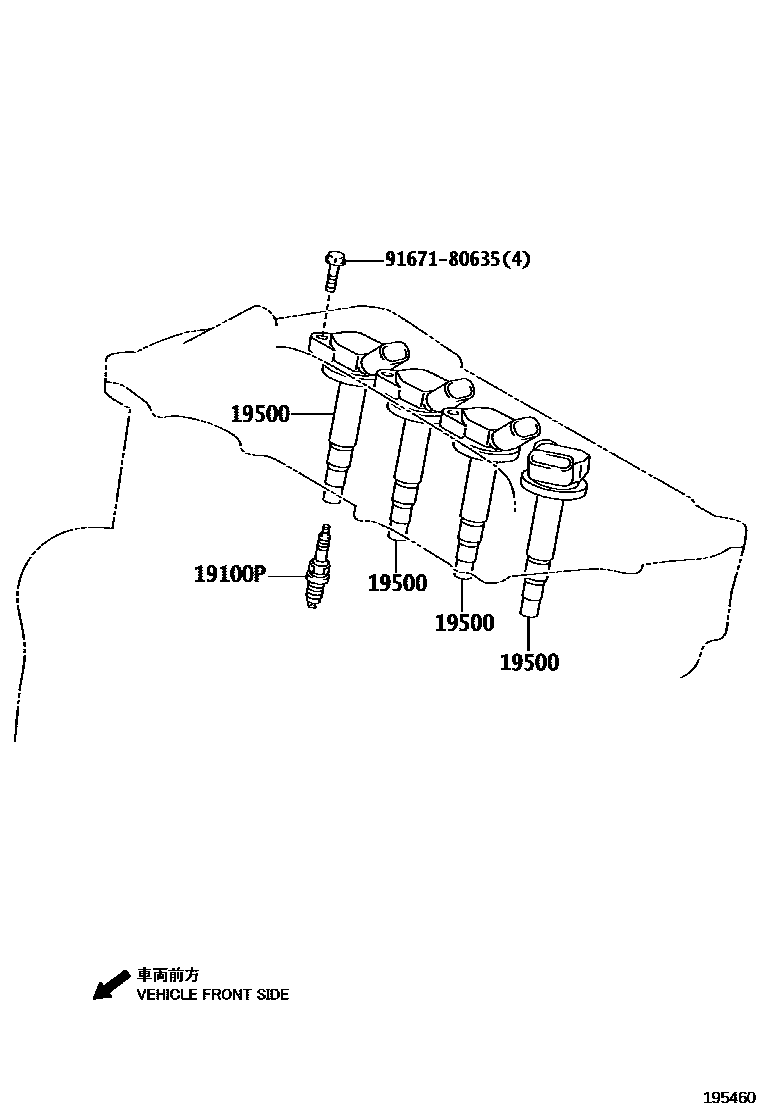

Toyota COROLLA 点火线圈和火花塞 EPC diagram — 195460
点火线圈和火花塞 — 195460 (201901 – 999999)

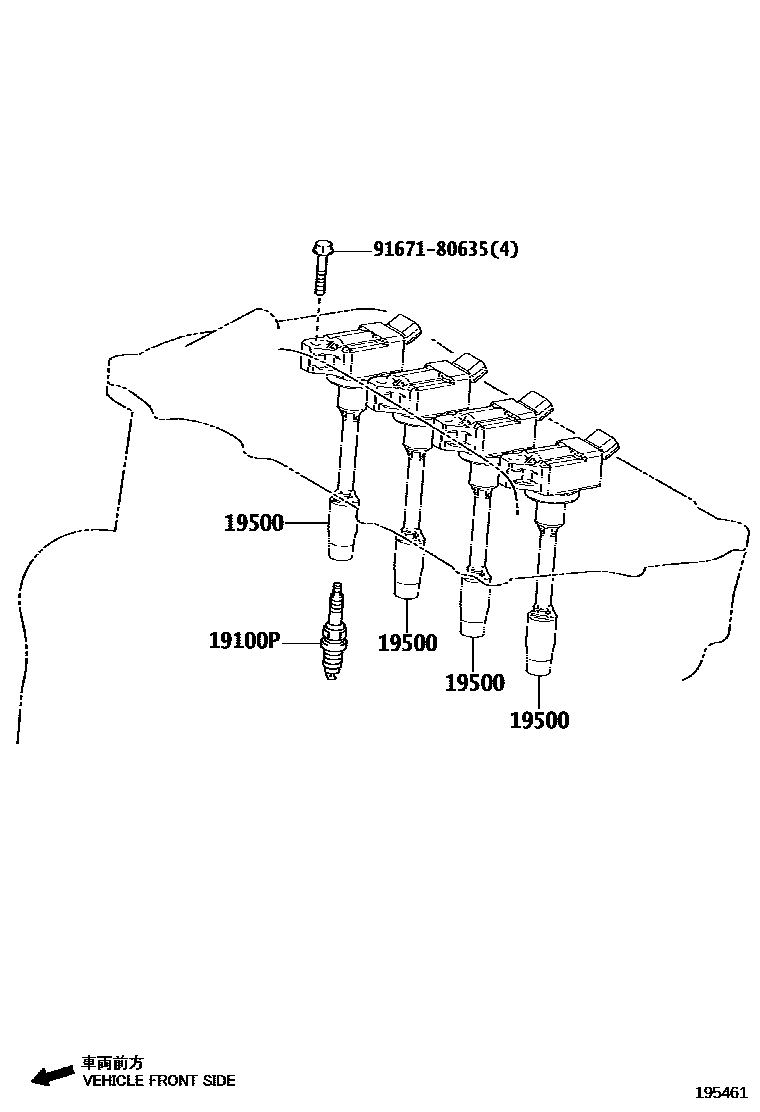

Toyota COROLLA 点火线圈和火花塞 EPC diagram — 195461
点火线圈和火花塞 — 195461 (201901 – 999999)

PNC and OE references

PNCPart nameOE numbers
19100Pspark plug90919-01289 · 90919-01297 · 90919-01298
19500Ignition coil assembly90919-02272 · 90919-02276 · 90919-02277
