Toyota COROLLA vacuum tube — Figure 1708

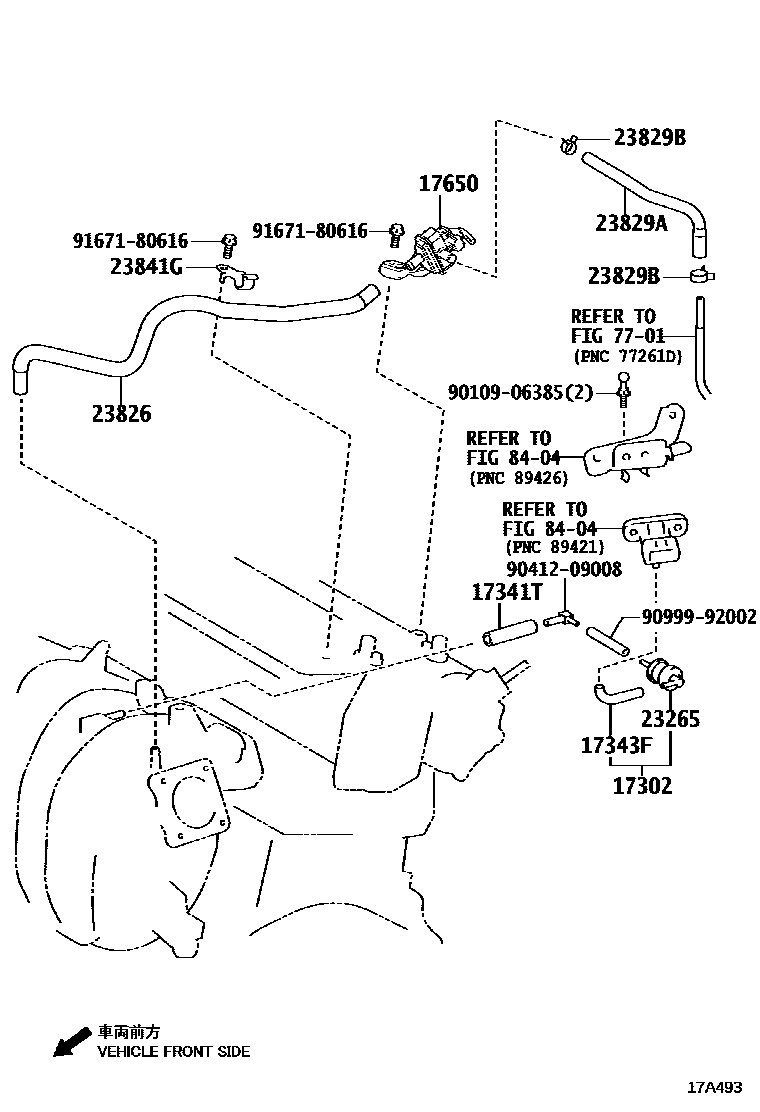

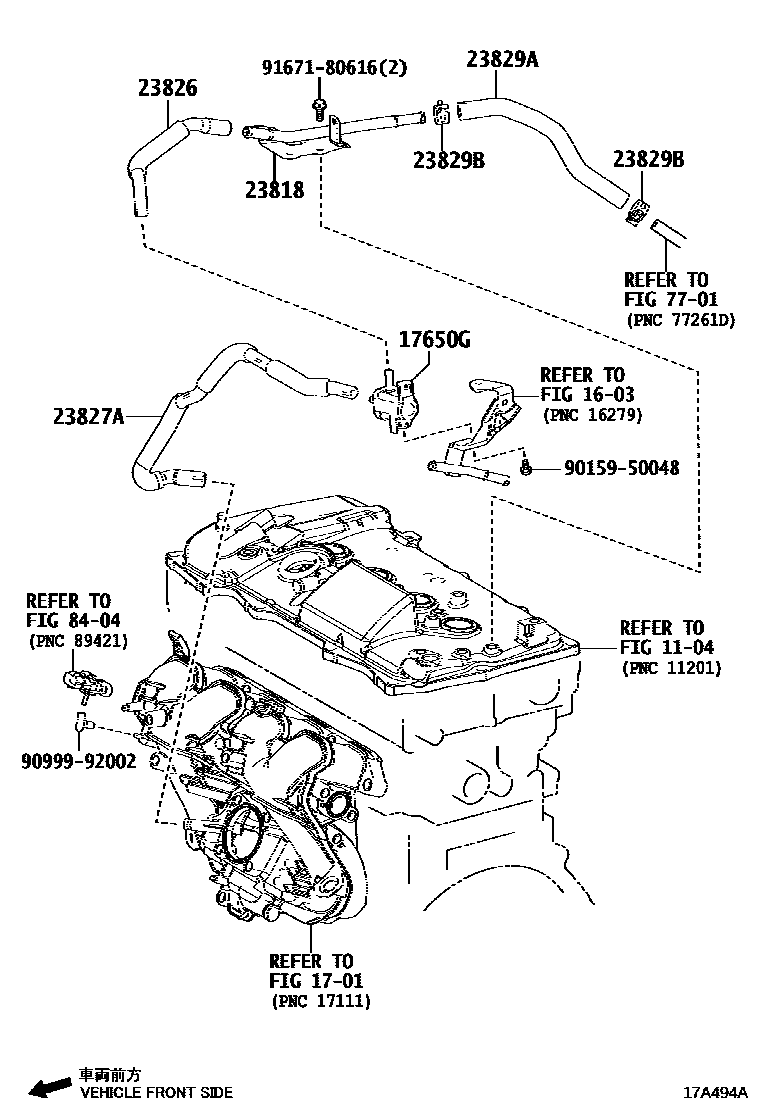

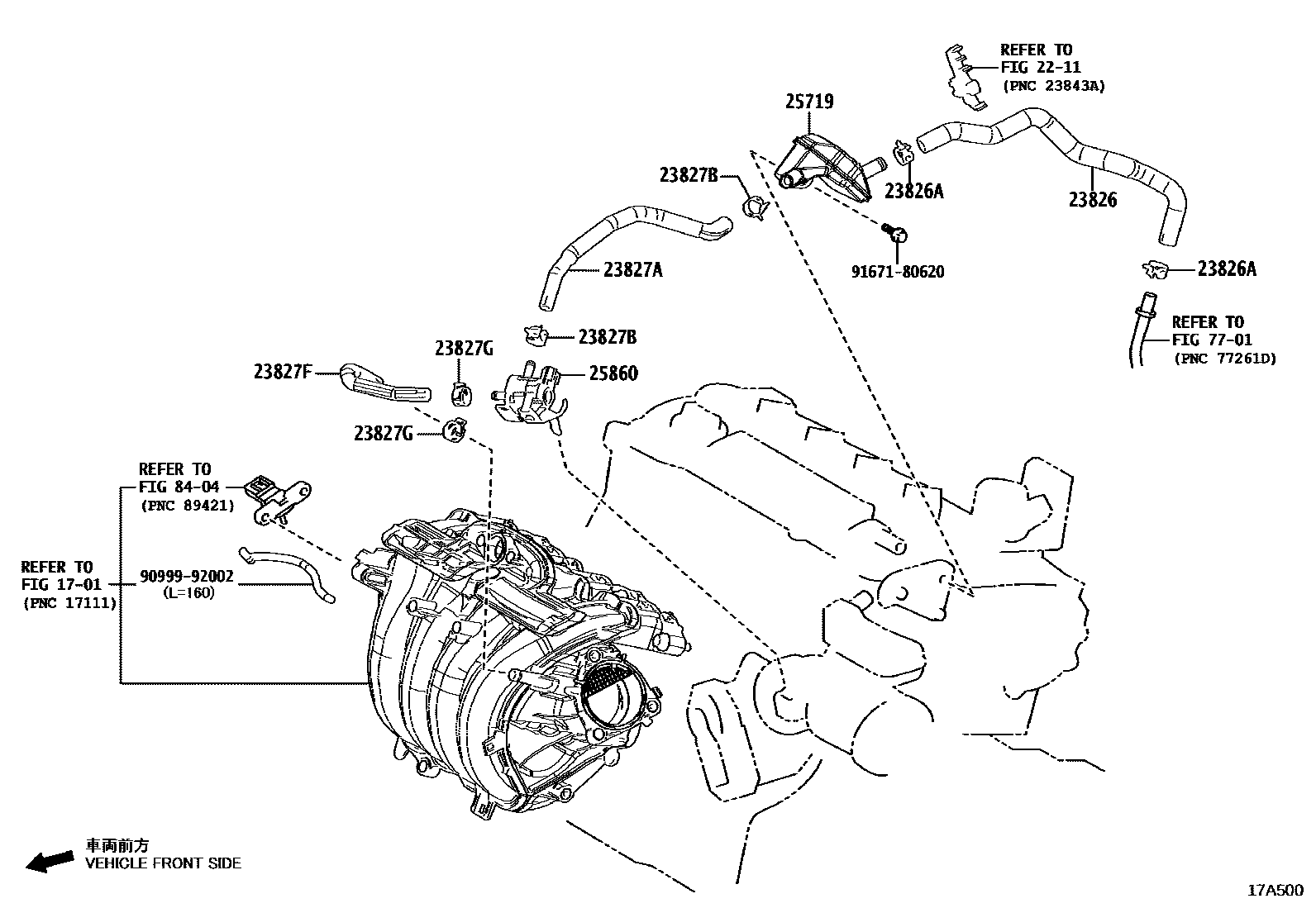

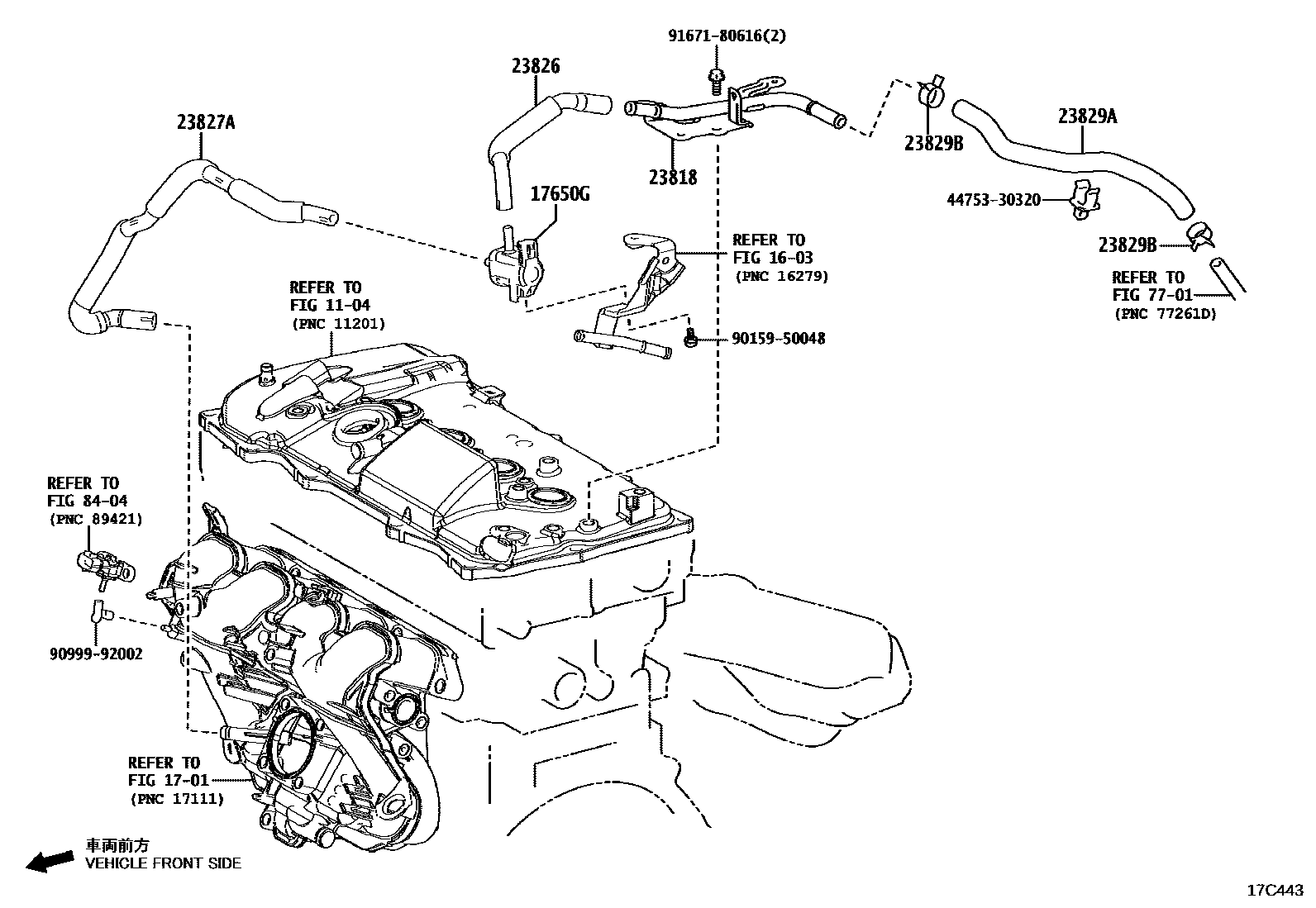

Toyota COROLLA EPC diagram 1708, vacuum tube, with 4 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17302 | Air hose sub-assembly | 17302-37010 |
| 17341T | Air hose No. 1 | 17341-37070 |
| 17343F | No. 3 air hose | 17343-37050 |
| 17650 | Vacuum switch valve assembly | 25860-37120 |
| 17650G | Duty cycle controlled vacuum switching valve | 90910-12276 |
| 23265 | No. 1 gas filter | 90917-11038 |
| 23818 | Fuel vapor supply pipe | 23818-37030 · 23818-37040 |
| 23826 | No. 1 fuel vapor supply hose | 23826-24030 · 23826-37250 · 23826-37340 · 23826-37350 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 96136-41901 |
| 23827A | No. 2 fuel vapor supply hose | 23826-24070 · 23827-37070 |
| 23827B | Clamp (for No. 2 fuel vapor supply hose) | 96136-41901 |
| 23827F | TUYAU, ALIMENTATION VAPEUR CARBURANT, NO.3 | 23826-24080 |
| 23827G | AGR. FIX. (DE COND. FLEX. VAP.ESSENCE NO.3) | 96136-41901 |
| 23829A | Fuel vapor supply hose | 23826-37241 · 23826-37290 · 23826-37420 |
| 23829B | Clamp (for fuel vapor supply hose) | 96136-41901 |
| 23841G | fuel hose clamp | 23841-0T060 · 23841-37180 |
| 25719 | Vacuum pressure tank | 25719-24020 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-24040 |
