Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103

Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 8 images and 2 PNC and OE references.

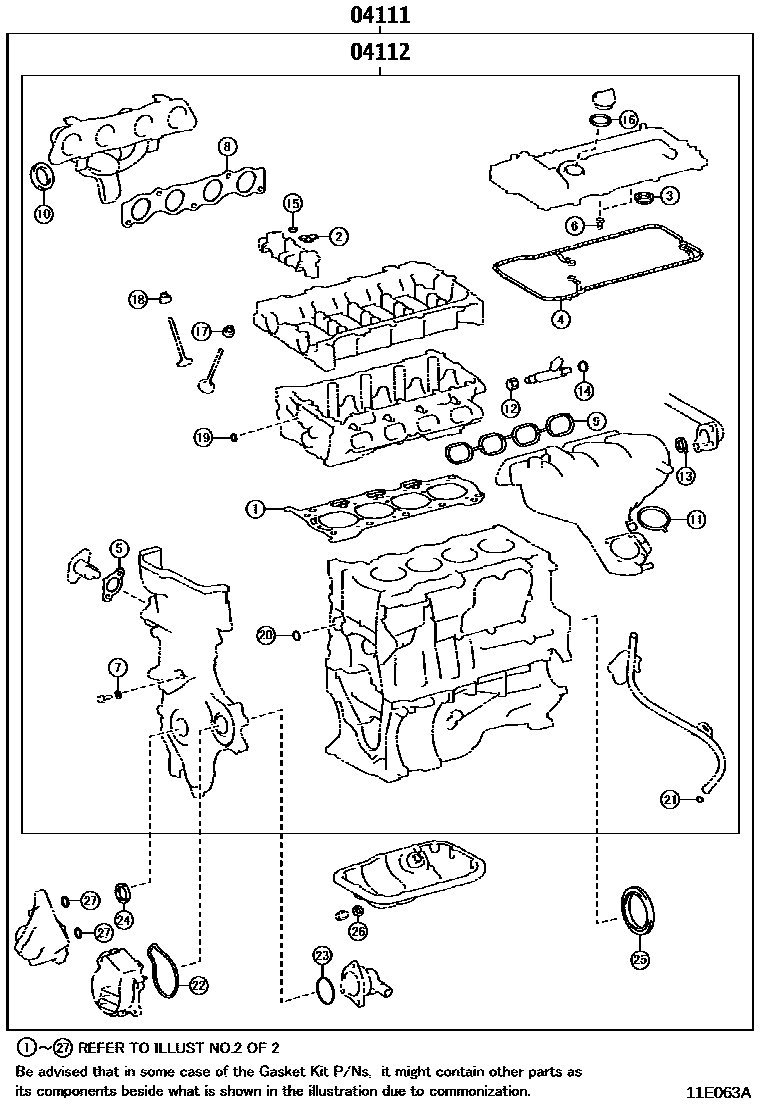

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11E063A
Engine Overhaul Gasket Kit — 11E063A (201901 – 999999)

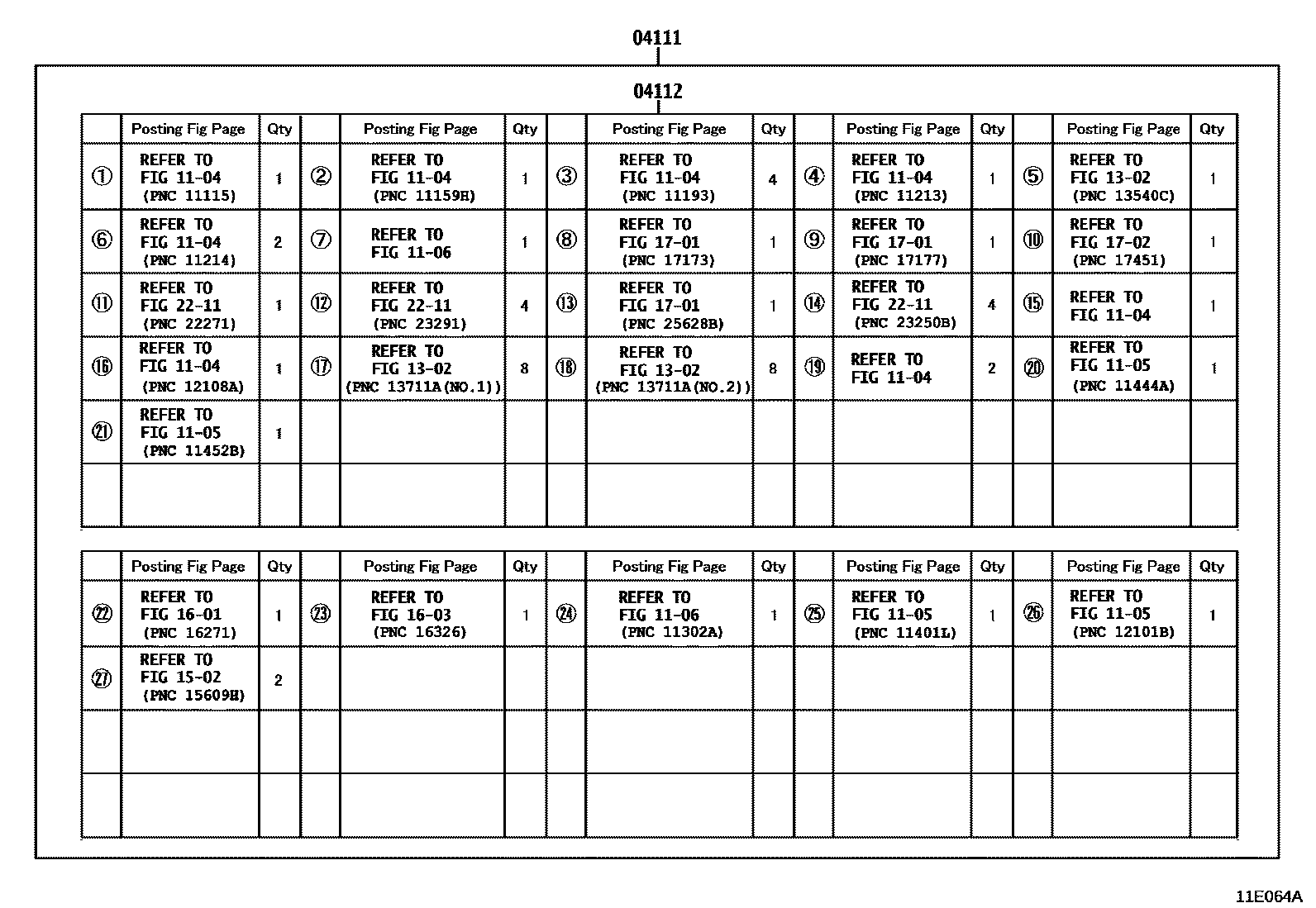

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11E064A
Engine Overhaul Gasket Kit — 11E064A (201901 – 999999)

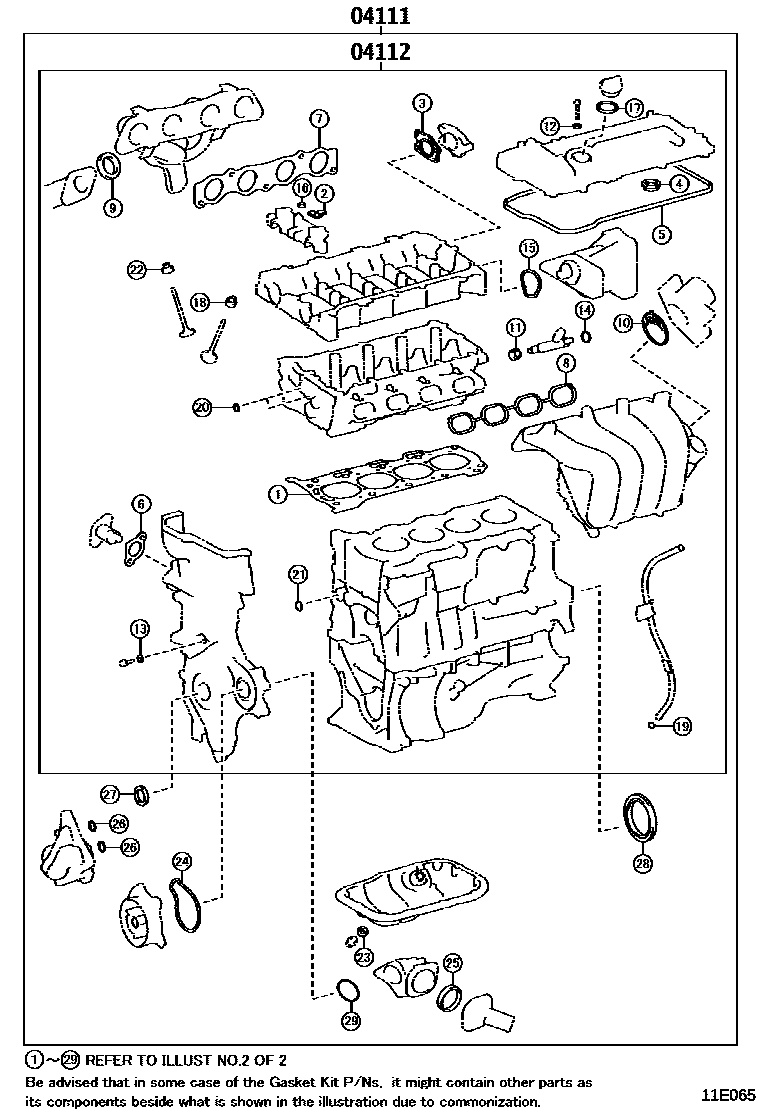

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11E065
Engine Overhaul Gasket Kit — 11E065 (201901 – 999999)

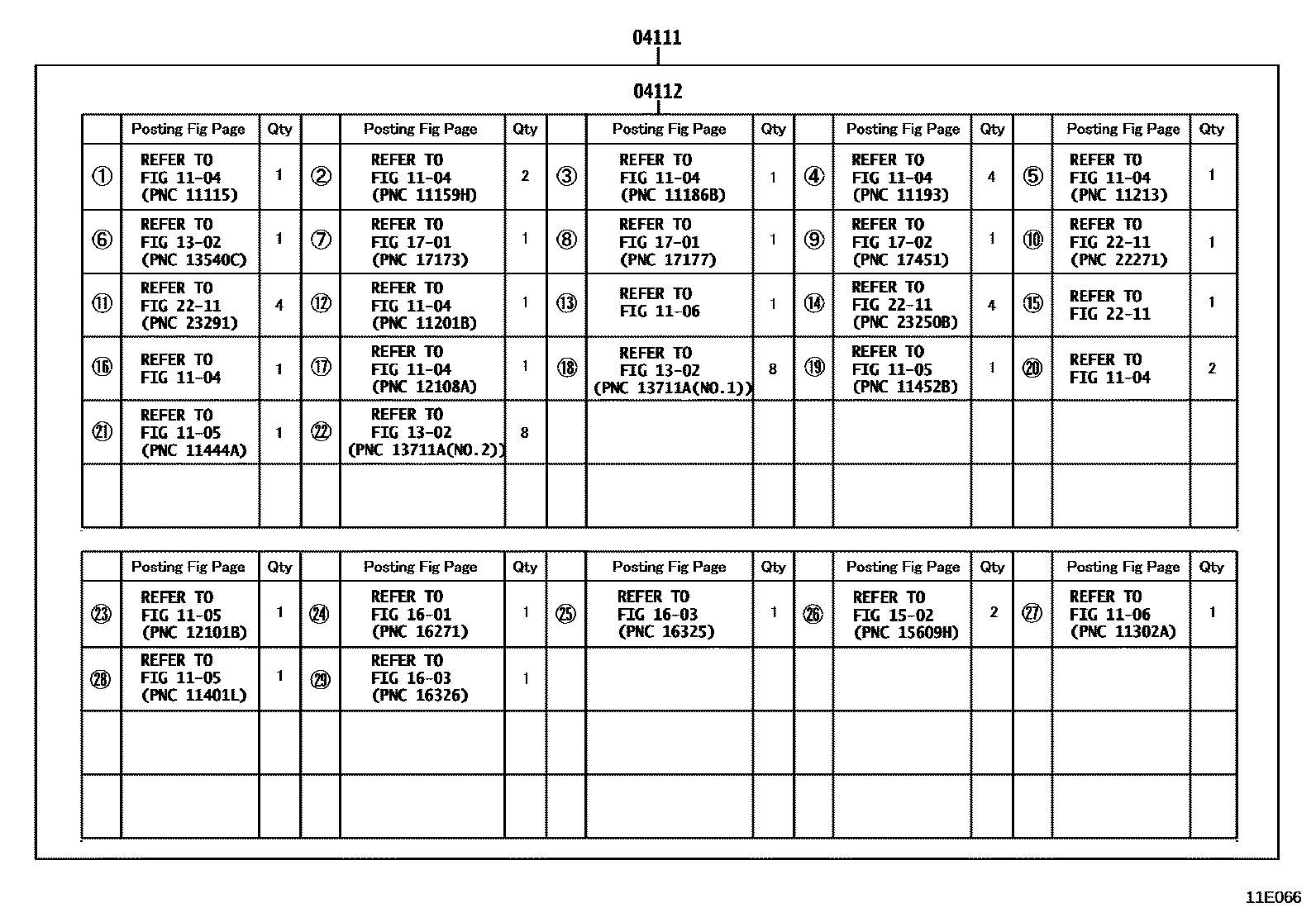

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11E066
Engine Overhaul Gasket Kit — 11E066 (201901 – 999999)

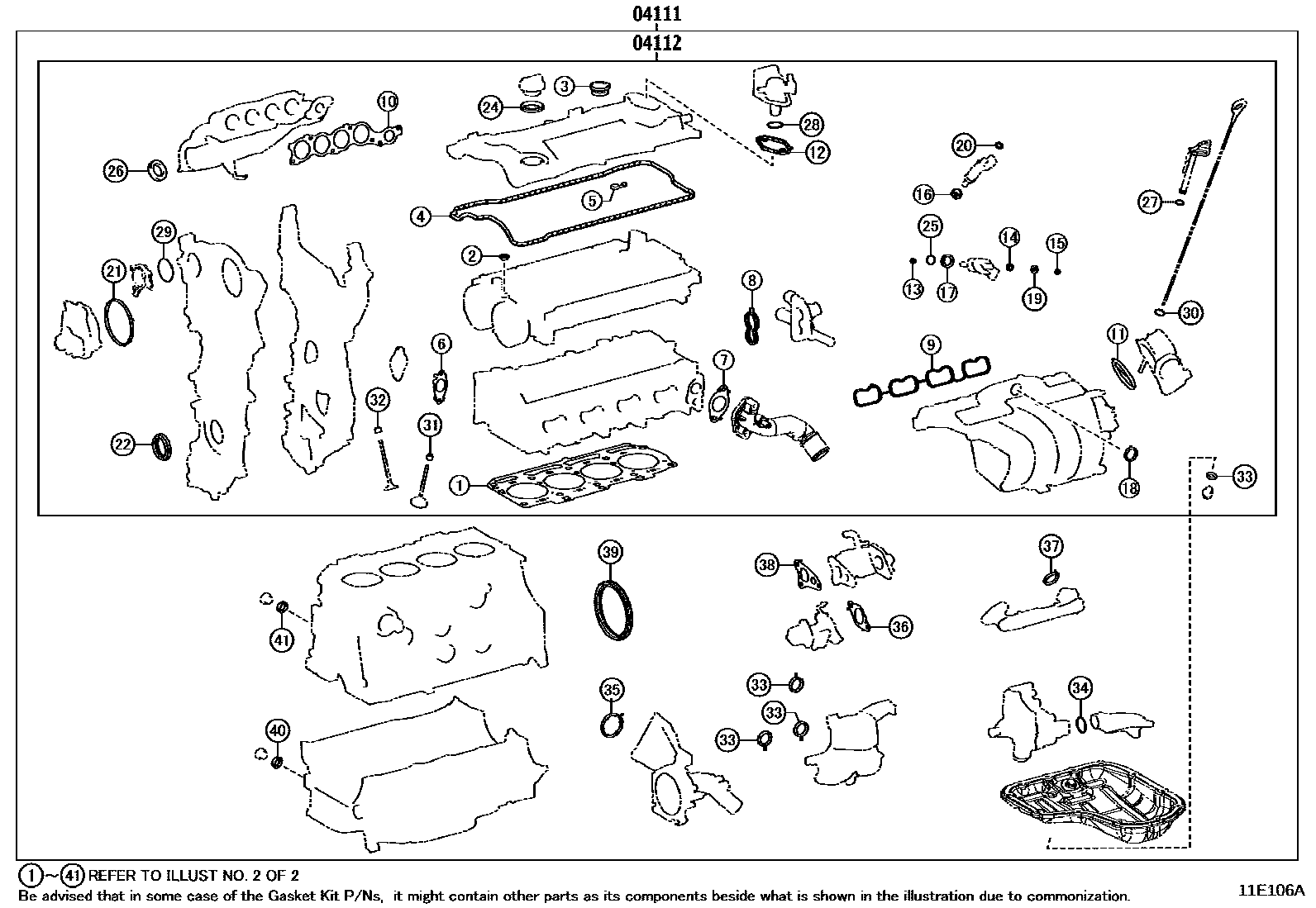

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11E106A
Engine Overhaul Gasket Kit — 11E106A (201901 – 999999)

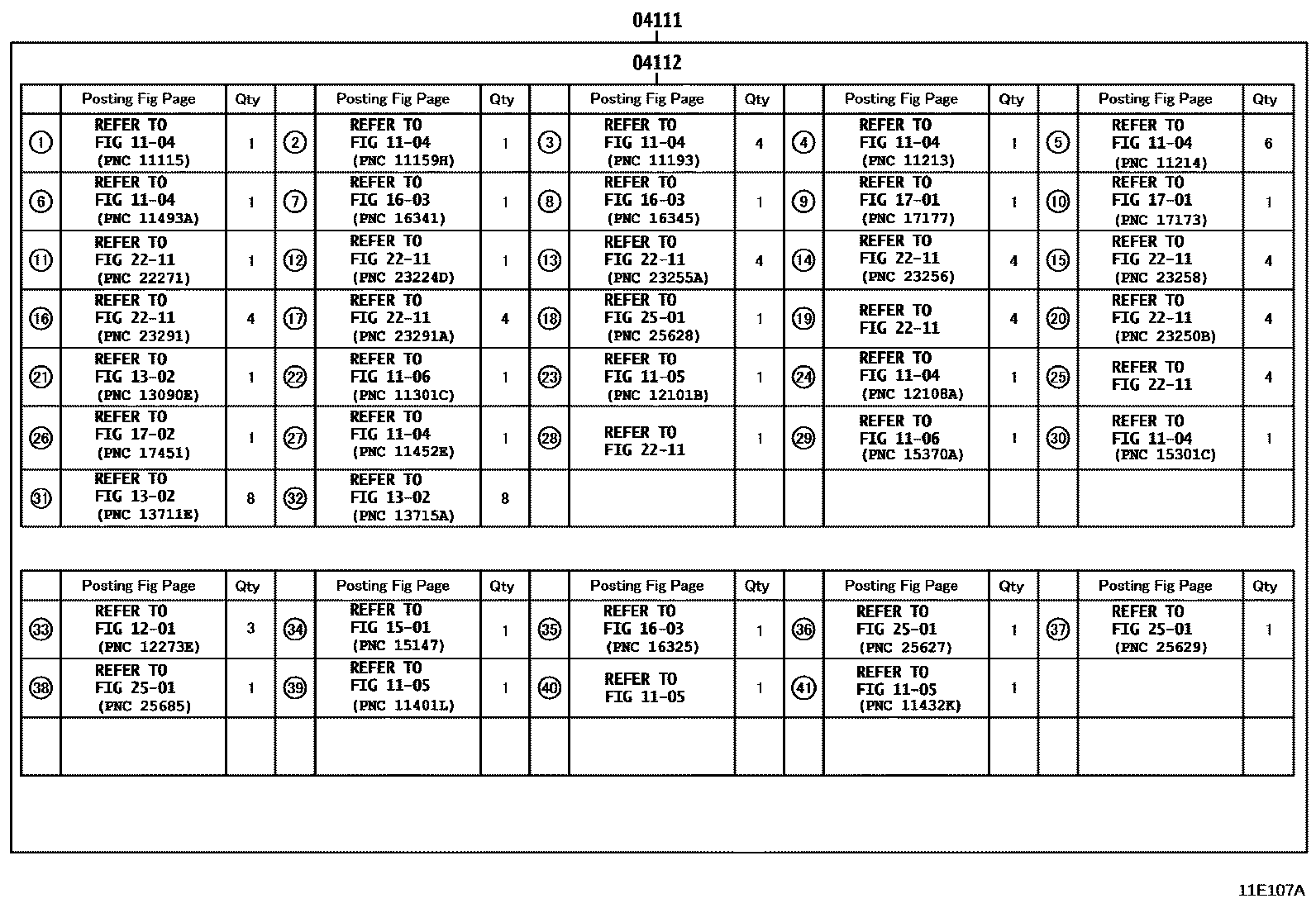

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11E107A
Engine Overhaul Gasket Kit — 11E107A (201901 – 999999)

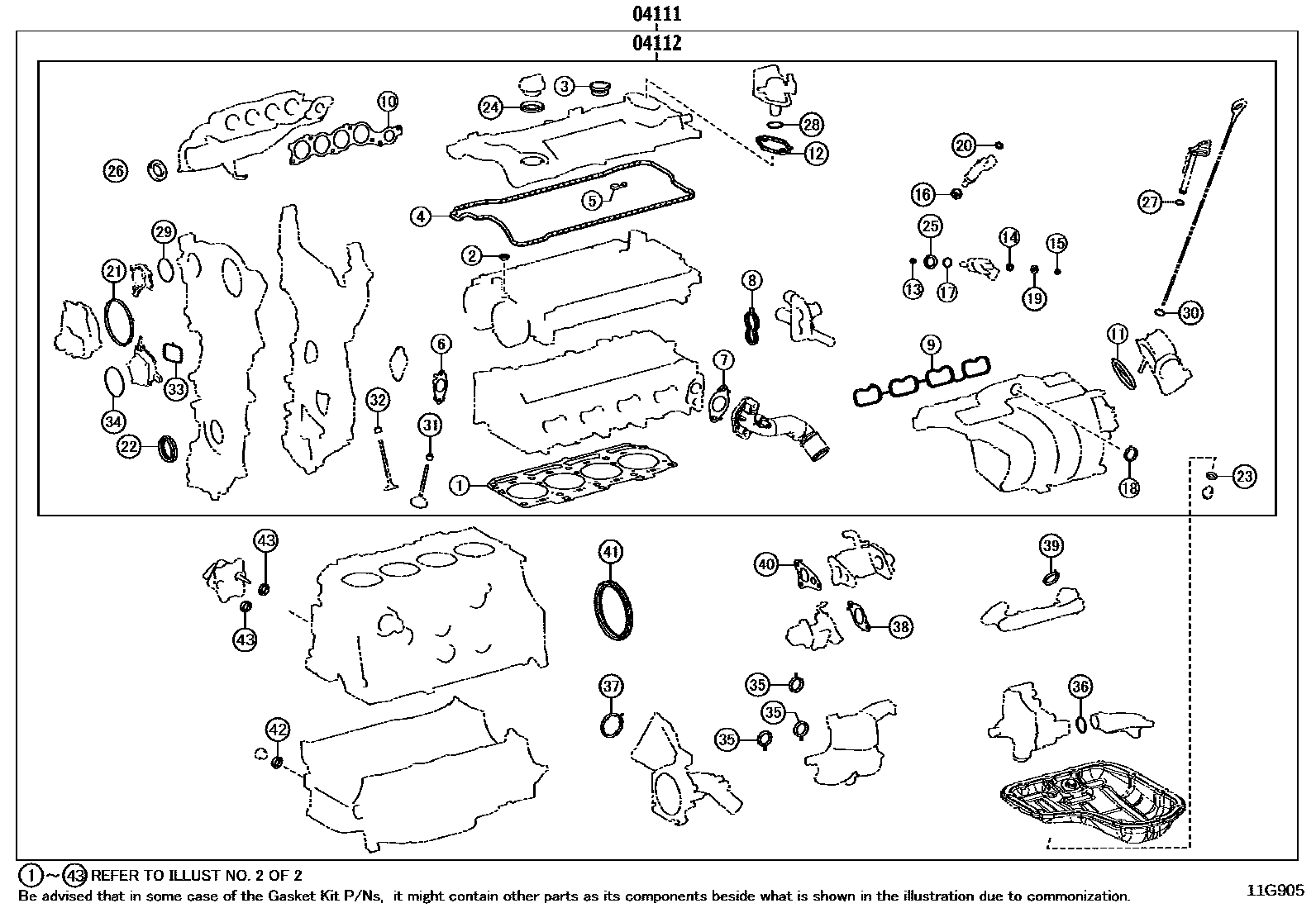

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11G905
Engine Overhaul Gasket Kit — 11G905 (202209 – 999999)

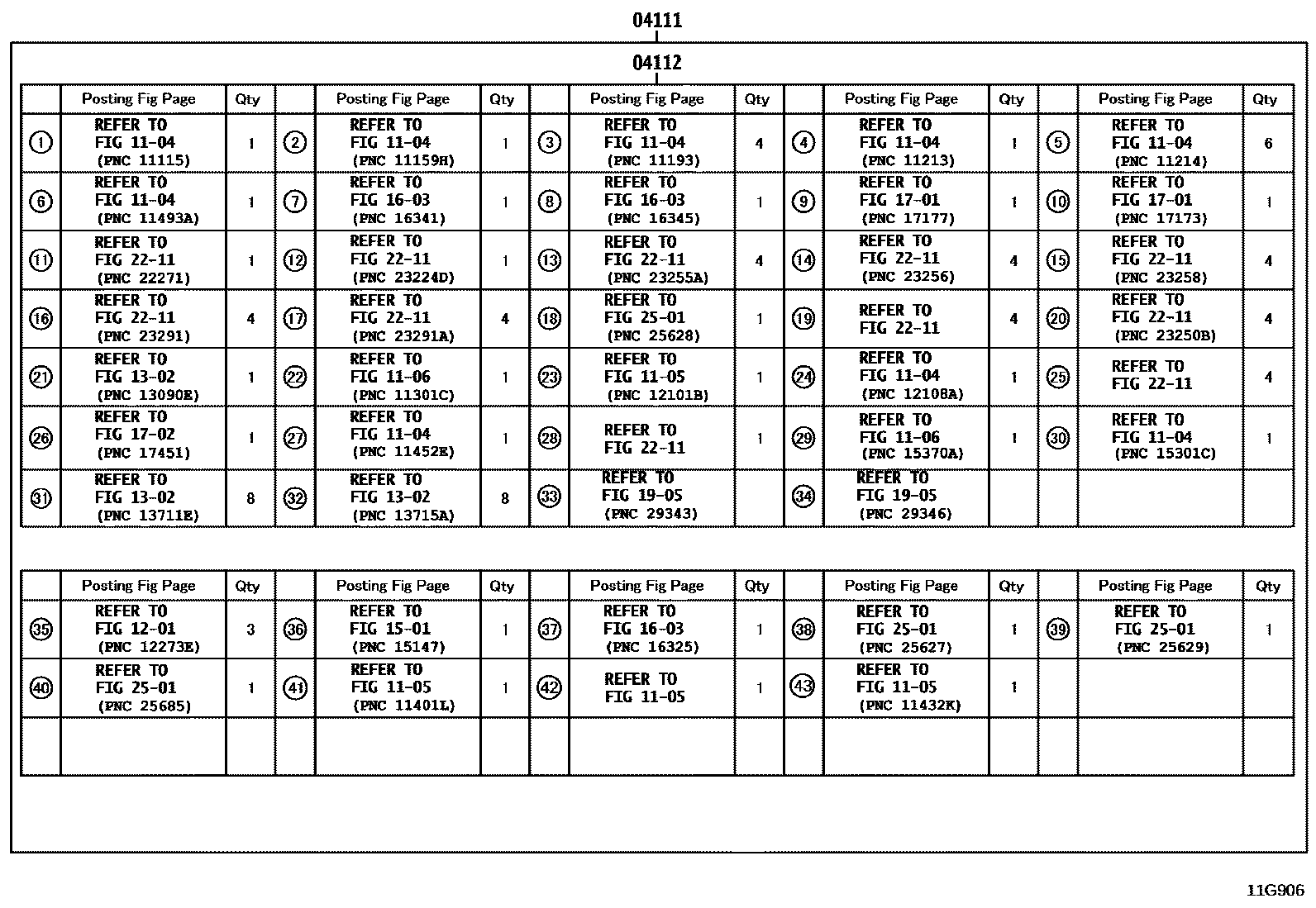

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11G906
Engine Overhaul Gasket Kit — 11G906 (202209 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-24110 · 04111-24111 · 04111-24200 · 04111-37501 · 04111-37540 · 04111-37541 · 04111-37560 · 04111-37561
04112Engine valve grinding pad assembly04112-24060 · 04112-24061 · 04112-24120 · 04112-37224 · 04112-37225 · 04112-37381 · 04112-37400 · 04112-37401
