Toyota COROLLA Partial Engine Assembly — Figure 1101

Toyota COROLLA EPC diagram 1101, Partial Engine Assembly, with 1 images and 1 PNC and OE references.

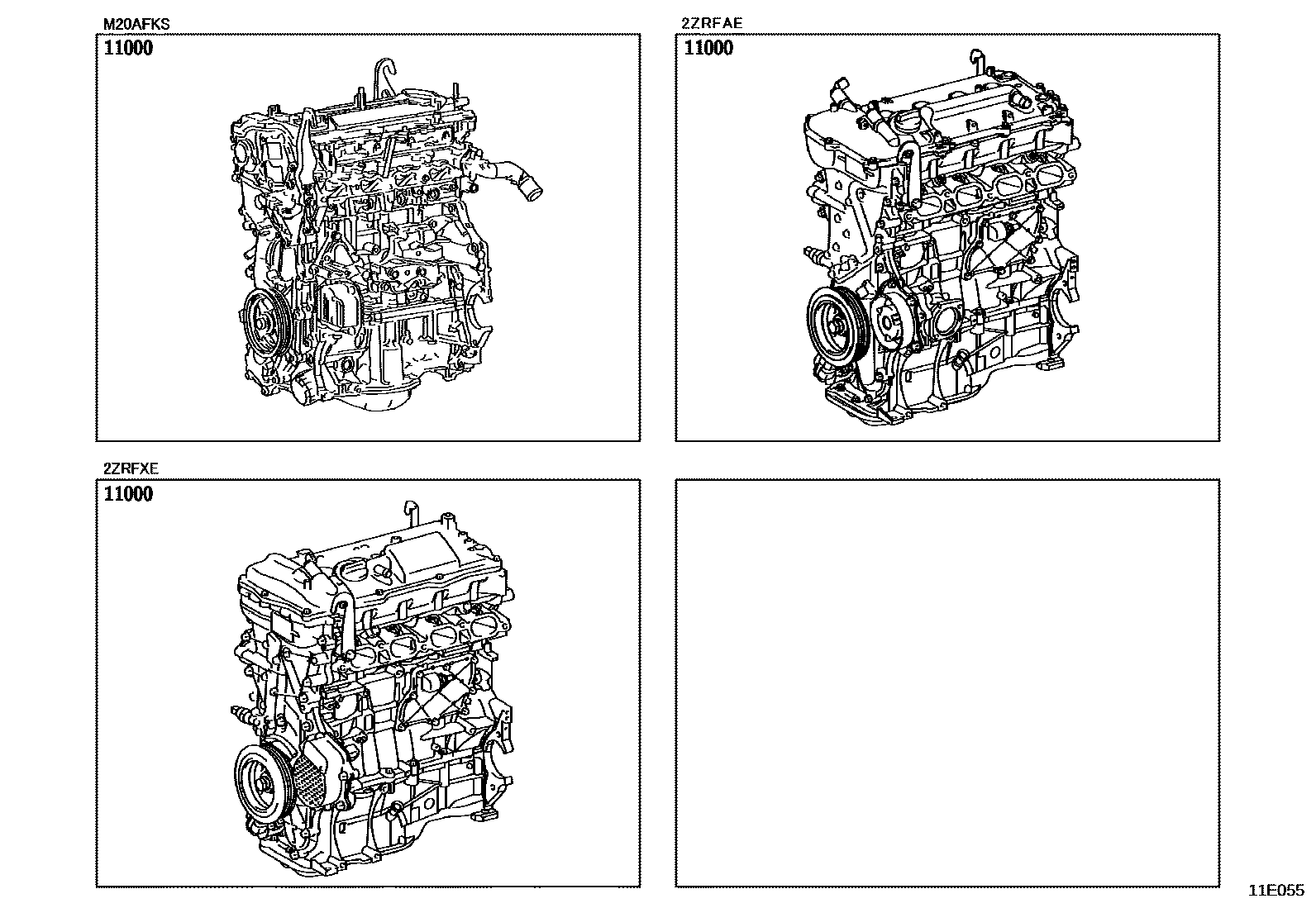

Toyota COROLLA Partial Engine Assembly EPC diagram — 11E055
Partial Engine Assembly — 11E055 (201901 – 999999)

PNC and OE references

PNCPart nameOE numbers
11000Partial Engine Assembly19000-24300 · 19000-24410 · 19000-24420 · 19000-2U020 · 19000-37850 · 19000-37860 · 19000-37A00 · 19000-37B20 · 19000-37B70 · 19000-3V010
