Toyota COROLLA 后视镜 — Figure 8701

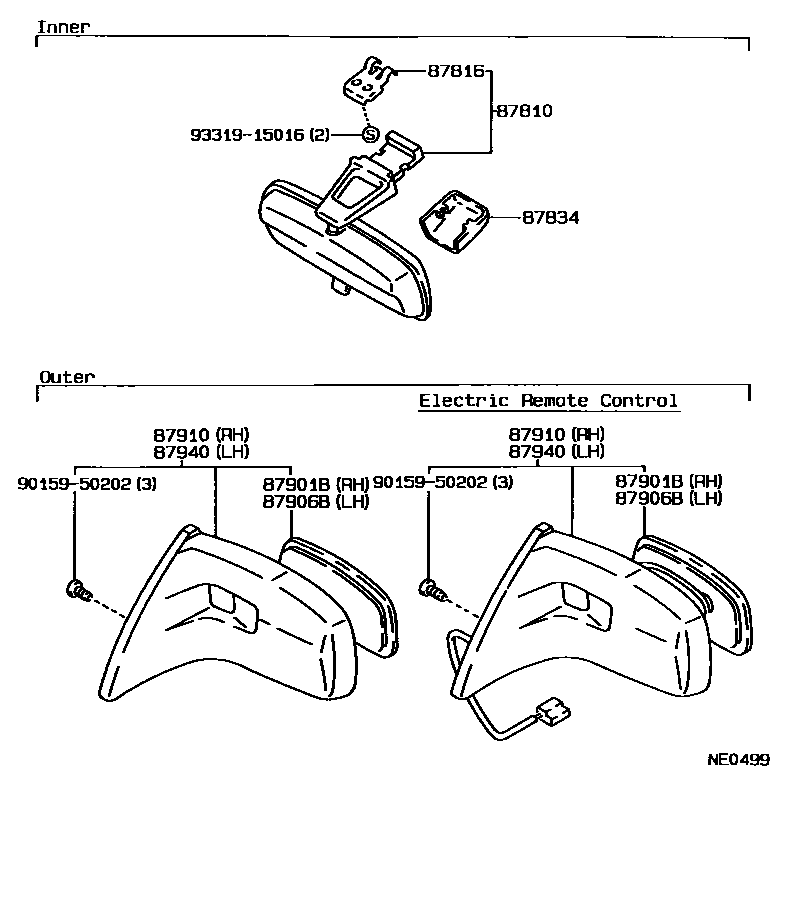

Toyota COROLLA EPC diagram 8701, 后视镜, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87816 | Interior rearview mirror spring | 74372-30030 |
| 87901B | Right exterior rearview mirror sub-assembly | 87931-1A390 |
| 87906B | Left exterior rearview mirror sub-assembly | 87961-1A470 |
| 87910 | Right exterior rearview mirror assembly | 87910-1A370 · 87910-1A380 · 87910-1A580 |
| 87940 | Left exterior rearview mirror assembly | 87940-1A450 · 87940-1A460 · 87940-1A660 |
