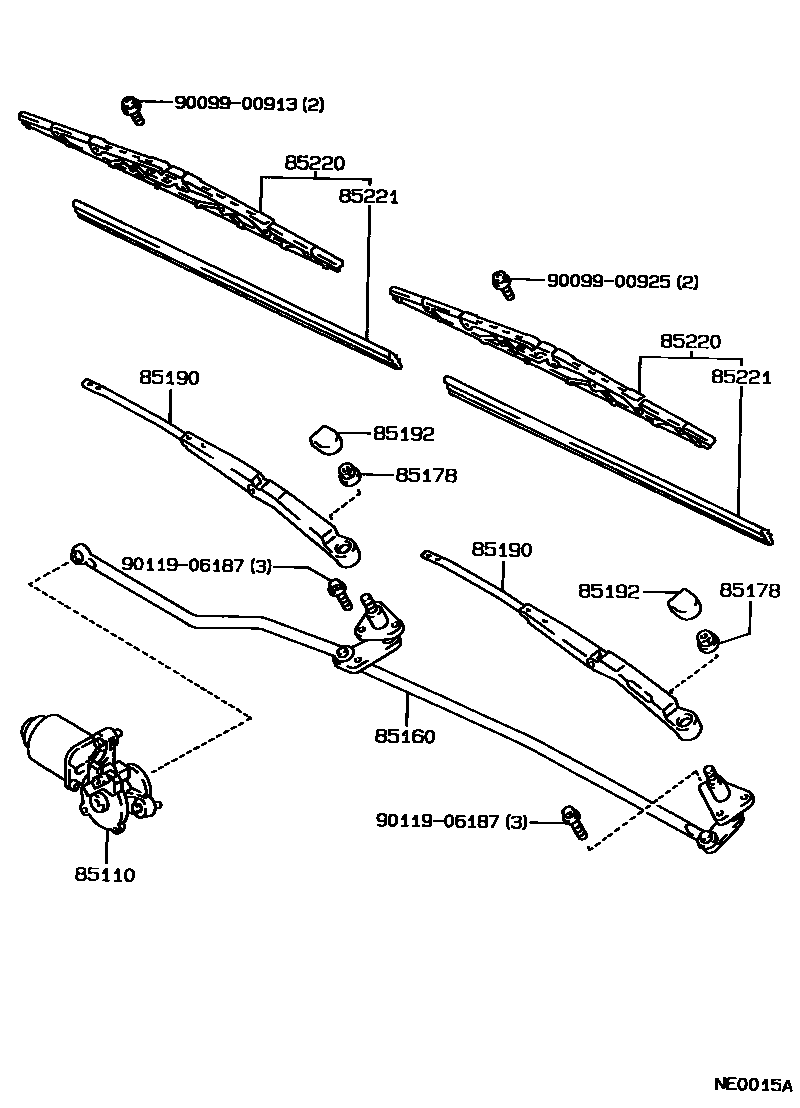

Toyota COROLLA 挡风玻璃刮水器 — Figure 8501
Toyota COROLLA EPC diagram 8501, 挡风玻璃刮水器, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-12660 · 85110-12661 · 85110-12662 · 85110-12670 · 85110-12671 · 85110-12672 |
| 85160 | Windshield wiper connecting rod assembly | 85160-12570 · 85160-12580 |
| 85178 | Nut (for securing front wiper arm) | 90179-08113 |
| 85190 | Windshield wiper arm assembly | 85190-1A010 · 85210-12270 |
| 85192 | windshield wiper arm cover | 85192-12800 |
| 85220 | Windshield wiper blade assembly | 85220-16340 · 85220-16880 · 85220-32600 · 85220-32860 |
| 85221 | Windshield wiper blade | 85221-30100 · 85221-32050 |
