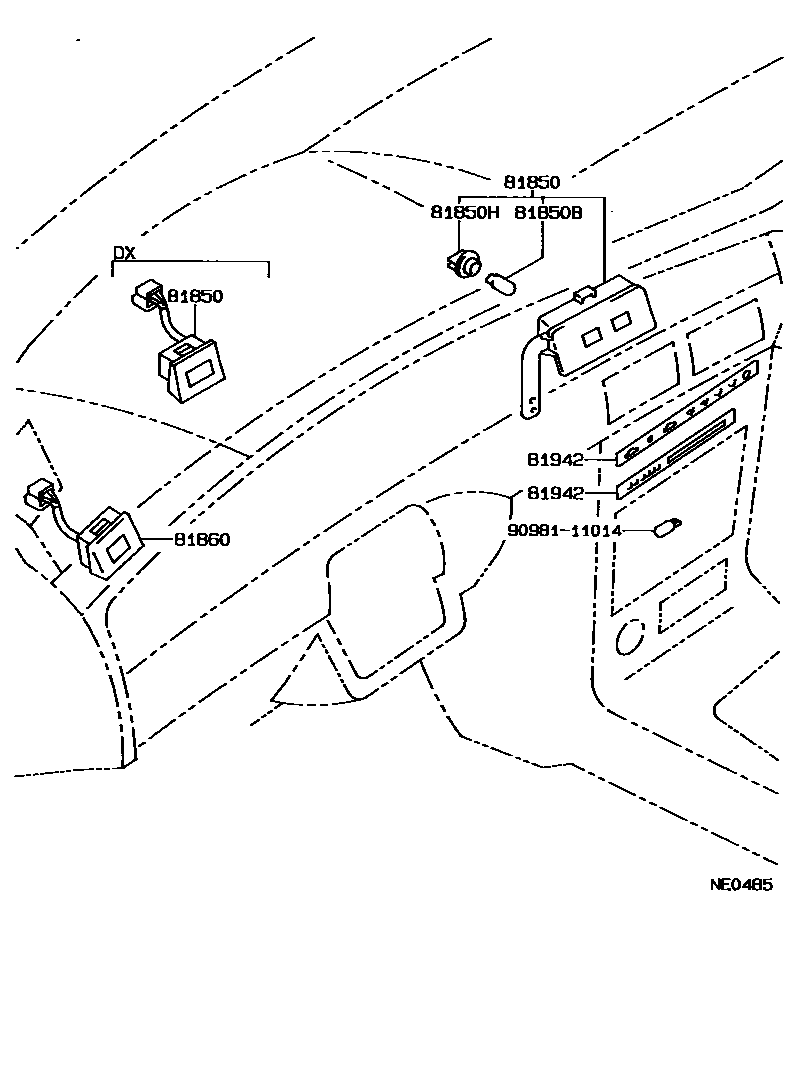

Toyota COROLLA indicator light — Figure 8302
Toyota COROLLA EPC diagram 8302, indicator light, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81850 | Indicator light assembly | 81850-12200 · 81850-12230 |
| 81850B | pilot light bulb | 84999-50010 |
| 81850H | Indicator lamp holder | 84999-50110 |
| 81860 | Transmission indicator light assembly | 81860-12080 |
| 81942 | Heater control nameplate | 81942-12280 · 81942-12290 |
