Toyota COROLLA 仪表 — Figure 8301

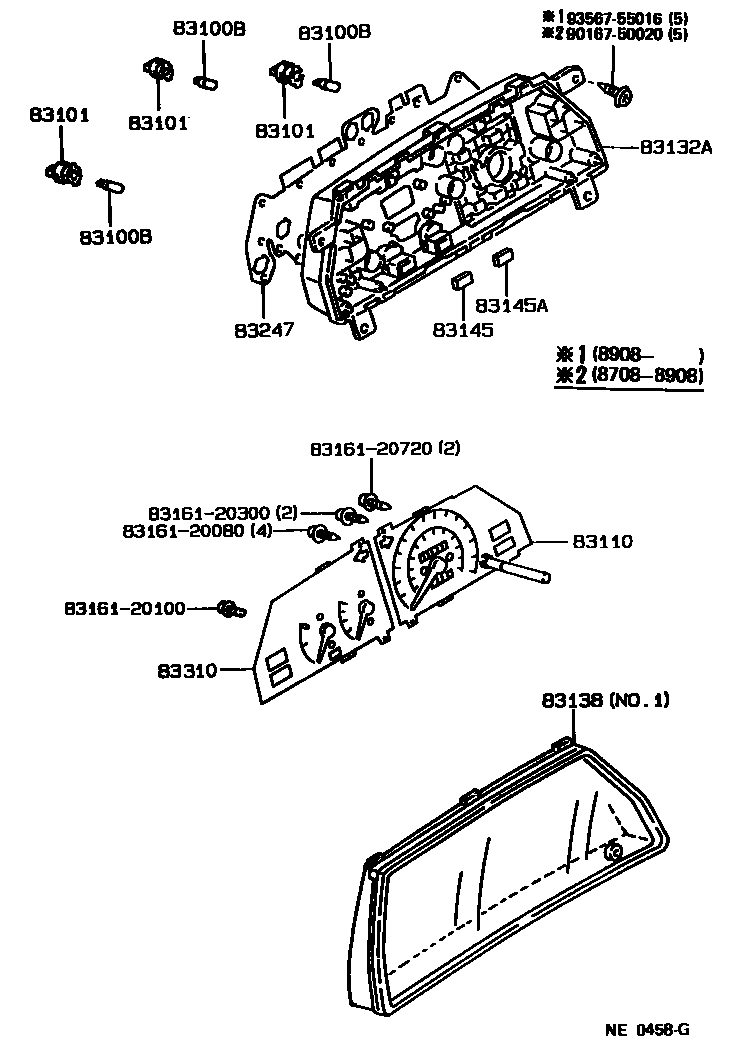

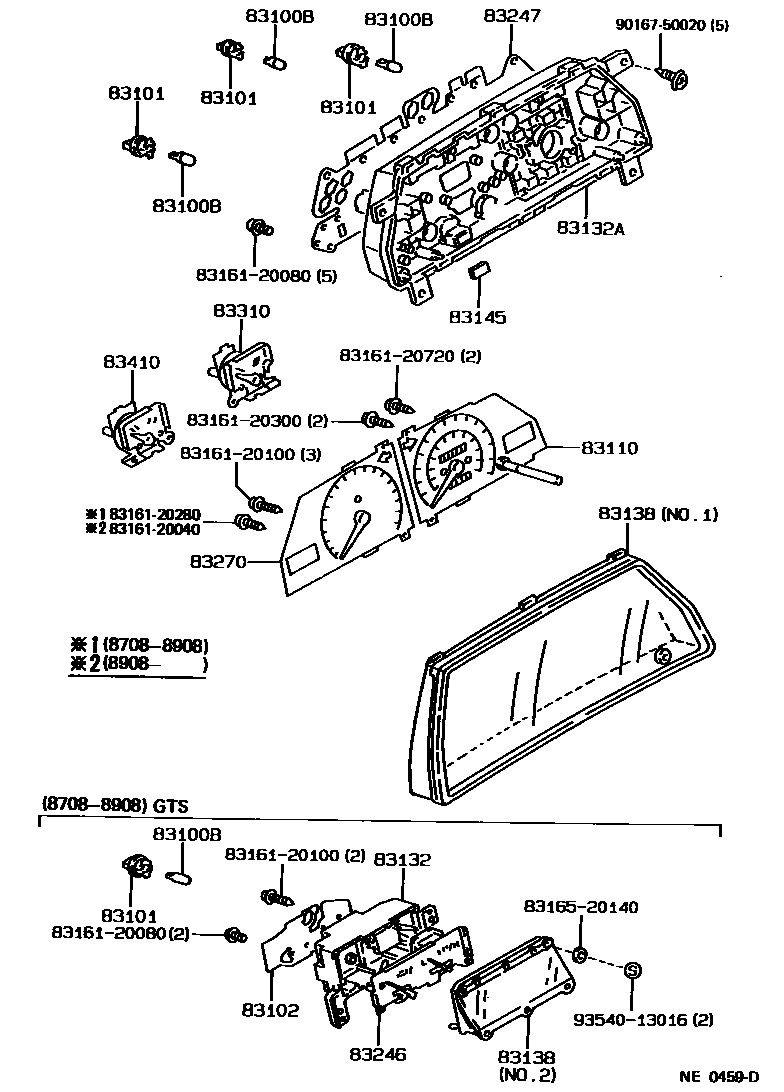

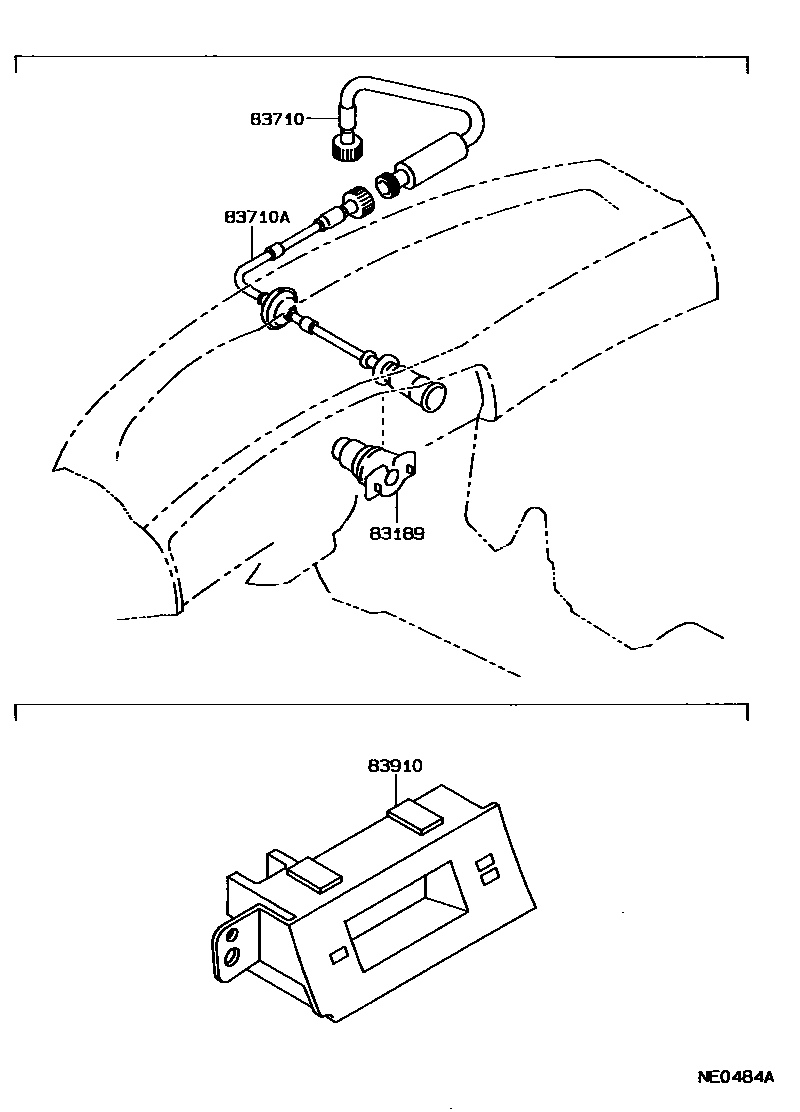

Toyota COROLLA EPC diagram 8301, 仪表, with 3 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83100B | Combination instrument bulb No. 1 | 90981-11018 · 99132-12034 |
| 83101 | Combined instrument lamp holder sub-assembly | 83101-14040 · 83101-20040 |
| 83102 | Combination instrument No. 1 circuit board sub-assembly | 83247-12280 |
| 83110 | Speedometer assembly | 83110-1E210 · 83110-1E220 · 83110-1E221 · 83110-1E240 · 83110-1E250 · 83110-1E251 · 83110-1E260 · 83110-1E261 · 83110-1E270 · 83110-1E271 · 83110-1E280 · 83110-1E281 |
| 83132 | Instrument cluster housing | 83132-12160 |
| 83132A | Instrument case | 83132-1A060 · 83132-1A061 · 83132-1A080 · 83132-1A081 |
| 83138 | speedometer glass | 83138-12120 · 83138-1A020 |
| 83145 | Instrument No. 1 lampshade | 83145-1A160 |
| 83145A | Instrument No. 2 lampshade | 83145-1A180 |
| 83189 | instrument bracket | 83189-20020 |
| 83246 | Oil pressure gauge | 83246-12140 |
| 83247 | Instrument circuit board | 83247-1A440 · 83247-1A480 · 83247-1A520 · 83247-1A560 |
| 83270 | Engine tachometer assembly | 83242-1A020 · 83242-1A040 · 83242-1A080 · 83242-1A100 · 83242-1A120 · 83242-1A140 · 83242-1A160 · 83242-1A180 |
| 83310 | Fuel gauge assembly | 83243-1A100 · 83243-1A120 · 83243-1A160 · 83243-1A180 · 83243-1A200 |
| 83410 | Water temperature meter assembly | 83244-1A020 · 83244-1A040 · 83244-1A060 |
| 83710 | No. 1 speedometer transmission cable assembly | 83710-12460 · 83710-12461 |
| 83710A | No. 2 speedometer transmission cable assembly | 83710-12520 · 83710-12521 · 83710-12522 |
| 83910 | clock assembly | 83910-12430 |
