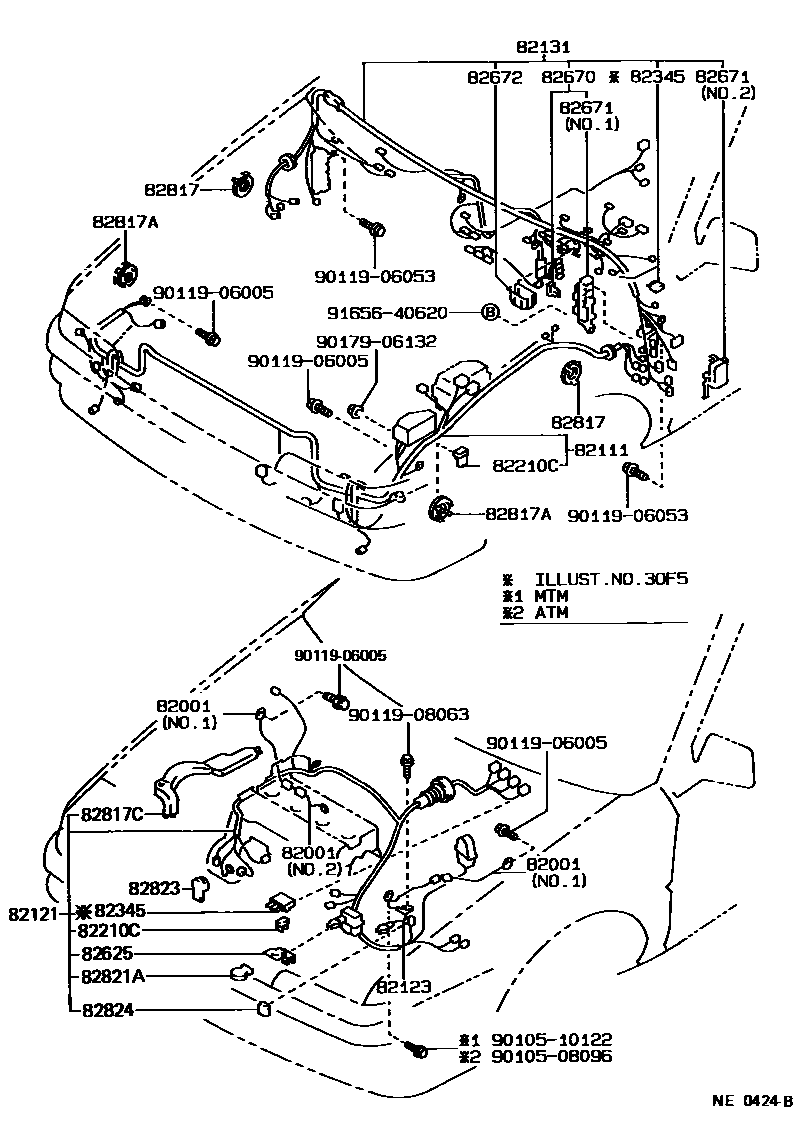

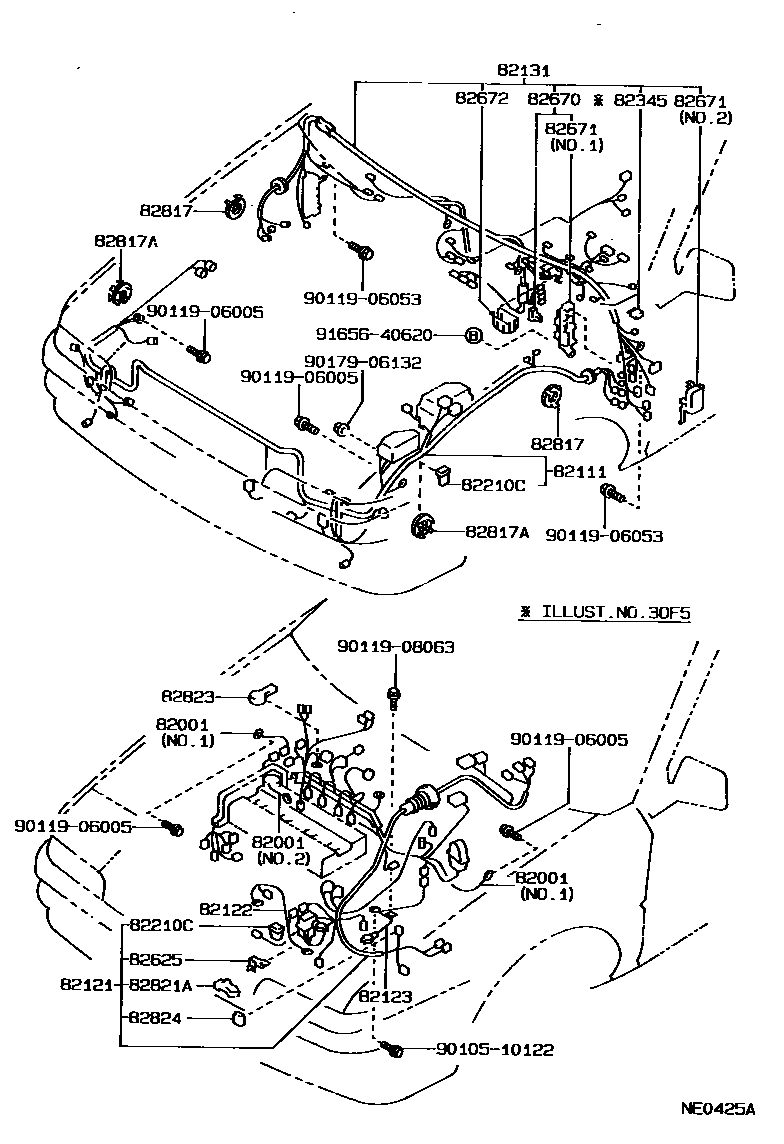

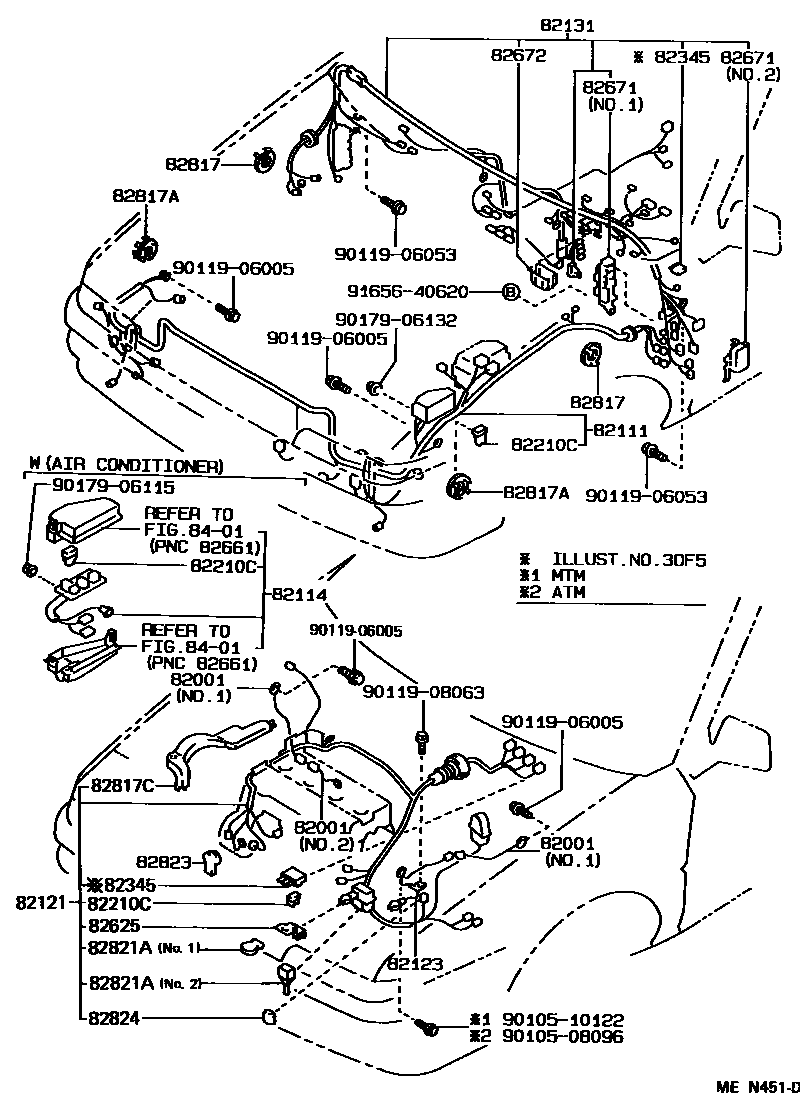

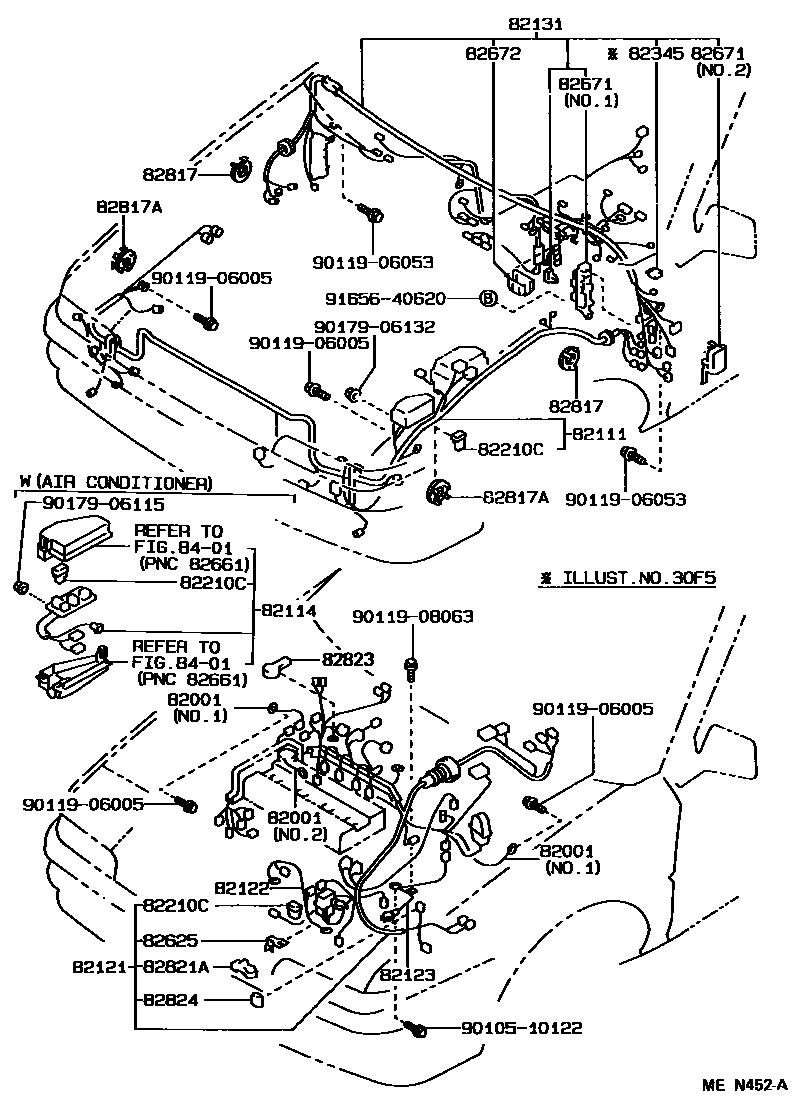

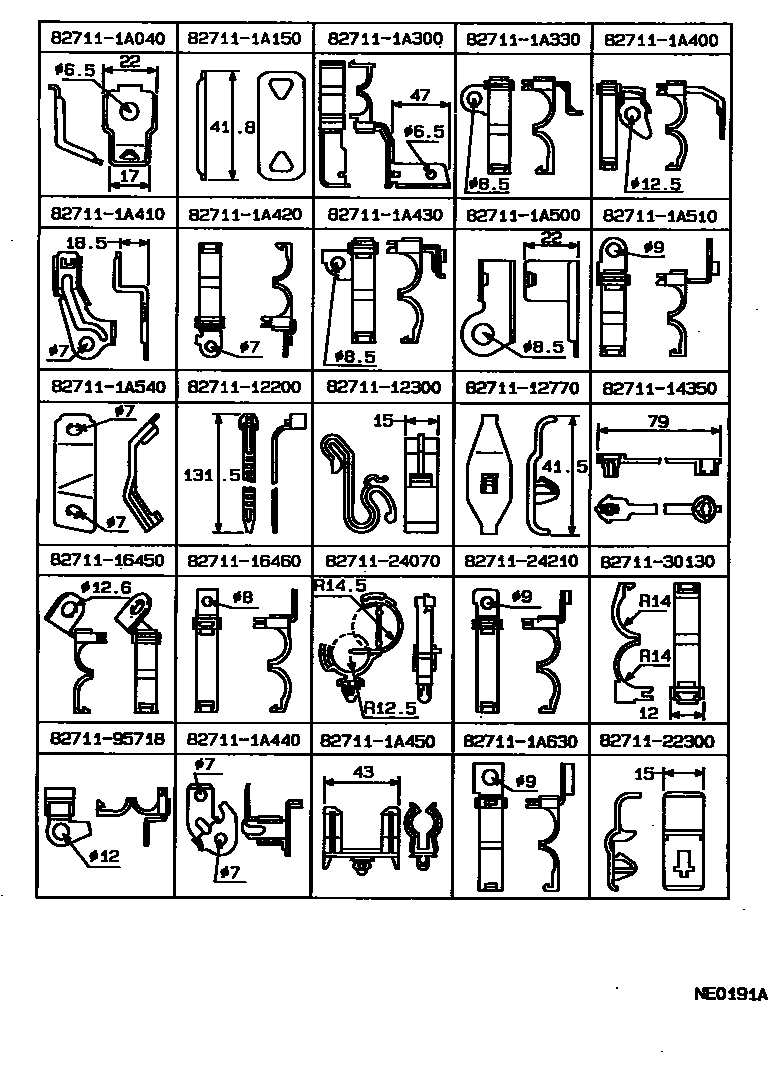

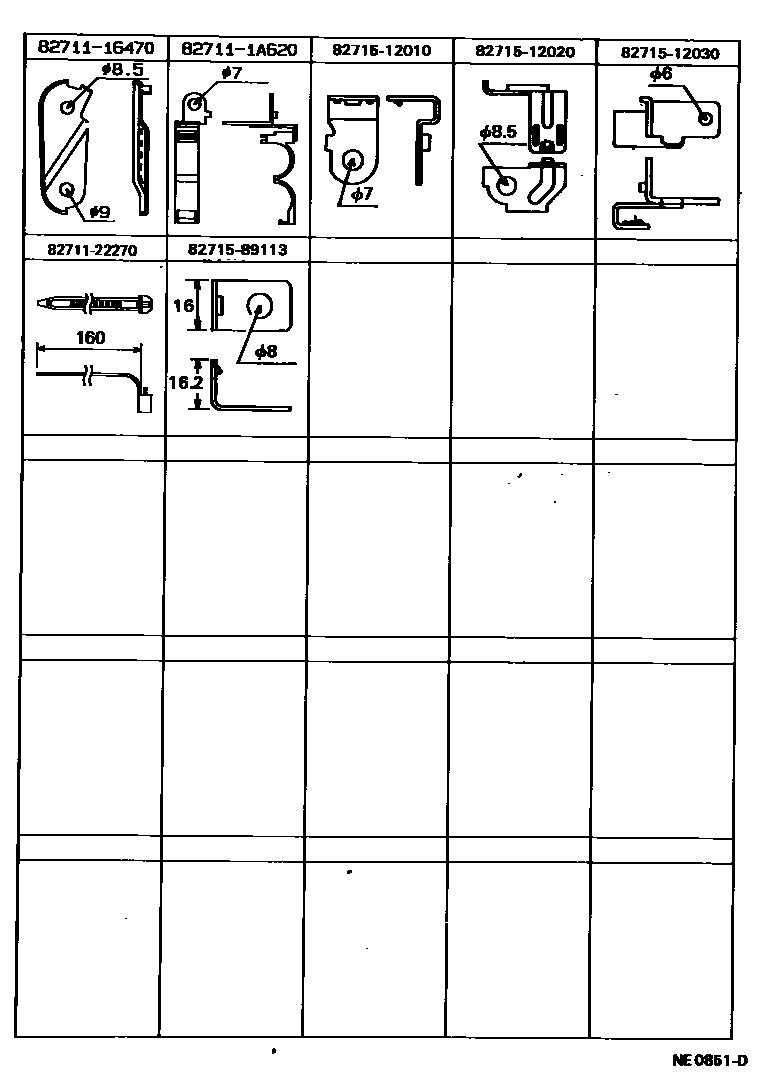

Toyota COROLLA 线束和卡夹 — Figure 8202
Toyota COROLLA EPC diagram 8202, 线束和卡夹, with 10 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82001 | Connection cable No. 1 | 90980-07206 · 90980-07235 · 90980-07236 · 90980-07299 |
| 82111 | Engine room main wiring harness | 82111-1A350 · 82111-1A440 · 82111-1A560 · 82111-1E100 · 82111-1E110 · 82111-1E120 |
| 82114 | Engine room wiring harness No. 4 | 82114-12040 |
| 82121 | Engine wiring harness | 82121-1A240 · 82121-1A241 · 82121-1A250 · 82121-1A251 · 82121-1A260 · 82121-1A261 · 82121-1A270 · 82121-1A271 · 82121-1A280 · 82121-1A281 · 82121-1E041 · 82121-1E042 · 82121-1E043 · 82121-1E051 · 82121-1E052 · 82121-1E053 · 82121-1E061 · 82121-1E062 · 82121-1E111 · 82121-1E112 · 82121-1E113 · 82121-1E121 · 82121-1E122 · 82121-1E123 · 82121-1H060 · 82121-1H061 |
| 82122 | Engine No. 2 wiring harness | 82122-12310 |
| 82123 | Engine No. 3 wiring harness | 82123-12150 · 82123-12170 |
| 82131 | Front panel wiring harness | 82131-1E170 · 82131-1E171 · 82131-1E180 · 82131-1E182 · 82131-1E220 · 82131-1E221 · 82131-1E460 · 82131-1E461 · 82131-1E830 · 82131-1K740 · 82131-1K741 · 82131-1K750 · 82131-1K751 · 82131-1K760 · 82131-1K761 · 82131-1K770 · 82131-1K780 · 82131-1K790 · 82131-1K791 |

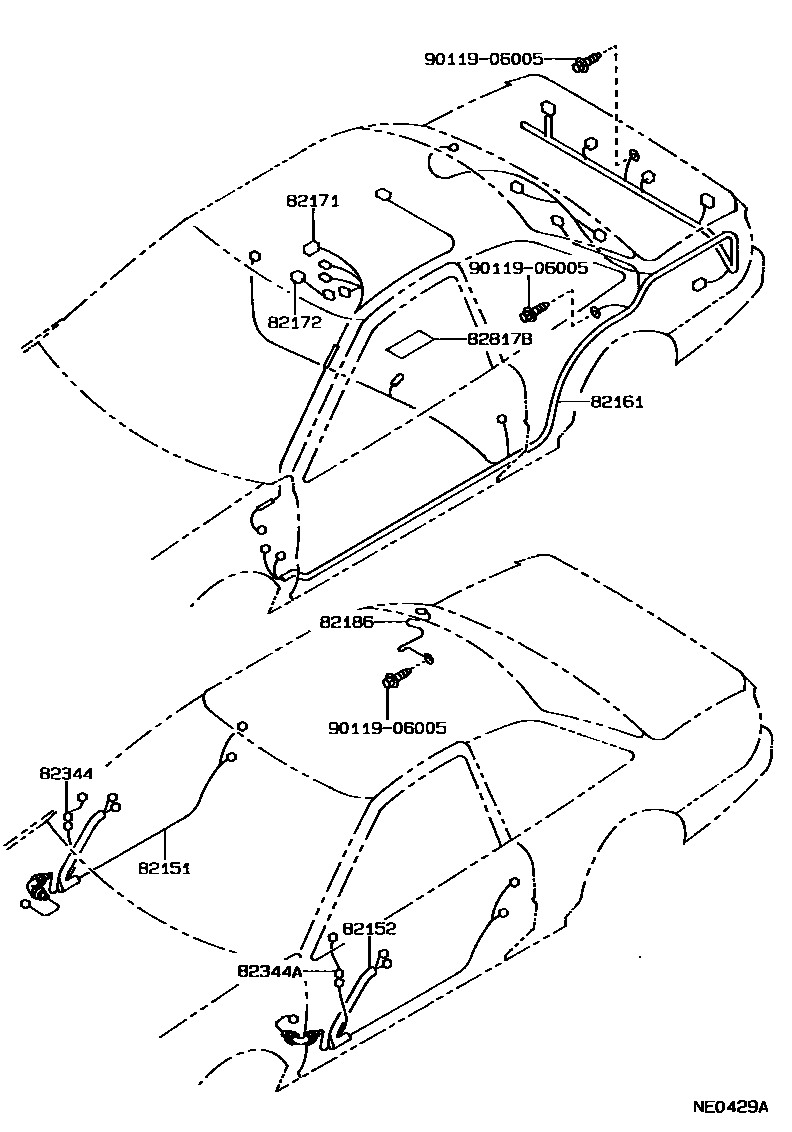

| 82151 | Right front door wiring harness | 82151-12430 · 82151-12560 · 82151-12720 · 82152-12330 |
| 82152 | Left front door wiring harness | 82151-12410 · 82152-12350 · 82152-12450 · 82152-12630 |
| 82161 | floor wiring harness | 82161-1A550 · 82161-1A560 · 82161-1A870 · 82161-1H510 · 82161-1H520 |
| 82171 | Roof No. 1 wiring harness | 82171-12240 · 82171-12250 |
| 82172 | Roof No. 2 wiring harness | 82172-20010 |
| 82186 | Rear window wiring harness No. 1 | 82186-12140 |
| 82210C | fuse | 90982-08188 · 90982-08189 · 90982-08203 · 90982-08223 · 90982-08246 · 90982-08253 |
| 82344 | Right rearview mirror wiring harness | 82344-12010 |
| 82344A | Left rearview mirror wiring harness | 82344-12010 |

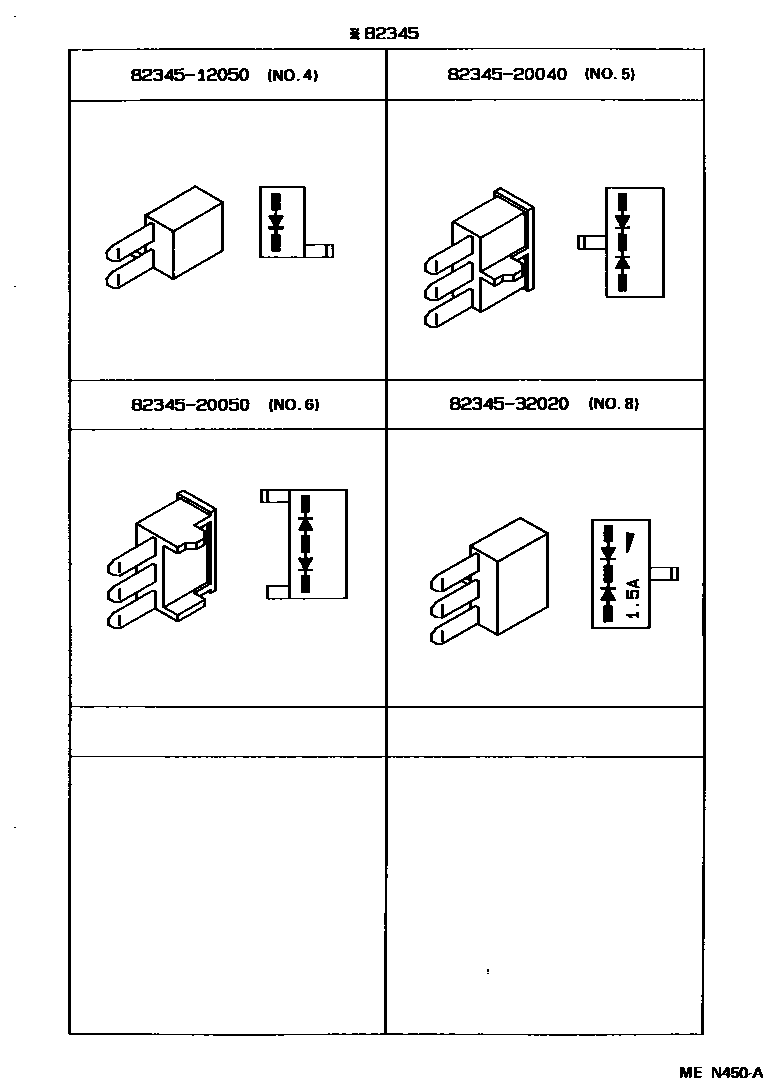

| 82345 | diode | 82345-12050 · 82345-20040 · 82345-20050 · 82345-32020 |
| 82625 | Fuse terminal | 82625-12020 · 82625-12030 · 82625-12060 |
| 82670 | No. 1 junction box assembly | 82670-12090 |
| 82671 | junction box | 82671-12020 · 82671-12030 |
| 82672 | Junction box cover | 82672-12100 |
| 82817 | No. 1 wire harness protection device | 82817-14350 |
| 82817A | No. 2 wire harness protection device | 82817-32010 |
| 82817B | No. 3 wire harness protection device | 82817-16100 |
| 82817C | No. 4 wire harness protection device | 82817-12700 |
| 82821A | Connector cover | 82821-12180 · 82821-12190 · 82821-12230 · 82821-12260 |
| 82823 | No. 1 terminal cover | 82823-22050 |
| 82824 | Harness connector | 82824-32030 |

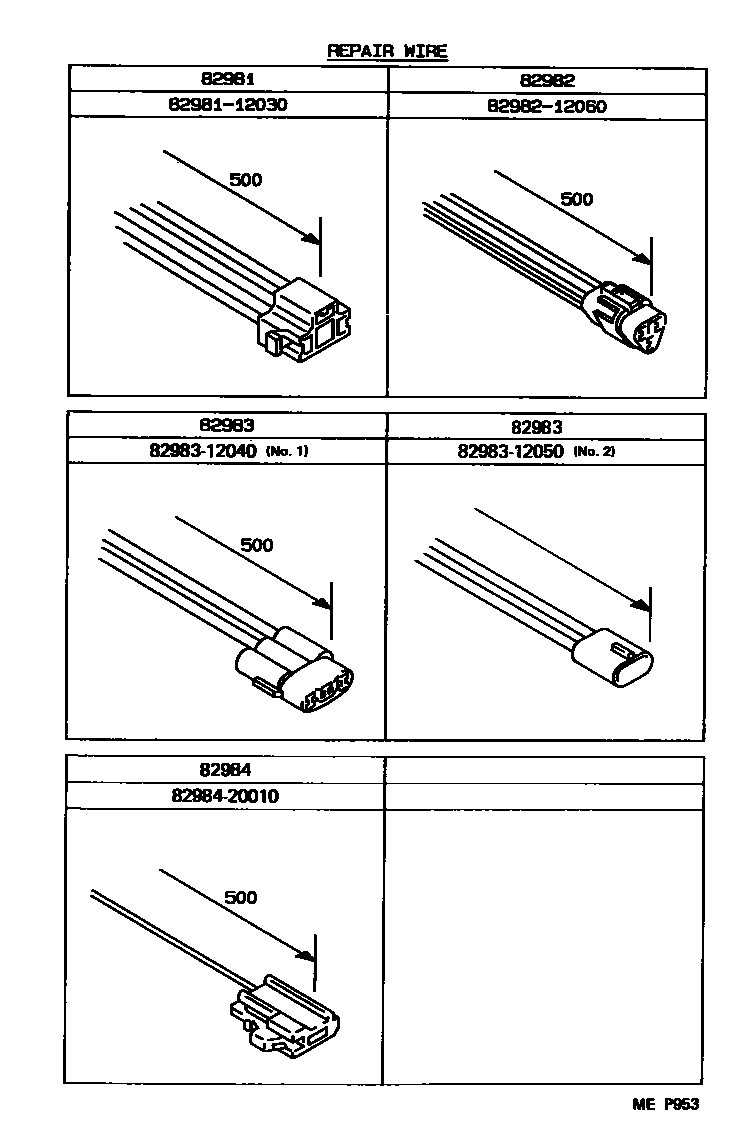

| 82981 | Headlight repair line | 82981-12030 |
| 82982 | Width light repair line | 82982-12060 |
| 82983 | Front turn signal lamp repair line | 82983-12040 · 82983-12050 |
| 82984 | Speaker repair line | 82984-20010 |
| 82991 | Fuse repair line | 82991-12030 · 82991-12040 |
