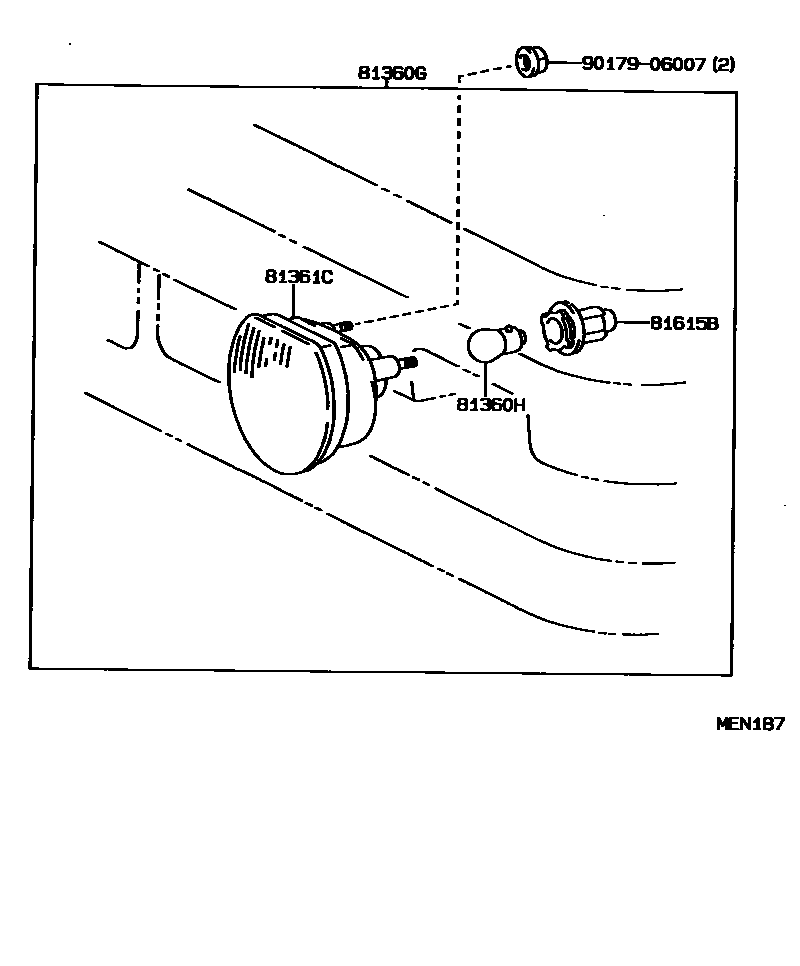

Toyota COROLLA 聚光灯 — Figure 8110
Toyota COROLLA EPC diagram 8110, 聚光灯, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81360G | Spotlight assembly | 81360-12010 |
| 81360H | spotlight light bulb | 99132-11270 |
| 81361C | Spotlight shade and body | 81361-12010 |
| 81615B | spotlight lamp holder | 81615-87705 |
