Toyota COROLLA accelerator pedal connecting rod — Figure 7801

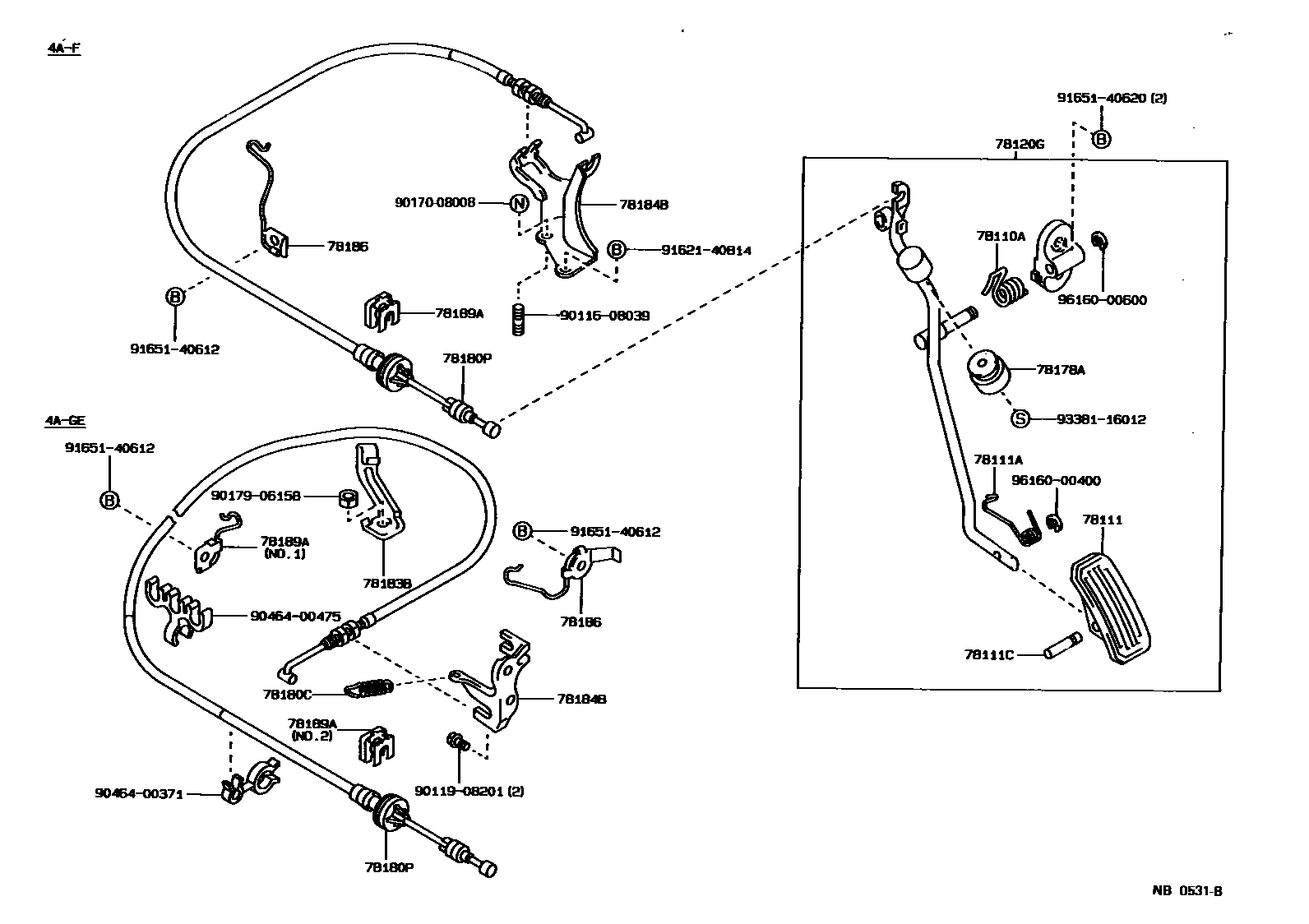

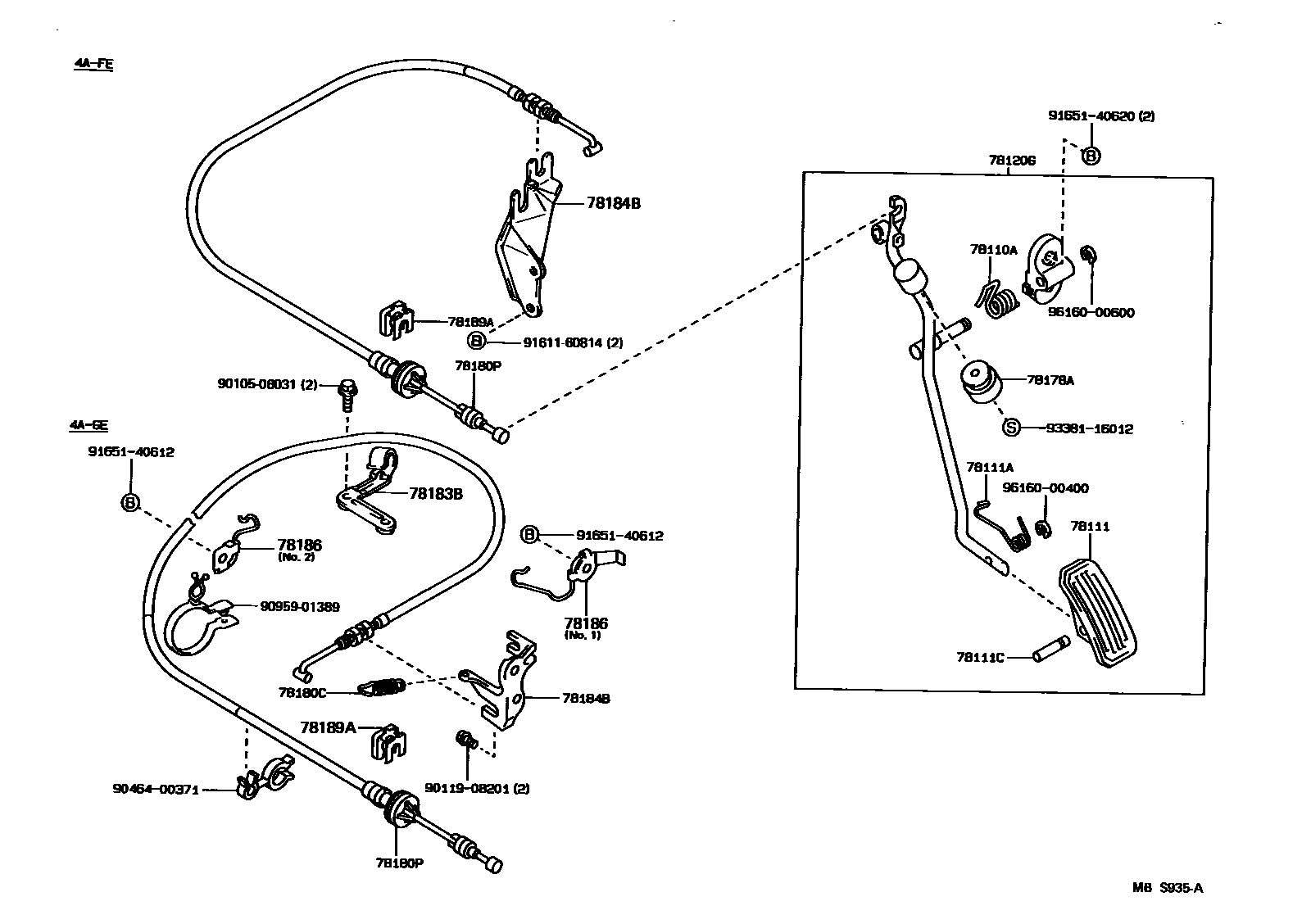

Toyota COROLLA EPC diagram 7801, accelerator pedal connecting rod, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78110A | Spring (for accelerator pedal lever) | 90508-18025 · 90508-26036 |
| 78111 | accelerator pedal | 78111-32010 |
| 78111A | Spring (for gas pedal) | 90508-20056 |
| 78111C | pin (for gas pedal) | 90249-05001 |
| 78120G | Accelerator pedal lever assembly | 78120-12090 · 78120-12100 |
| 78178A | Accelerator pedal lever dynamic damper | 78178-12030 |
| 78180C | Tension spring (for throttle cable) | 90507-10016 |
| 78180P | Accelerator pedal control cable assembly | 78180-1A010 · 78180-1A030 · 78180-1A350 |
| 78183B | Accelerator pedal control cable clip | 35524-12050 · 78183-12120 |
| 78184B | Throttle pedal control cable bracket | 78184-12220 · 78184-12230 · 78184-12250 |
| 78186 | No. 1 accelerator pedal control cable bracket | 78186-12230 · 78186-12240 · 78186-12250 |
| 78189A | No. 2 accelerator pedal control cable bracket | 78189-12030 |
