Toyota COROLLA 安全带和儿童保护座椅 — Figure 7104

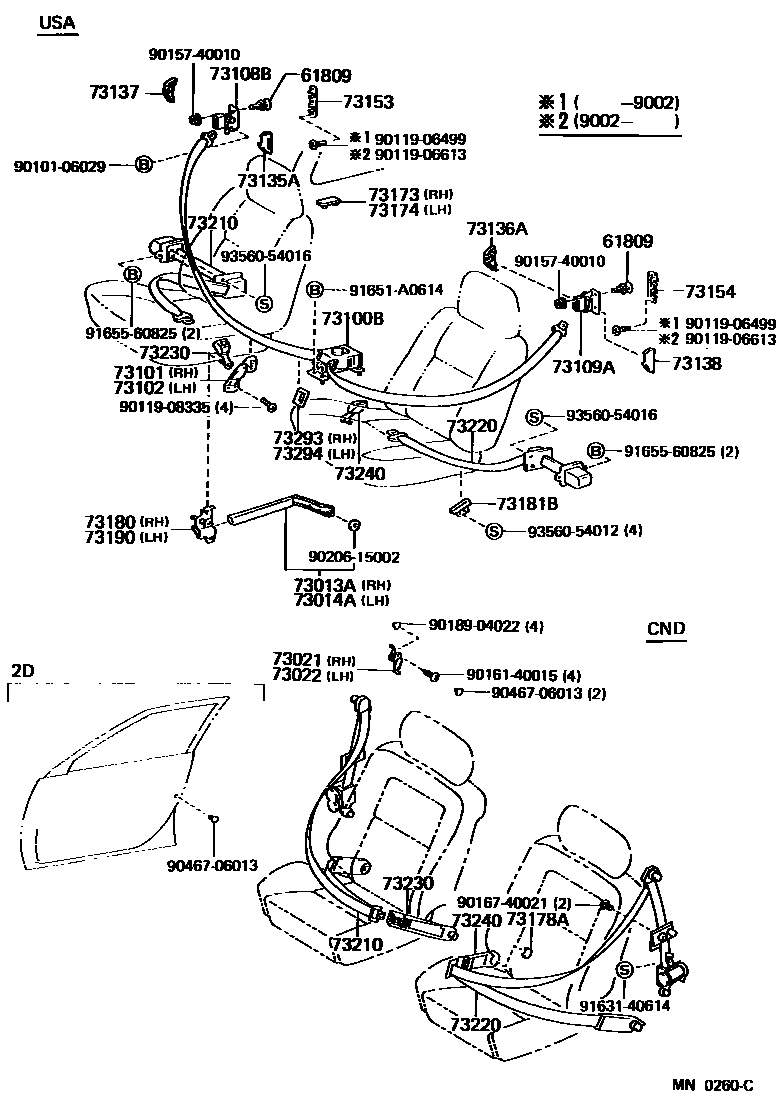

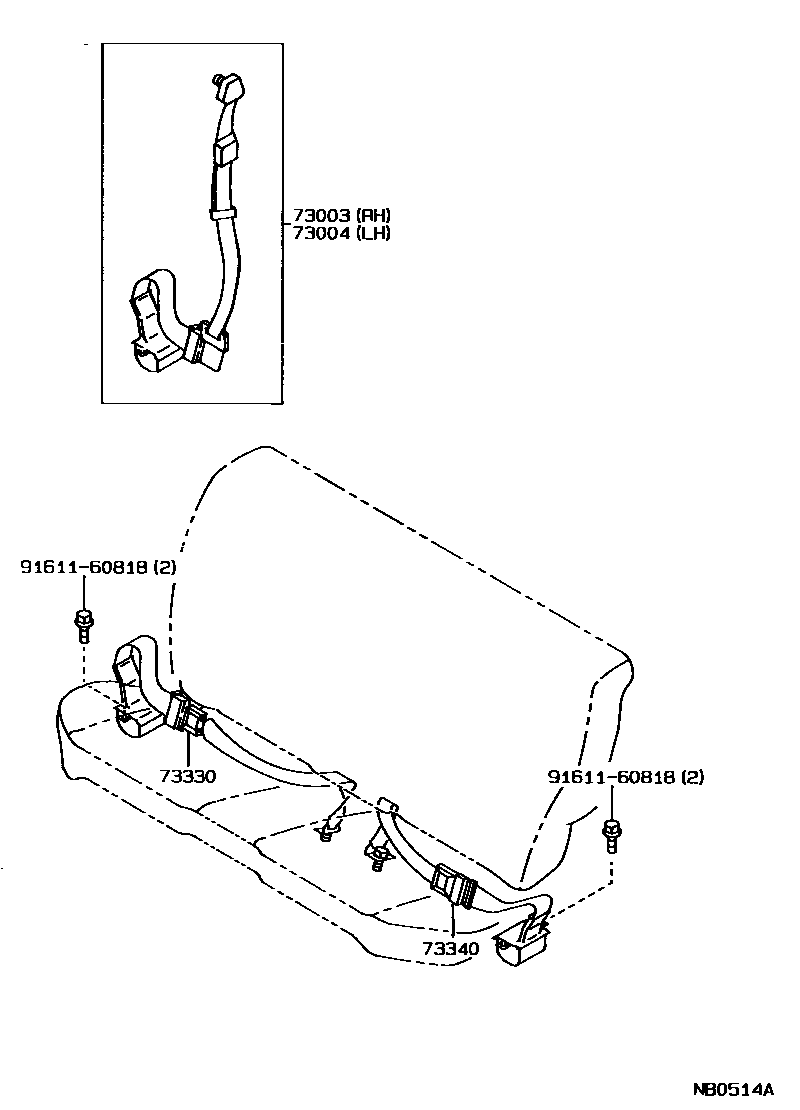

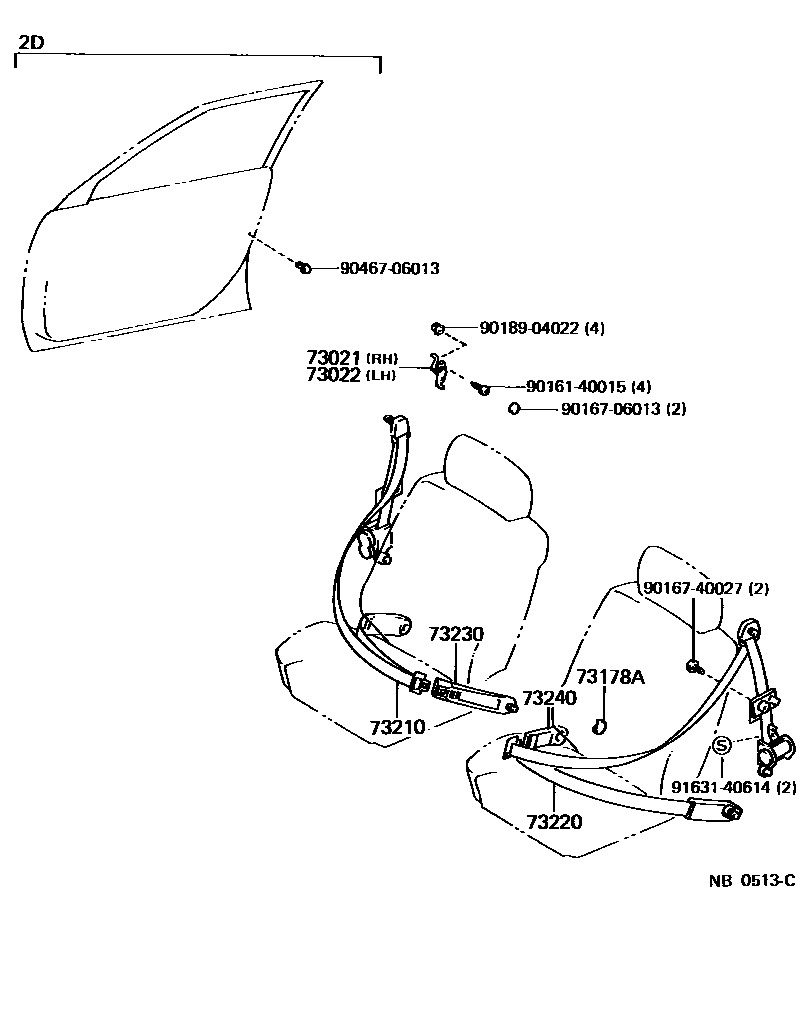

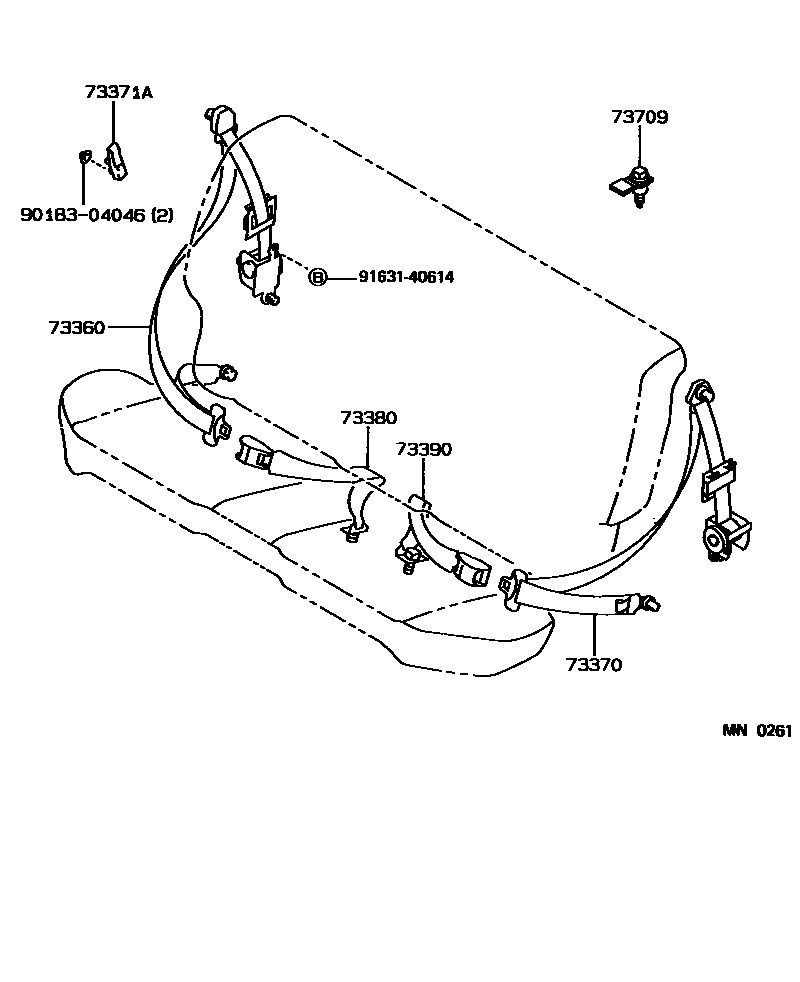

Toyota COROLLA EPC diagram 7104, 安全带和儿童保护座椅, with 4 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 61809 | Shoulder belt anchor pin sub-assembly | 61809-12020 · 61809-12050 · 61809-12060 |
| 73021 | Right seat belt comfort adjustment lever sub-assembly | 73021-12020 |
| 73022 | Left seat belt comfort adjustment lever sub-assembly | 73022-12020 |
| 73153 | Front right shoulder safety belt anchor U-shaped clip | 73153-12020 · 73153-12021 |
| 73154 | Front left shoulder safety belt anchor U-shaped clip | 73154-12020 · 73154-12021 |
| 73180 | Right seat belt inner anchor bracket assembly | 73011-12060 |
| 73190 | Left side seat belt inner anchor bracket assembly | 73012-12060 |
| 73709 | Tie anchor bracket sub-assembly | 73709-20010 |
