Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101

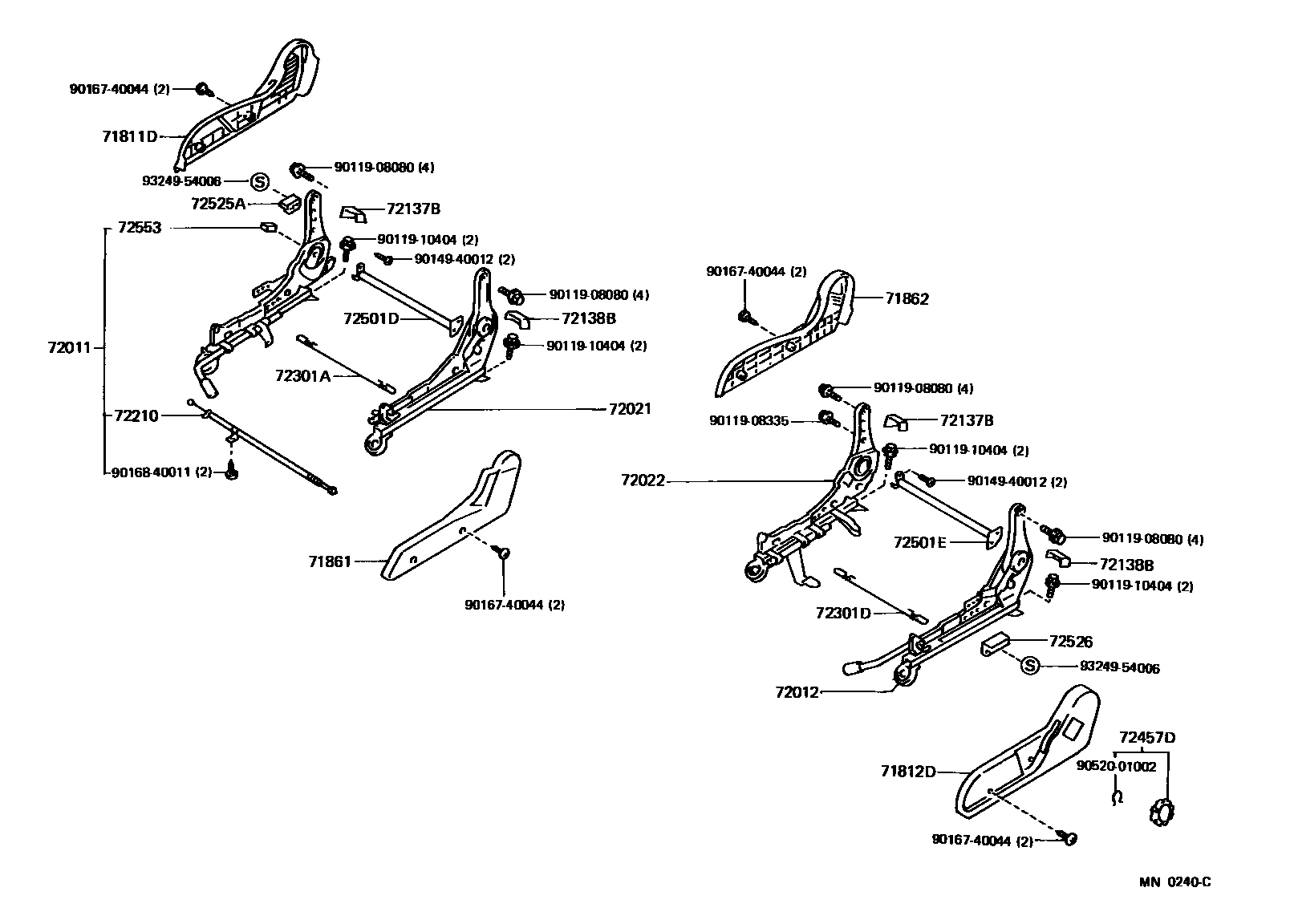

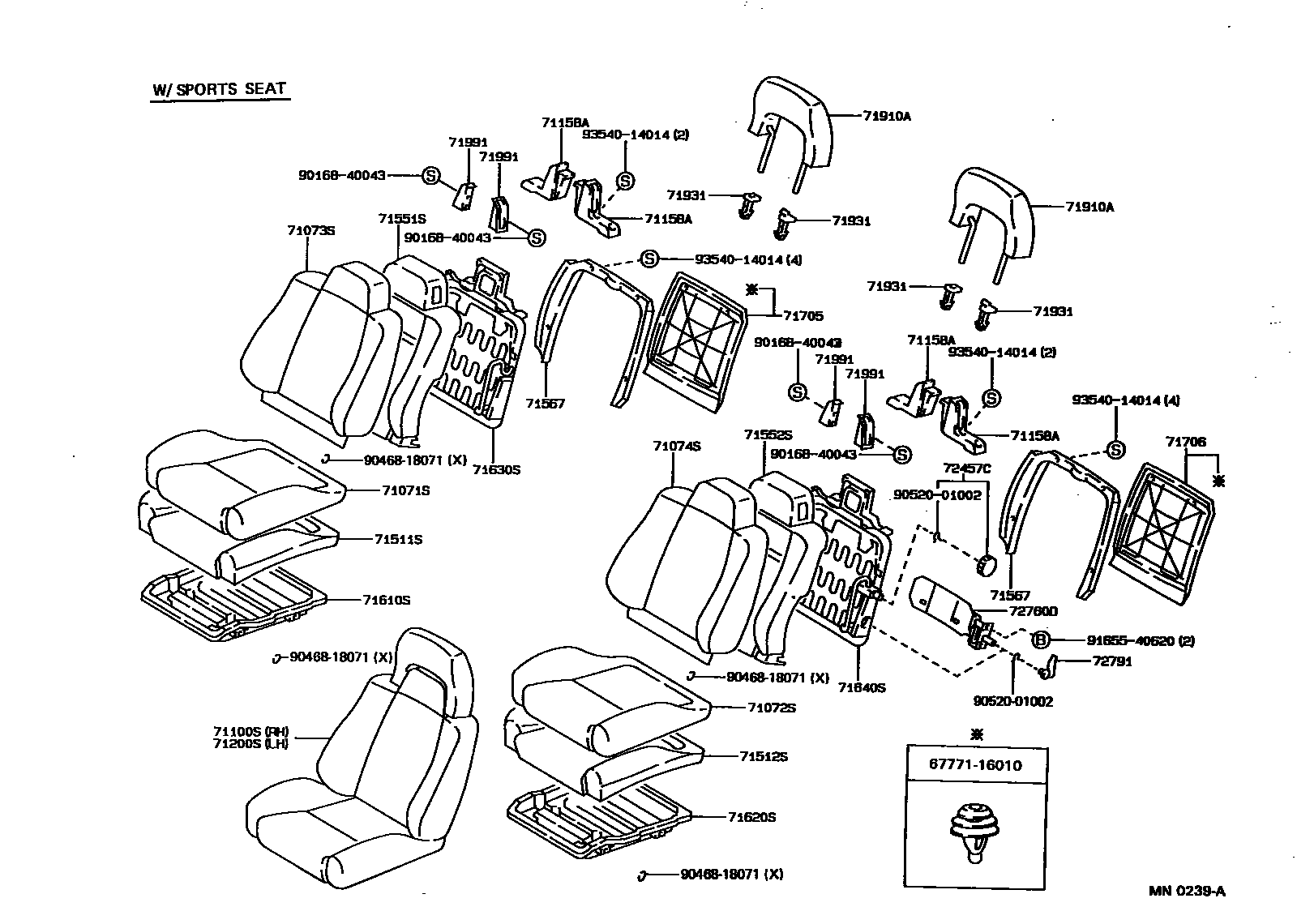

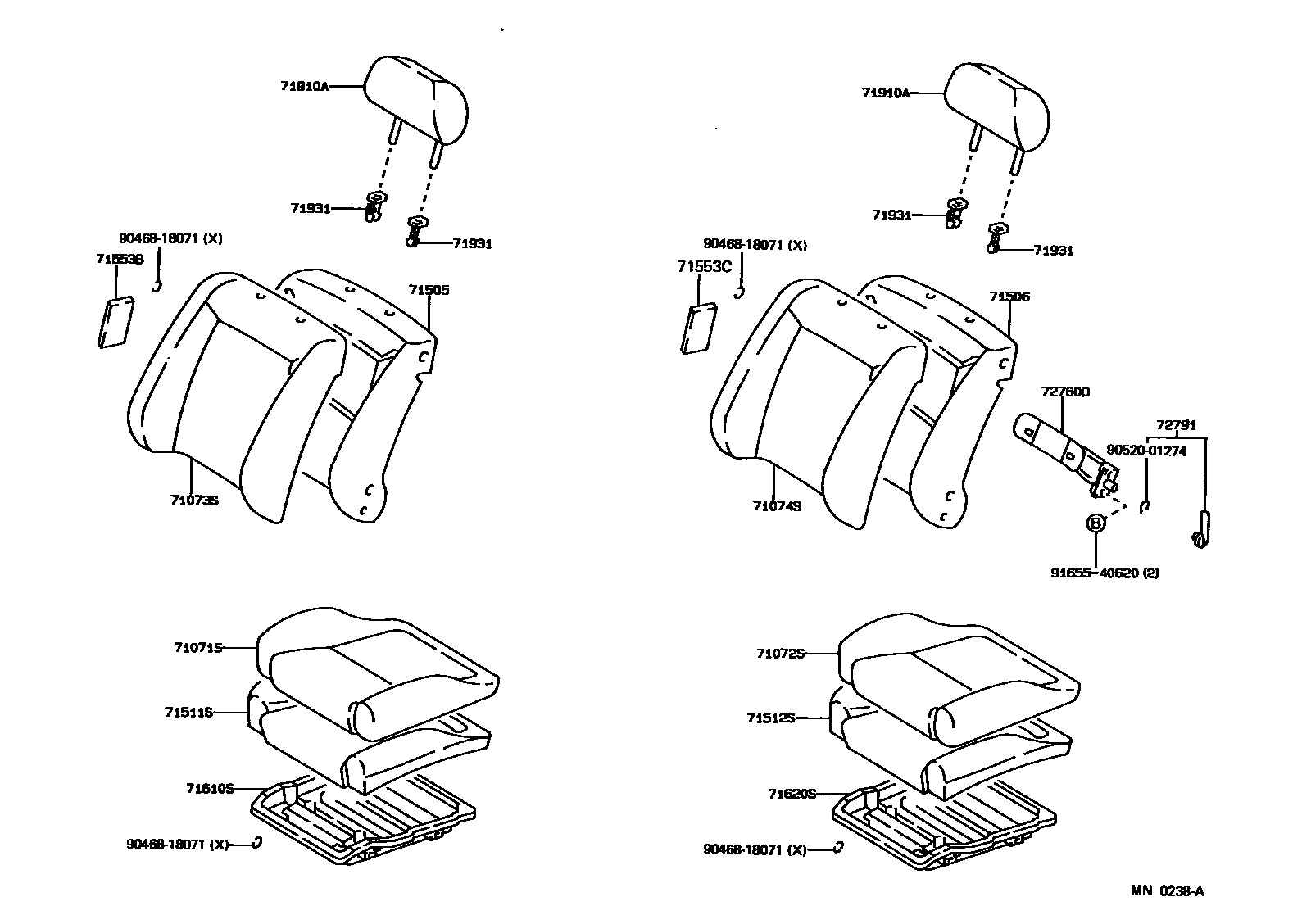

Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 3 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71158A | Front outer seat back frame | 71158-12090 |
| 71505 | Front right seat back cushion sub-assembly with frame | 71505-12070 |
| 71506 | Front left seat back cushion sub-assembly with frame | 71505-12070 · 71505-12080 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-12630 · 71511-12640 · 71511-12730 · 71511-12740 |
| 71512S | Front left seat cushion cushion (for split seats) | 71511-12630 · 71511-12640 · 71511-12730 · 71511-12740 |
| 71551S | Front right seat back cushion (for split seats) | 71551-12550 · 71551-12560 |
| 71552S | Front left seat back cushion (for split seats) | 71551-12550 · 71551-12560 |
| 71553B | Front B seat back cushion | 71553-12230 · 71553-12250 · 71553-12260 · 71553-12270 |
| 71553C | Front C seat back cushion | 71553-12230 · 71553-12260 |
| 71567 | Front seat back safety cushion | 71567-12010 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-12280 · 71610-12300 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71610-12280 · 71610-12300 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-12480 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-12350 |
| 72011 | Front right seat outer adjuster sub-assembly | 72011-12140 · 72011-12190 |
| 72012 | Front left seat outer adjuster sub-assembly | 72012-12140 · 72012-12150 · 72012-12260 · 72012-12270 |
| 72021 | Front right seat inner adjuster sub-assembly | 72021-12160 · 72021-12210 |
| 72022 | Front left seat inner adjuster sub-assembly | 72022-12150 · 72022-12160 · 72022-12250 · 72022-12260 |
| 72210 | Seat slide rail control cable assembly | 72210-12220 |
| 72301A | Right seat slide rail balance harness sub-assembly | 72301-12100 |
| 72301D | Left seat slide rail balance harness sub-assembly | 72301-12100 |
| 72501D | Right seat back recline adjuster connecting pipe sub-assembly | 72501-12070 |
| 72501E | Left seat back recline adjuster connecting pipe sub-assembly | 72501-12070 |
| 72553 | Seat back tilt pedal cover | 72553-12040 |
| 72760D | Left lumbar support adjuster assembly | 72760-12080 · 72760-12090 |
