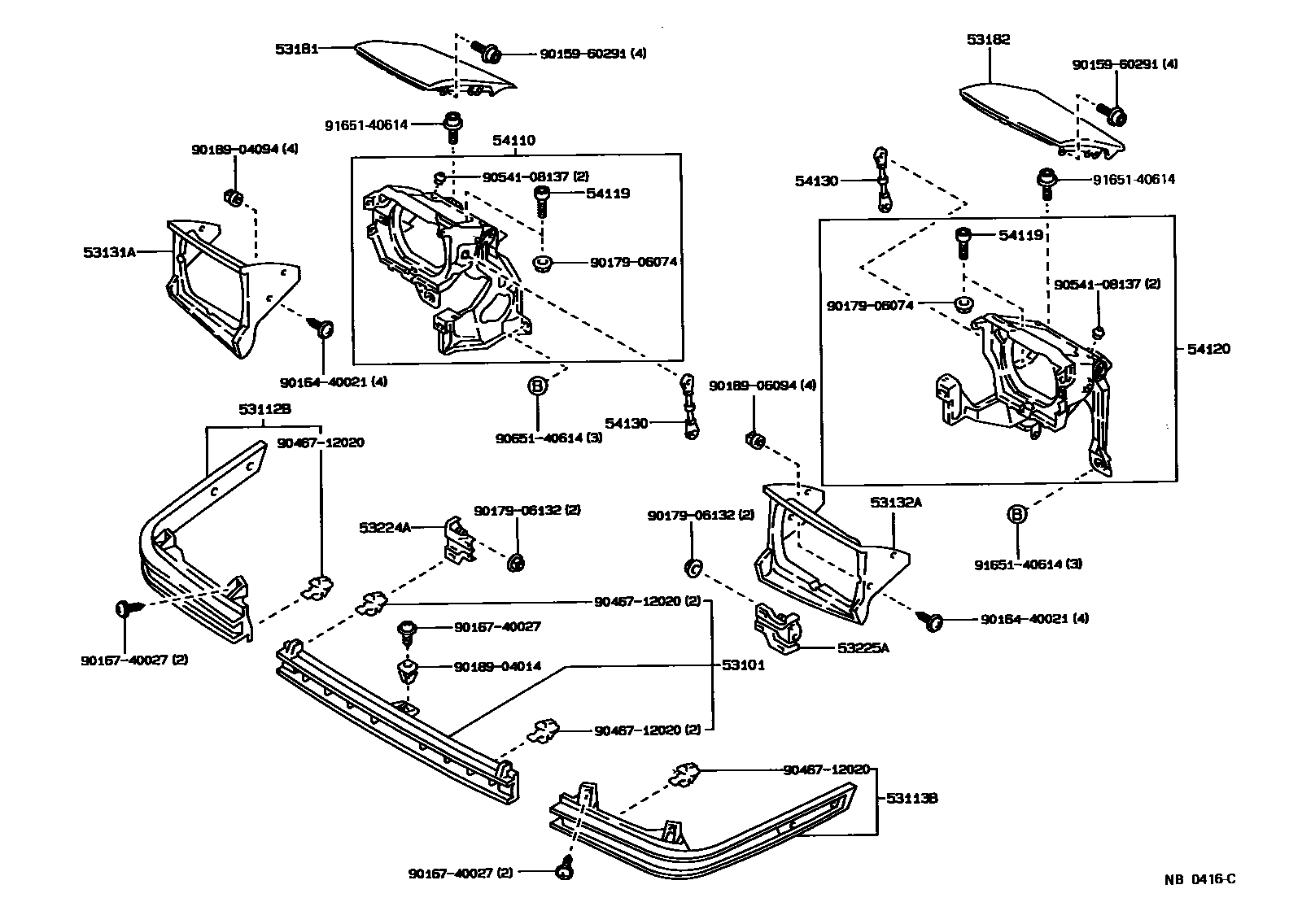

Toyota COROLLA radiator grille — Figure 5301
Toyota COROLLA EPC diagram 5301, radiator grille, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53101 | Radiator grille sub-assembly | 53111-12840 |
| 53112B | Right radiator grille | 53112-12050 |
| 53113B | Radiator grille, left | 53113-12080 |
| 53131A | Right headlight lampshade | 53131-12370 |
| 53132A | Left headlight lampshade | 53132-12280 |
| 53181 | Right headlight cover | 53181-12040 |
| 53182 | Left headlight cover | 53182-12040 |
| 53224A | Radiator grille mounting bracket No. 2 | 53224-12030 |
| 53225A | Radiator grille mounting bracket No. 3 | 53225-12130 |
| 54110 | Right telescopic headlight bracket assembly | 54110-12020 · 54110-12021 |
| 54119 | Retractable headlight linkage stop | 54119-14010 |
| 54120 | Left telescopic headlight bracket assembly | 54120-12020 · 54120-12021 |
| 54130 | Telescopic headlight pole assembly | 54130-12020 · 54130-12021 |
