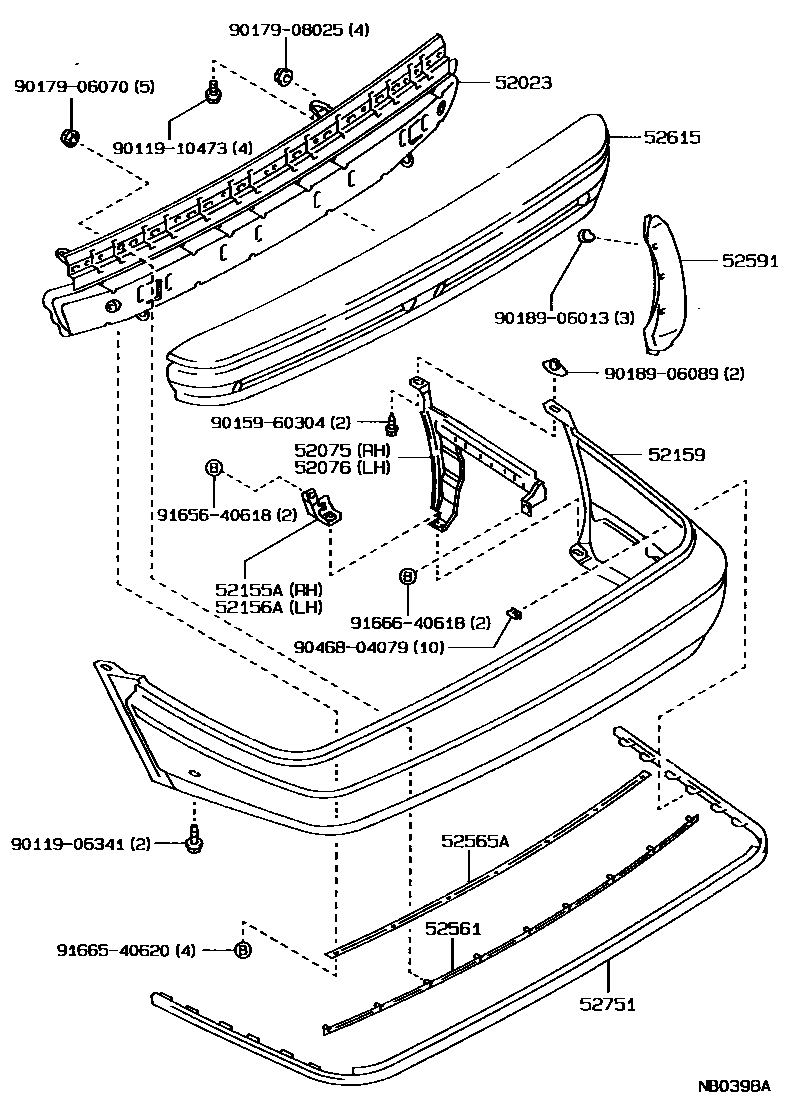

Toyota COROLLA 后保险杠及附件 — Figure 5202
Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52023 | Rear bumper reinforcement sub-assembly | 52023-12130 |
| 52075 | Rear bumper right side fixing part sub-assembly | 52075-12020 |
| 52076 | Rear bumper left side fixing part sub-assembly | 52076-12020 |
| 52155A | Rear bumper right side bracket | 52155-12160 |
| 52156A | Rear bumper left bracket | 52156-12130 |
| 52159 | rear bumper cover | 52159-12870 · 52159-12918 |
| 52561 | Rear bumper upper center fixing bracket | 52561-12080 |
| 52565A | Rear bumper lower fixing bracket | 52565-20080 |
| 52591 | Rear bumper right seal | 52591-12070 |
| 52615 | Rear bumper energy absorber | 52615-12090 |
| 52751 | Rear bumper protection strip | 52751-12200 |
