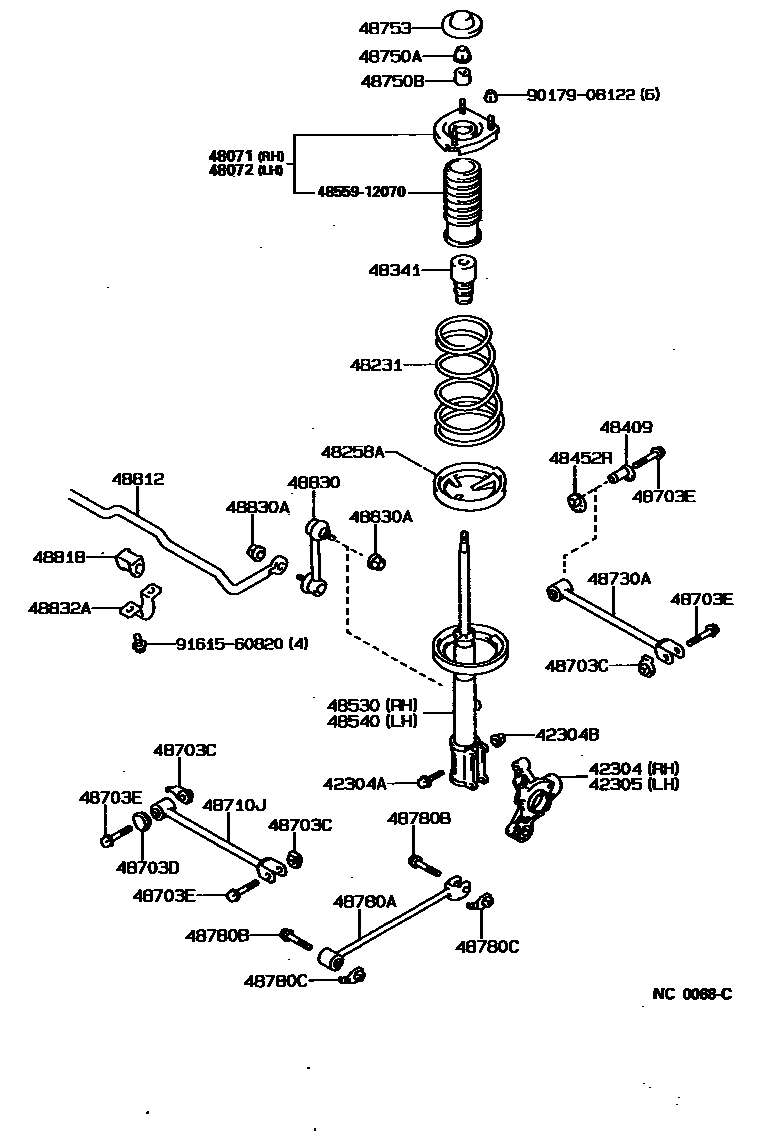

Toyota COROLLA Rear Spring & Shock Absorber — Figure 4804
Toyota COROLLA EPC diagram 4804, Rear Spring & Shock Absorber, with 1 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42304 | Rear axle right bracket sub-assembly | 42304-12020 · 42304-12040 · 42304-12060 |
| 42304A | Bolts (for rear axle bracket) | 90105-12102 |
| 42304B | Nut (for rear axle bracket) | 90179-12025 |
| 42305 | Rear axle left bracket sub-assembly | 42305-12020 · 42305-12040 · 42305-12060 |
| 48071 | Right rear suspension bearing sub-assembly | 48071-12030 |
| 48072 | Left rear suspension bearing sub-assembly | 48072-12030 |
| 48231 | rear coil spring | 48231-12870 · 48231-1A110 · 48231-1A230 · 48231-1A440 · 48231-1A550 · 48231-1A760 |
| 48258A | Rear coil spring lower vibration isolation pad | 48258-12020 |
| 48341 | Rear spring buffer block | 48341-12120 · 48341-12130 |
| 48409 | Rear suspension toe adjustment cam sub-assembly | 48409-12040 |
| 48452R | No. 2 rear suspension toe adjustment piece | 48452-32020 |
| 48530 | Right rear shock absorber assembly | 48530-12160 · 48530-12180 · 48530-12220 · 48530-12221 · 48530-12430 · 48530-12520 |
| 48540 | Left rear shock absorber assembly | 48540-12100 · 48540-12120 · 48540-12160 · 48540-12161 · 48540-12370 · 48540-12460 |
| 48703C | Nut (for rear suspension arm) | 90179-12063 · 90179-12064 |
| 48703D | Washers (for rear suspension arms) | 90209-13005 |
| 48703E | Bolts (for rear suspension arms) | 90119-12145 · 90119-12146 · 90119-12150 · 90119-12152 |
| 48710J | Rear suspension No. 1 arm assembly | 48710-12040 · 48710-12050 |
| 48730A | Rear suspension No. 2 arm assembly | 48730-12010 · 48730-12020 |
| 48750A | Nut (for rear mount to rear shock absorber) | 90179-14015 |
| 48750B | Collar (for rear mount to rear shock absorber) | 90387-15012 |
| 48753 | Rear suspension mount cover | 48753-12010 |
| 48780A | Rear support rod assembly | 48780-12010 |
| 48780B | Bolts (for support rods) | 90119-12146 · 90119-12152 |
| 48780C | Nut (for support rod) | 90179-12062 · 90179-12063 |
| 48812 | rear stabilizer bar | 48812-12050 · 48812-12060 |
| 48818 | Rear stabilizer bar bushing | 48818-12050 · 48818-12060 |
| 48830 | Rear stabilizer link assembly | 48830-20010 |
| 48830A | Nut (for rear stabilizer link) | 90179-10054 |
| 48832A | Rear stabilizer bar No. 1 bracket | 48832-20020 |
