Toyota COROLLA 制动配管和卡箍 — Figure 4708

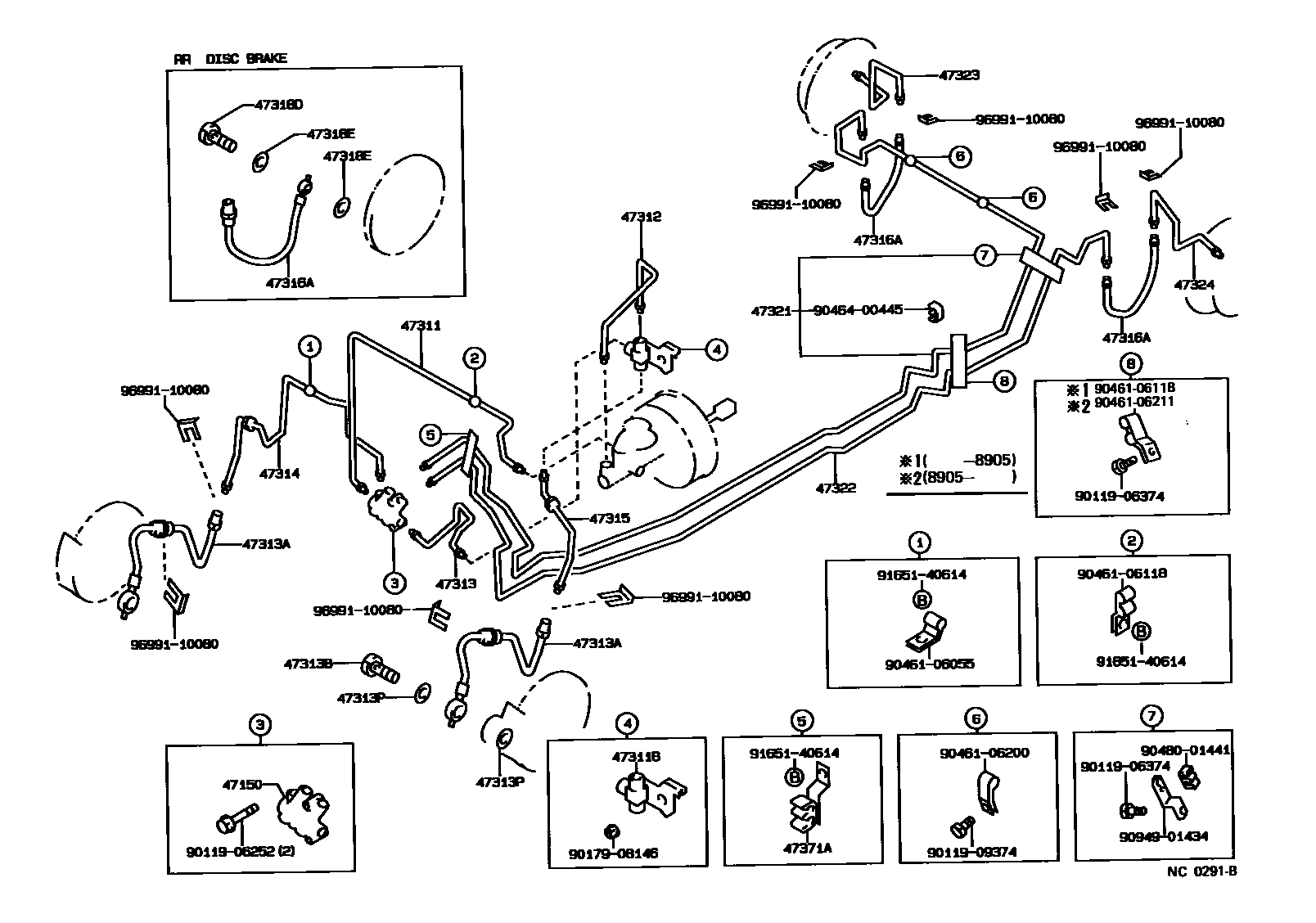

Toyota COROLLA EPC diagram 4708, 制动配管和卡箍, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47150 | Proportional valve assembly | 47150-12060 · 47150-12070 · 47150-12110 · 47150-20140 |
| 47311 | No. 1 front brake pipe | 47311-12390 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90413-10159 · 90413-10219 |
| 47312 | No. 2 front brake pipe | 47312-12260 |
| 47313 | No. 3 front brake pipe | 47313-12190 |
| 47313A | No. 1 front flexible hose | 90947-02532 |
| 47313B | Connector bolt (for front flex hose) | 90401-10015 |
| 47313P | Gasket (for front flex hose) | 90430-10074 |
| 47314 | No. 4 front brake pipe | 47314-12270 |
| 47315 | No. 5 front brake pipe | 47315-12410 · 47315-12440 |
| 47316A | Flexible hose (for rear brake pipe) | 90947-02533 · 90947-02541 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10015 |
| 47318E | Gasket (for rear flex hose) | 90430-10074 |
| 47321 | No. 1 rear brake pipe | 47321-12050 |
| 47322 | No. 2 rear brake pipe | 47322-12200 |
| 47323 | No. 3 rear brake pipe | 47323-12210 |
| 47324 | No. 4 rear brake pipe | 47324-12170 |
| 47371A | No. 1 brake pipe clamp | 47371-12010 |
