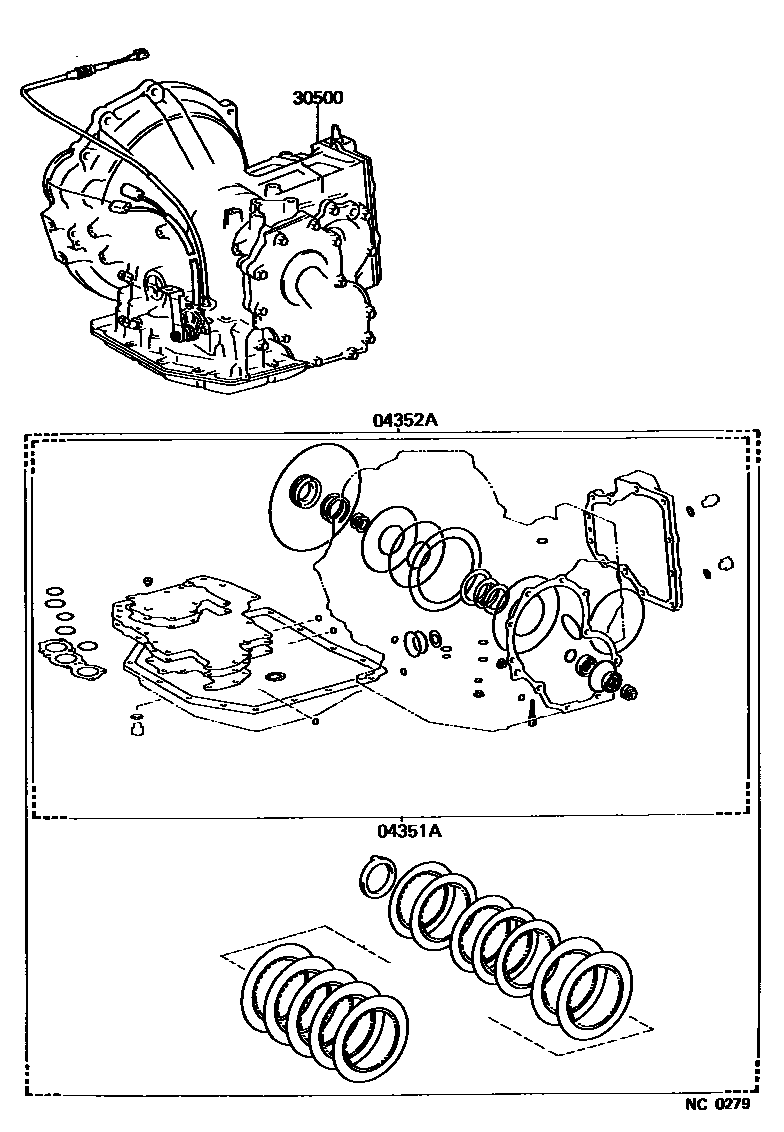

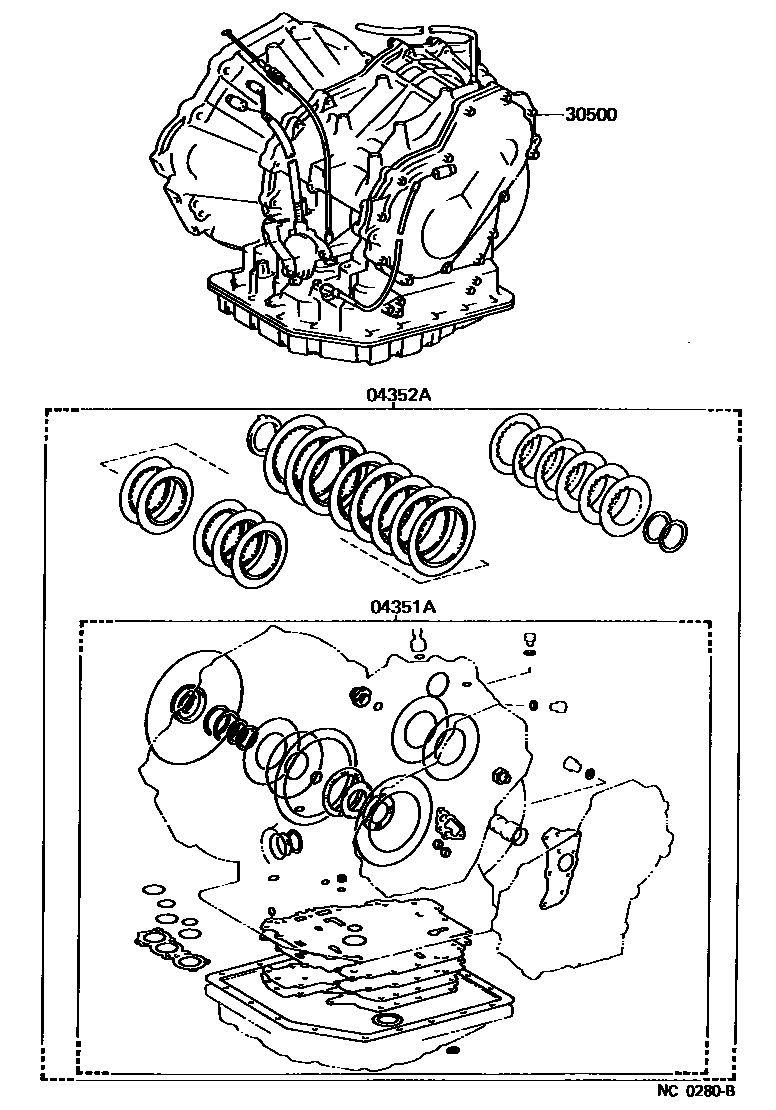

Toyota COROLLA 传动桥或变速器总成和衬垫组件(ATM) — Figure 3501
Toyota COROLLA EPC diagram 3501, 传动桥或变速器总成和衬垫组件(ATM), with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04351A | Transaxle overhaul gasket assembly (ATM) | 04351-12050 · 04351-20060 |
| 04352A | Transaxle Overhaul Kit (ATM) | 04352-12090 · 04352-12110 |
| 30500 | Automatic transmission axle assembly | 30500-12330 · 30500-12350 · 30500-12430 · 30500-12500 · 30500-12610 · 30500-12690 |
