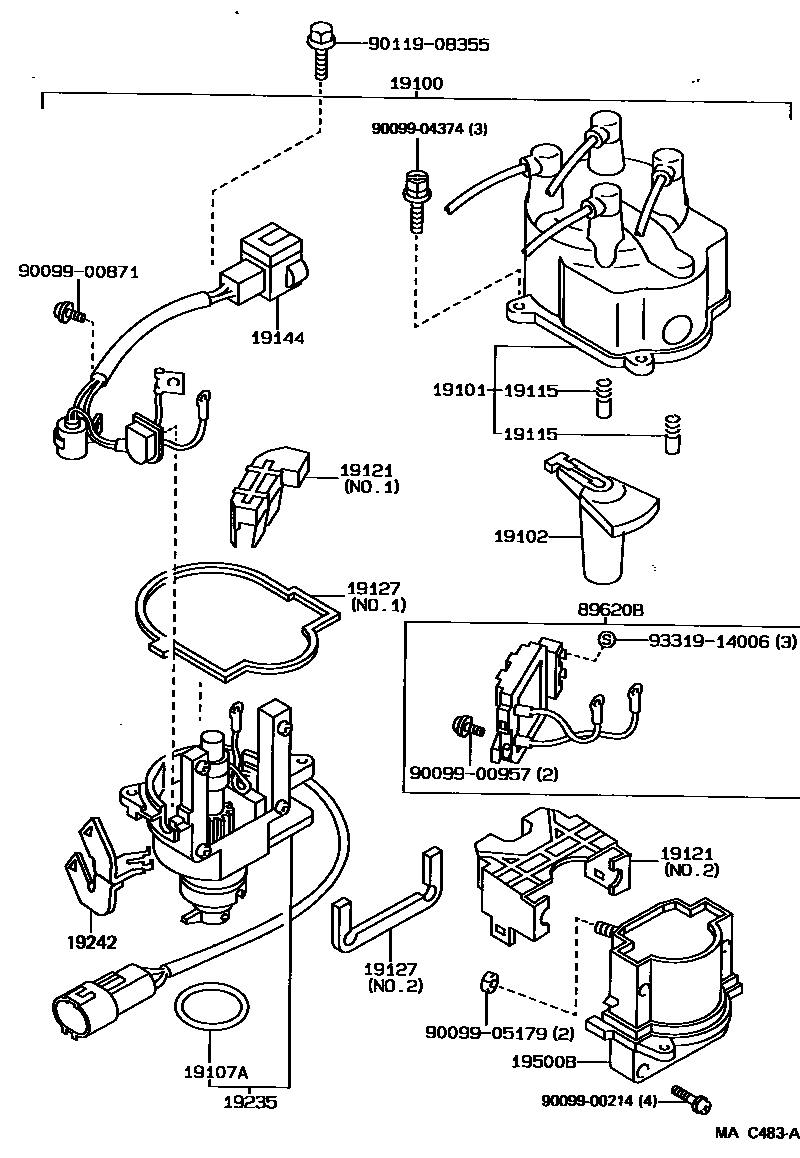

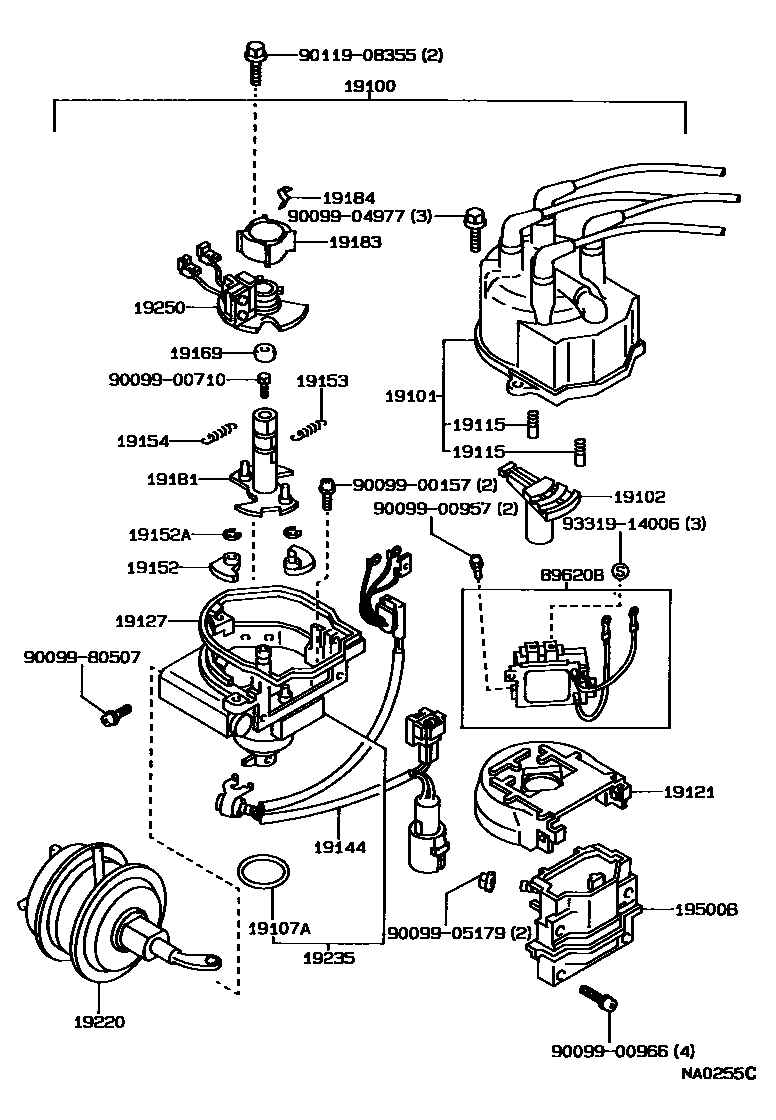

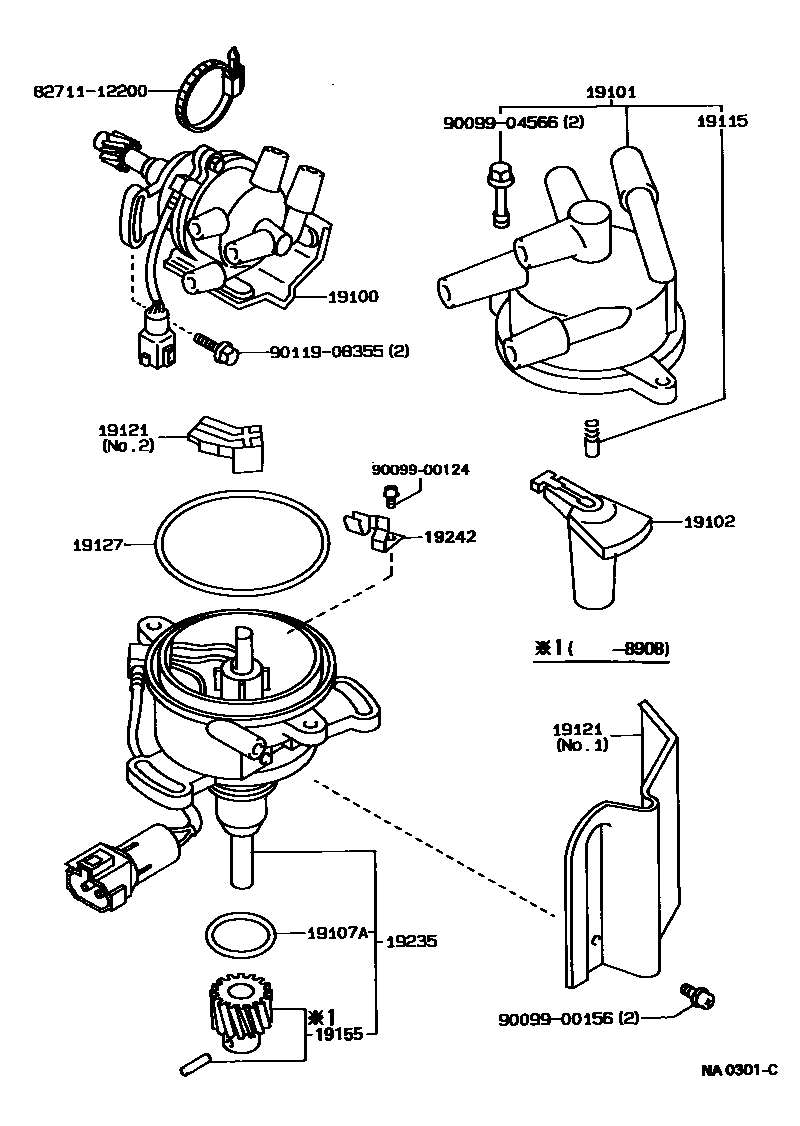

Toyota COROLLA 分电器 — Figure 1902
Toyota COROLLA EPC diagram 1902, 分电器, with 3 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100 | Distributor assembly | 19030-16120 · 19030-16140 · 19100-16180 · 19100-16260 |
| 19101 | Distributor cover sub-assembly | 19101-16120 · 19101-16140 · 19101-16160 · 19101-16250 |
| 19102 | Distributor flame head sub-assembly | 19102-11031 · 19102-16060 |
| 19107A | Distributor housing O-ring | 90099-14091 · 96711-35030 |
| 19115 | Distributor cover center piece | 19115-50010 · 19115-63010 |
| 19121 | dust cover | 19121-11080 · 19121-16040 · 19121-16080 · 19121-16160 · 19121-63040 · 19121-63090 |
| 19127 | Dust seal | 19127-15021 · 19127-15120 · 19127-63010 · 19127-63020 |
| 19144 | Distributor breaker lead | 19144-16090 · 19144-16190 |
| 19152 | Speed regulator weight | 19152-15160 |
| 19152A | Snap ring (for governor weight) | 90099-07122 |
| 19153 | A governor spring | 19153-16230 |
| 19154 | B governor spring | 19154-16230 |
| 19155 | Distributor spiral gear | 19195-16040 |
| 19169 | Cam grease stop | 19169-63011 |
| 19181 | Distributor signal distributor | 19181-16220 |
| 19183 | Signal splitter | 19183-15010 |
| 19184 | Distribution head fixed spring | 19184-63010 |
| 19220 | Distributor vacuum advance device assembly | 19220-16250 |
| 19235 | Distributor housing | 19235-15130 · 19235-16090 · 19235-16180 · 19235-16260 |
| 19242 | Cable clip | 19242-15140 · 19242-16030 |
| 19250 | Signal generator assembly | 19251-15091 · 19251-16100 |
| 19500B | Ignition coil assembly | 90919-02164 · 90919-02196 |
| 89620B | Ignition assembly | 89620-10120 · 89620-12430 |
