Toyota COROLLA Air Cleaner — Figure 1703

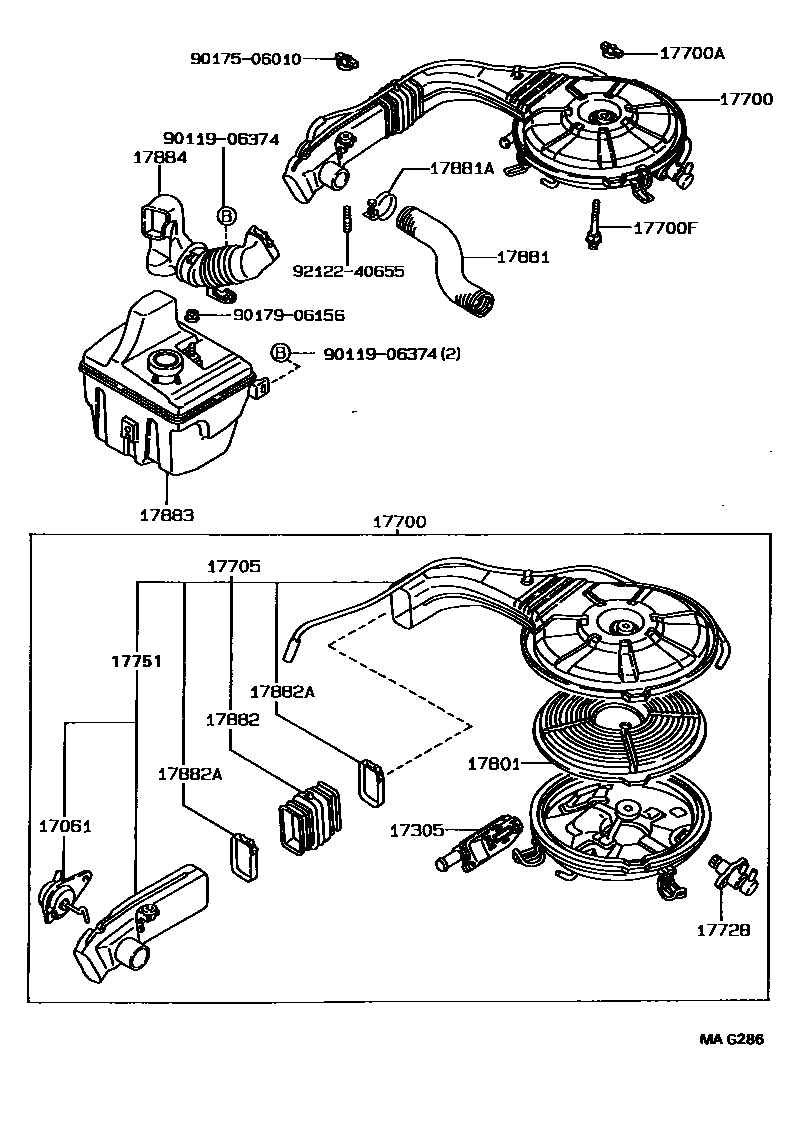

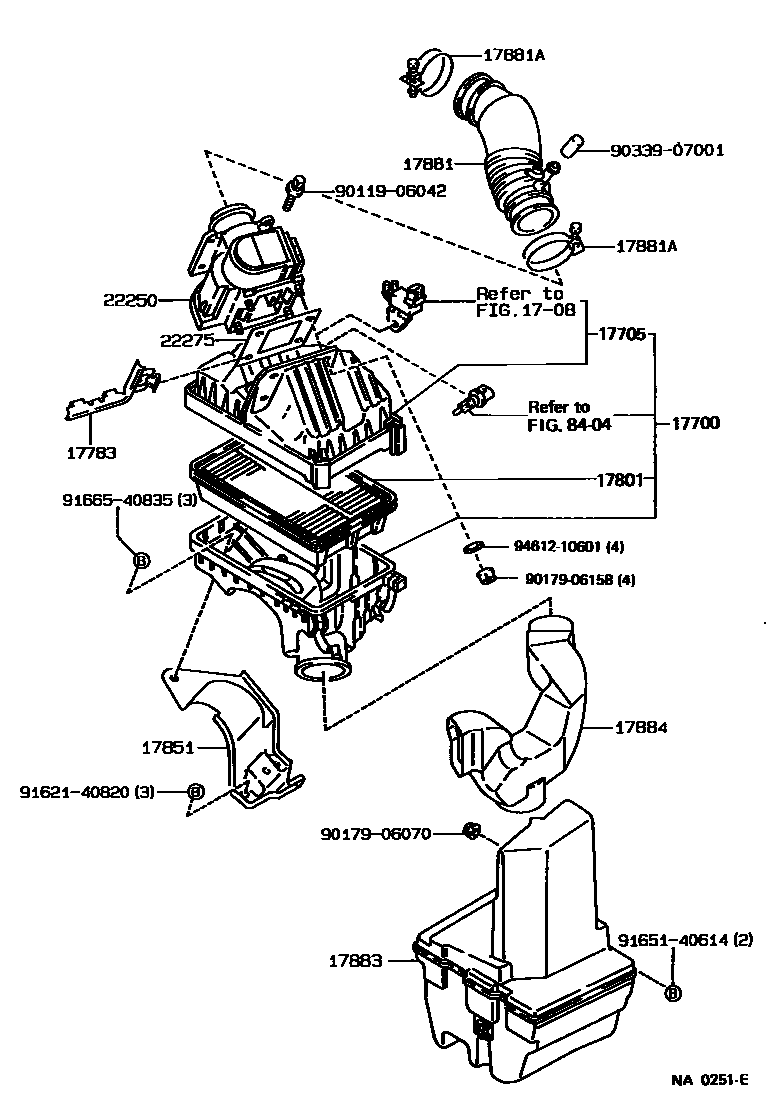

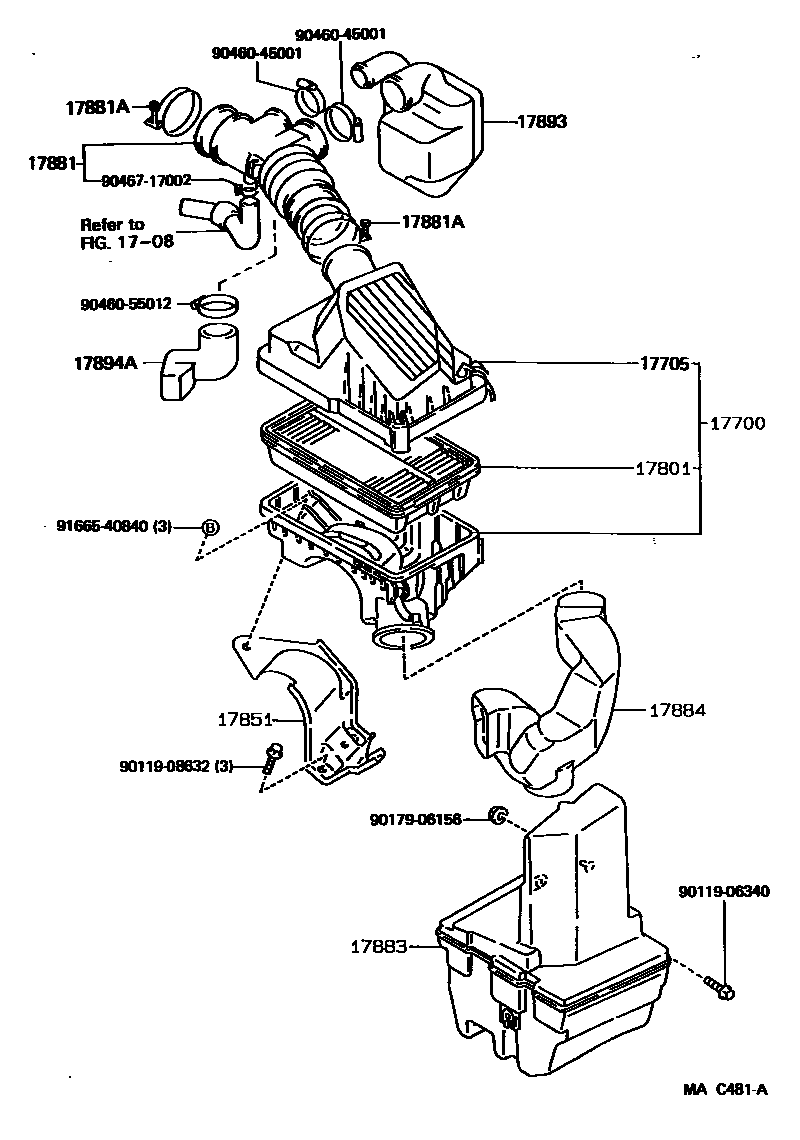

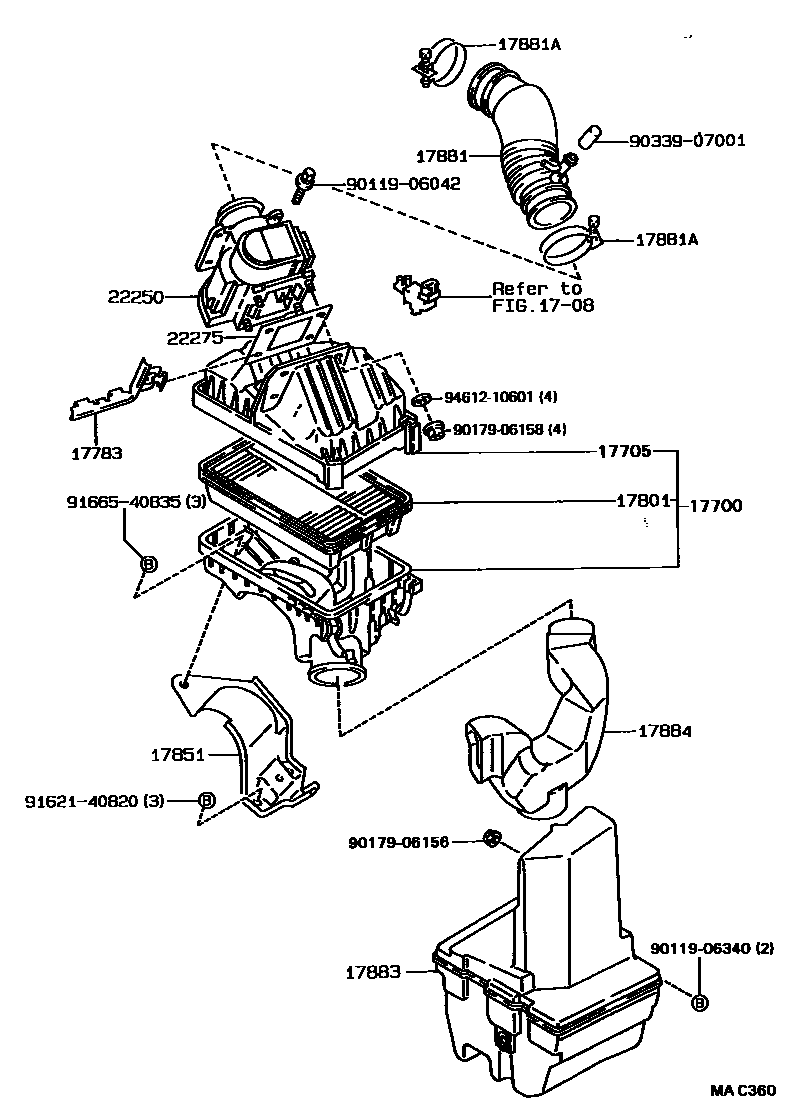

Toyota COROLLA EPC diagram 1703, Air Cleaner, with 4 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17061 | Diaphragm sub-assembly | 17061-15040 |
| 17305 | Reed valve sub-assembly | 17305-37010 · 17350-15100 |
| 17700 | air filter assembly | 17700-16380 · 17700-16450 · 17700-16490 · 17700-16600 · 17700-16650 · 17700-16680 · 17700-16700 |
| 17700A | Wing nut (for air cleaner) | 90175-06010 |
| 17700F | Stud bolt (for securing air filter) | 90116-06018 |
| 17705 | Air filter cover sub-assembly | 17705-15150 · 17705-16170 · 17705-16190 · 17705-16330 · 17705-16360 · 17705-16400 |
| 17728 | thermostat valve | 17728-16020 |
| 17751 | No. 1 air filter air inlet | 17751-15010 |
| 17783 | air filter baffle | 17783-16010 · 17783-74020 |
| 17801 | Air filter element sub-assembly | 17801-15060 · 17801-16020 · 17801-16040 · 17801-74020 |
| 17851 | air filter bracket | 17851-15010 |
| 17881 | No. 1 air cleaner hose | 17881-15120 · 17881-15150 · 17881-15160 · 17881-16130 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 90460-73005 · 90460-80002 · 96111-10460 · 96111-10800 |
| 17882 | No. 2 air cleaner hose | 17881-15140 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 17786-15010 |
| 17883 | No. 3 air cleaner hose | 17883-16030 · 17883-16031 · 17883-16040 · 17883-16041 |
| 17884 | No. 4 air cleaner hose | 17880-16010 · 17882-16100 · 17882-16130 |
| 17893 | Intake resonator | 17893-16060 |
| 17894A | No. 2 intake resonator | 17894-16020 |
| 22250 | Intake air flow meter assembly | 22250-16060 · 22250-16100 |
| 22275 | air flow meter gasket | 22275-41010 |
