Toyota COROLLA Exhaust Pipe — Figure 1702

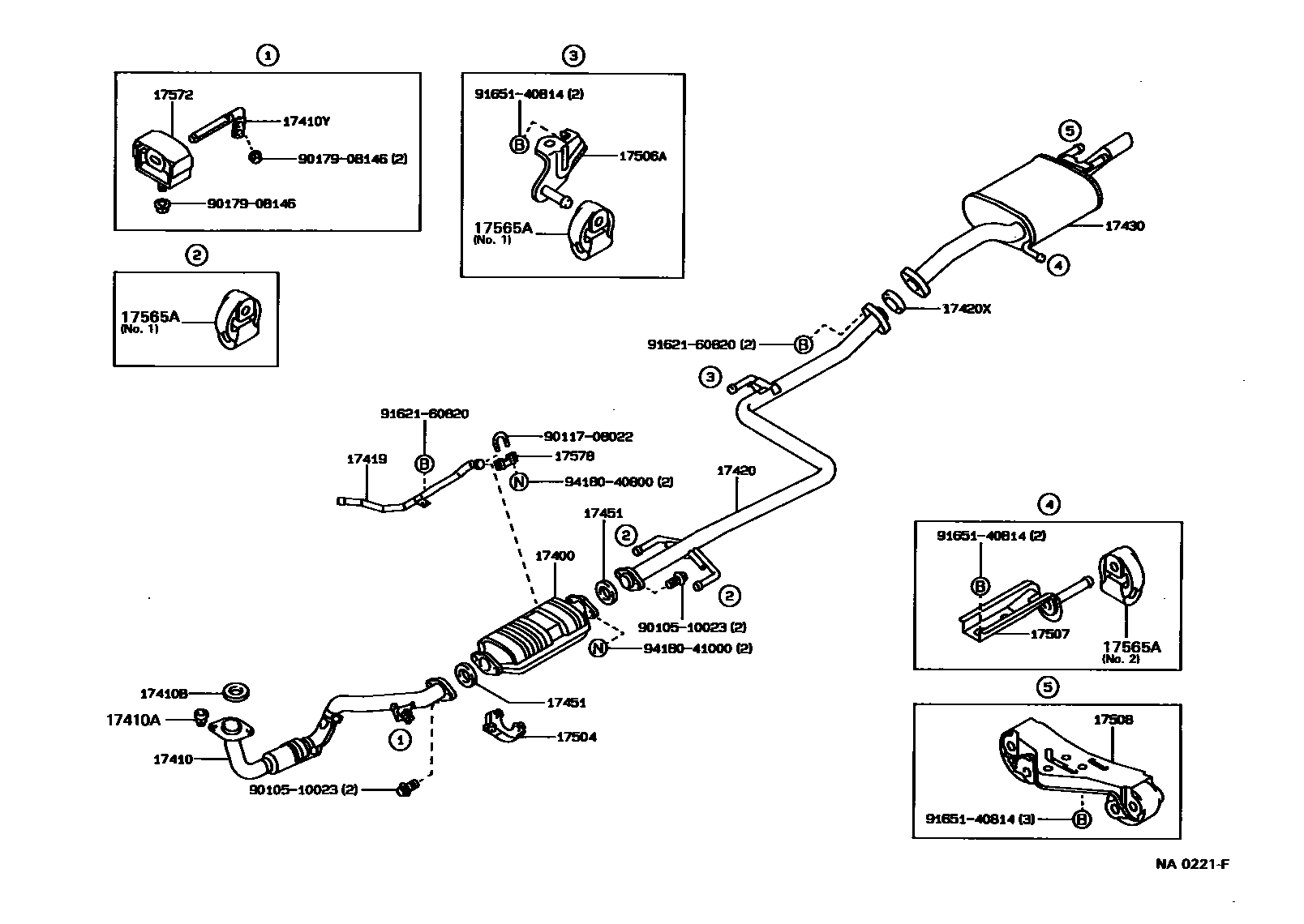

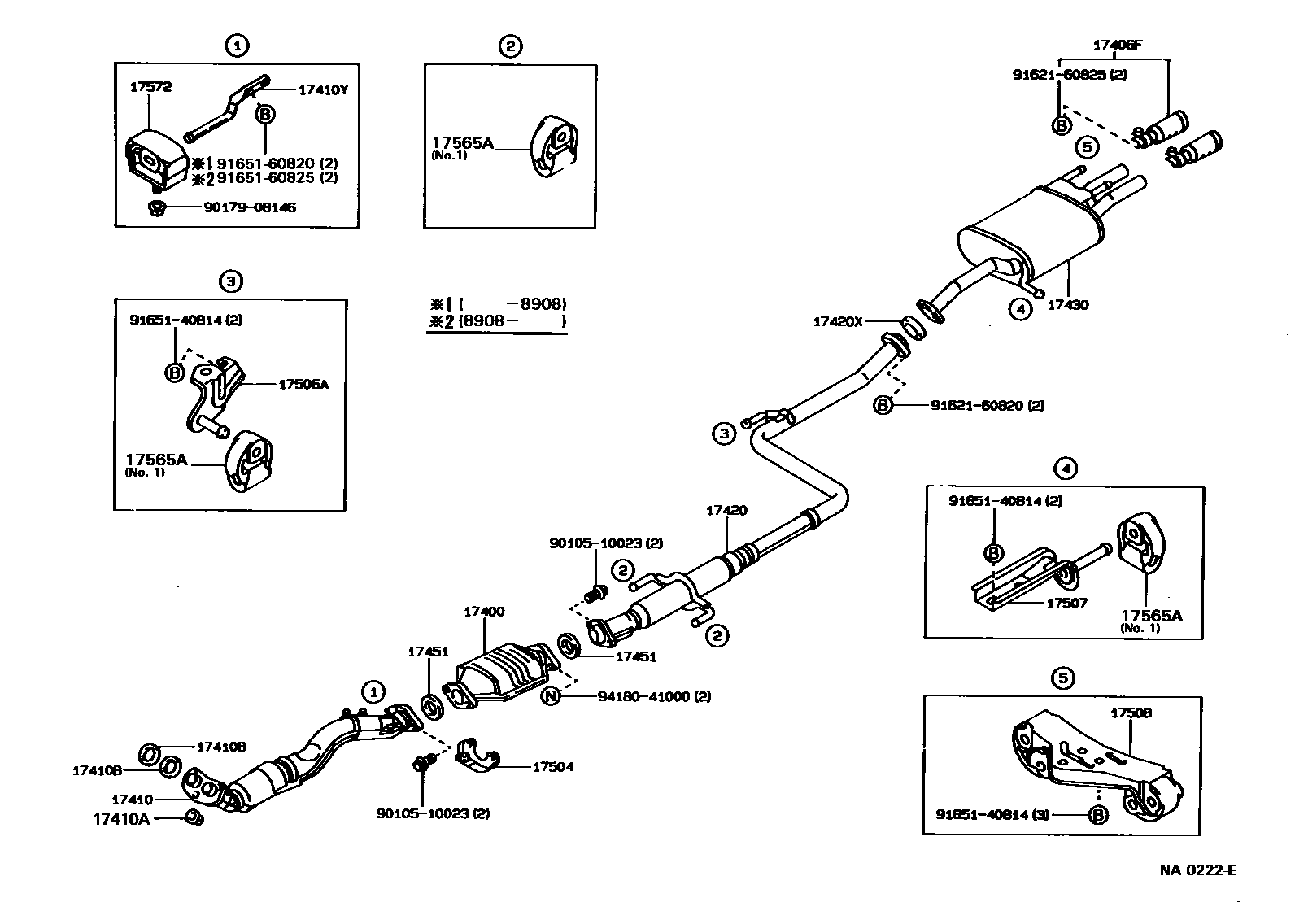

Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17400 | Three-way catalytic converter assembly with catalyst | 18450-16180 · 18450-16210 · 18450-16220 · 18450-16250 · 18450-16330 · 18450-16390 · 18450-16400 · 18450-16420 · 18450-16520 |
| 17406F | Exhaust diffuser sub-assembly | 17406-19015 · 17406-19025 |
| 17410 | Front exhaust pipe assembly | 17410-16370 · 17410-16380 · 17410-16390 · 17410-16400 · 17410-16680 · 17410-16690 |
| 17410A | Exhaust pipe fixing studs and nuts | 90179-10070 |
| 17410B | Exhaust pipe gasket | 90917-06004 · 90917-06012 · 90917-06039 · 90917-06047 |
| 17410Y | Front exhaust pipe bolts or rings (for rear) | 17561-16130 · 17561-16140 |
| 17419 | Three-way catalytic converter intake pipe | 17409-16020 |
| 17420 | Central exhaust pipe assembly | 17420-16120 · 17420-16130 · 17420-16260 · 17420-16290 · 17420-16320 · 17420-16330 · 17420-16340 · 17420-16400 · 17420-16410 |
| 17420X | Center exhaust pipe liner | 90917-06004 · 90917-06012 · 90917-06039 · 90917-06045 · 90917-06047 |
| 17430 | Exhaust tailpipe assembly | 17430-16350 · 17430-16380 · 17430-16381 · 17430-16410 · 17430-16411 · 17430-16450 · 17430-16451 · 17430-16740 · 17430-16750 · 17430-16780 |
| 17451 | Exhaust pipe gasket | 90917-06012 · 90917-06045 · 90917-06047 |
| 17504 | Three-way catalytic converter bracket sub-assembly | 17504-16010 · 17504-16011 |
| 17506A | No. 1 exhaust pipe bracket sub-assembly | 17506-15060 |
| 17507 | No. 2 exhaust pipe bracket sub-assembly | 17507-15030 |
| 17508 | No. 3 exhaust pipe bracket sub-assembly | 17508-15030 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-15050 · 17565-15070 |
| 17572 | No. 1 exhaust pipe bracket | 17572-15050 |
| 17578 | Pipe clamp | 17578-15020 |
