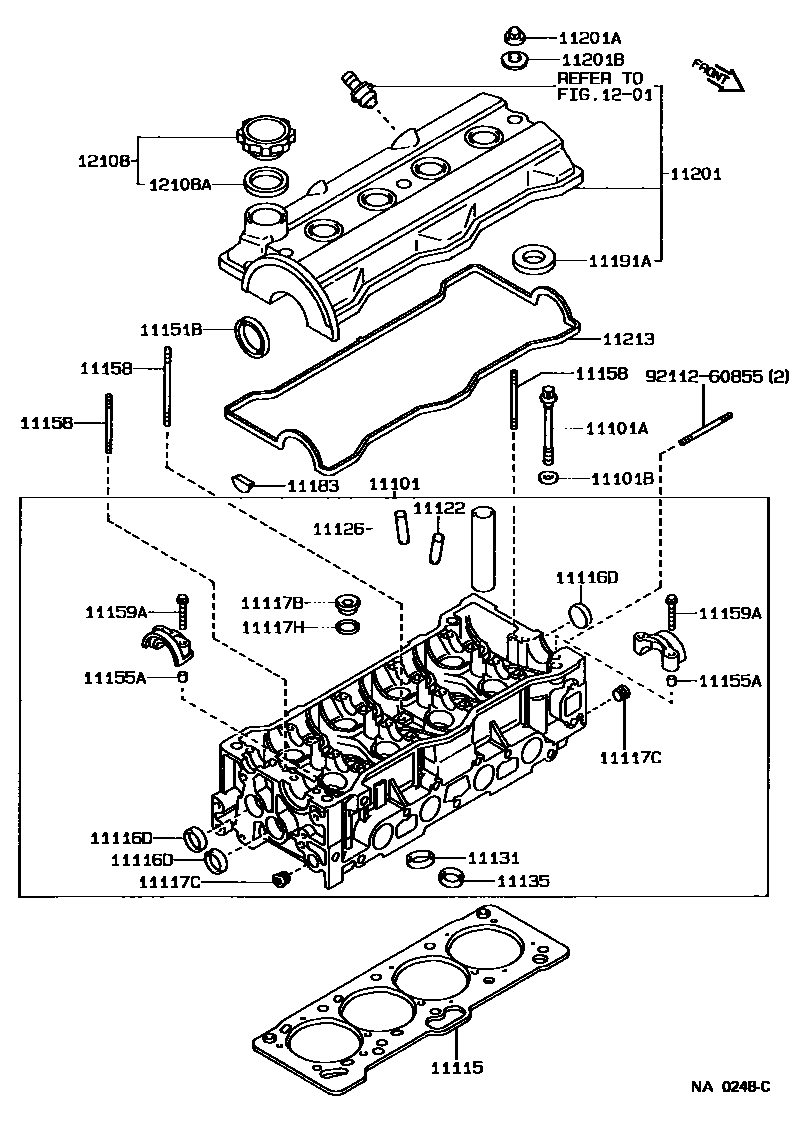

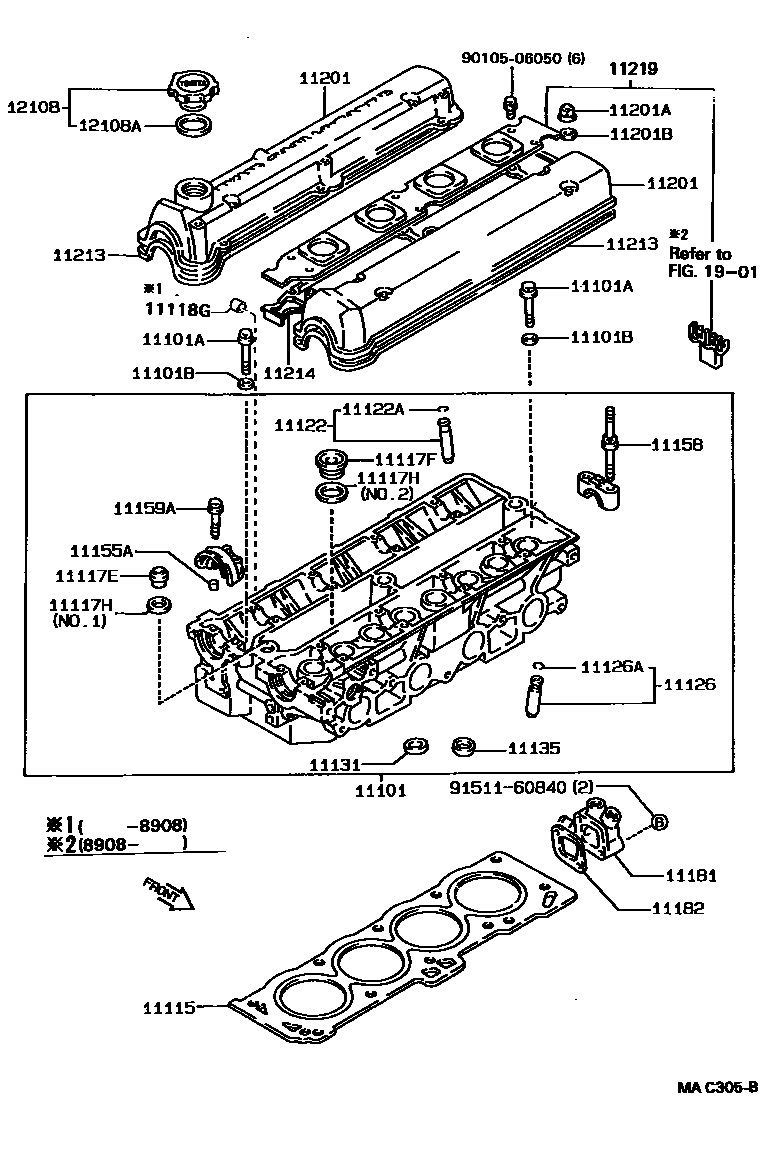

Toyota COROLLA Cylinder Head — Figure 1104
Toyota COROLLA EPC diagram 1104, Cylinder Head, with 2 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11101 | CYLINDER HEAD SUB-ASSY | 11101-16030 · 11101-16110 · 11101-19235 · 11101-19245 · 11101-19255 · 11101-19265 |
| 11101A | BOLT (FOR CYLINDER HEAD) | 90109-10058 · 90109-10059 |
| 11101B | Flat Washer (for cylinder head assembly) | 90201-10344 |
| 11115 | GASKET, CYLINDER HEAD | 11115-16070 · 11115-16081 · 11115-16082 |
| 11116D | No. 4 sealing plug | 96411-42800 |
| 11117B | No. 2 headed tapered thread plug | 90341-20002 |
| 11117C | No. 3 headed tapered thread plug | 90344-53005 |
| 11117E | PLUG, STRAIGHT SCREW W/HEAD, NO.1 | 90341-24008 |
| 11117F | No. 2 headed straight thread plug | 90341-32001 |
| 11117H | Gasket (for coolant hole) | 90430-20004 · 90430-24007 · 90430-33133 |
| 11118G | Slotted Spring Pin No. 1 | 90254-11002 |
| 11122 | BUSH, INTAKE VALVE GUIDE | 11122-15030 · 11122-16020 · 11123-15030 · 11123-16020 |
| 11122A | Shaft snap ring (for valve guide bushing) | 90520-10004 |
| 11126 | BUSH, EXHAUST VALVE GUIDE | 11122-15030 · 11122-16020 · 11123-15030 · 11123-16020 |
| 11126A | Shaft snap ring (for valve guide bushing) | 90520-10004 |
| 11131 | intake valve seat | 11131-15040 · 11131-16010 · 11132-15040 · 11132-16010 |
| 11135 | Exhaust valve seat | 11135-15030 · 11135-16010 · 11136-15030 · 11136-16010 |
| 11151B | OIL SEAL (FOR CAMSHAFT SETTING) | 90311-35008 · 90311-35013 · 90311-35022 · 90311-35025 |
| 11155A | PIN, RING W/HEAD | 90253-09001 |
| 11158 | STUD (FOR CYLINDER HEAD TO HEAD COVER) | 90109-06079 · 90116-06073 · 90116-06074 |
| 11159A | BOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP) | 90109-06080 |
| 11181 | cylinder head rear plate | 11181-16130 · 11181-16140 |
| 11182 | Rear cylinder head gasket | 11182-16010 · 11182-16020 |
| 11183 | PLUG, SEMICIRCULAR | 11183-15020 |
| 11191A | Gasket (for spark plug bushing) | 11193-15010 |
| 11201 | CYLINDER HEAD COVER SUB-ASSY | 11201-15900 · 11210-16100 · 11210-16110 · 11210-16140 · 11210-16160 · 11212-16010 · 11212-16050 |
| 11201A | Cap nut (for cylinder head cover) | 90176-06008 · 90176-06012 |
| 11201B | Gasket (for cylinder head cover) | 90210-06008 · 90210-08020 |
| 11213 | GASKET, CYLINDER HEAD COVER | 11213-15050 · 11213-16010 |
| 11214 | No. 2 cylinder head cover gasket | 11214-16020 · 11214-16050 |
| 11219 | No. 3 cylinder head cover | 11219-16050 · 11219-16071 |
| 12108 | OIL FILLER CAP SUB-ASSY | 12180-13030 · 12180-62010 |
| 12108A | GASKET (FOR OIL FILLER CAP) | 90430-37140 |
