Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718

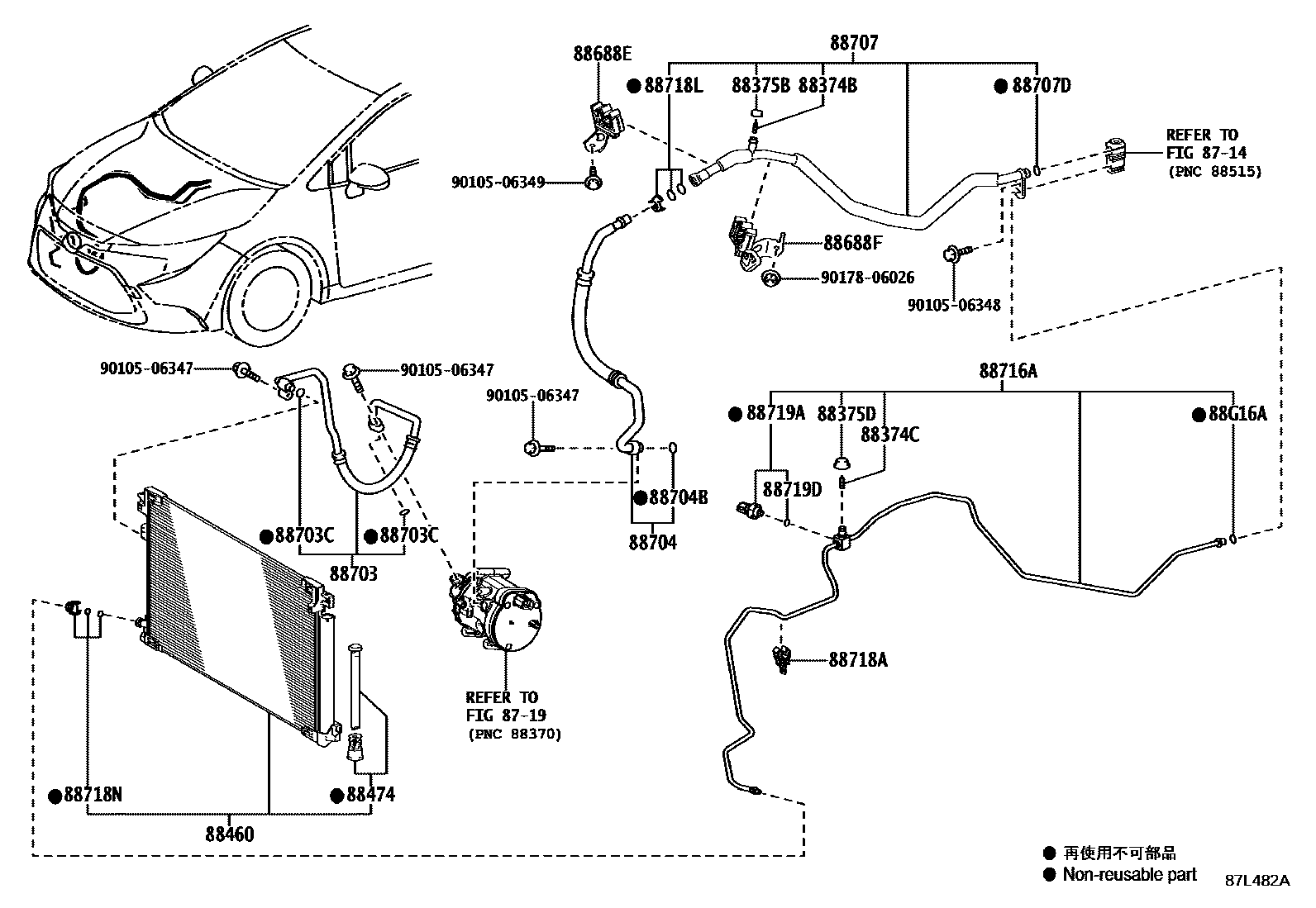

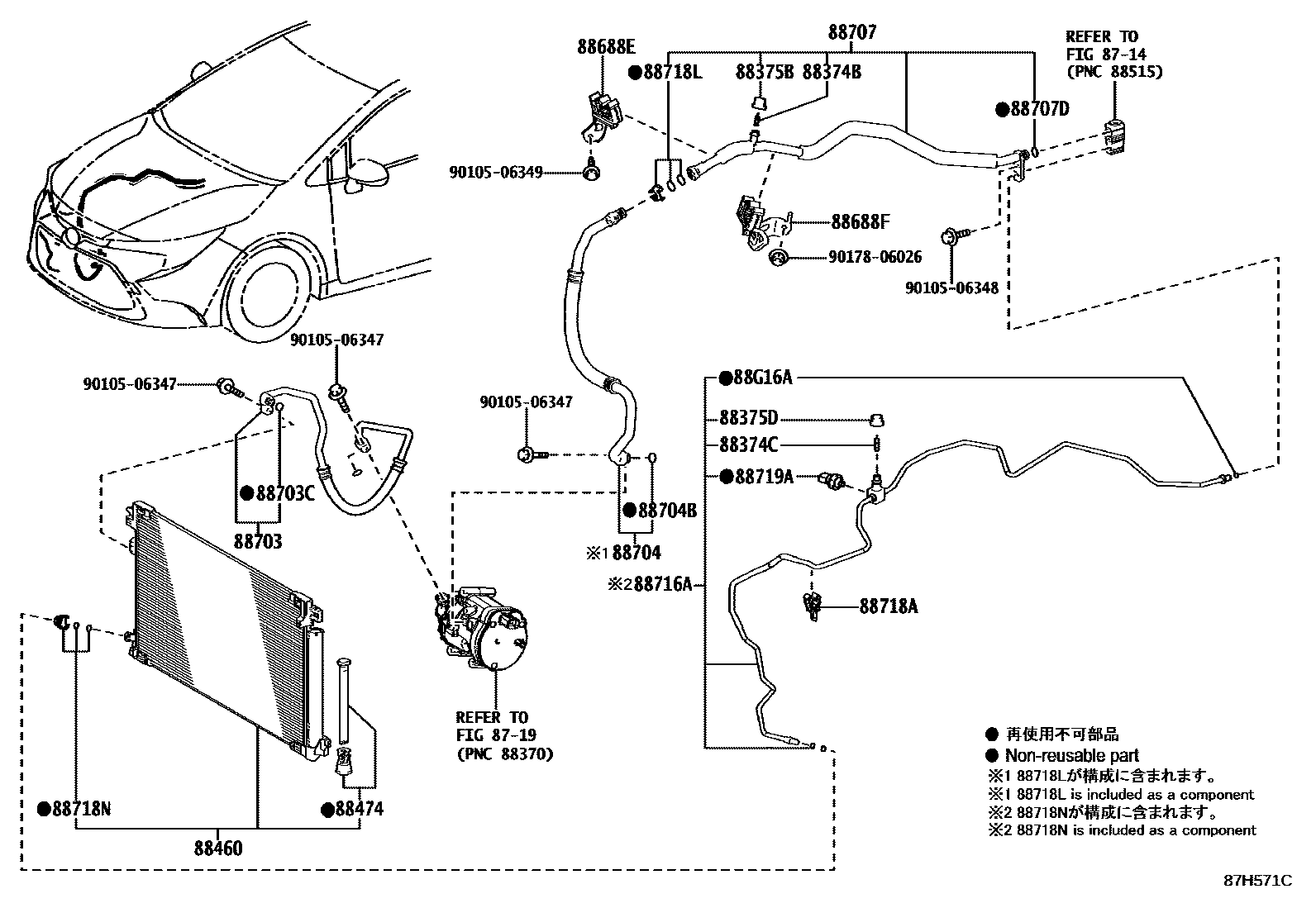

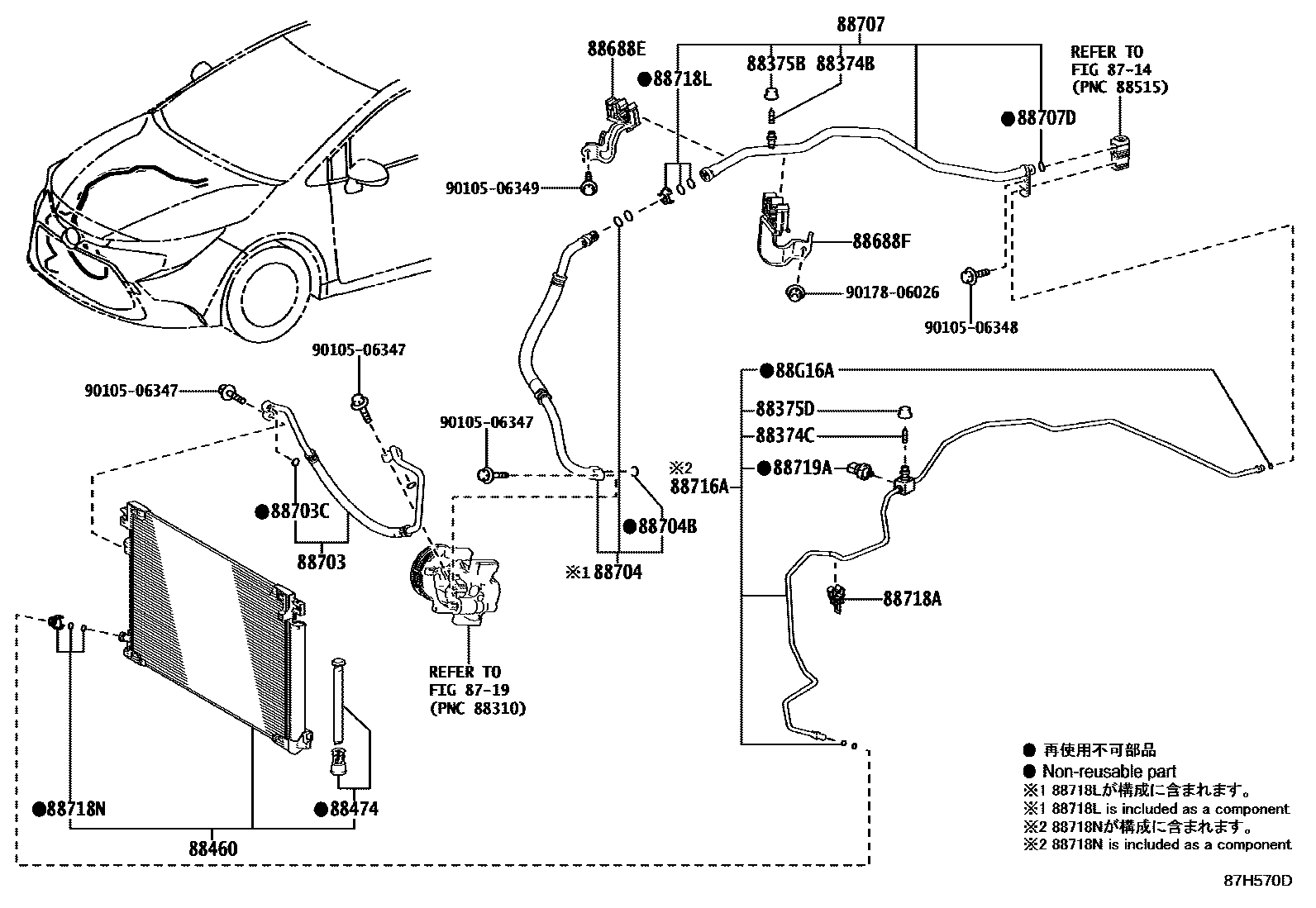

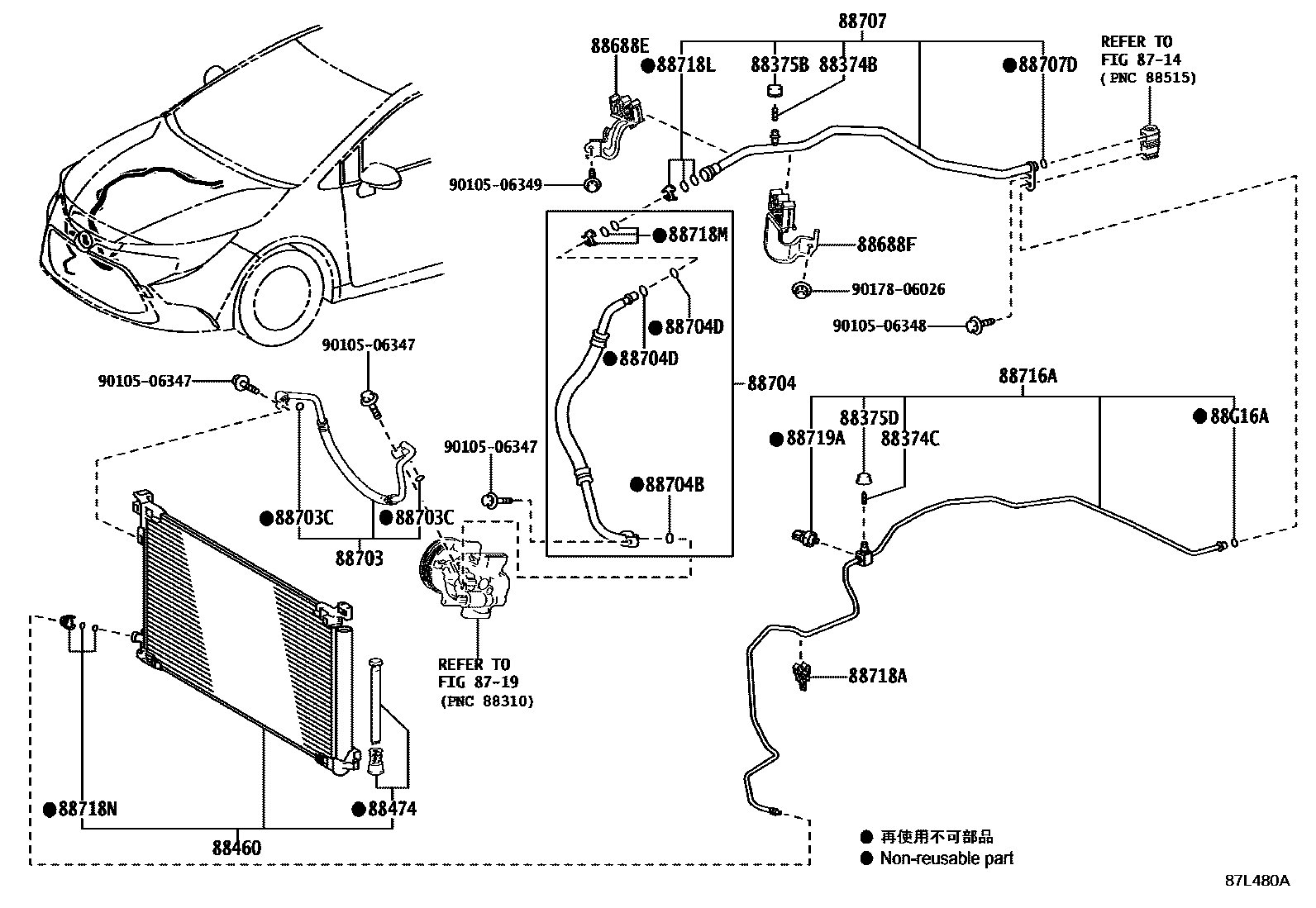

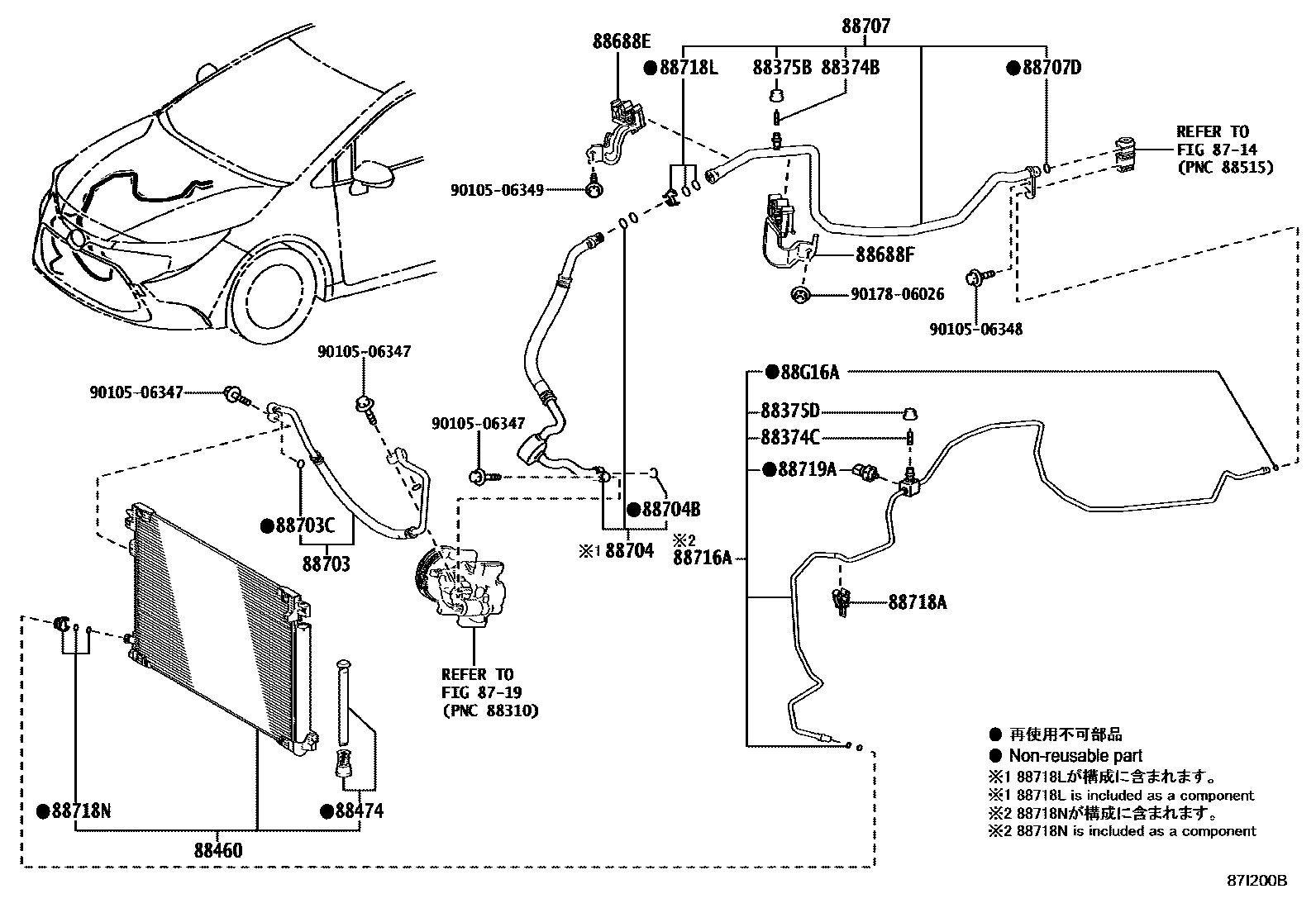

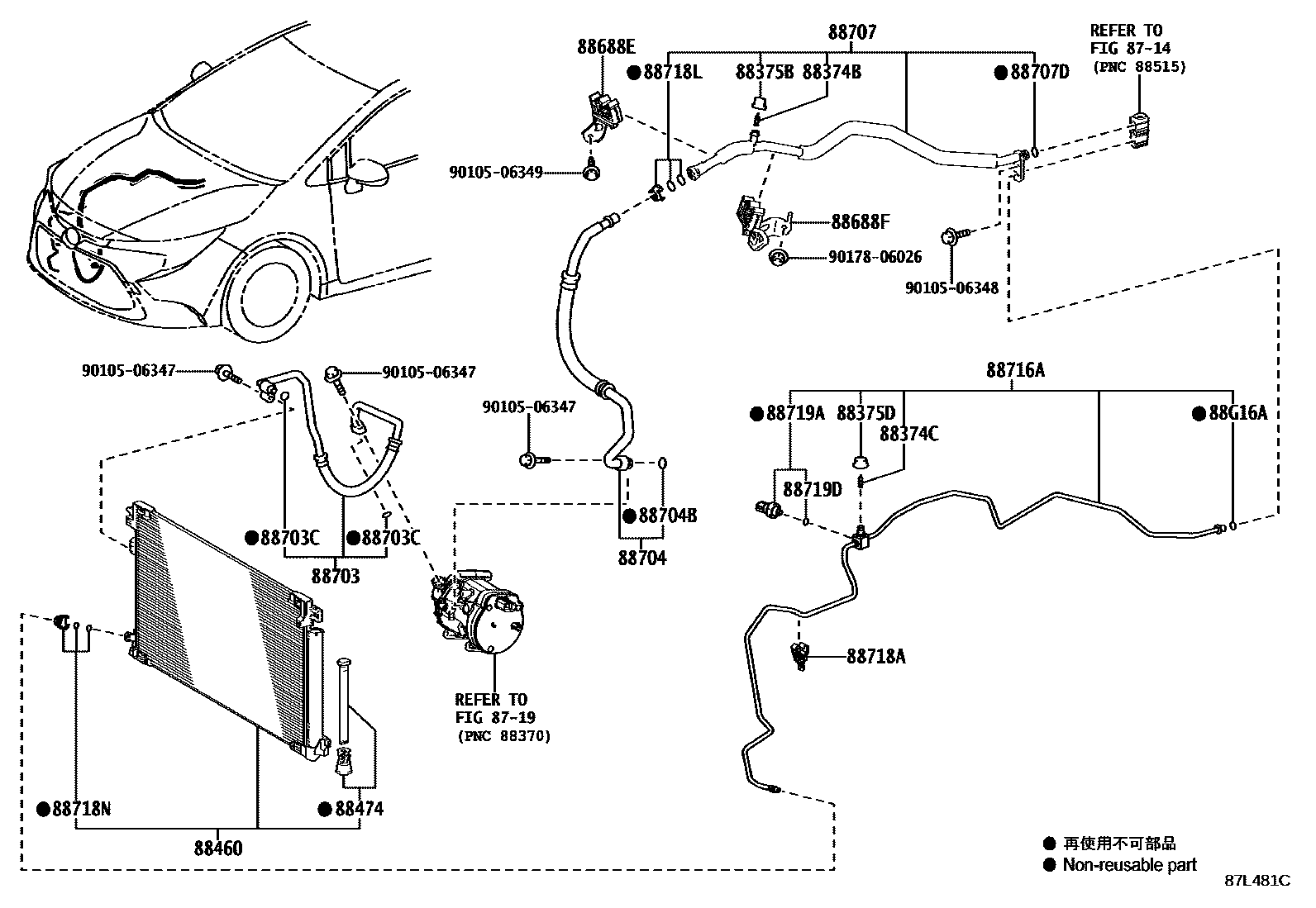

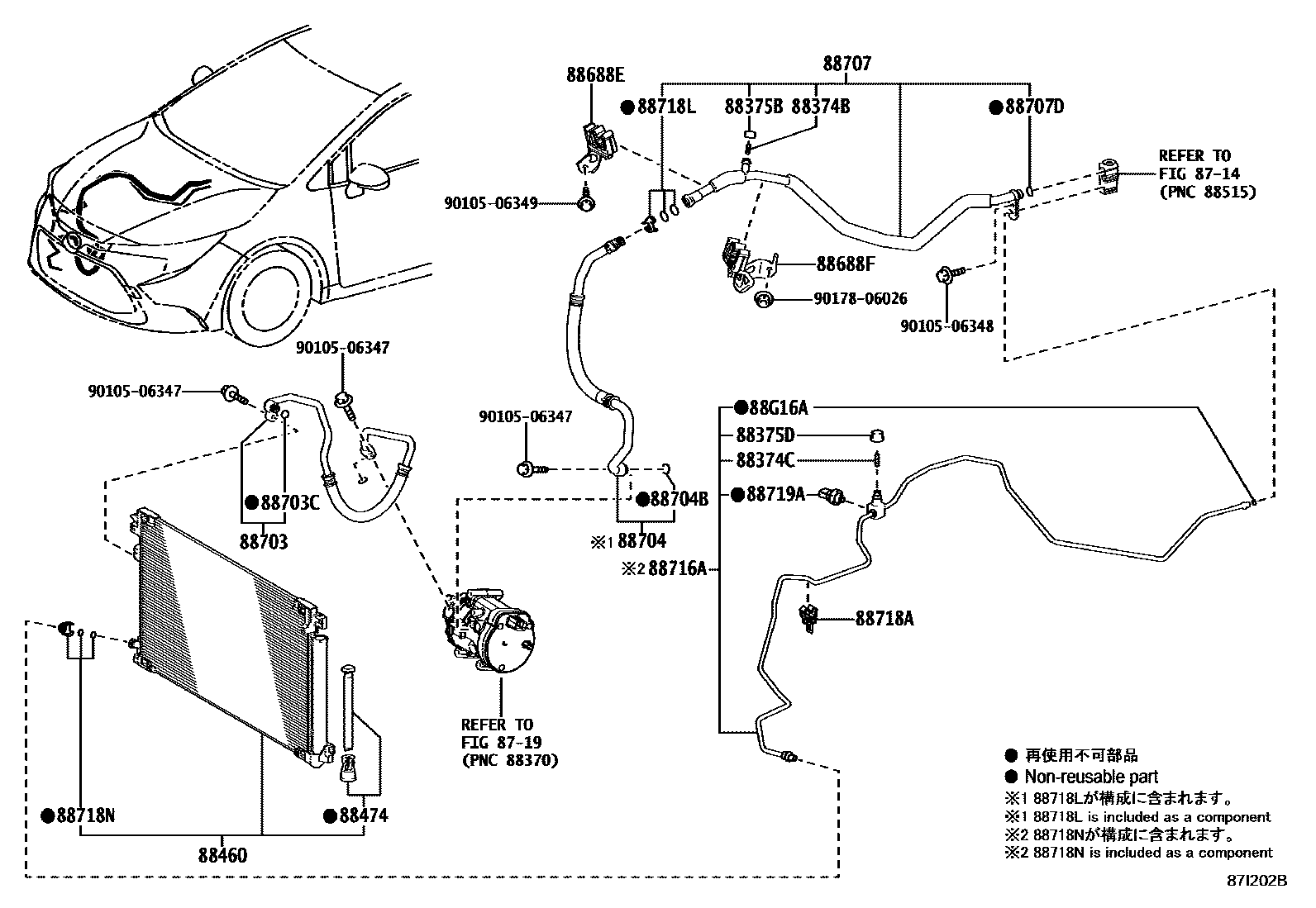

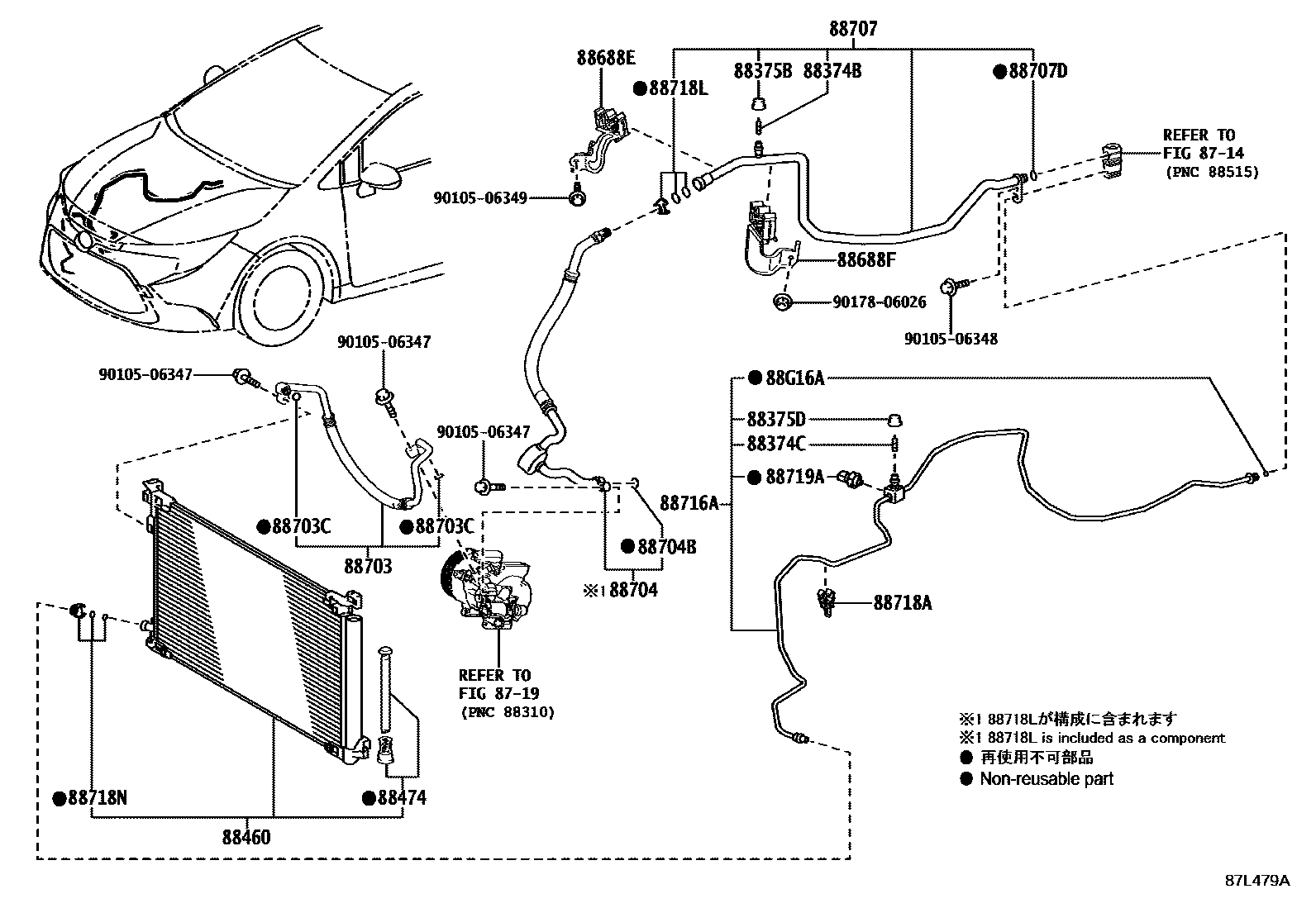

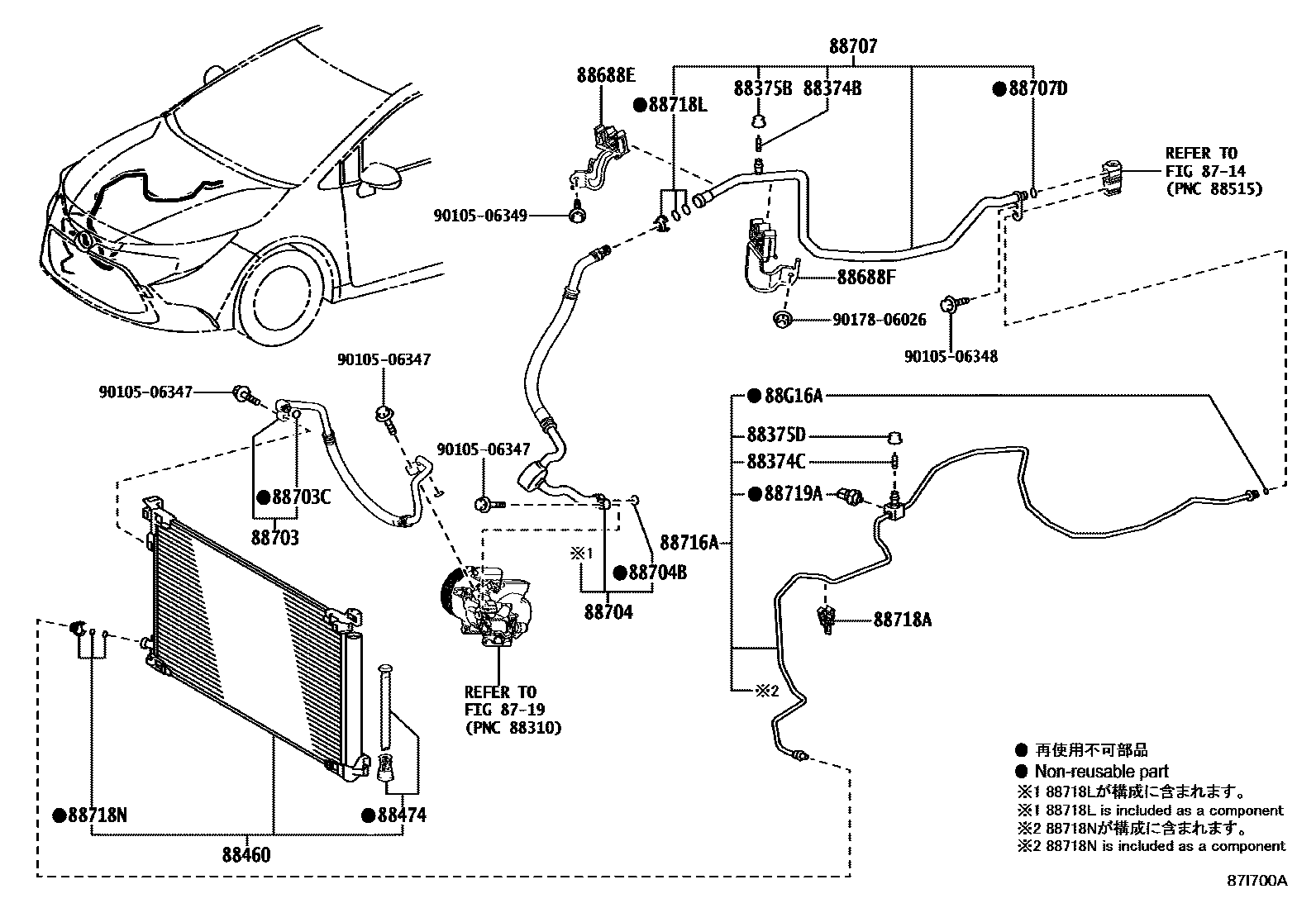

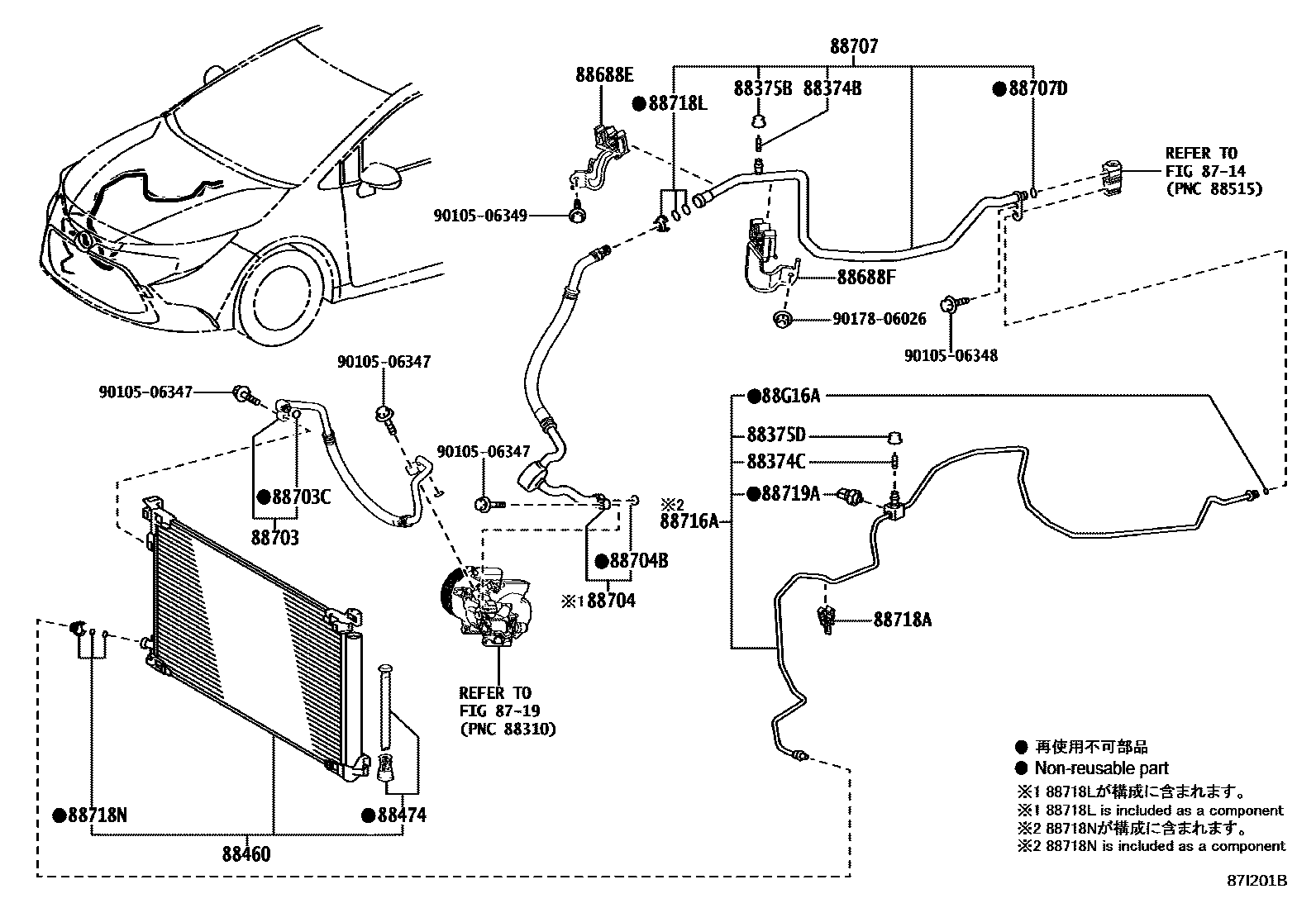

Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 12 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88374C | Service valve No. 2 | 88374-30010 |
| 88375B | No. 1 maintenance valve cover | 88375-30290 |
| 88375D | No. 2 maintenance valve cover | 88375-30280 |
| 88460 | Air conditioning condenser assembly | 88460-10320 · 884A0-12020 · 884A0-12040 · 884A0-12100 · 884A0-12110 |
| 88474 | cooler dryer | 88474-12010 · 88474-12020 |
| 88688E | Cooler No. 1 refrigerant hose bracket | 88688-12A20 · 88688-47700 |
| 88688F | Cooler No. 2 refrigerant hose bracket | 88688-10560 · 88688-47710 |
| 88703 | Discharge hose sub-assembly | 88703-12A20 · 88703-12A80 · 88703-16340 · 88703-47080 |
| 88703C | JOINT, TORIQUE(POUR TUYAU DECHARGE) | 90099-14120 |
| 88704 | Oil suction hose sub-assembly | 88704-12A90 · 88704-12B10 · 88704-12B30 · 88704-12B40 · 88704-12B90 · 88704-16500 · 88704-47100 |
| 88704B | JOINT, TORIQUE(POUR FLEXIBLE ASPIRATION) | 90099-14121 |
| 88704D | JOINT, TORIQUE, NO.2 (POUR FLEXIBLE ASPIRATION) | 90099-14157 |
| 88707 | Suction pipe sub-assembly | 88707-12370 · 88707-12410 · 88707-47090 · 88707-47110 |
| 88707D | JOINT, TORIQUE(POUR TUYAU ASPIRATION) | 90099-14121 |
| 88716A | Cooler refrigerant liquid pipe A | 88710-12B20 · 88710-12B60 · 88710-12B70 · 88710-12C00 · 88710-12C01 · 88710-12C20 · 88710-12C30 · 88710-12D41 · 88710-12D60 · 88710-47160 · 88710-47161 |
| 88718A | Clamp No. 1 (for cooler refrigerant pipe) | 88718-47110 |
| 88718L | Pipe clamp | 88718-52280 |
| 88718M | FIXATION, TUYAUTERIE | 88718-52280 |
| 88718N | FIXATION, TUYAUTERIE | 88718-1E150 |
| 88719A | Air conditioning pressure sensor | 88719-11010 · 88719-47010 |
| 88719D | JOINT, TORIQUE(POUR CAPTEUR PRESSION CLIM) | 90099-14122 |
| 88G16A | JOINT, TORIQUE, NO.1(TUYAU LIQUID REFRIG REFROID) | 90099-14119 |
