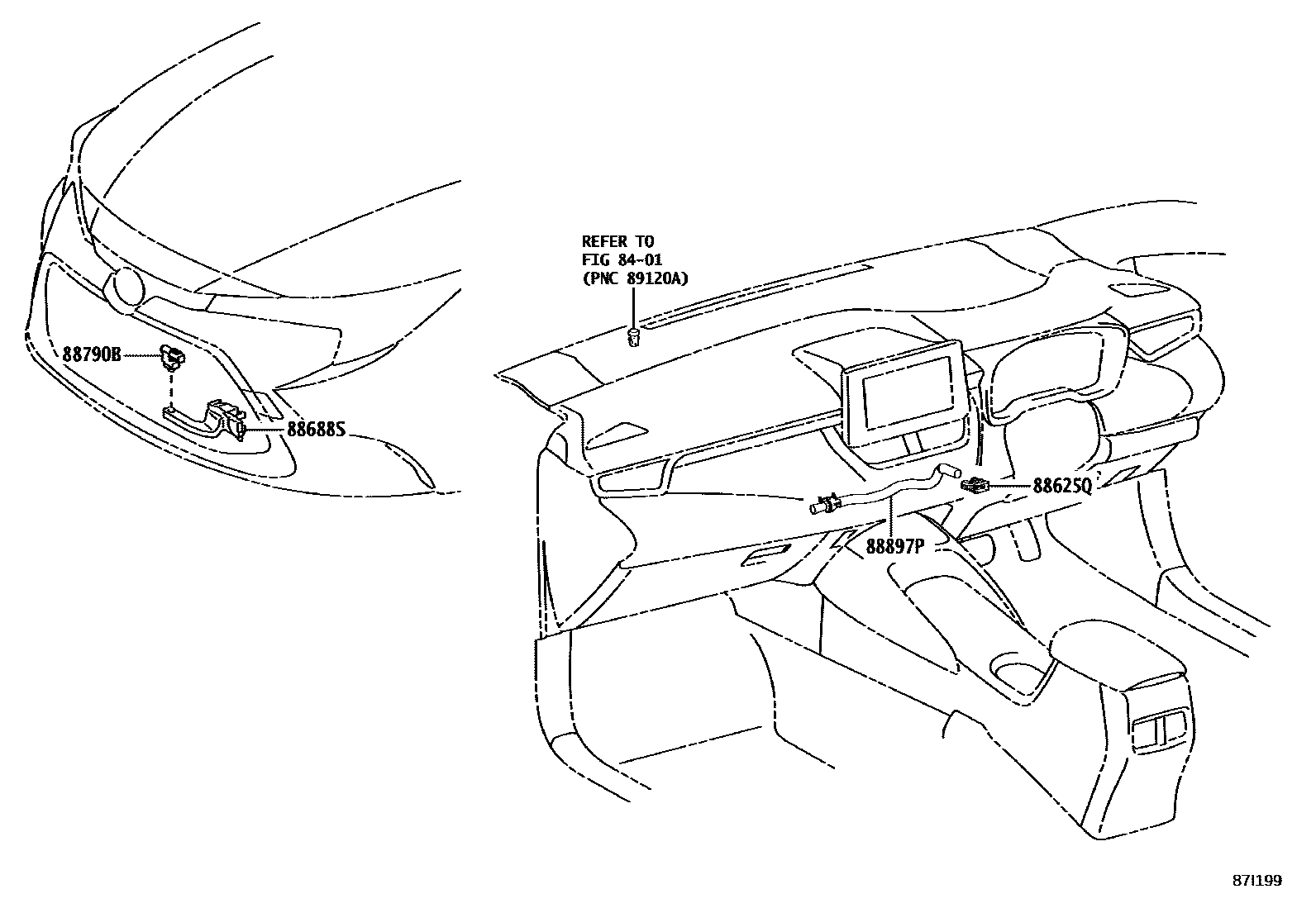

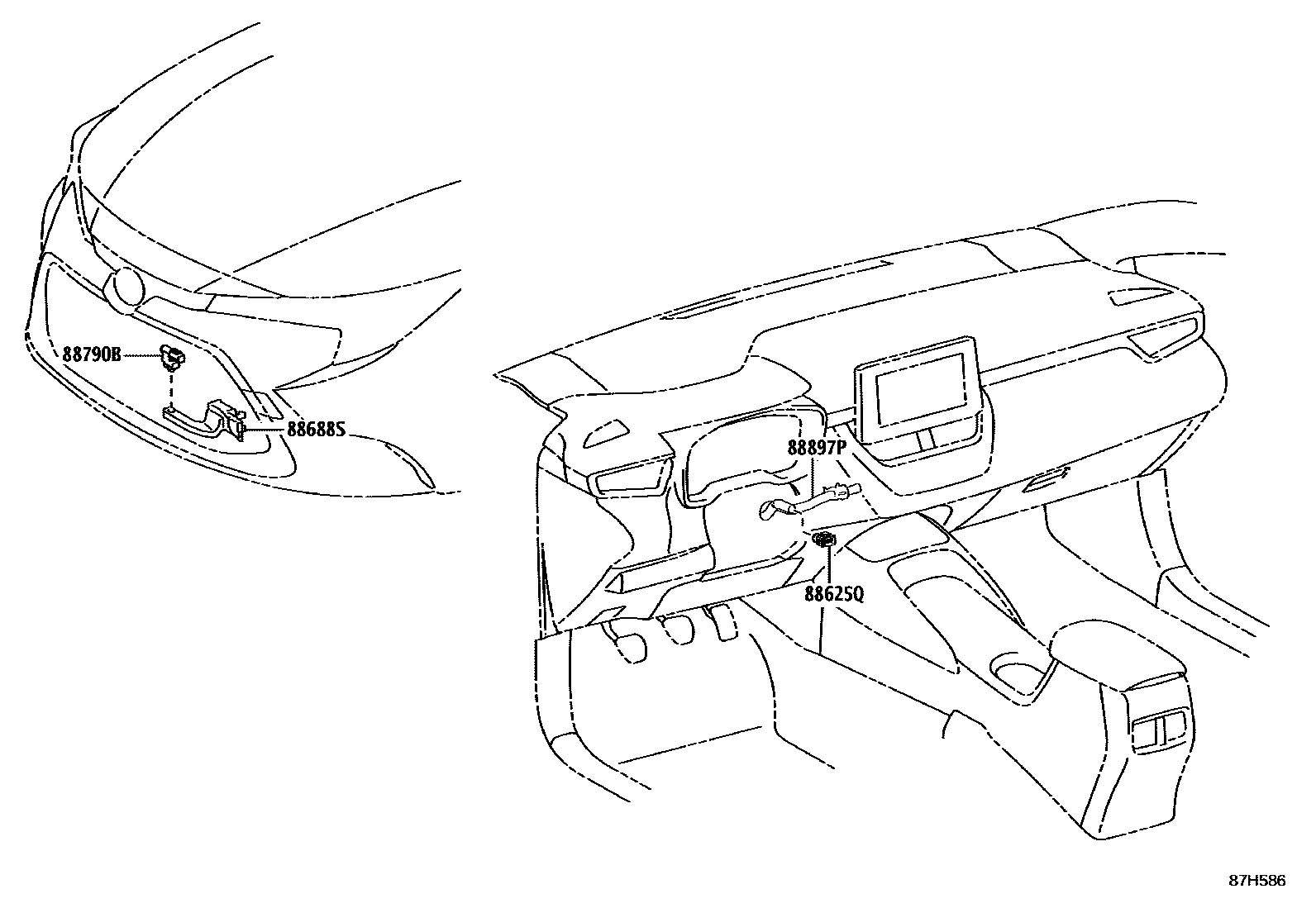

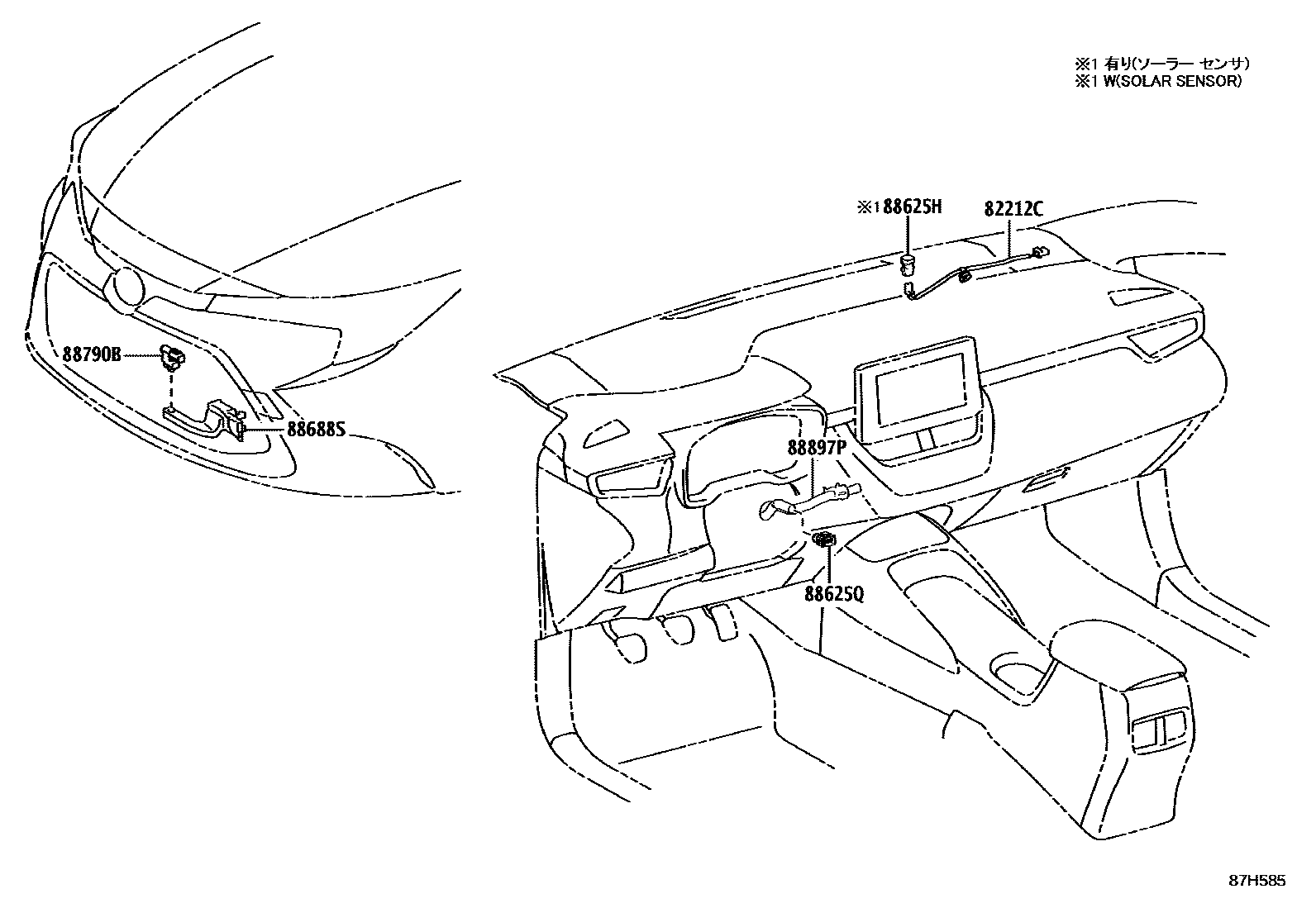

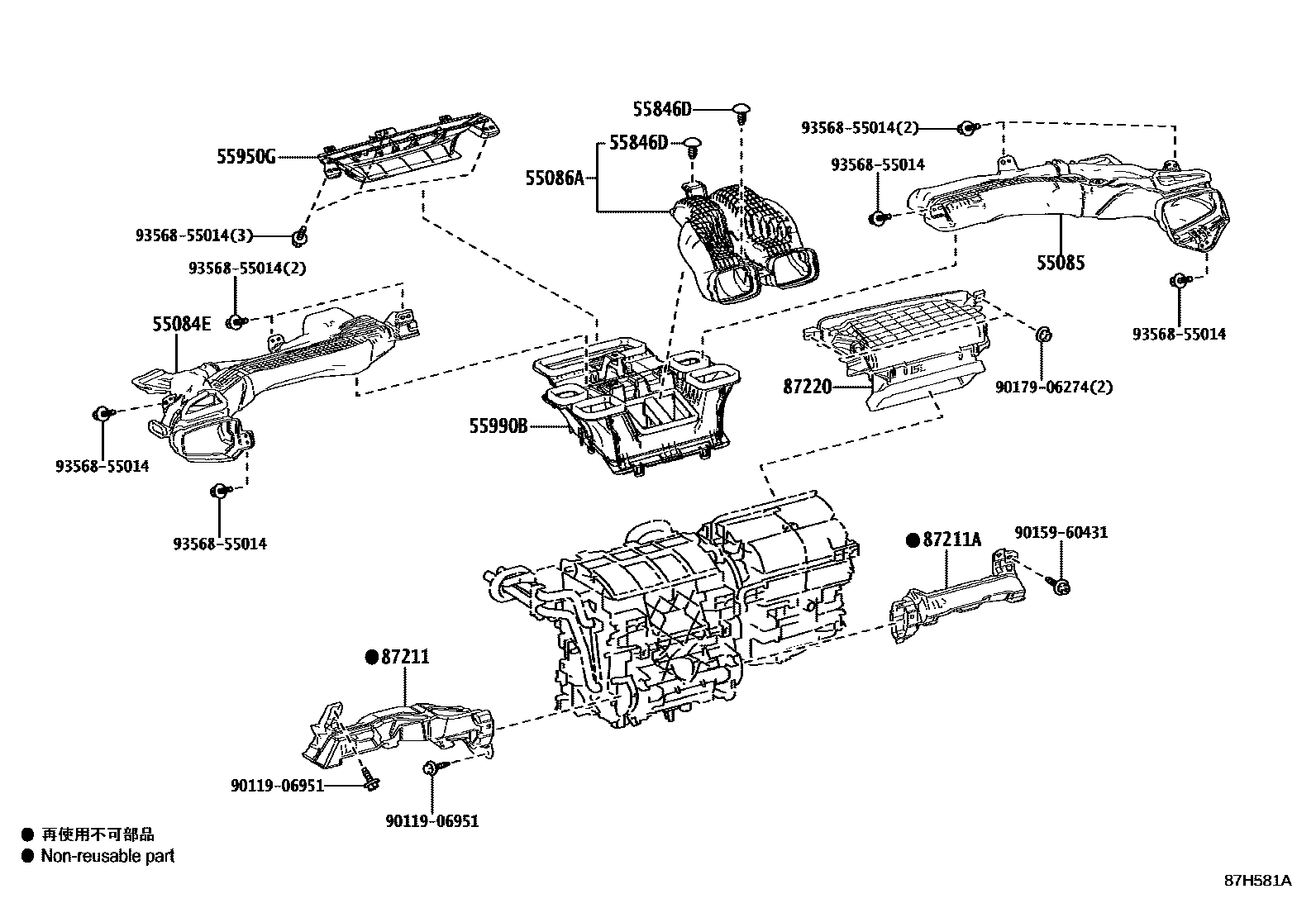

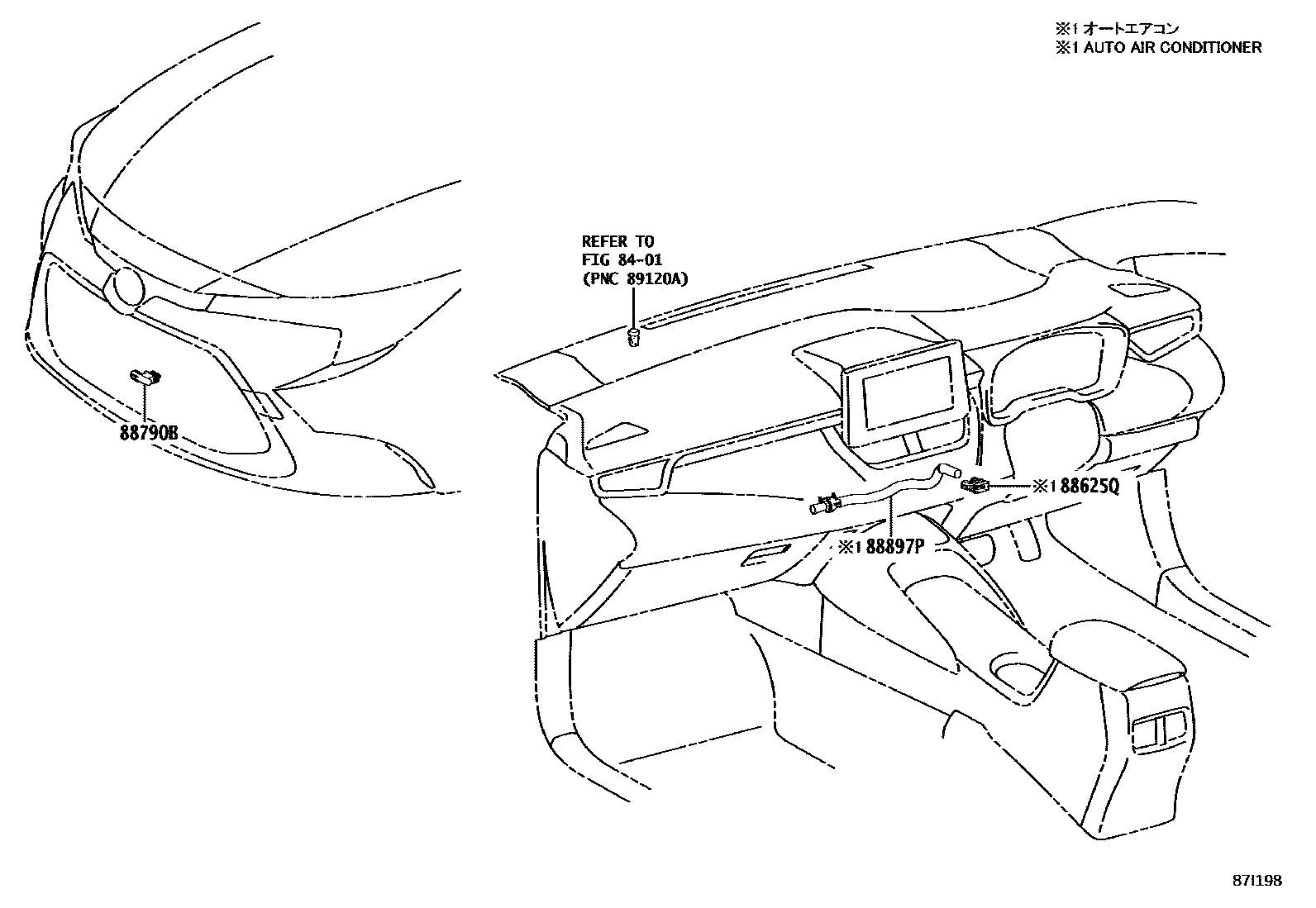

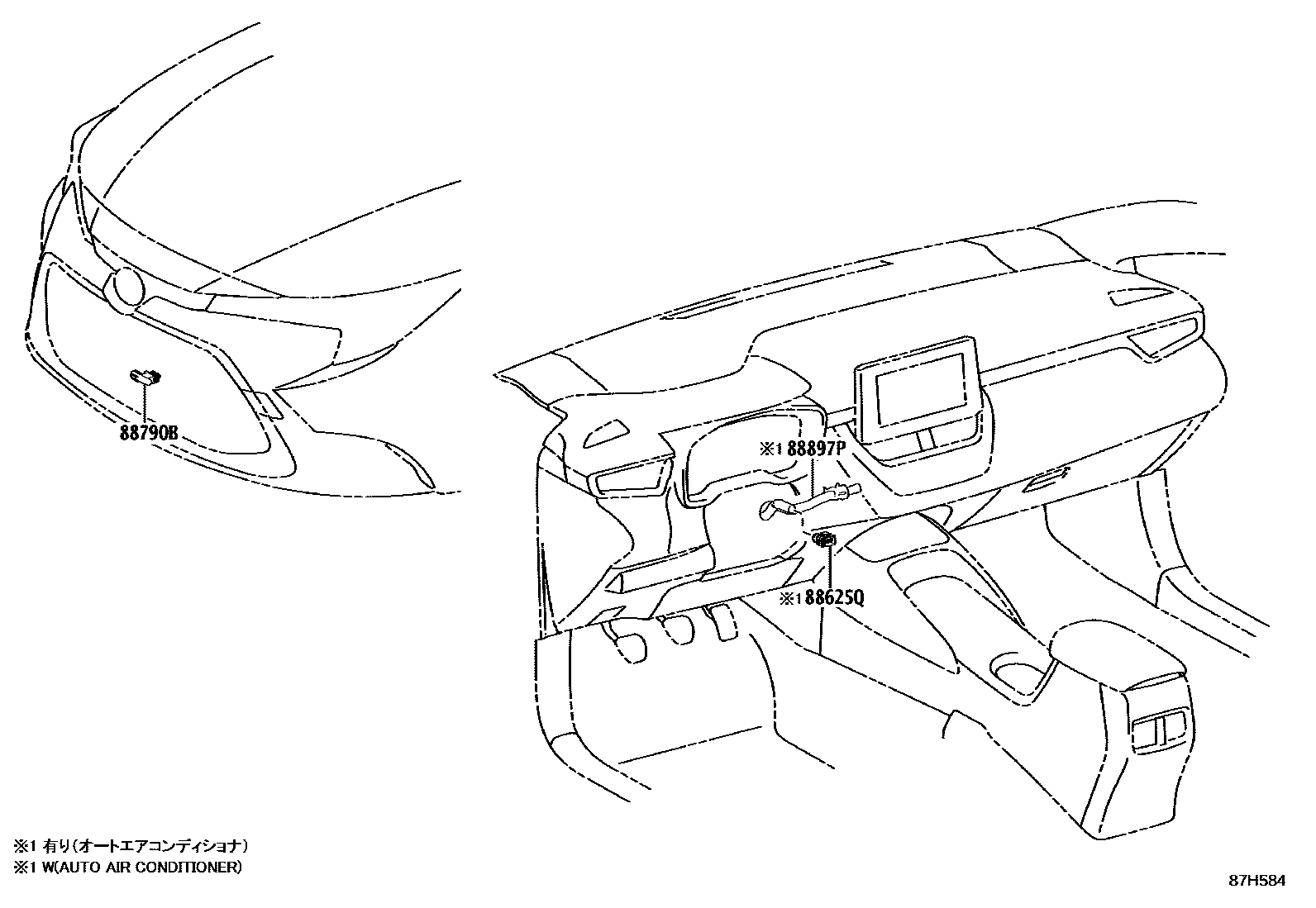

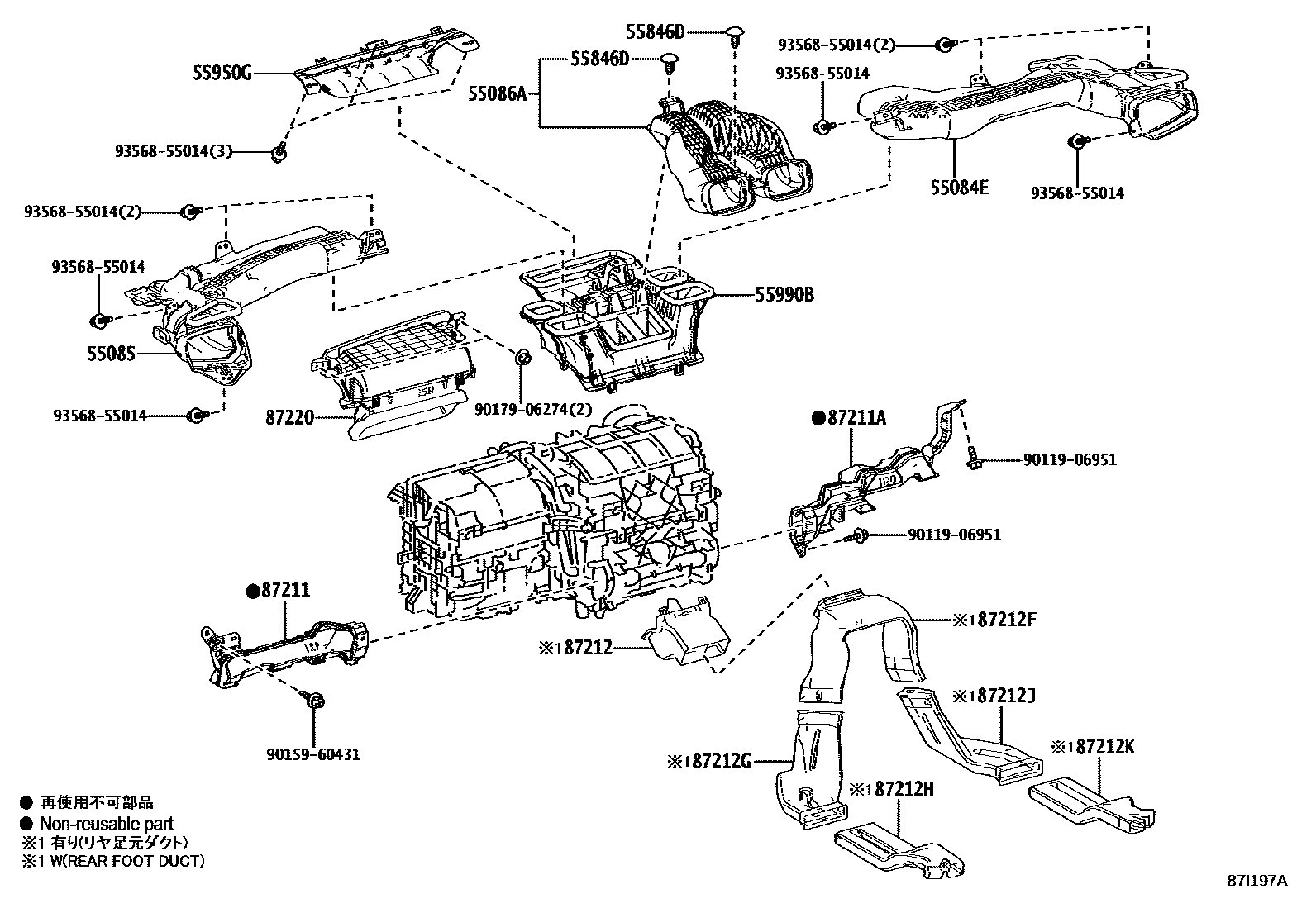

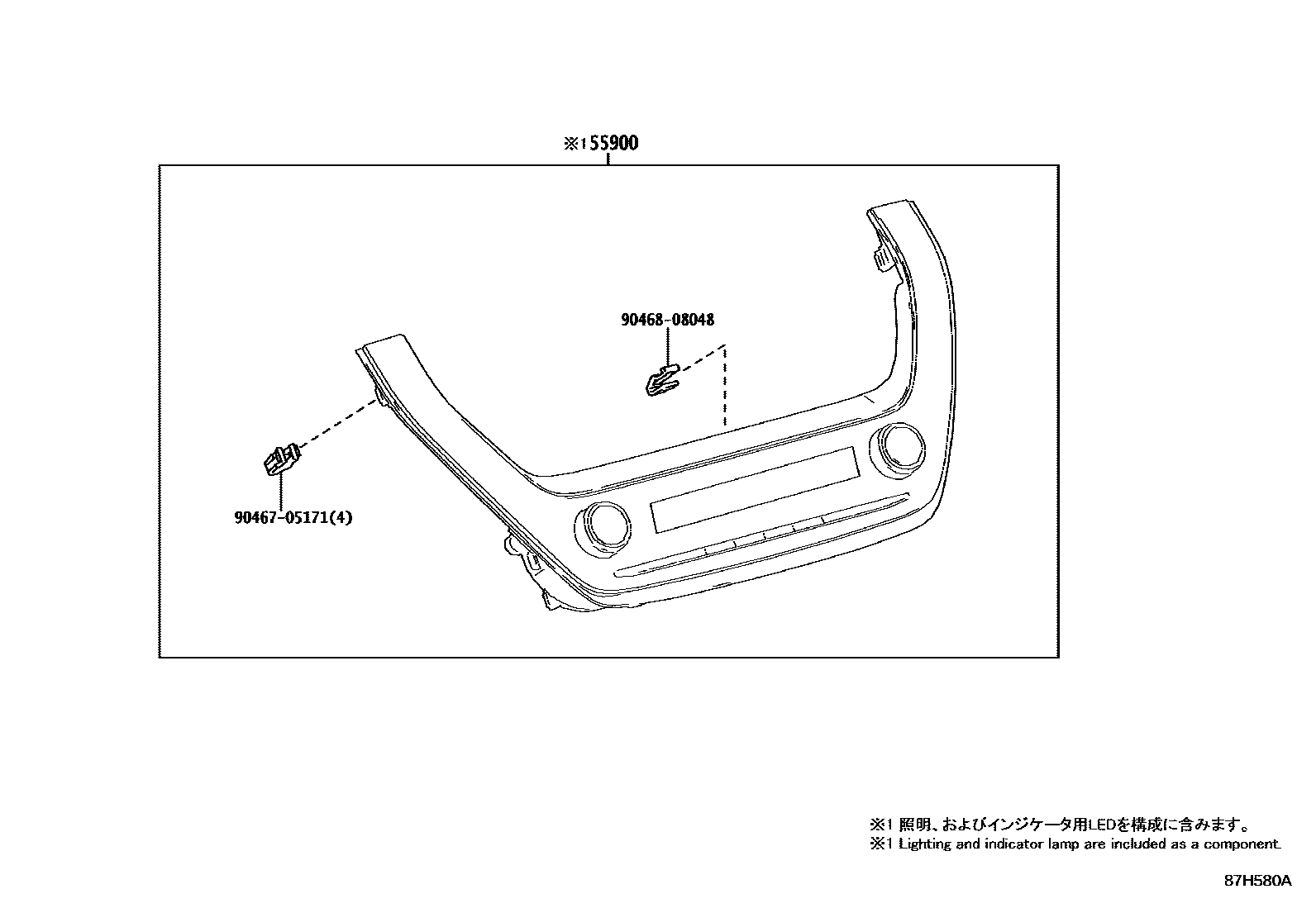

Toyota COROLLA 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota COROLLA EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 8 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55084E | Heater to air regulator No. 1 air duct sub-assembly | 55084-12250 · 55084-12260 |
| 55085 | Heater to air regulator No. 2 air duct sub-assembly | 55085-12200 · 55085-12210 |
| 55086A | Heater to central air register air duct sub-assembly | 55086-12290 · 55086-12300 |
| 55950G | Defroster nozzle assembly | 55950-12330 · 55950-12340 |
| 55990B | Lower defroster nozzle assembly | 55990-12090 · 55990-12110 |
| 82212C | Air conditioner No. 1 wiring harness | 82212-12150 |
| 87211 | No. 1 air duct | 87211-12450 · 87211-12530 |
| 87211A | Duct No. 2 | 87211-12460 · 87211-12470 |
| 87212 | No. 1 rear air duct | 87413-12010 |
| 87212F | No. 2 rear air duct | 87215-12070 |
| 87212G | No. 3 rear air duct | 87213-47050 |
| 87212H | No. 4 rear air duct | 87217-47010 |
| 87212J | No. 5 rear air duct | 87212-47040 |
| 87212K | No. 6 rear air duct | 87216-47010 |
| 87220 | Air duct assembly | 87220-12110 · 87220-12111 · 87220-12120 · 87220-12121 |
| 88625H | Cooler thermistor (sunlight sensor) | 88625-52130 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-47021 |
| 88688S | Bracket (for cooler thermistor) | 88688-47880 |
| 88790B | Thermistor assembly | 88790-28100 |
| 88897P | aspirator | 88505-47060 · 88505-47070 |
