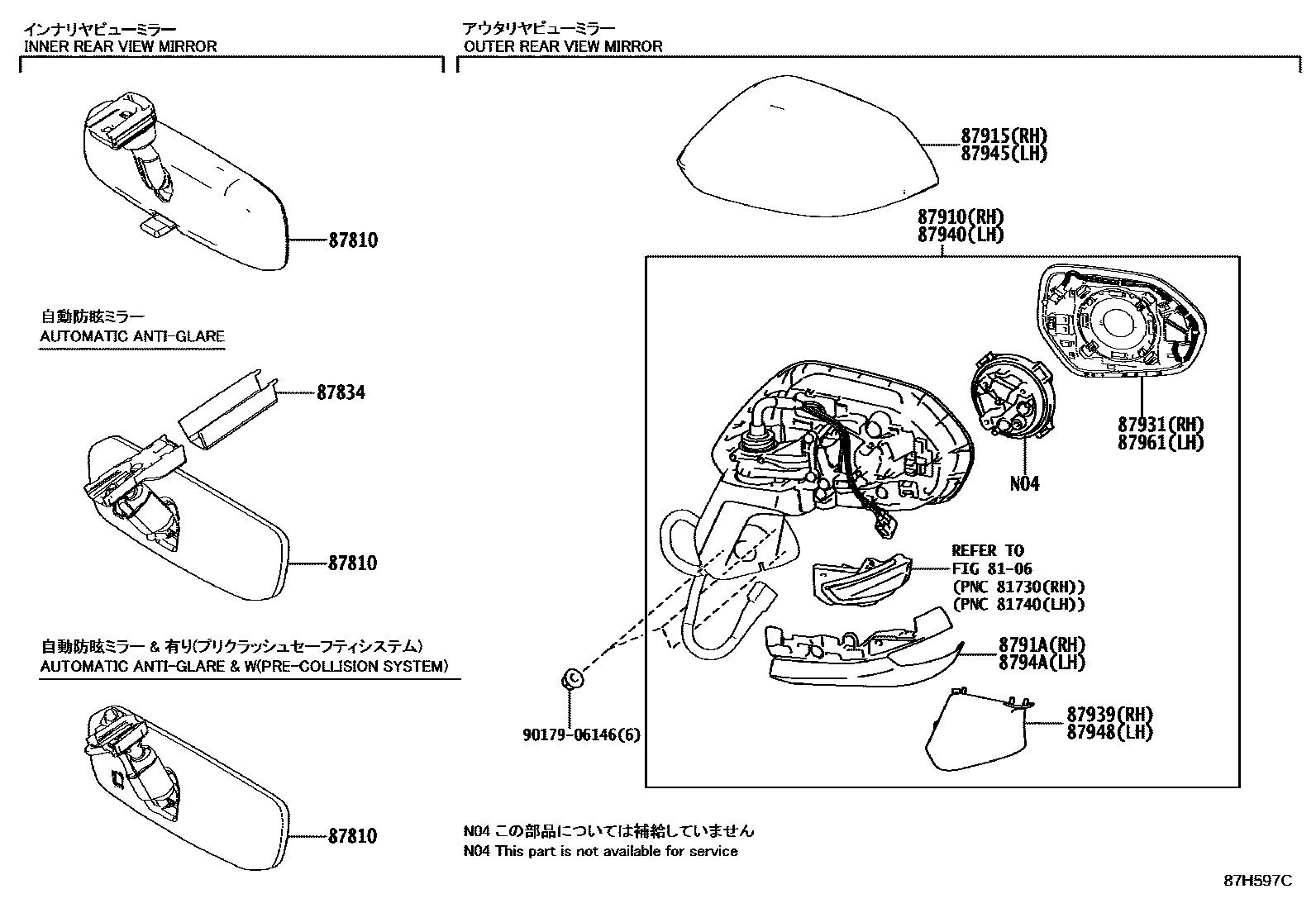

Toyota COROLLA 后视镜 — Figure 8701
Toyota COROLLA EPC diagram 8701, 后视镜, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-0WK10 · 87810-0WS30 · 87810-28140 |
| 87834 | Interior rearview mirror stay fixing cover | 87818-24010 |
| 87910 | Right exterior rearview mirror assembly | 87910-12F60 · 87910-12F80 · 87910-12F90 · 87910-12G00 · 87910-12G10 · 87910-12G50 · 87910-12K20 · 87910-12K60 |
| 8791A | Right exterior rearview mirror cover No. 2 | 8791B-12F60 · 8791B-12G30 |
| 87931 | Right exterior rearview mirror | 87902-12030 · 87902-12060 · 87902-12090 · 87902-33100 · 87902-33110 · 87902-33150 |
| 87939 | Right exterior rearview mirror hole cover | 87939-12G20 · 87939-12G30 |
| 87940 | Left exterior rearview mirror assembly | 87940-12F80 · 87940-12G00 · 87940-12G10 · 87940-12G20 · 87940-12G30 · 87940-12K40 · 87940-12K50 · 87940-12K90 |
| 87948 | Left exterior rearview mirror hole cover | 87948-12G40 · 87948-12G50 |
| 8794A | No. 2 left exterior rearview mirror cap | 8794B-12F80 · 8794B-12G50 |
| 87961 | Left exterior rearview mirror | 87907-12020 · 87907-12040 · 87907-33080 · 87907-33090 · 87907-33100 · 87907-33170 |
