Toyota COROLLA 车载电话和呼救装置 — Figure 8615

Toyota COROLLA EPC diagram 8615, 车载电话和呼救装置, with 2 images and 7 PNC and OE references.

Toyota COROLLA 车载电话和呼救装置 EPC diagram — 867488D
车载电话和呼救装置 — 867488D (201901 – 202004)

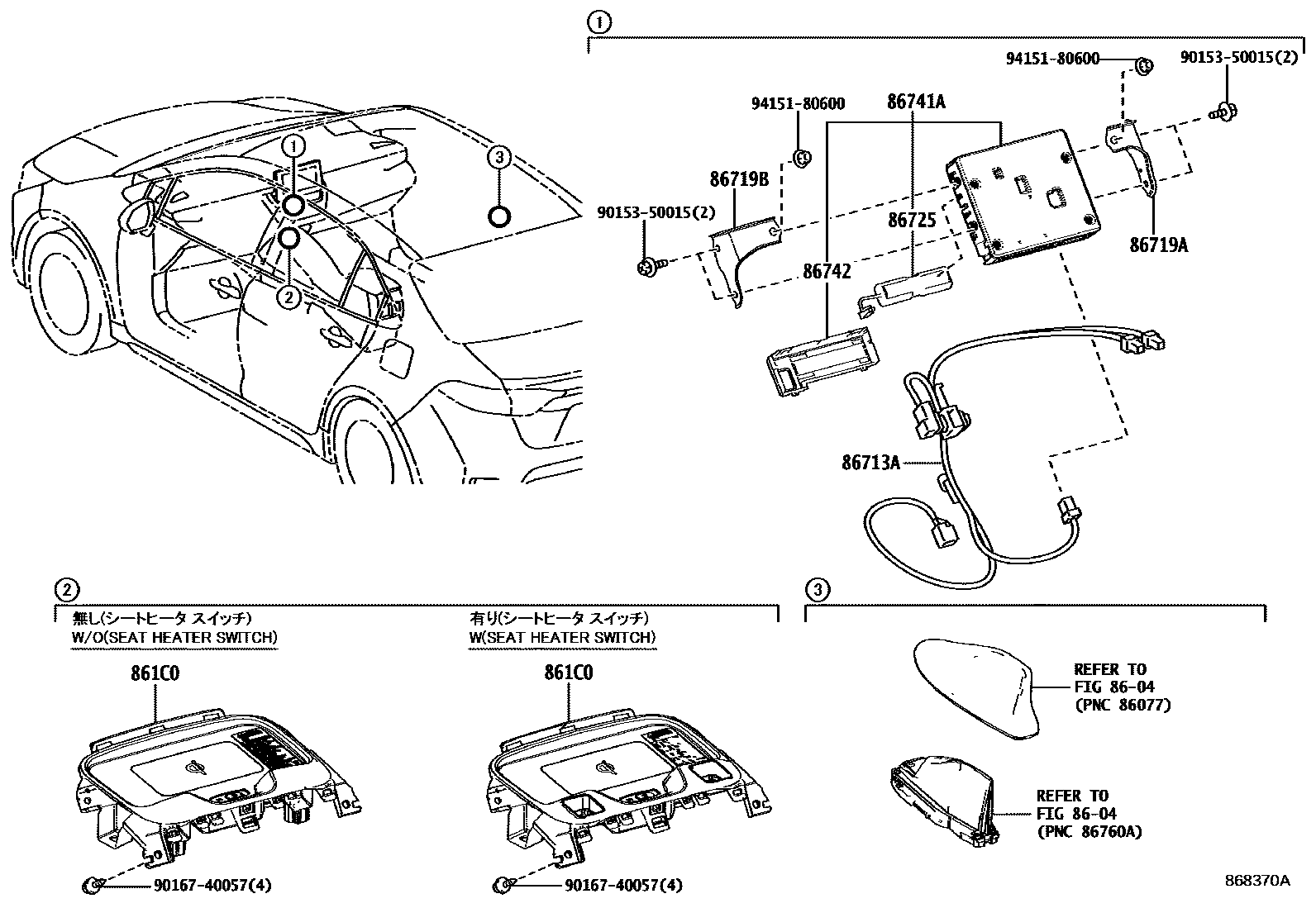

Toyota COROLLA 车载电话和呼救装置 EPC diagram — 868370A
车载电话和呼救装置 — 868370A (202004 – 999999)

PNC and OE references

PNCPart nameOE numbers
861C0ENSEMBLE CHASSIS, CHARGEUR SANS FIL PORTABLE861C0-12010 · 861C0-12011 · 861C0-12020
86713ATelephone ECU harness (to transceiver)86713-12100
86719APhone holder No. 186719-12010
86719BPhone holder No. 286719-12020
86725mobile phone battery86725-78010 · 86725-78011
86741ATelecommunications transceiver86741-78150
86742transceiver cover86742-0D020
