Toyota COROLLA 喇叭 — Figure 8611

Toyota COROLLA EPC diagram 8611, 喇叭, with 4 images and 4 PNC and OE references.

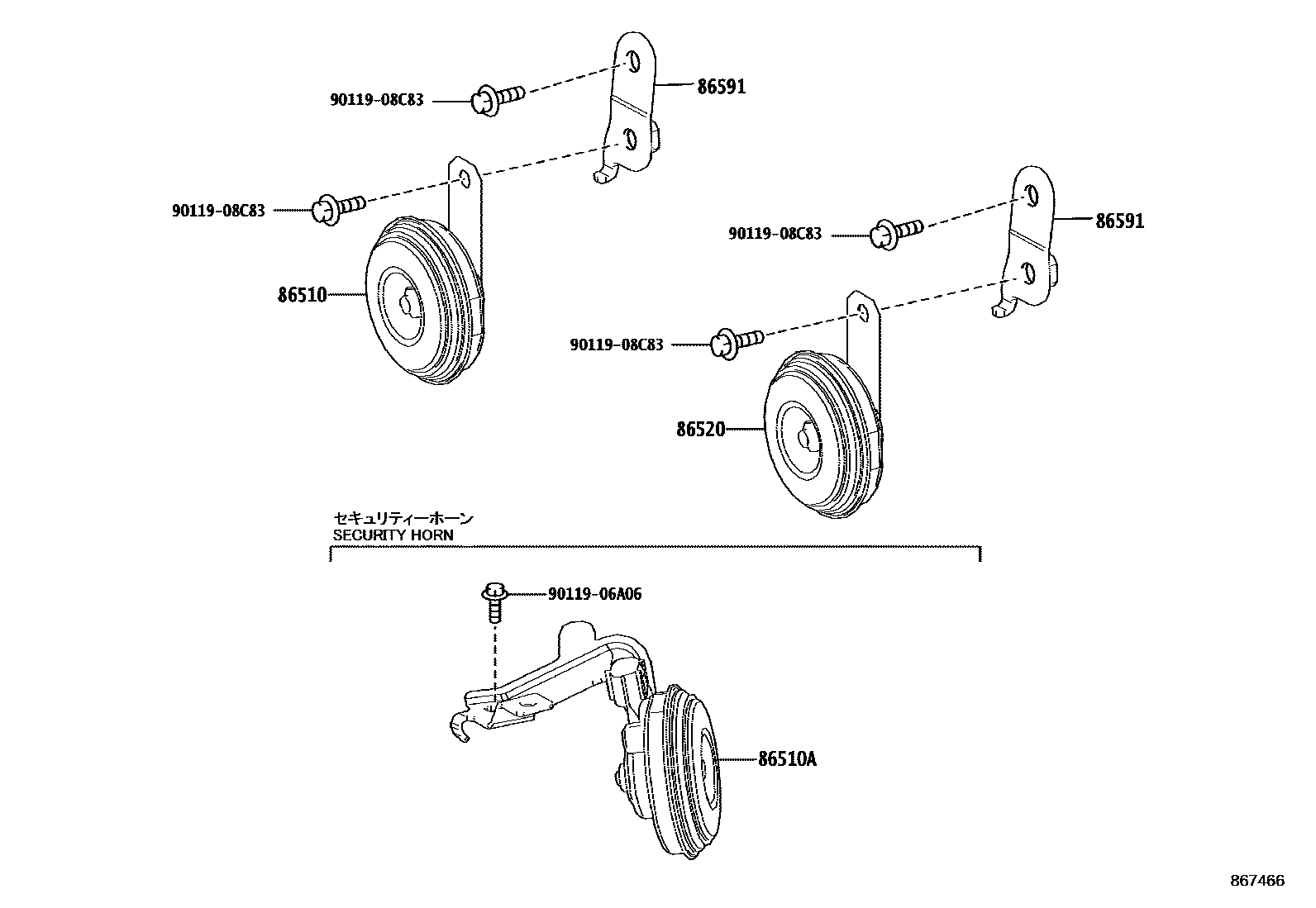

Toyota COROLLA 喇叭 EPC diagram — 867466 — 喇叭 — 867466 (201901 – 999999)

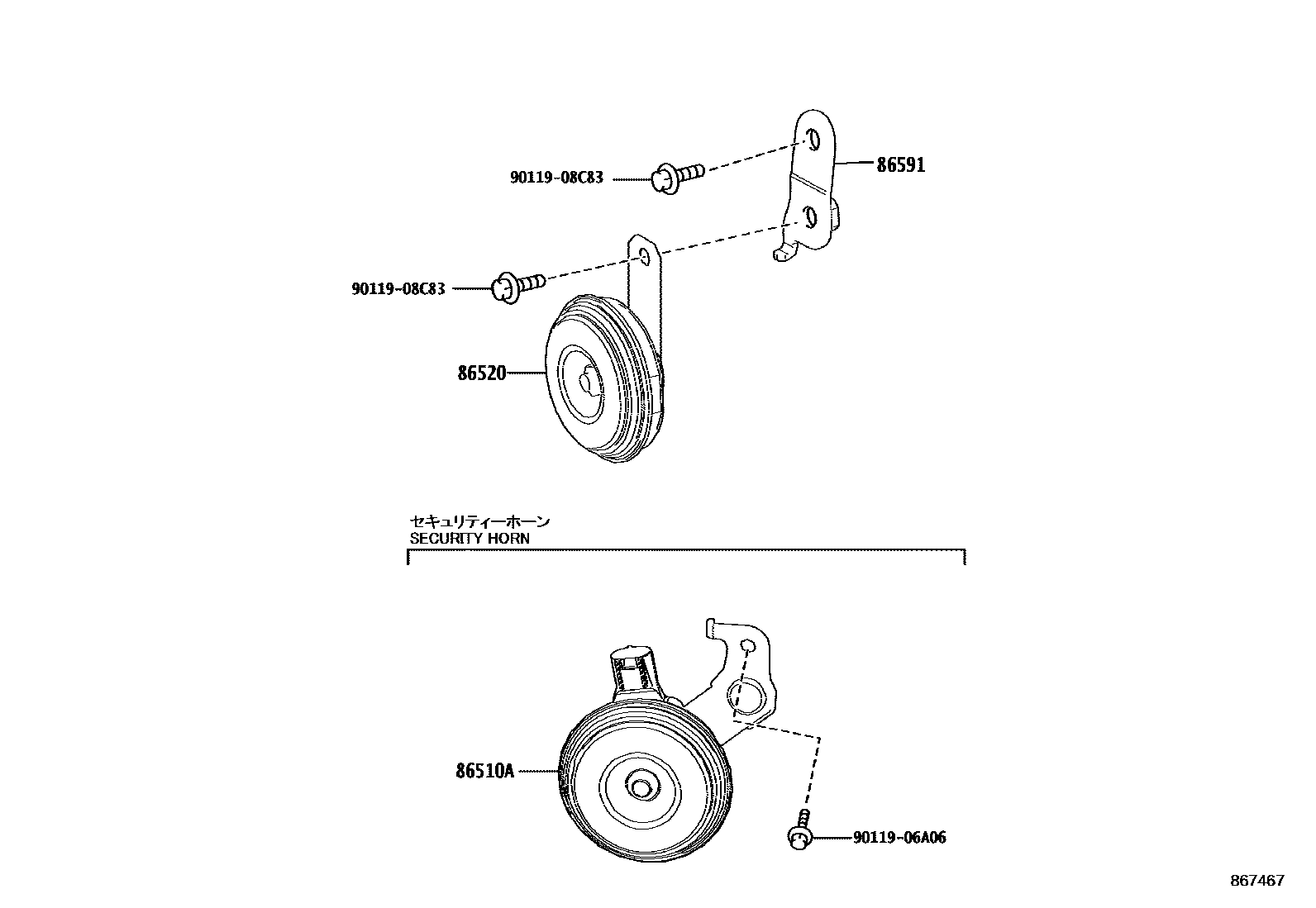

Toyota COROLLA 喇叭 EPC diagram — 867467 — 喇叭 — 867467 (201901 – 999999)

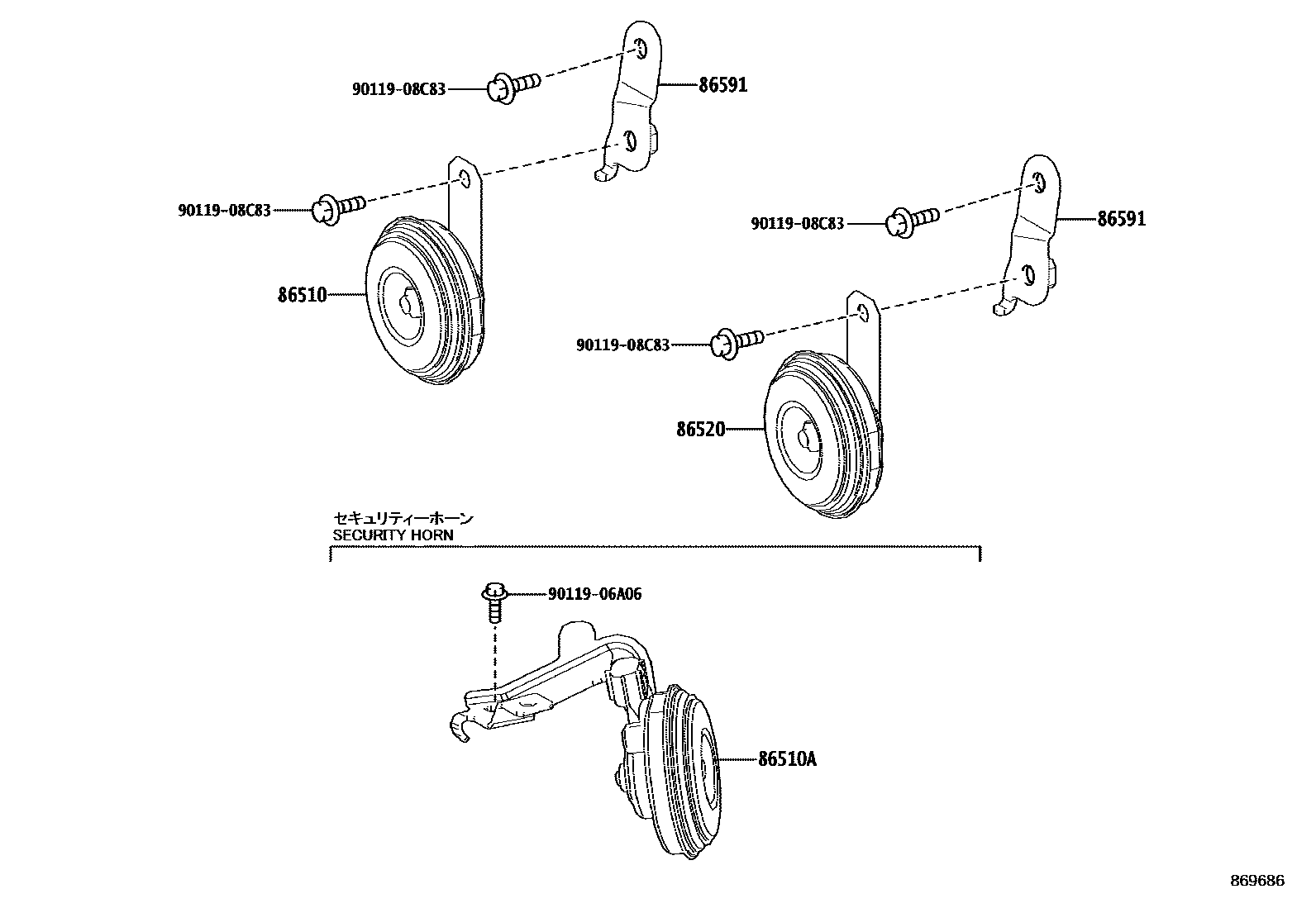

Toyota COROLLA 喇叭 EPC diagram — 869686 — 喇叭 — 869686 (202209 – 999999)

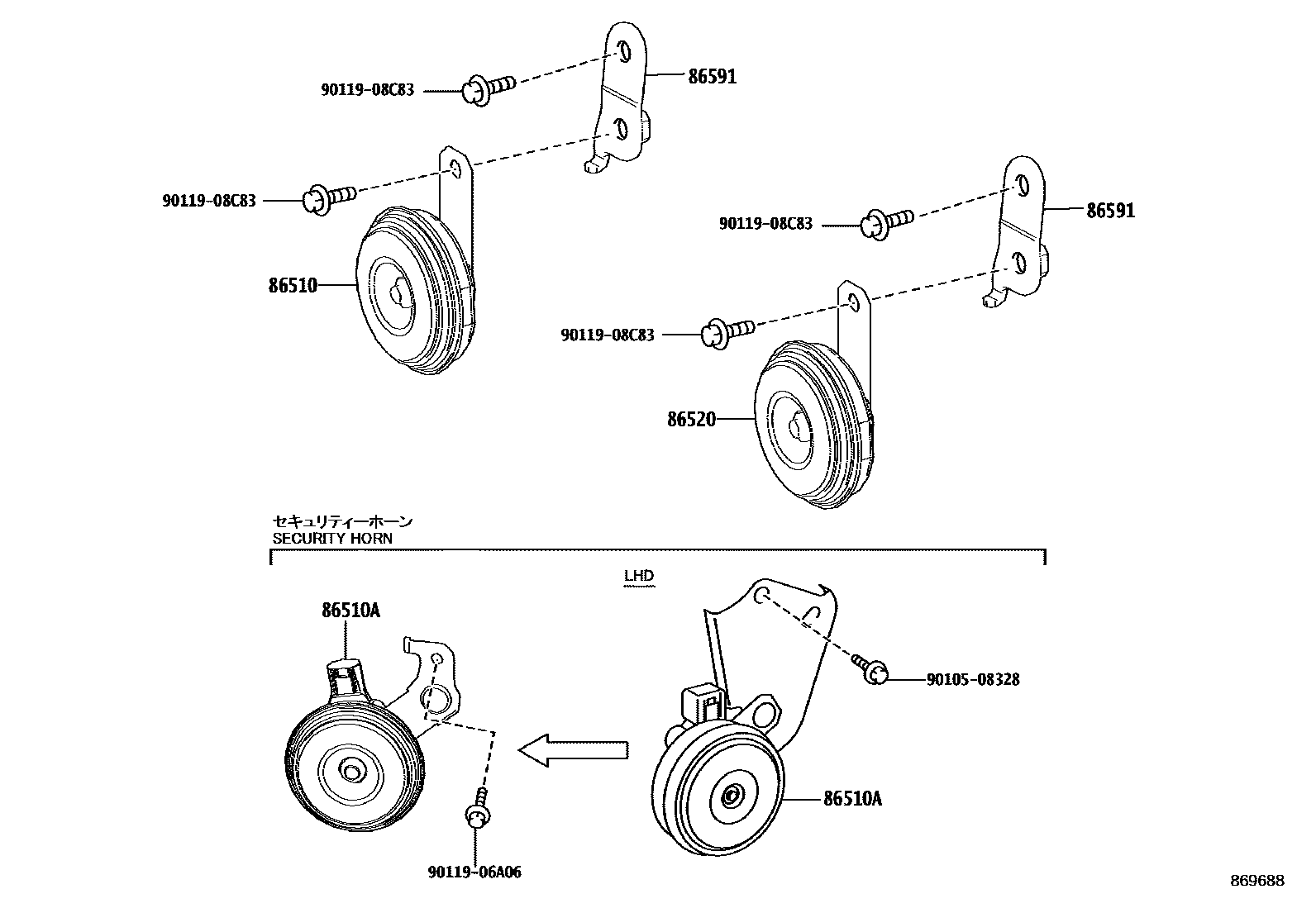

Toyota COROLLA 喇叭 EPC diagram — 869688 — 喇叭 — 869688 (202209 – 999999)

PNC and OE references

PNC	Part name	OE numbers
86510	tweeter assembly	86510-68010
86510A	Alarm horn assembly	86560-10020 · 86560-12090 · 86560-16020
86520	Subwoofer assembly	86520-52230 · 86520-68010
86591	speaker bracket	86591-12040 · 86591-12100
