Toyota COROLLA 挡风玻璃刮水器 — Figure 8501

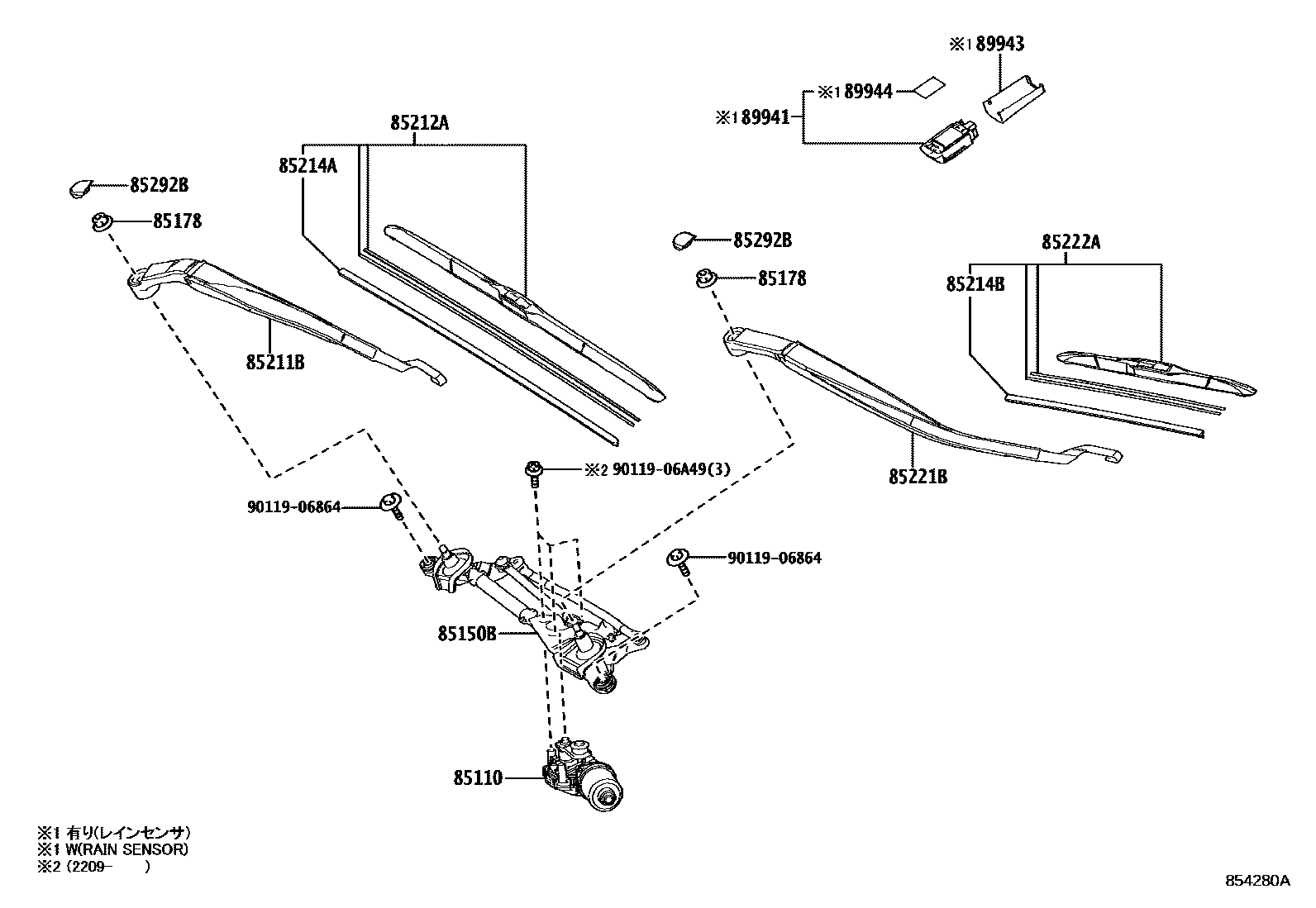

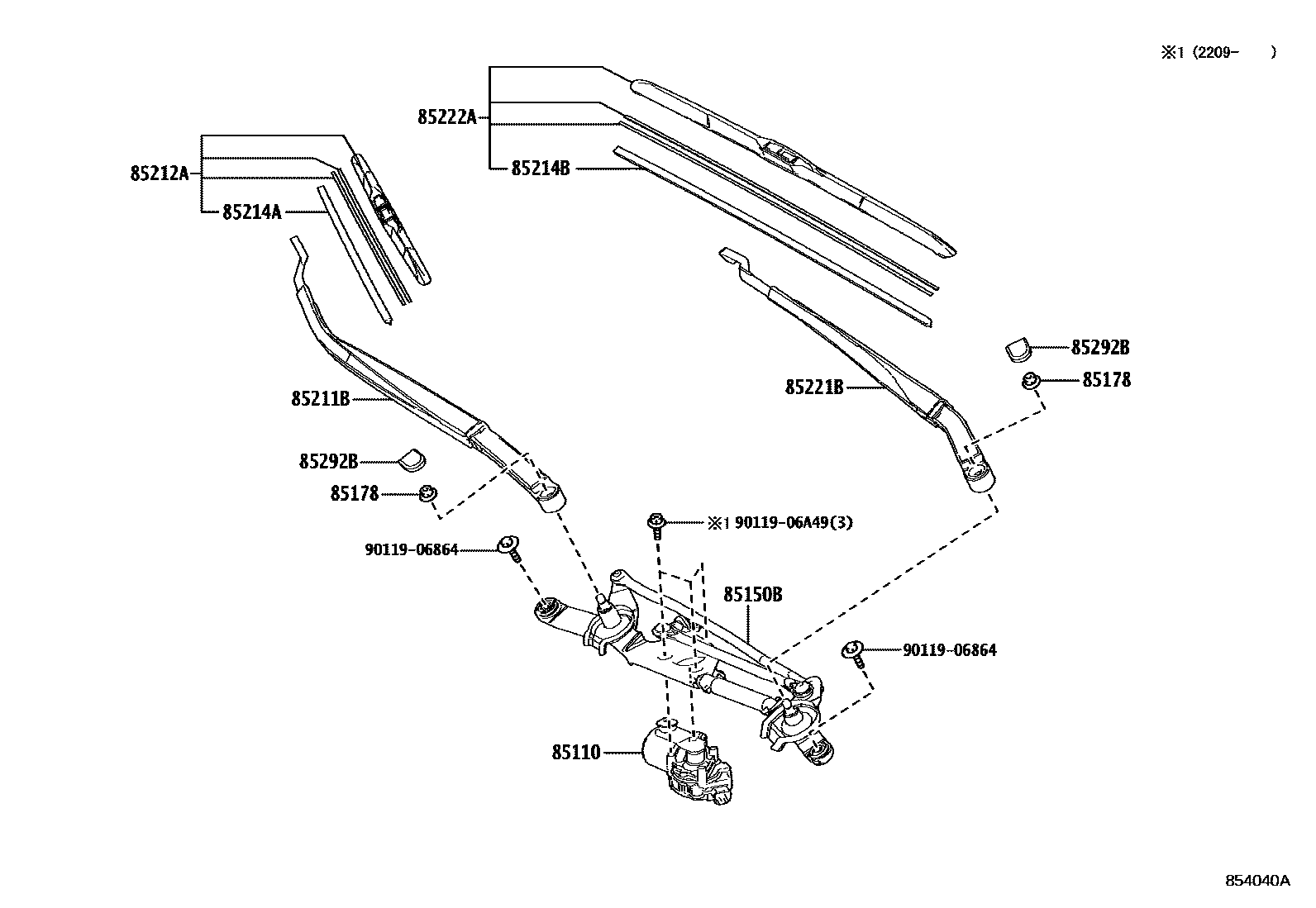

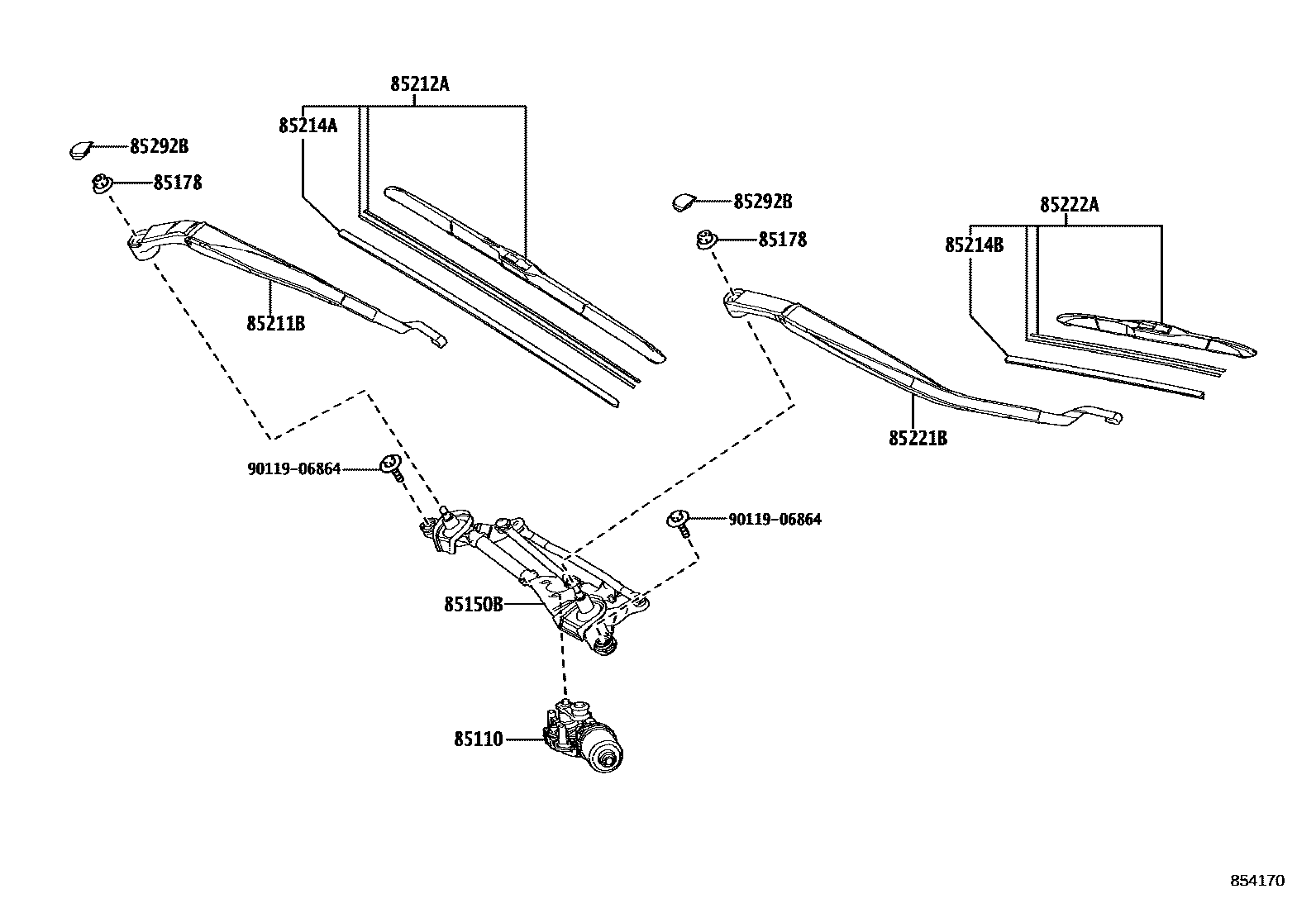

Toyota COROLLA EPC diagram 8501, 挡风玻璃刮水器, with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-12C30 · 85110-12C70 |
| 85150B | Wiper connecting rod assembly | 85150-12B80 · 85150-12B81 · 85150-12B90 |
| 85178 | Nut (for securing front wiper arm) | 90182-10006 |
| 85211B | Right front wiper arm | 85211-12660 · 85211-12680 |
| 85212A | Right front wiper blade | 85212-52220 · 85212-52240 |
| 85214A | Right wiper rubber strip | 85214-28080 · 85214-68030 |
| 85214B | Left wiper rubber strip | 85214-28080 · 85214-68030 |
| 85221B | Left front wiper arm | 85221-12590 · 85221-12591 · 85221-12600 |
| 85222A | Left front wiper blade | 85222-12A80 · 85222-12A90 |
| 85292B | Front wiper arm cap | 85292-13010 |
| 89941 | rain sensor | 89941-30040 · 89941-78020 |
| 89943 | Rain sensor cover | 89943-12040 |
| 89944 | Rain sensor tape | 89944-42020 |
