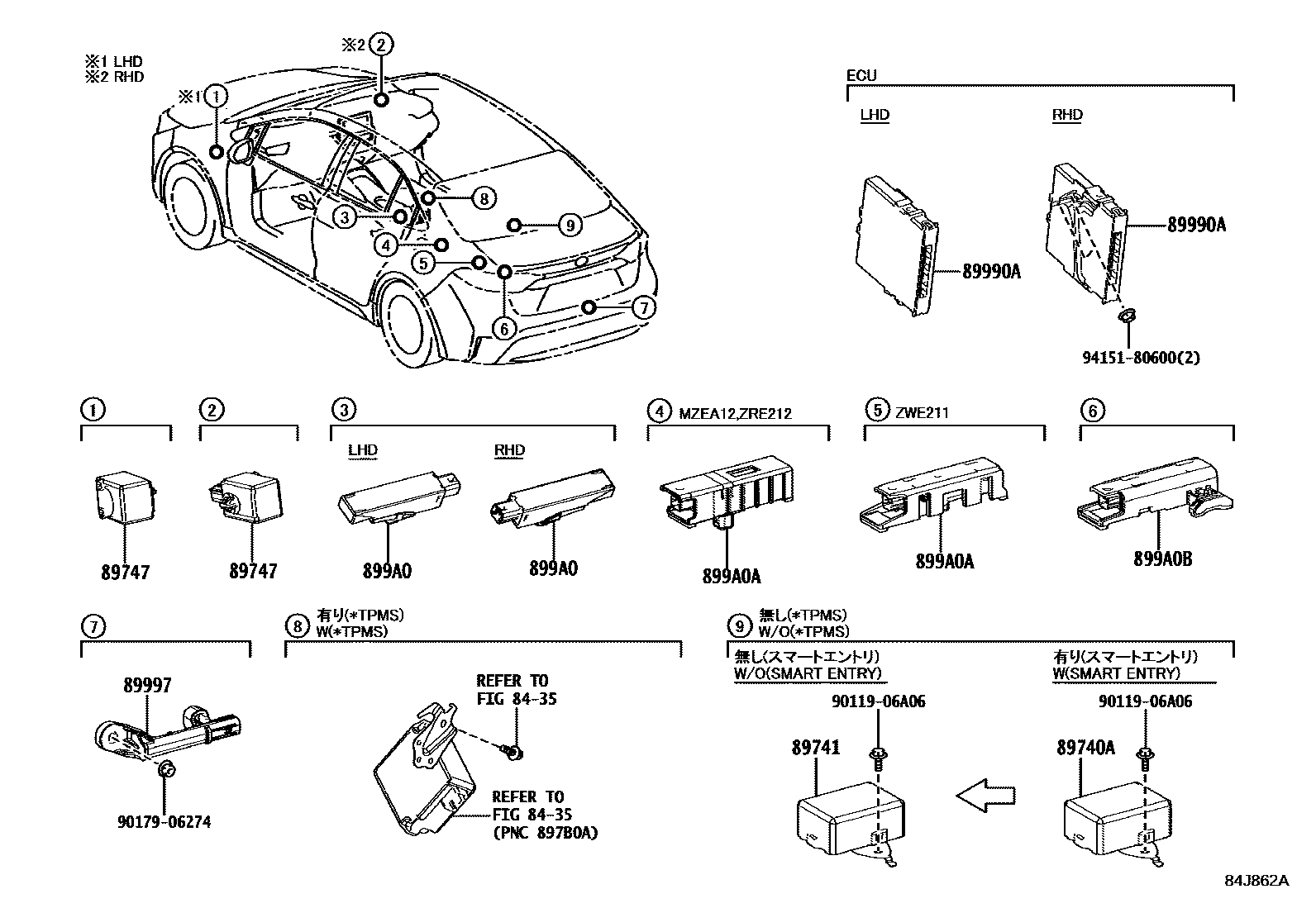

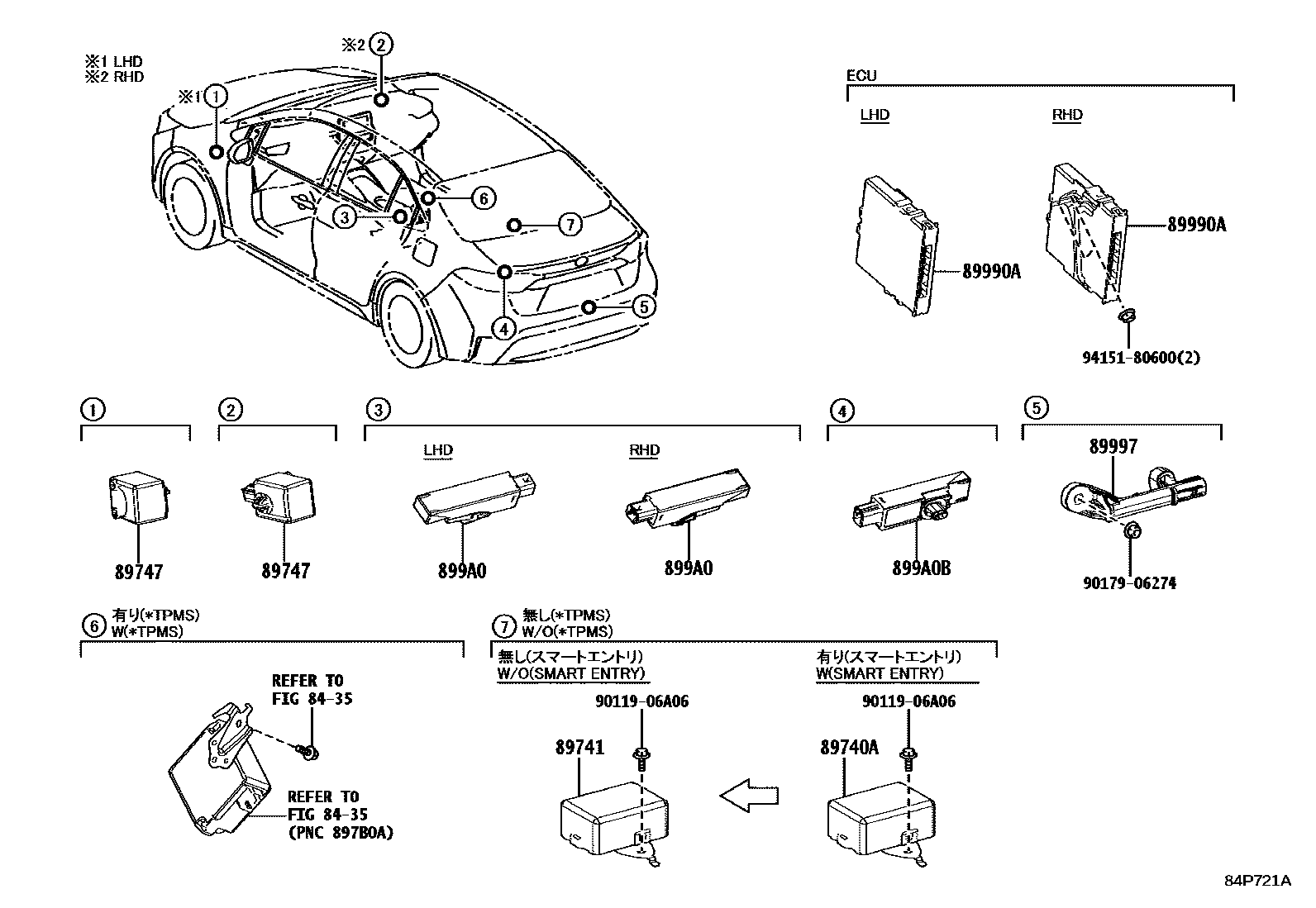

Toyota COROLLA 遥控门锁 — Figure 8420
Toyota COROLLA EPC diagram 8420, 遥控门锁, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89740A | ENSEMBLE RECEPTEUR, COMMANDE INTELLIGENTE DES PORTES | 89740-12380 · 89740-12390 |
| 89741 | door control receiver | 89741-12730 · 89741-12740 |
| 89747 | Remote door lock buzzer | 89747-30040 |
| 89990A | Smart key ECU assembly | 899H0-12010 · 899H0-12020 · 899H0-12030 · 899H0-12040 · 899H0-12260 · 899H0-12270 · 899H0-12280 · 899H0-12281 · 899H0-12290 · 899H0-12540 · 899H0-12550 · 899H0-12560 · 899H0-12570 · 899H0-12580 |
| 89997 | electronic key antenna | 89997-30100 |
| 899A0 | No. 1 electronic key antenna assembly in car | 899A0-12080 |
| 899A0A | Electronic key antenna assembly in car No. 2 | 899A0-12090 · 899A0-12110 |
| 899A0B | Electronic key antenna assembly in car No. 3 | 899A0-12100 · 899A0-12130 |
