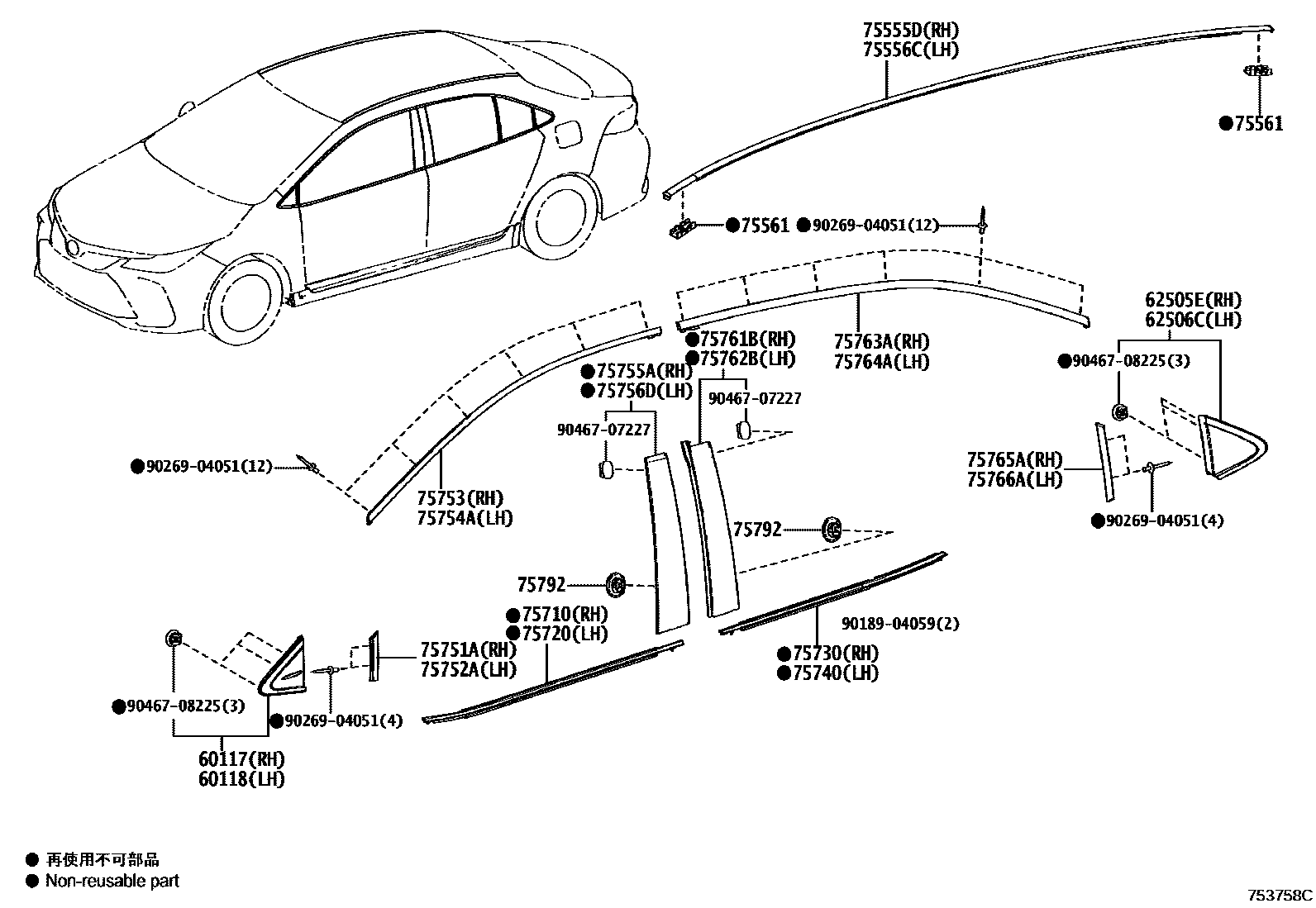

Toyota COROLLA 侧防护条 — Figure 7503
Toyota COROLLA EPC diagram 7503, 侧防护条, with 2 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 60117 | Right front pillar upper cover sub-assembly | 60117-12070 · 60117-12090 |
| 60118 | Left front pillar upper cover sub-assembly | 60118-12070 · 60118-12090 |
| 62505E | SOUS-ENSEMBLE REVETEMENT, PILLIER DE COIN, MD | 62505-12010 · 62505-12020 |
| 62506C | SOUS-ENSEMBLE REVETEMENT, PILLIER DE COIN, MG | 62506-12010 · 62506-12020 |
| 75555D | Drainage channel side decorative strip in the middle section on the right side of the roof | 75555-12200 |
| 75556C | Drainage channel side decorative strip in the middle section on the left side of the roof | 75556-12210 |
| 75561 | No. 1 roof drain channel side decorative strip clip | 75561-33030 |
| 75710 | Right front door waistline protection strip assembly | 75710-12890 |
| 75720 | Left front door waistline protection strip assembly | 75720-12A30 |
| 75730 | Right rear door waistline protection strip assembly | 75730-12490 |
| 75740 | Left rear door waistline protection strip assembly | 75740-12580 |
| 75751A | MOULURE, CADRE VITRE PORTE AV, MD(COTE MONTANT AV) | 75751-12250 |
| 75752A | MOULURE, CADRE VITRE PORTE AV, MG(COTE MONTANT AV) | 75752-12250 |
| 75753 | Protective strip on right front door window frame | 75753-12100 · 75753-12110 |
| 75754A | Protective strip on left front door window frame | 75754-12080 · 75754-12090 |
| 75755A | MOULURE, CADRE VITRE PORTE AV, MD(COTE MONTANT CTRL) | 75755-12140 |
| 75756D | MOULURE, CADRE VITRE PORTE AV, MG(COTE MONTANT CTRL) | 75756-12160 |
| 75761B | MOULURE, CADRE VITRE PORTE ARR, MD(COTE MONTANT CTRL) | 75761-12090 |
| 75762B | MOULURE, CADRE VITRE PORTE ARR, MG(COTE MONTANT CTRL) | 75762-12090 |
| 75763A | Protective strip on right rear door window frame | 75763-12090 · 75763-12100 |
| 75764A | Protective strip on left rear door window frame | 75764-12100 · 75764-12110 |
| 75765A | Right rear door window frame rear protective strip | 75765-12130 · 75765-12131 |
| 75766A | Left rear door window frame rear protective strip | 75766-12130 · 75766-12131 |
| 75792 | Car door window frame protective strip clip | 75792-47010 |
| 75850C | OEILLET, NO.1 | 90189-06237 |

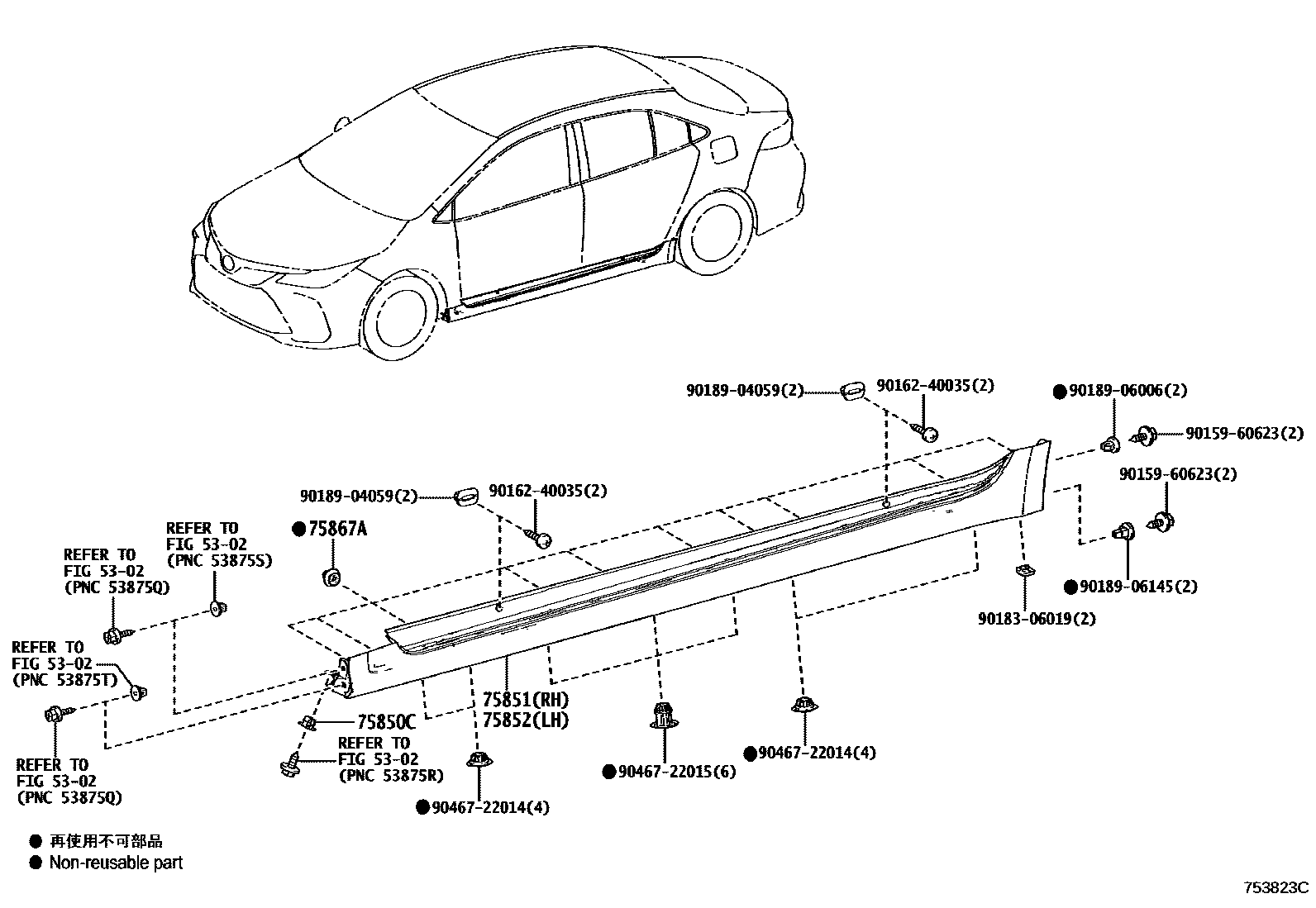

| 75851 | Right side door sill panel protective strip | 75851-12904 |
| 75852 | Left side door sill panel protective strip | 75852-12904 |
| 75867A | Door sill panel protective strip clip | 75867-52020 |
