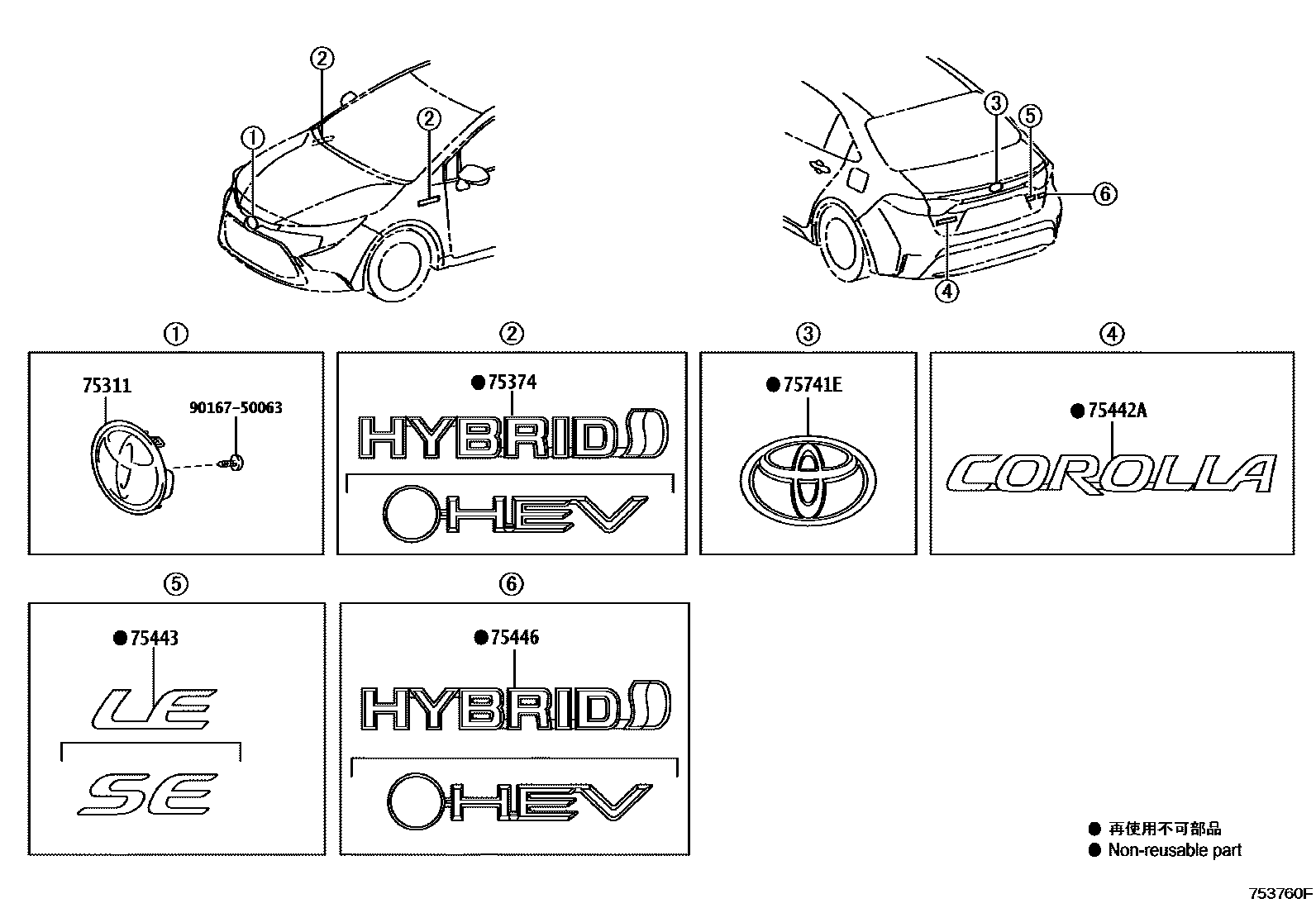

Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501
Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75311 | Radiator grille (or front panel) plate | 53141-12270 · 53141-12280 · 75310-12100 · 75310-12110 · 90975-02124 · 90975-02136 |
| 75374 | side panel sign | 75374-12090 · 75374-12100 · 75440-47010 |
| 75442A | No. 2 nameplate on back door | 75442-12B60 |
| 75443 | No. 3 nameplate on back door | 75444-12D70 · 75444-12D80 |
| 75446 | Trunk door No. 6 nameplate | 75440-12010 · 75443-12B60 |
| 75741E | logo | 75403-12070 · 90975-02069 |
