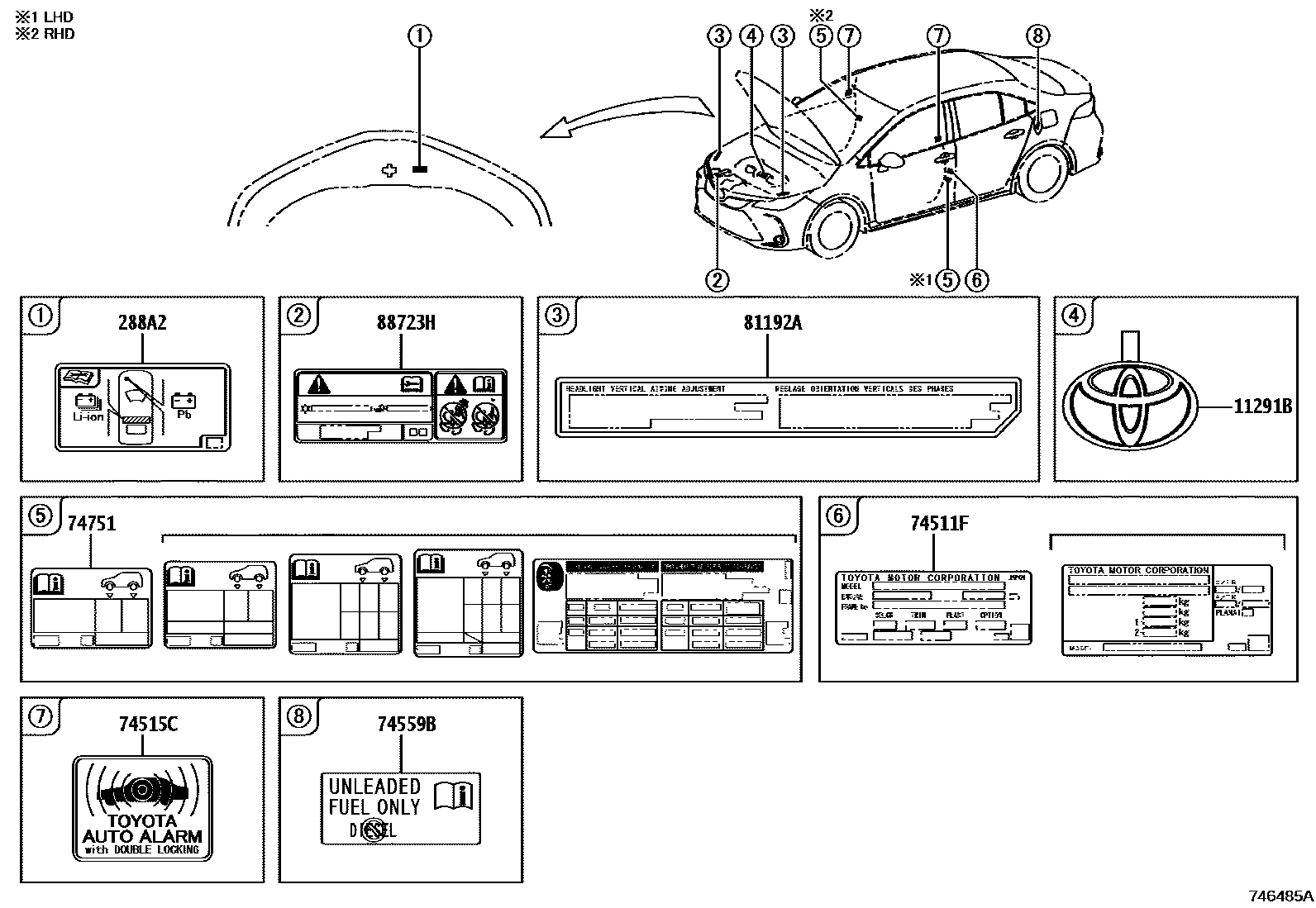

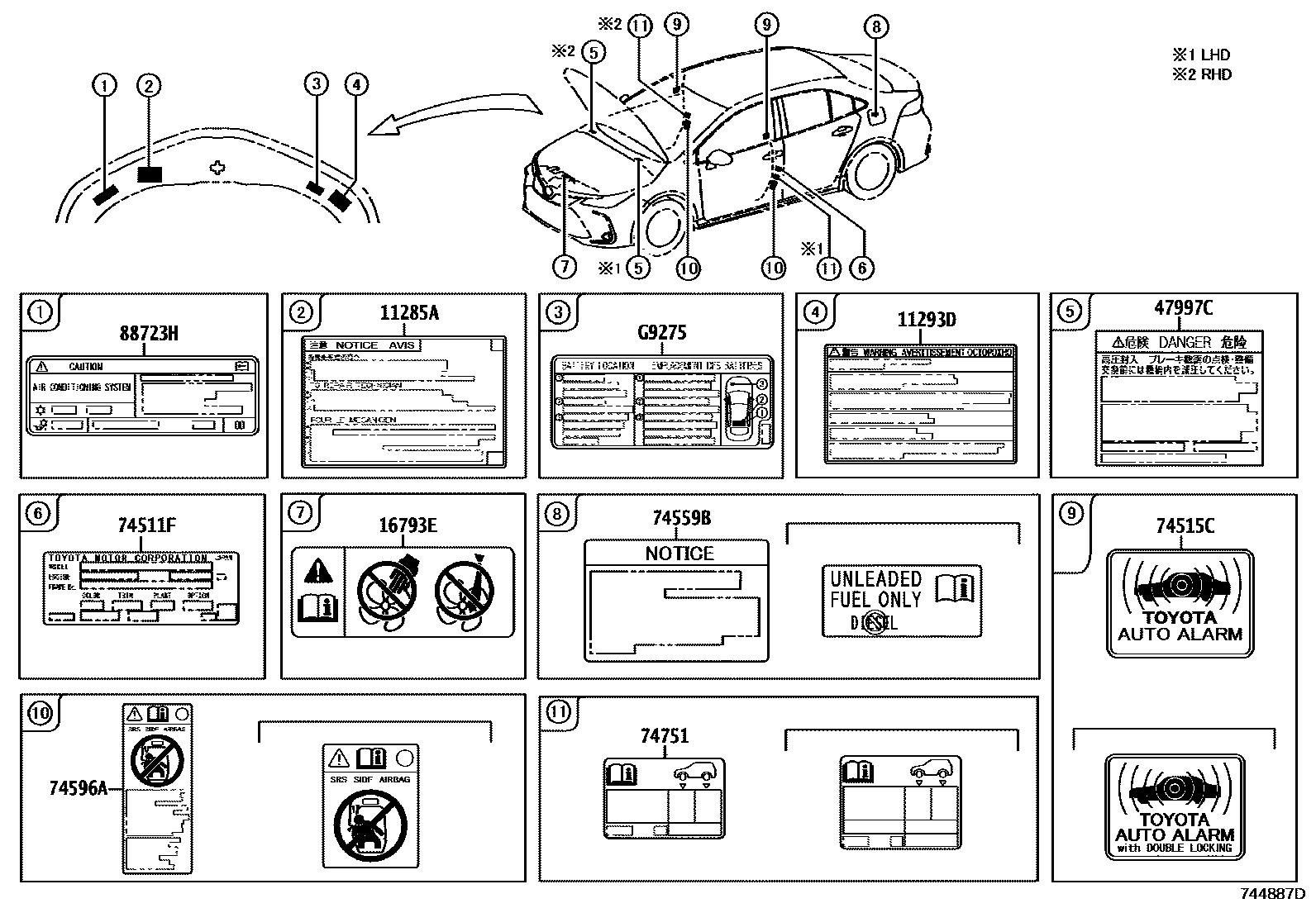

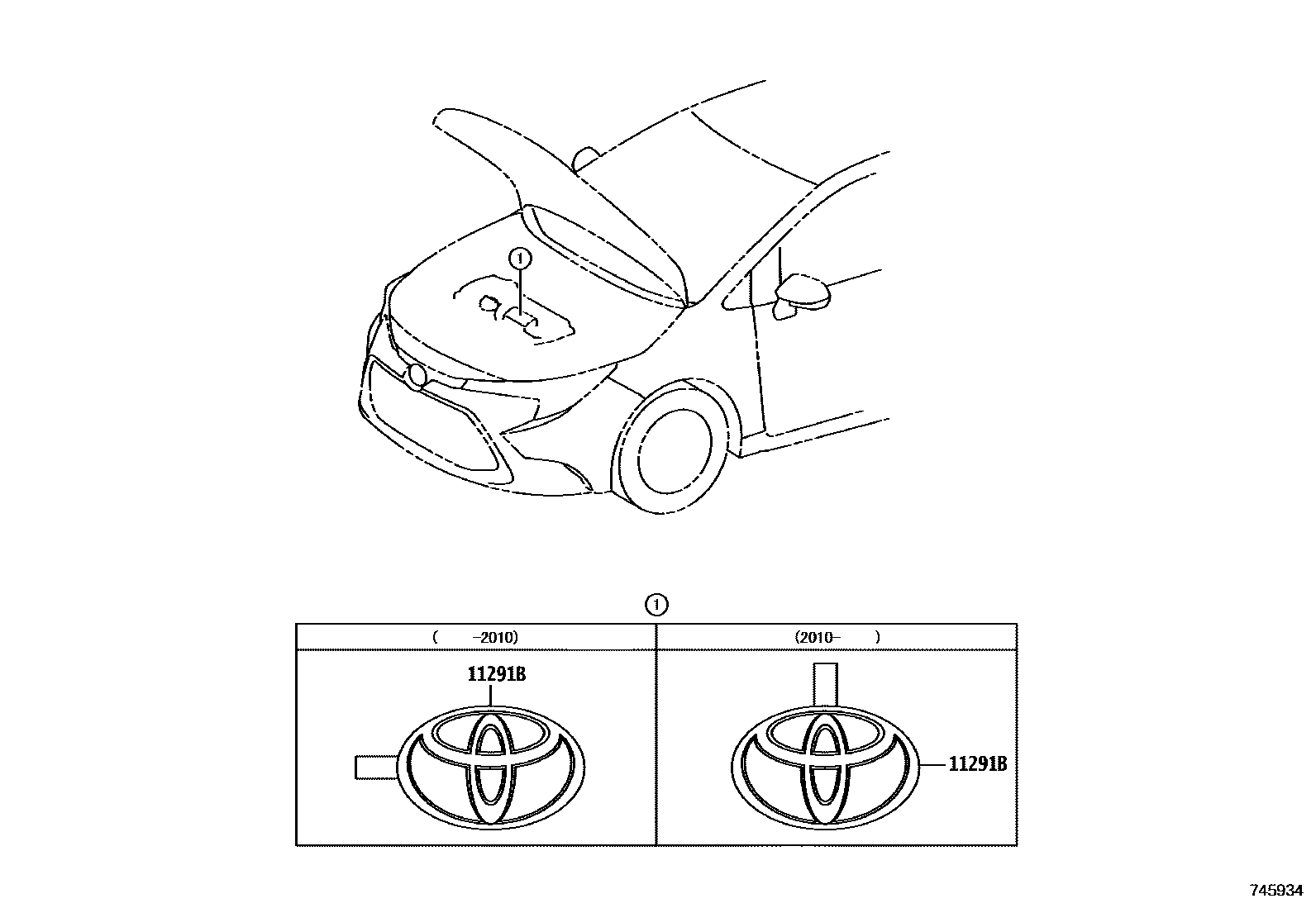

Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403
Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 5 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11285A | Coolant System Caution Labels | 11285-33030 · 11285-33040 |
| 11291B | PLAQUE INDICATRICE DE MOTEUR | 11290-37010 · 11291-37100 · 11291-37130 |
| 11293D | engine warning label | 11293-36070 · 11293-37070 |
| 16793E | ETIQUETTE, PRECAUTION VENT REFROIDISSEMENT | 16793-36030 |
| 288A2 | ETIQUETTE, EMPLACEMENT BATT | 288A2-37020 |
| 42668 | Small spare tire warning label | 42668-42010 |
| 47997C | Accumulator No. 1 Warning Label | 47997-76010 |
| 69339C | Child Restraint Information Label | 69339-33040 |
| 74511F | Nameplate (laser identification label) | 74511-2B300 · 74511-48020 · 74511-48030 |
| 74515C | Anti-theft warning information label | 74515-33020 · 74515-42010 |
| 74541E | Small spare tire warning plate | 42668-58070 |
| 74559B | fuel information label | 74559-20140 · 74559-47030 |
| 74596A | Side air bag warning label | 74596-53012 · 74596-78010 |
| 74599B | Driver and passenger air bag information labels | 74599-48020 |
| 74751 | tire pressure information label | 42661-12M00 · 42661-12M60 · 42661-12M80 · 42661-12R20 · 42661-12R21 · 42661-12R60 · 42661-12R70 · 42661-12R80 · 42661-12T50 · 42661-12T51 · 42661-12T60 · 42661-12U20 |
| 81192A | headlight seal | 81192-50010 |
| 88723H | Cooler maintenance warning label | 88723-10050 · 88723-16170 · 88723-16180 · 88723-47150 |
| G9275 | No. 1 battery warning label | G9275-47110 · G9275-47140 |
