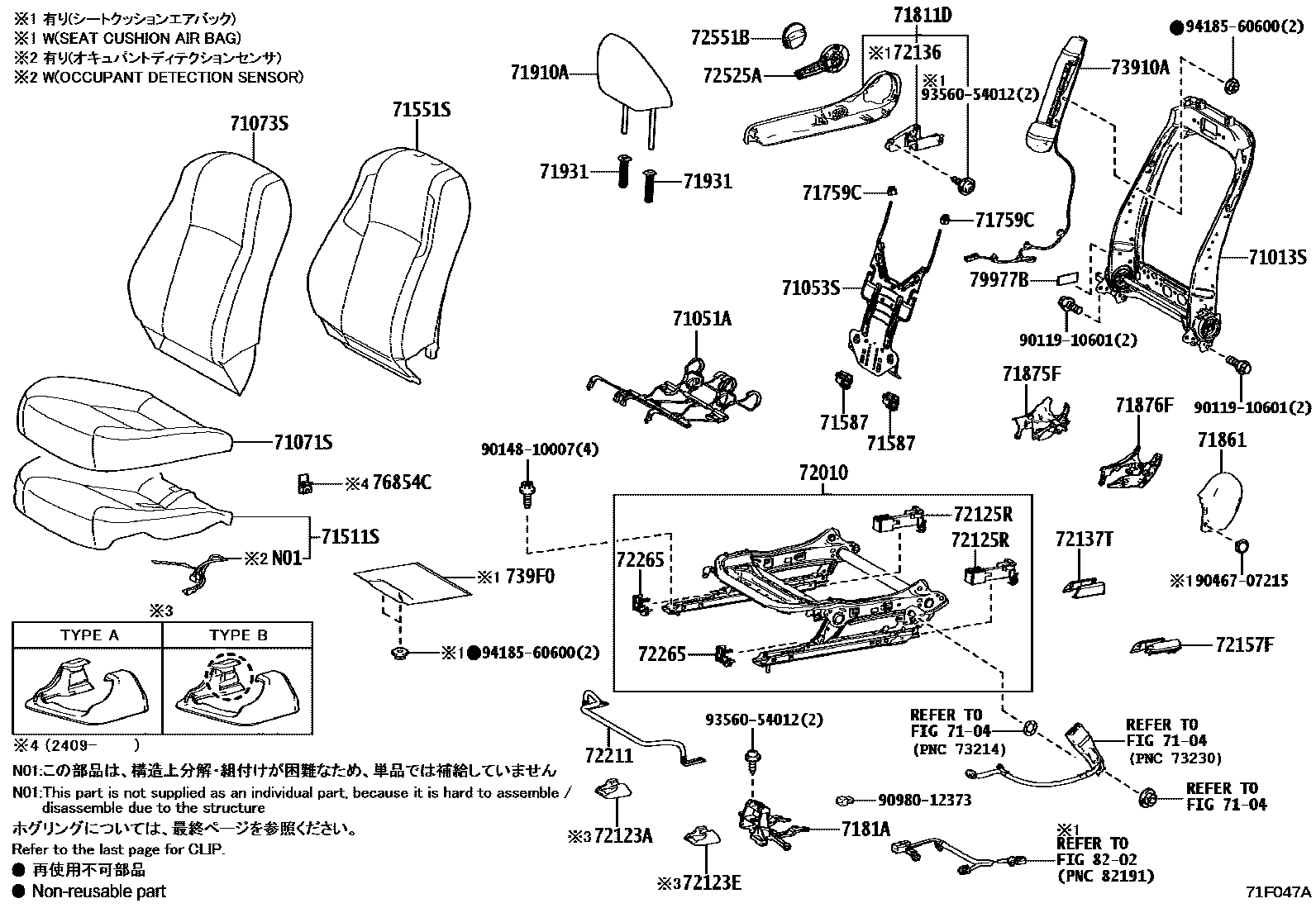

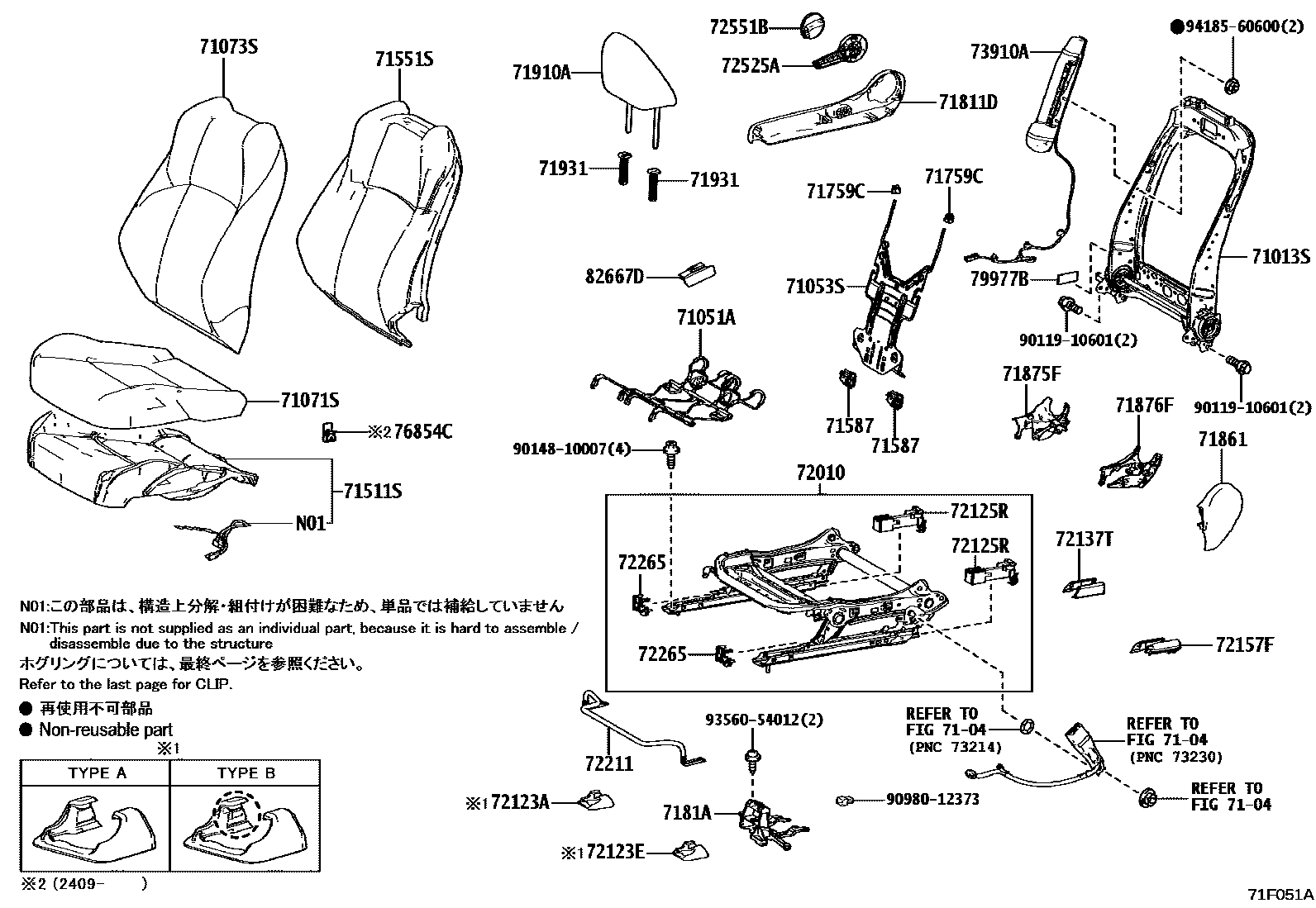

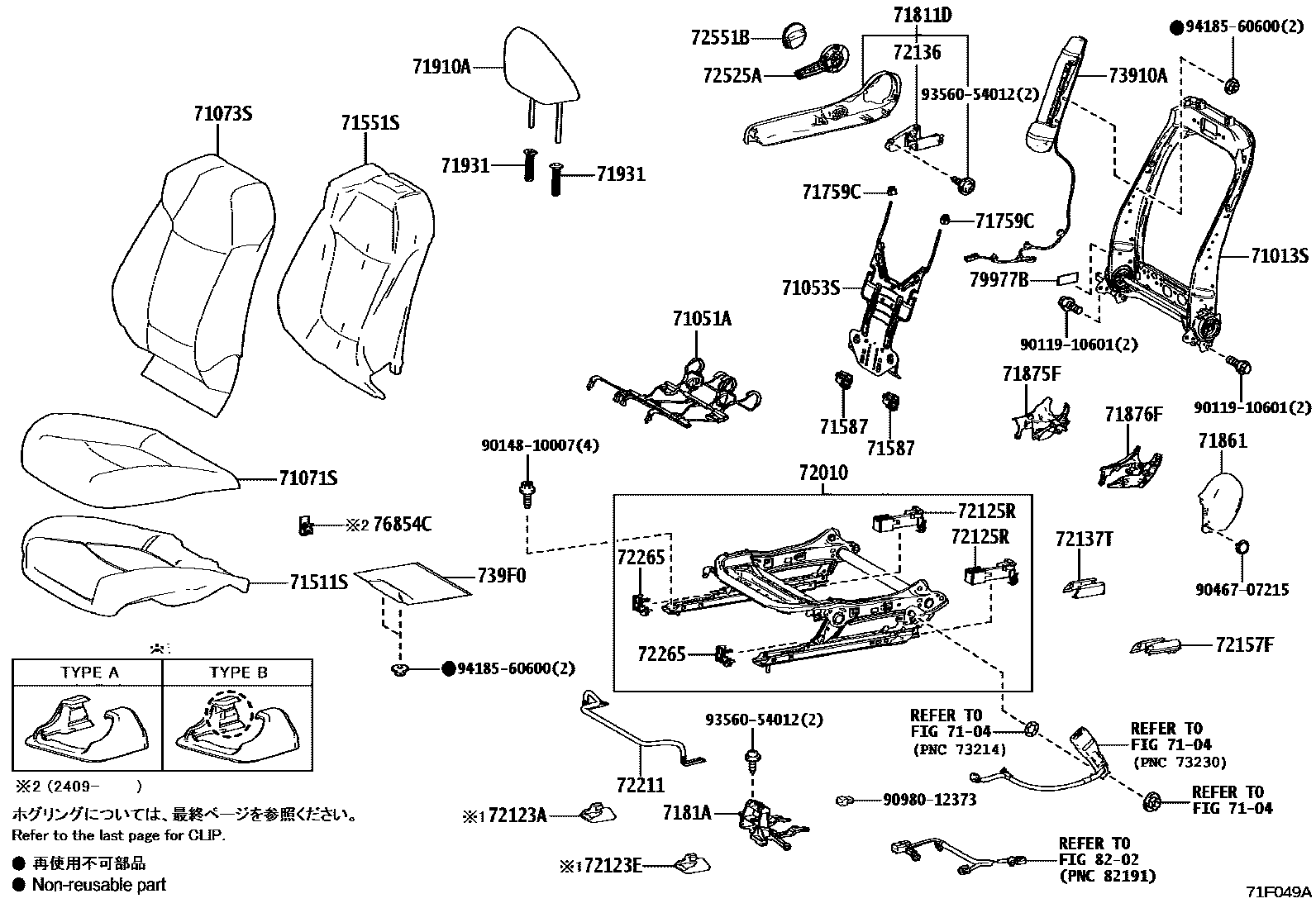

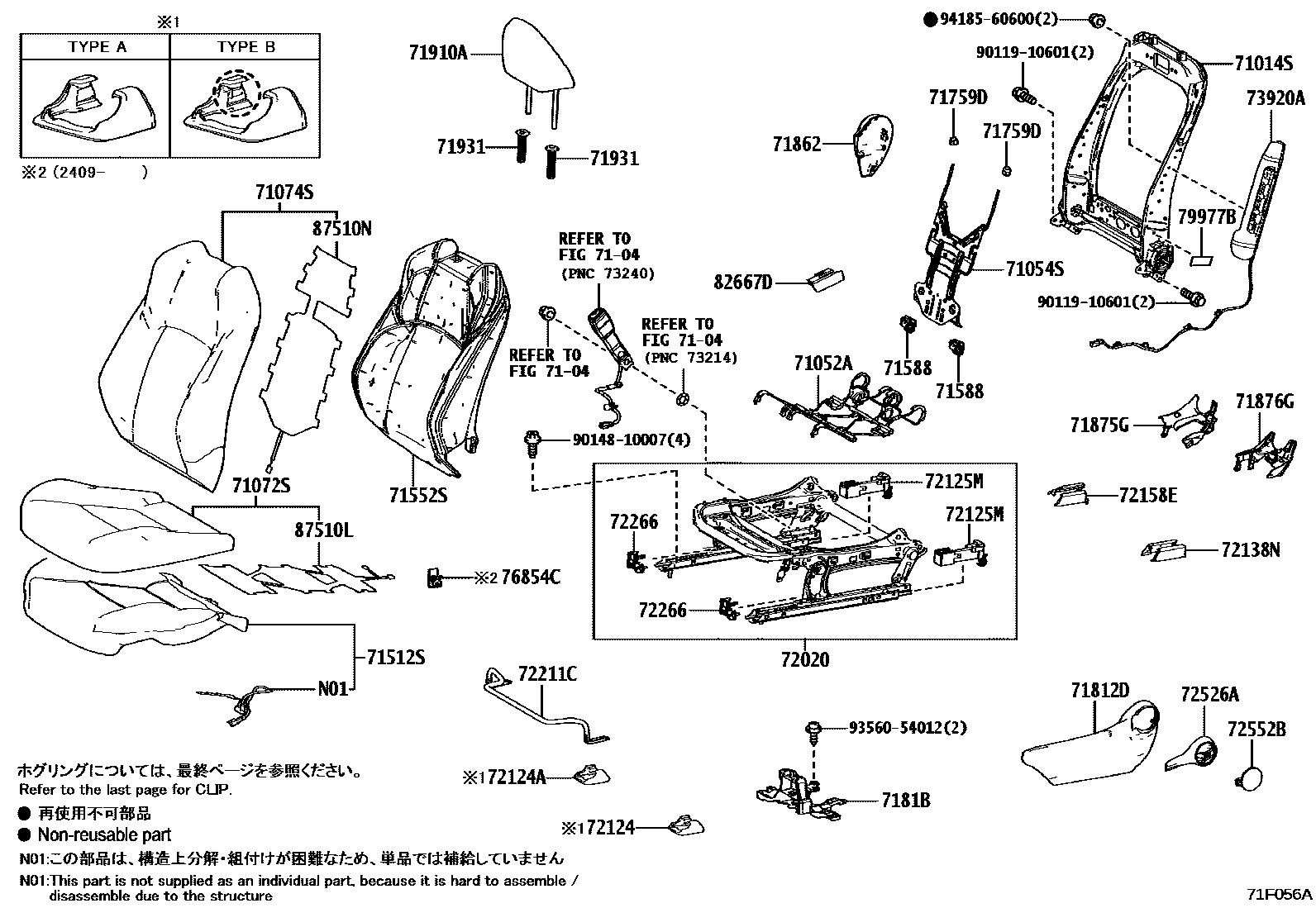

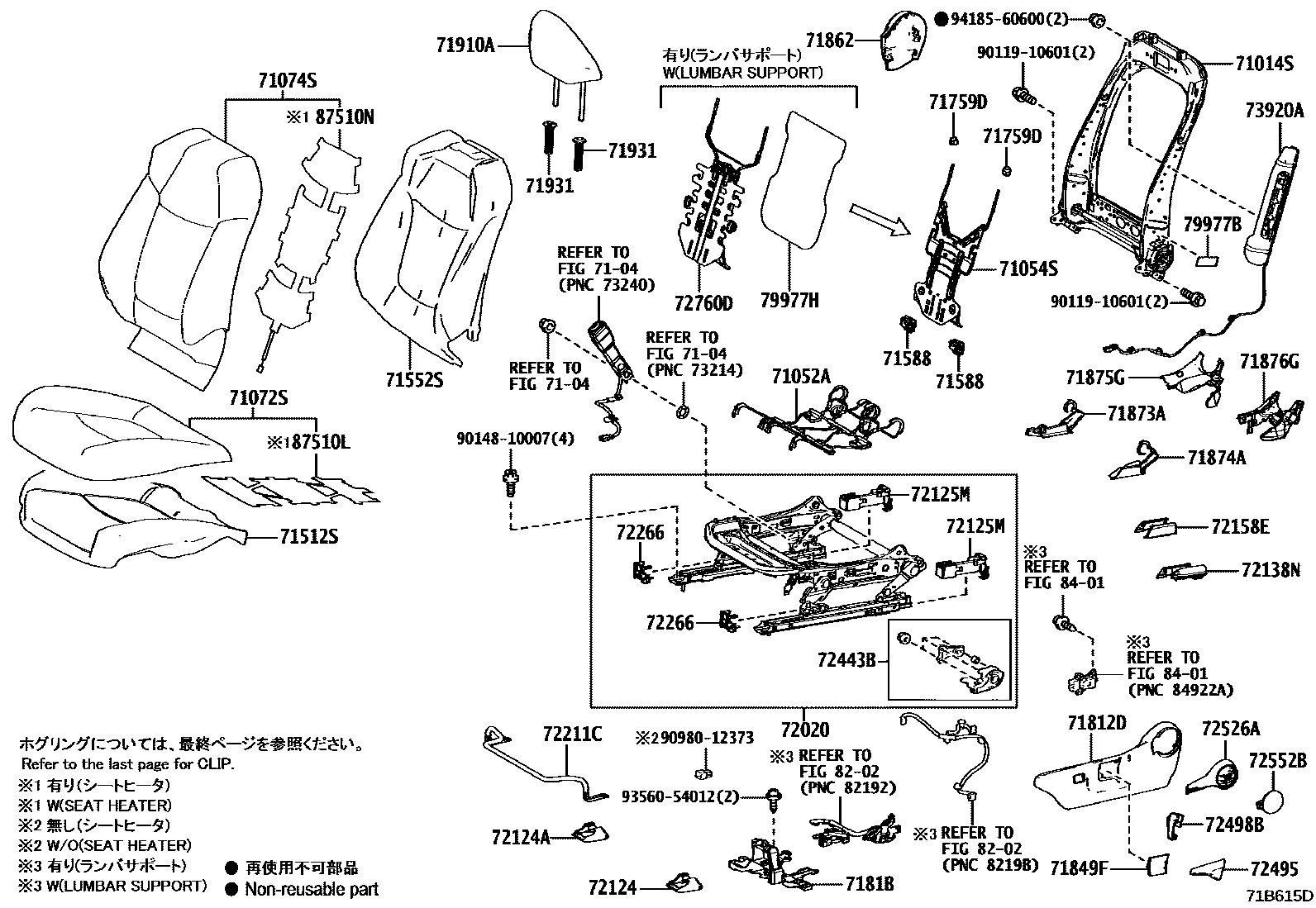

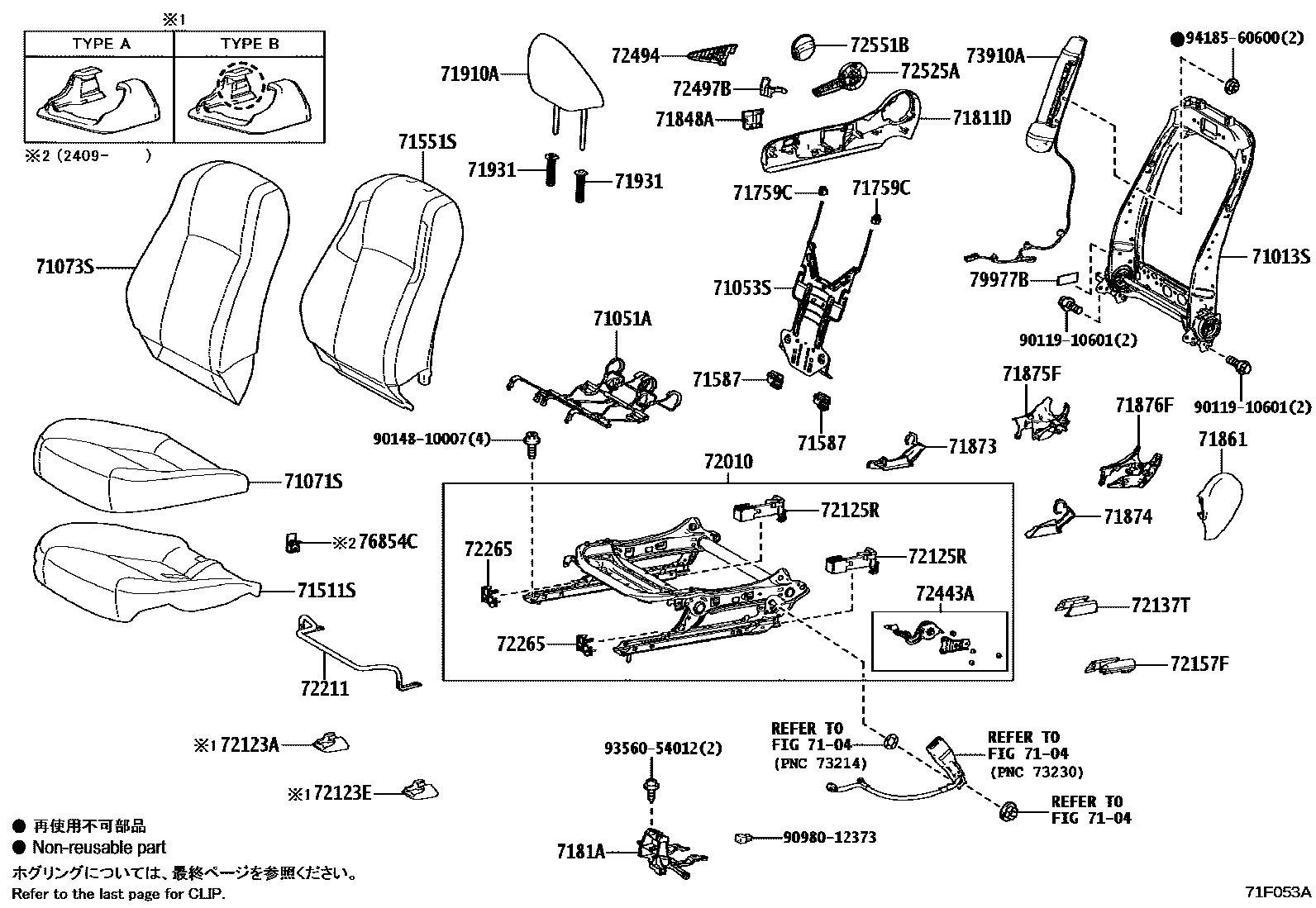

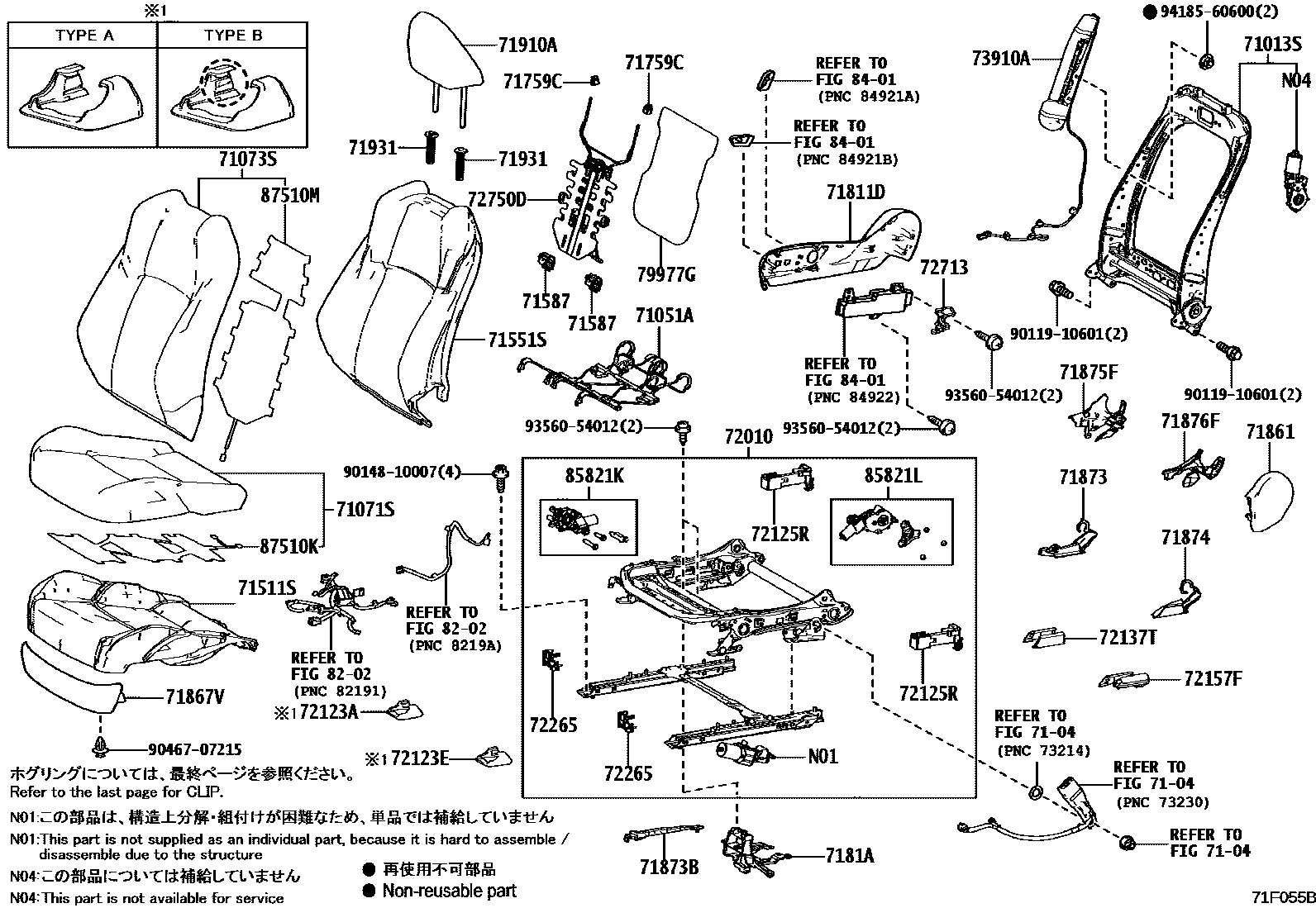

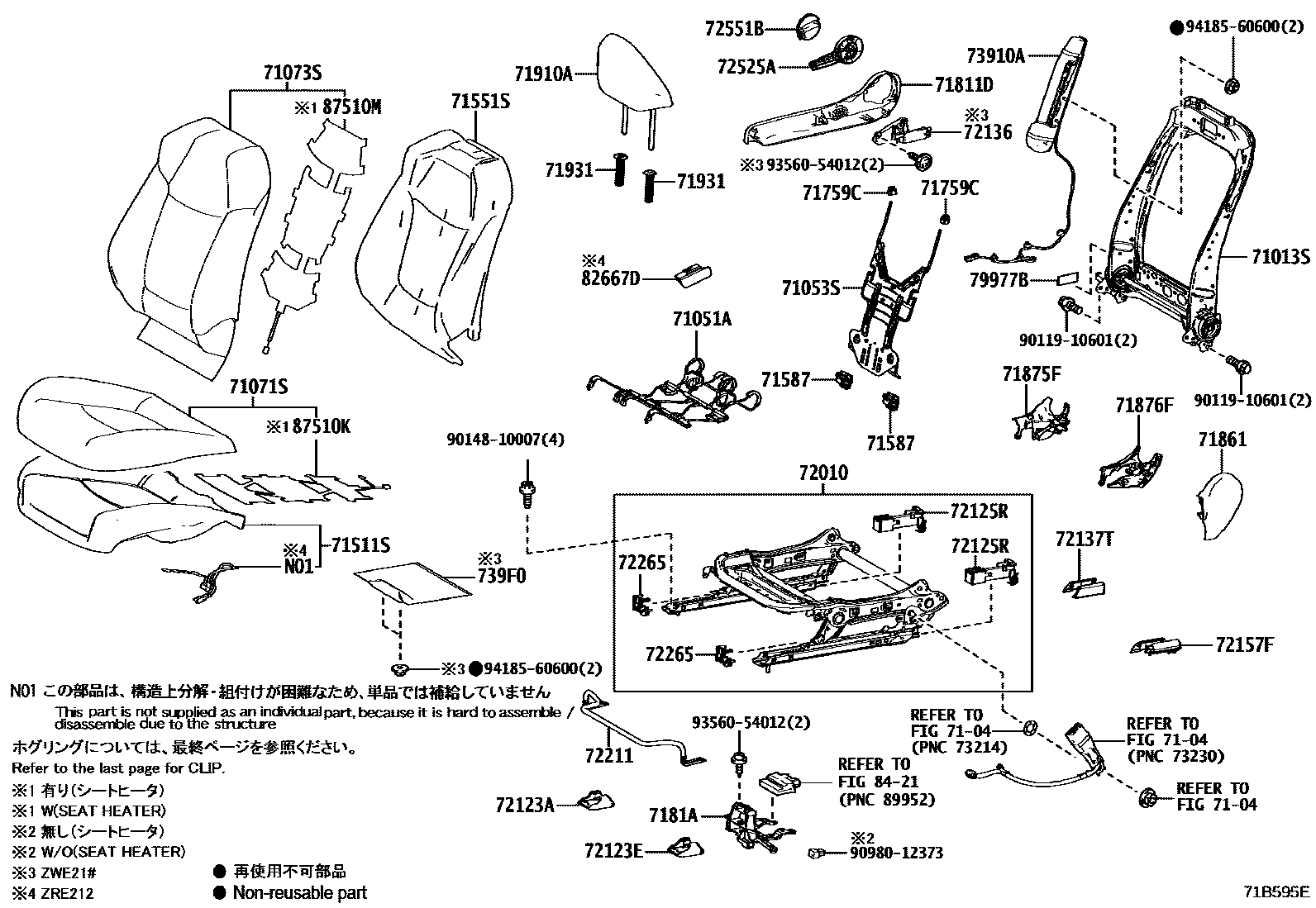

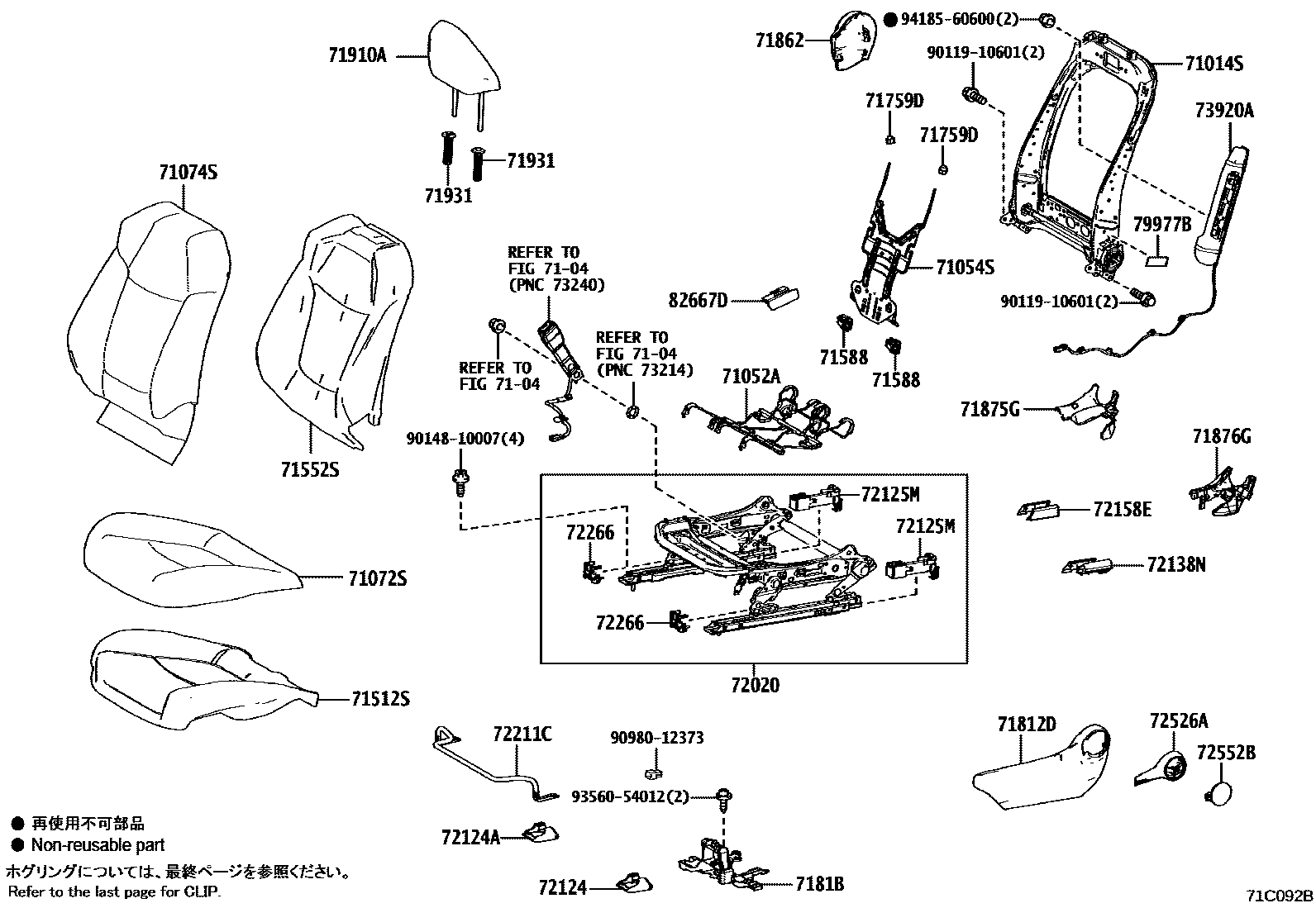

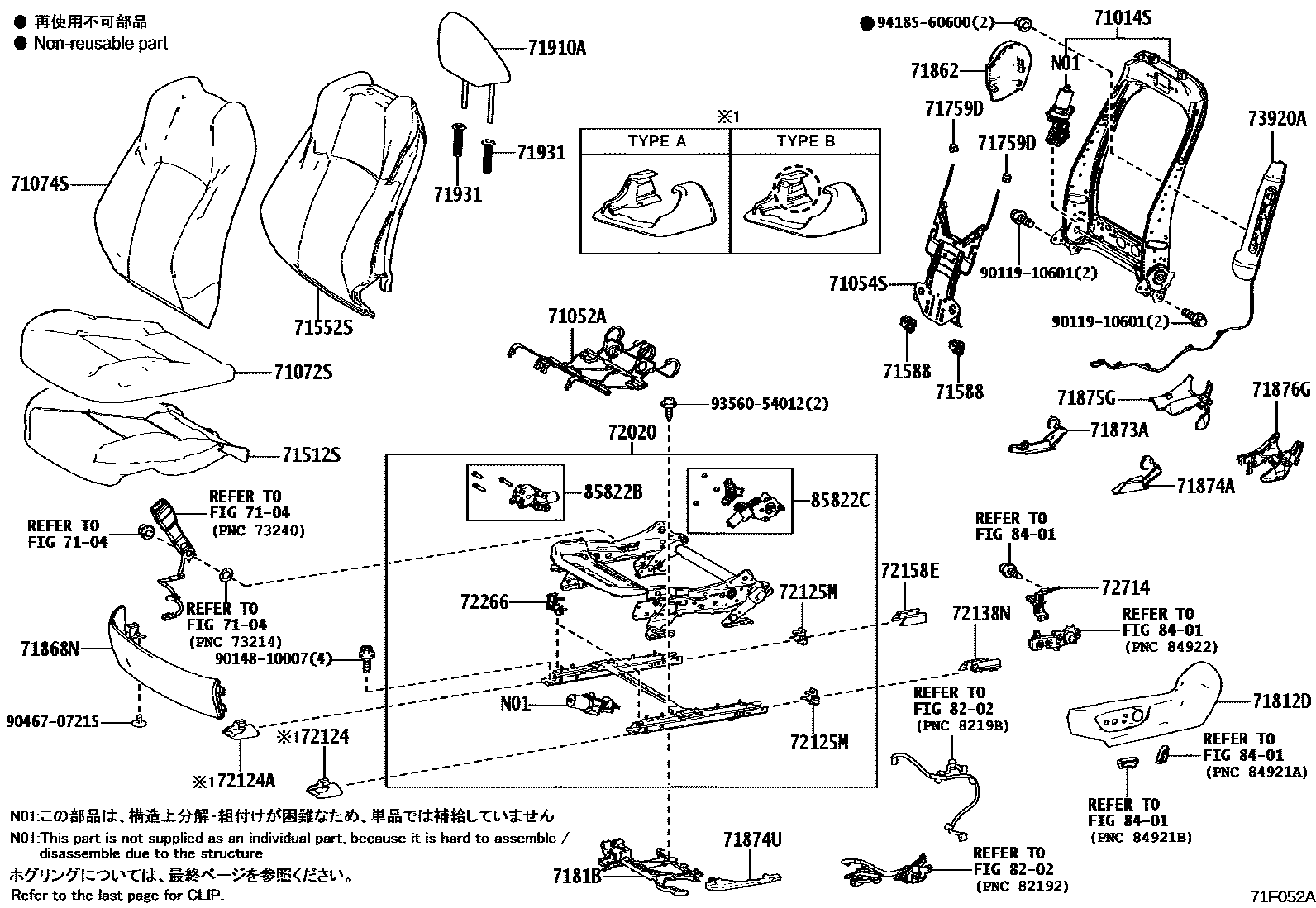

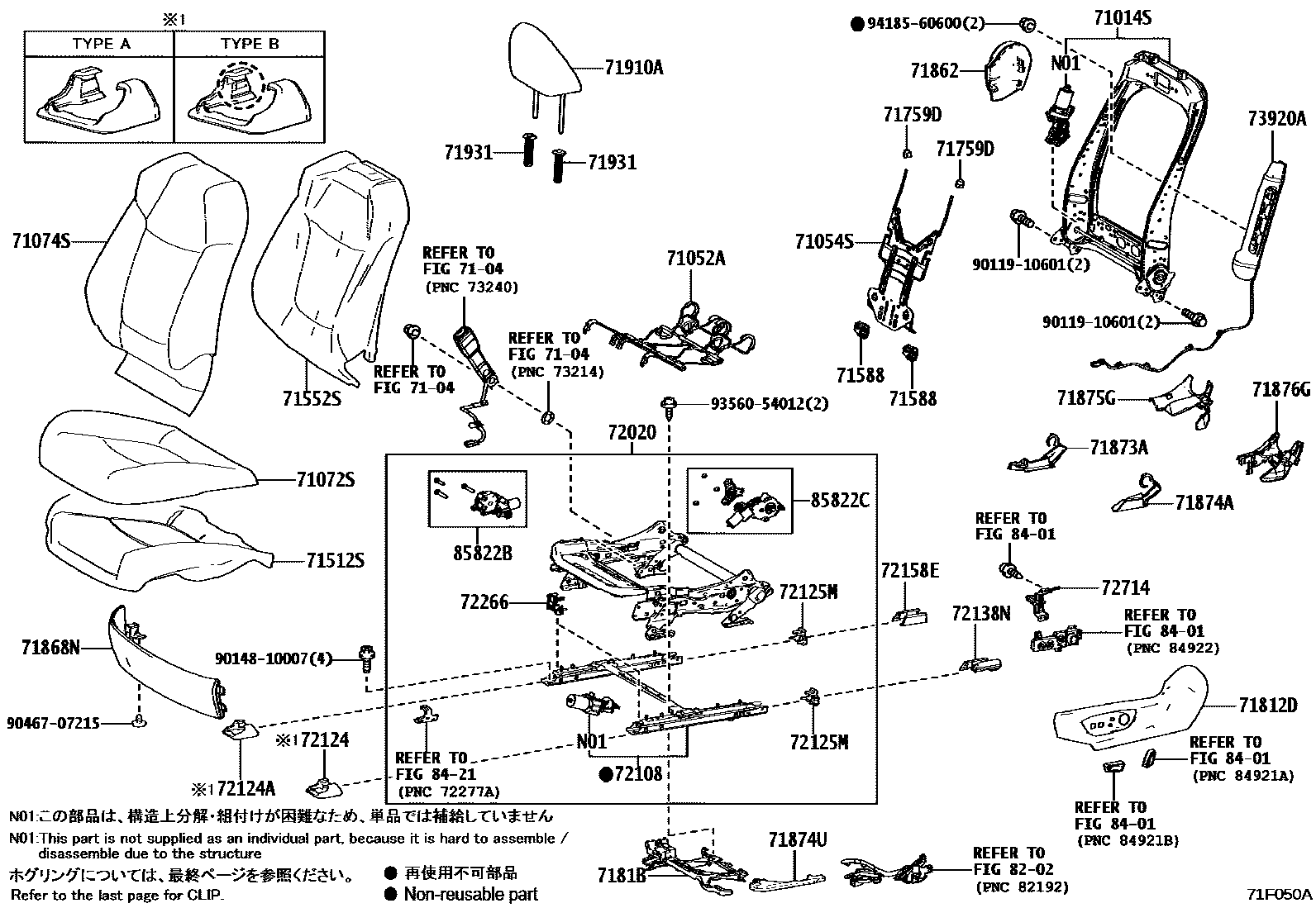

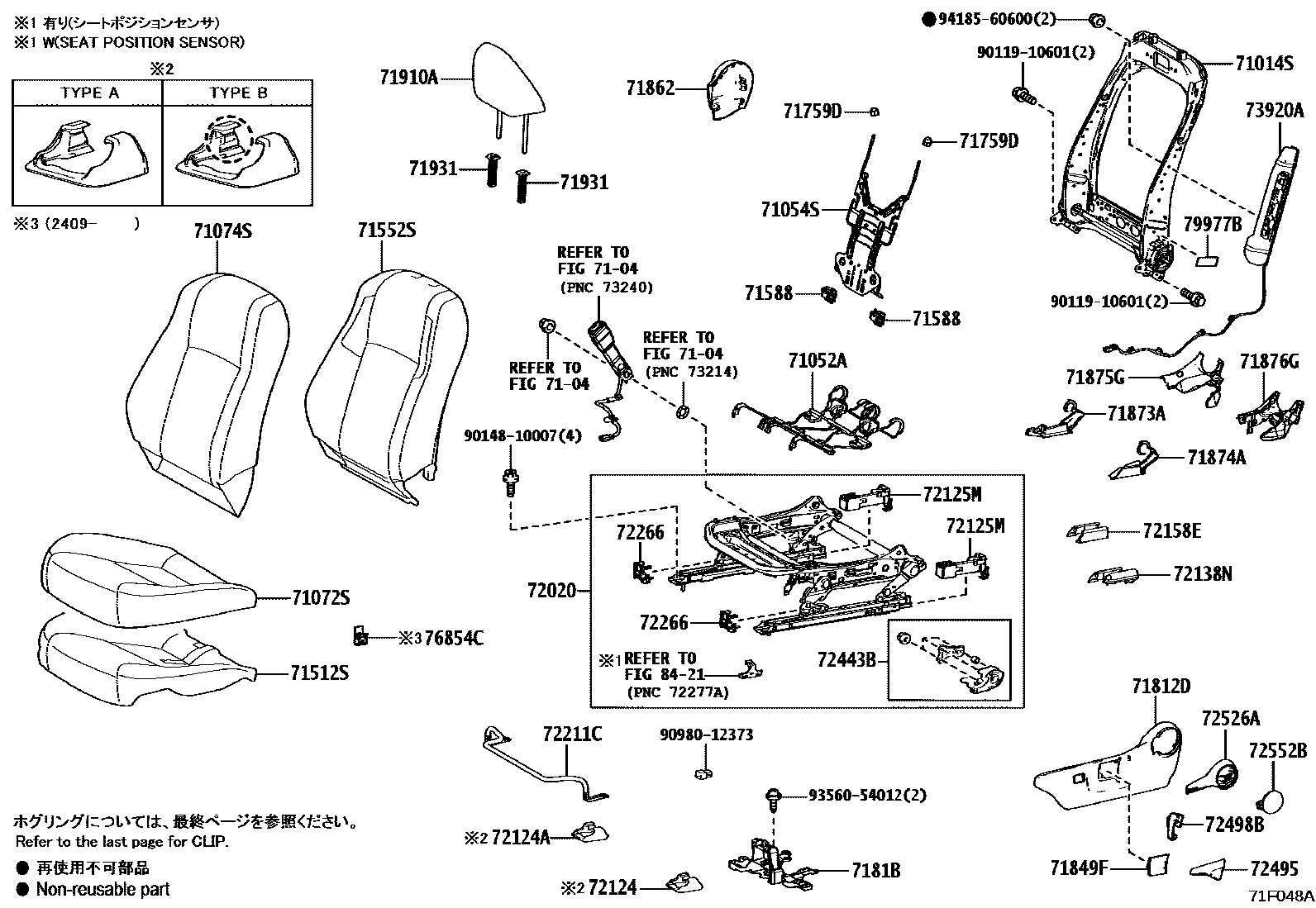

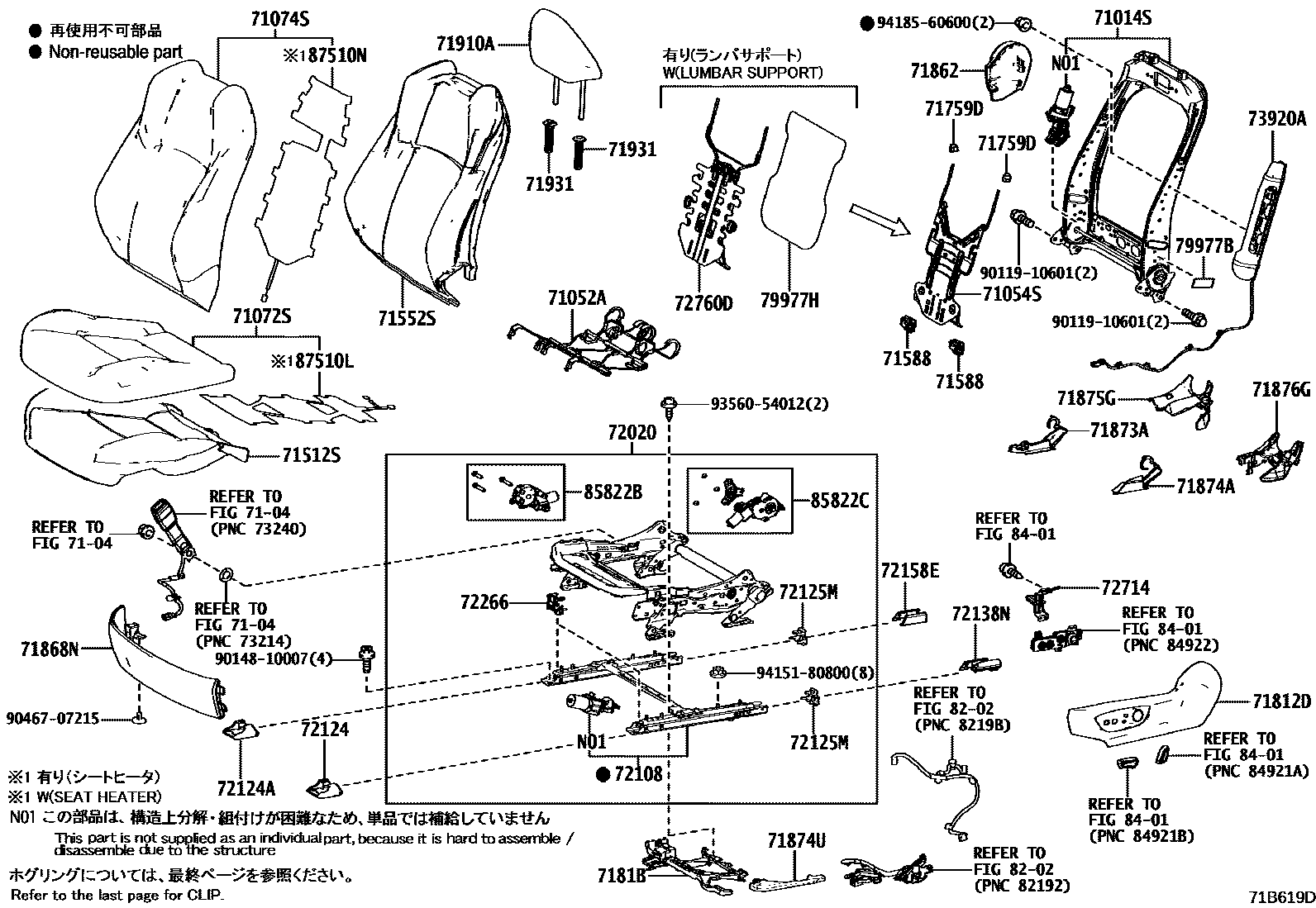

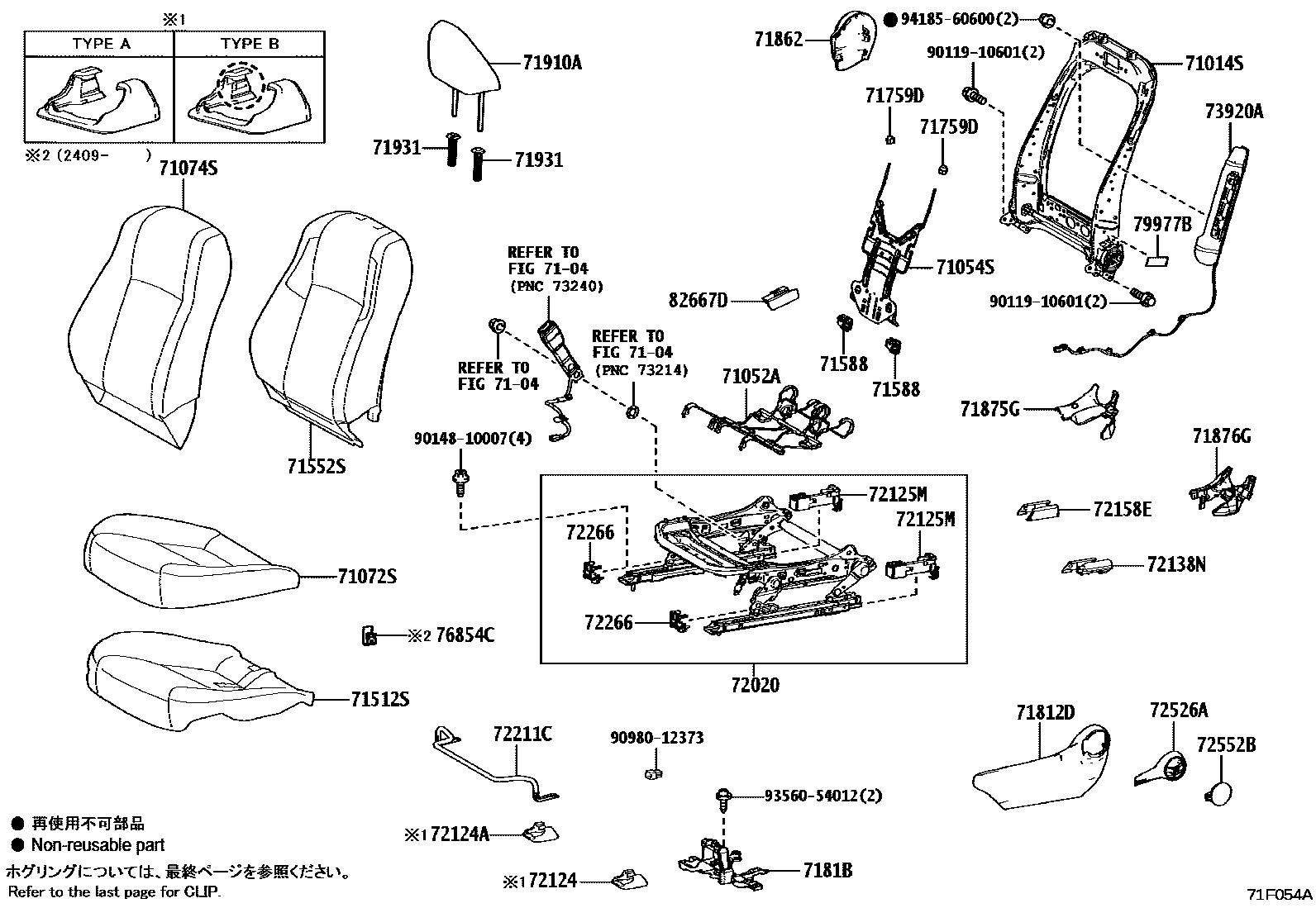

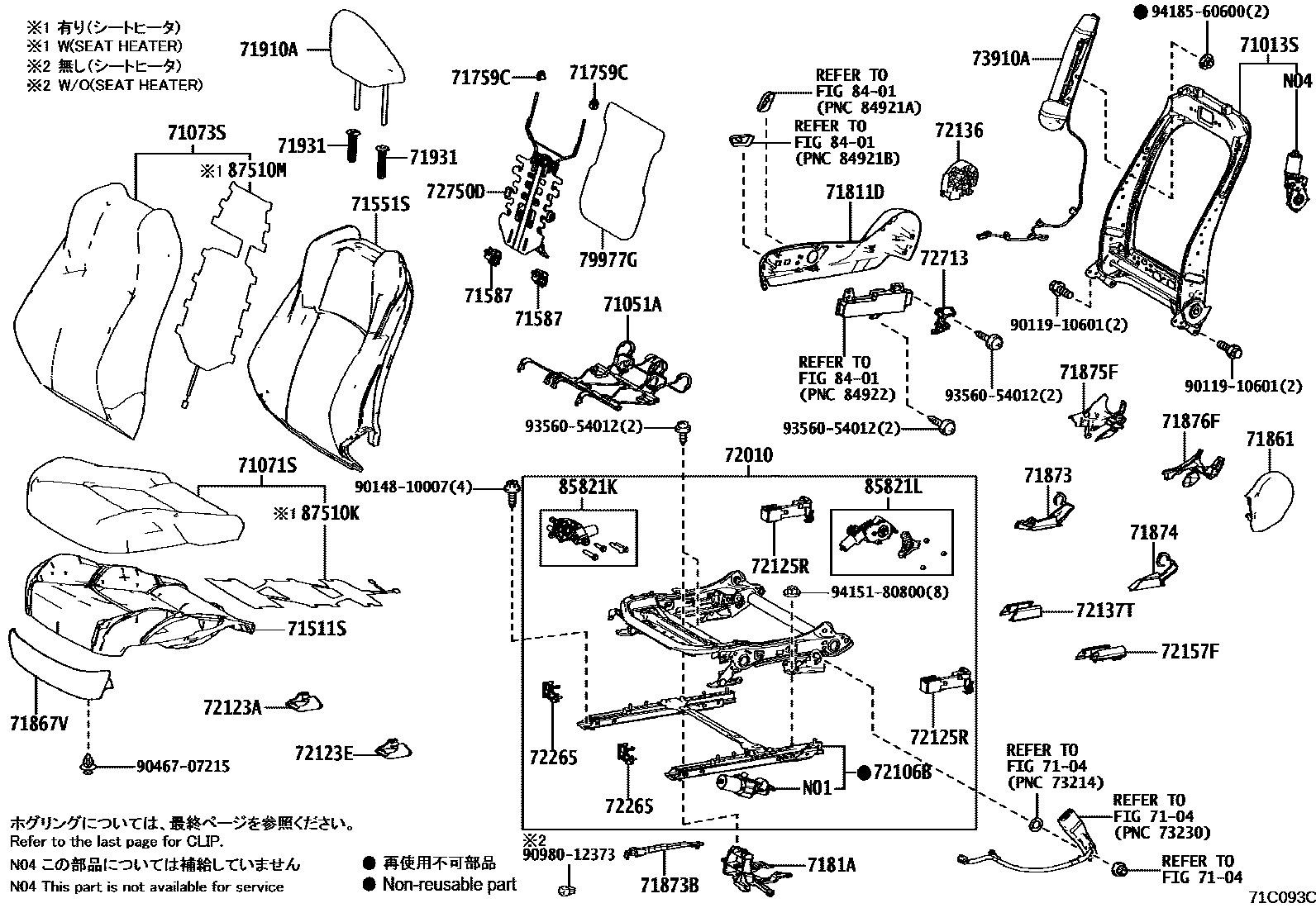

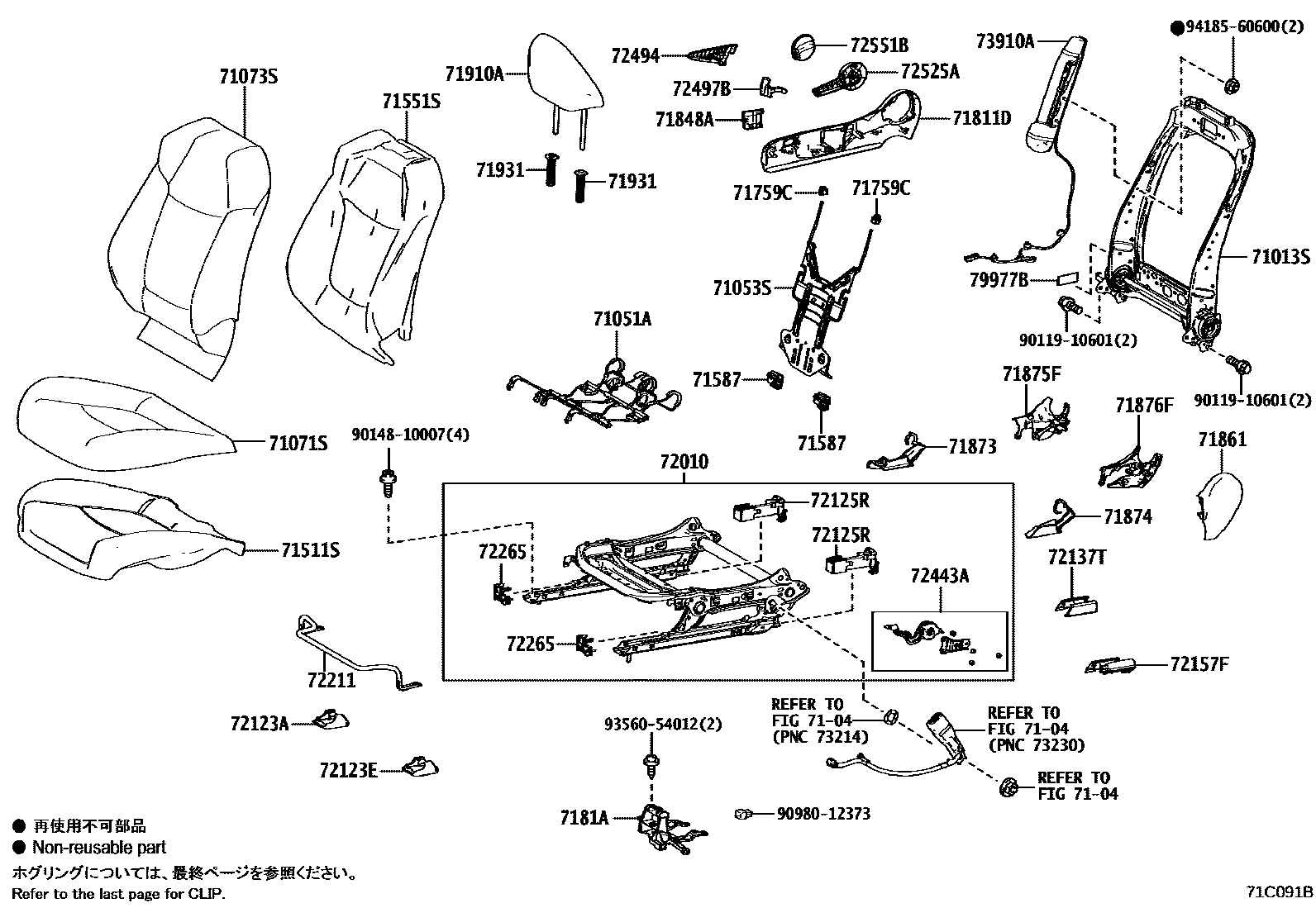

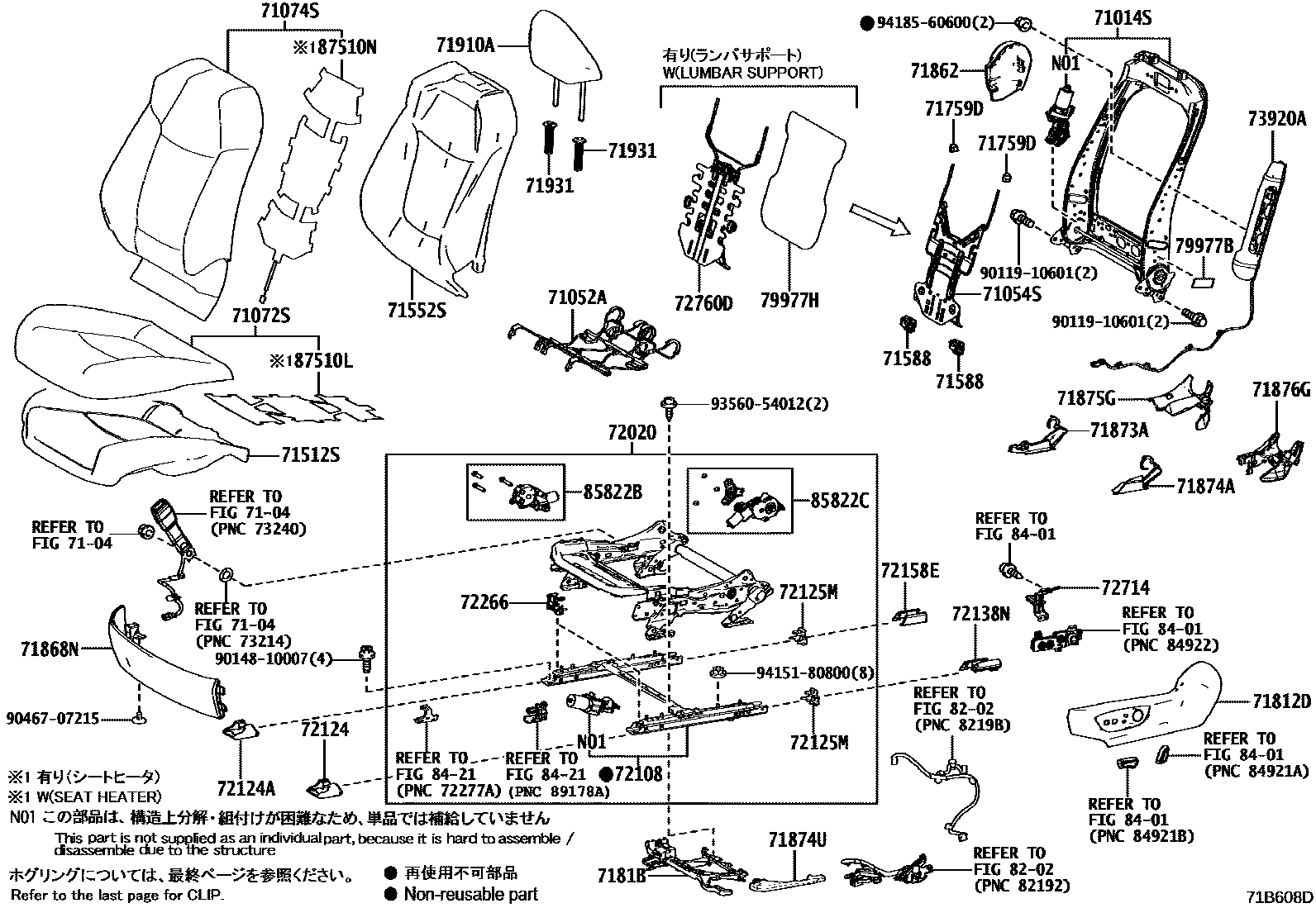

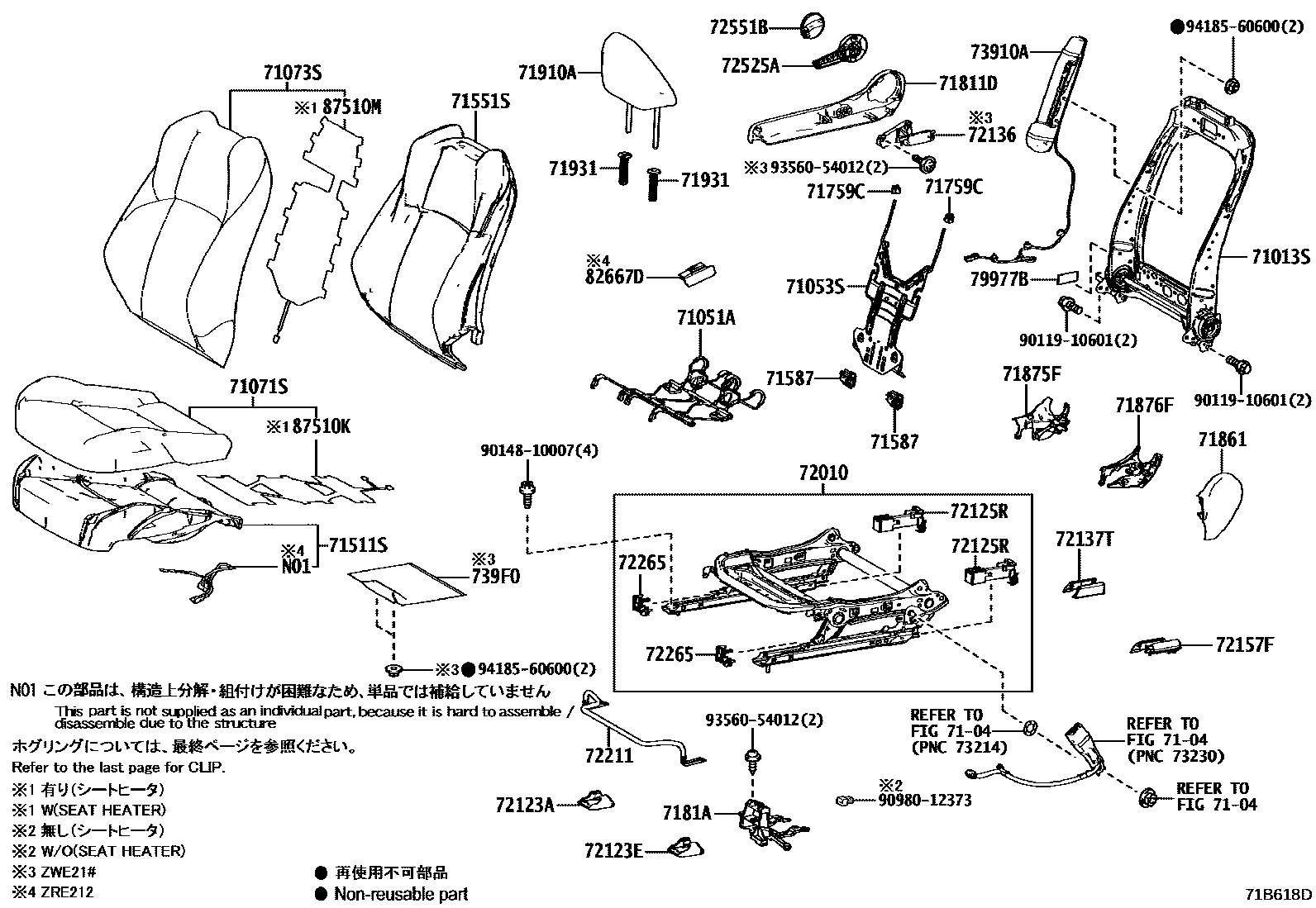

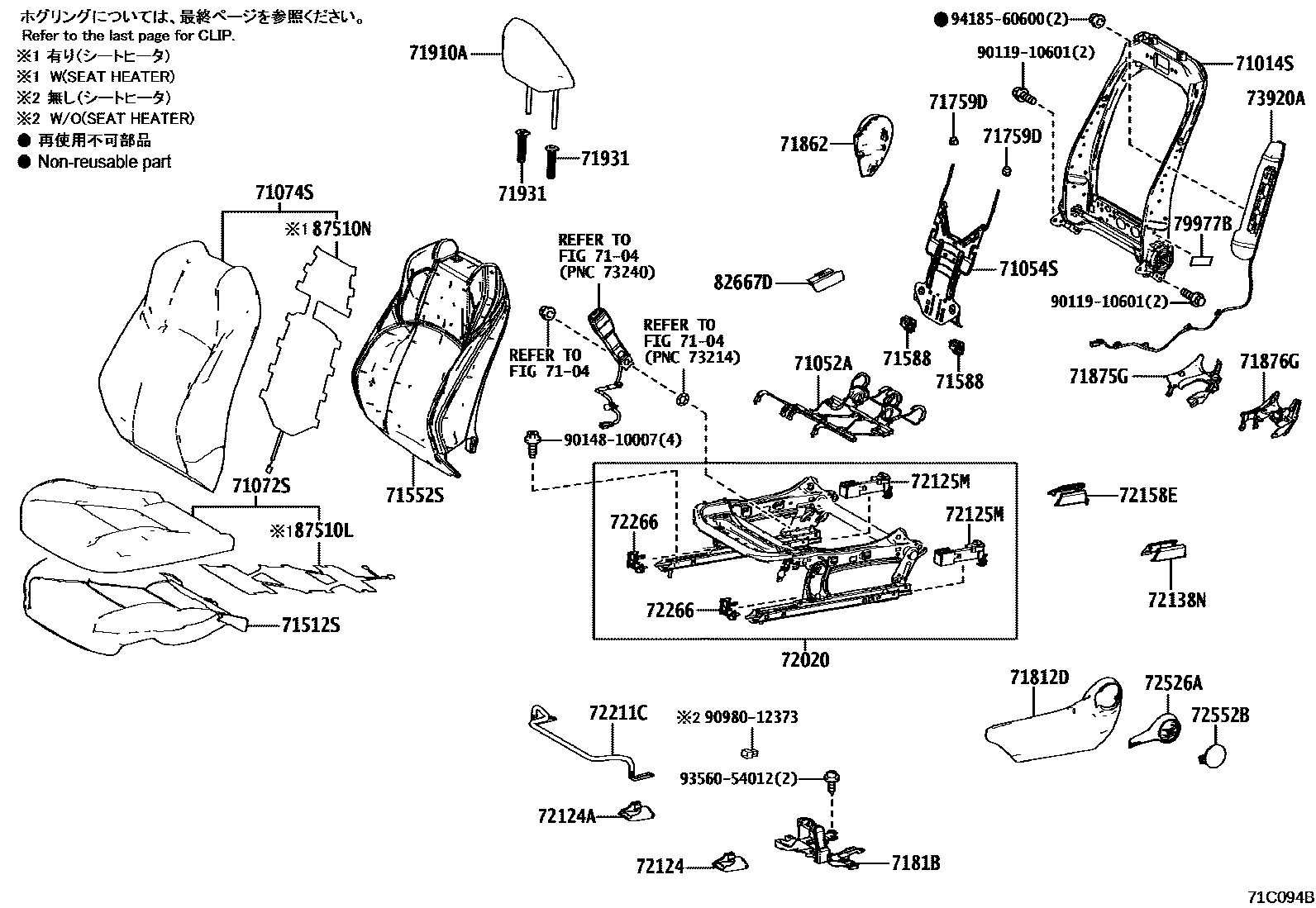

Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101
Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 20 images and 65 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71013S | Front right seat back frame sub-assembly | 71013-42210 · 71013-42230 · 71013-42231 |
| 71014S | Front left seat back frame sub-assembly | 71014-42190 · 71014-42210 · 71014-42211 |
| 71051A | Front right seat cushion spring sub-assembly | 71051-47090 |
| 71052A | Front left seat cushion spring sub-assembly | 71051-47090 |
| 71053S | Front right seat back spring sub-assembly | 71053-47050 |
| 71054S | Front left seat back spring sub-assembly | 71053-47050 |
| 71511S | Front right seat cushion cushion (for split seats) | 71501-12060 · 71501-12070 · 71501-12100 · 71511-12C50 · 71511-12C60 · 71511-12D10 · 71511-12D20 · 71511-12D50 |
| 71512S | Front left seat cushion cushion (for split seats) | 71502-12180 · 71502-12190 · 71502-12200 · 71512-12450 · 71512-12460 · 71512-12530 · 71512-12600 |
| 71551S | Front right seat back cushion (for split seats) | 71551-12D40 · 71551-12E20 · 71551-12E40 |
| 71552S | Front left seat back cushion (for split seats) | 71552-12700 · 71552-12710 · 71552-12760 |
| 71587 | Front seat back edge protective cover | 71587-47010 |
| 71588 | Front seat back edge protective cover No. 2 | 71587-47010 |
| 71759C | Front seat back hook No. 1 | 71759-50040 |
| 71759D | Front seat back hook 2 | 71759-50040 |
| 7181A | SUPPORT, FAISCEAU CABLE COUSSIN SIEGE AVANT, MD | 7181A-12010 · 7181A-33010 · 7181A-47010 |
| 7181B | SUPPORT, FAISCEAU CABLE COUSSIN SIEGE AVANT, MG | 7181B-33010 · 7181B-47010 |
| 71873 | Front right seat cushion lower guard panel | 71873-47070 |
| 71873A | Front seat cushion lower guard | 71874-47080 |
| 71873B | Front right seat No. 1 seat cushion lower guard panel | 71873-47090 |
| 71874 | Front left seat cushion lower guard | 71873-47080 |
| 71874A | Front left seat cushion lower guard | 71874-47070 |
| 71874U | PROTECTION, COUSSIN SIEGE AVANT, INF MG | 71874-47090 |
| 72010 | Front right seat adjuster assembly | 72010-12850 · 72010-33640 · 72010-47361 · 72010-47380 · 72010-47381 |
| 72020 | Front left seat adjuster assembly | 72020-33450 · 72020-33570 · 72020-47360 · 72020-47361 · 72020-47371 · 72020-47380 · 72020-47381 |
| 72106B | SOUS-ENS. RAIL, COULISSE SIEGE, SUP MD | 72106-33070 |
| 72108 | SOUS-ENS. RAIL, COULISSE SIEGE, SUP MG | 72108-33040 |
| 72123A | Front right seat outer slide rail bracket cover | 72123-10100 · 72123-47060 |
| 72123E | COUV. EXT. ARRIERE DROIT PLATINE FIX. GLISSIERE SIEGE | 72123-10100 · 72123-47060 |
| 72124 | Front left seat outer slide rail bracket cover | 72123-10100 · 72123-47060 |
| 72124A | COUV. EXT. ARRIERE GAUCHE PLATINE FIX. GLISSIERE SIEGE | 72123-10100 · 72123-47060 |
| 72125M | No. 3 upper seat outer slide rail cover | 72125-47010 · 72125-47020 |
| 72125R | CACHE, RAIL SIEGE, SUP ARR NO.1 | 72125-47010 · 72125-47020 |
| 72136 | No. 1 seat slide rail lower rail | 72136-12090 |
| 72137T | CACHE, SUPPORT GLISSIERE SIEGE, ARR EXT MD | 72137-47060 |
| 72138N | CACHE, SUPPORT GLISSIERE SIEGE, ARR EXT MG | 72137-47060 |
| 72157F | CACHE, SUPPORT GLISSIERE SIEGE, ARR INT MD | 72157-47080 |
| 72158E | CACHE, SUPPORT GLISSIERE SIEGE, ARR INT MG | 72158-47080 |
| 72211 | Seat slide adjustment handle | 72211-12290 · 72211-47050 |
| 72211C | Seat slide adjustment handle | 72211-47050 |
| 72265 | Right seat rail upper rail cover | 72265-47010 · 72265-47020 |
| 72266 | Left seat rail upper rail cover | 72265-47010 · 72265-47020 |
| 72443A | ENGRENAGE, REGLEUR VERTICAL, MD | 72443-47011 |
| 72443B | ENGRENAGE, REGLEUR VERTICAL, MG | 72443-47020 · 72443-47021 |
| 72497B | Right height adjuster bracket cover | 72498-47010 |
| 72498B | Height adjuster bracket outer cover | 72498-47020 |
| 72713 | SUPPORT, COLLIER RENFORT AJUSTEUR SIEGE, MD | 72713-47010 |
| 72714 | SUPPORT, COLLIER RENFORT AJUSTEUR SIEGE, MG | 72714-47010 |
| 72750D | Right lumbar support adjuster assembly | 72750-33140 |
| 72760D | Left lumbar support adjuster assembly | 72750-33140 |
| 73910A | Front right seat airbag assembly | 73910-12100 |
| 73920A | Front left seat airbag assembly | 73920-12090 |
| 739F0 | ENS. AIRBAG, COUSSIN DE SIEGE AVANT, MD | 739F0-12030 |
| 76854C | ARRETOIR, CACHE COUSSIN SIEGE AVANT | 76854-44010 |
| 79977B | Seat back frame felt pad | 79977-12090 |
| 79977G | FEUTRE, DOSSIER DE SIEGE AVANT, MD | 79977-33030 · 79977-76010 |
| 79977H | FEUTRE, DOSSIER DE SIEGE AVANT, MG | 79977-33030 |
| 82667D | Connector holder | 82666-47630 |
| 85821K | Right electric seat tilt adjustment motor assembly | 85801-47020 |
| 85821L | Right electric seat height adjustment motor assembly | 85801-47010 |
| 85822B | Left electric seat tilt adjustment motor assembly | 85801-47040 |
| 85822C | Left electric seat height adjustment motor assembly | 85801-47030 |
| 87510K | Front right seat cushion heater assembly | 87510-12320 · 87510-12330 · 87510-12390 |
| 87510L | Front left seat cushion heater assembly | 87510-12390 · 87510-12400 · 87510-12410 · 87510-12420 |
| 87510M | Front right seat back heater assembly | 87530-12080 · 87530-12090 |
| 87510N | Front left seat back heater assembly | 87530-12080 · 87530-12090 |
