Toyota COROLLA 锁芯组件 — Figure 6712

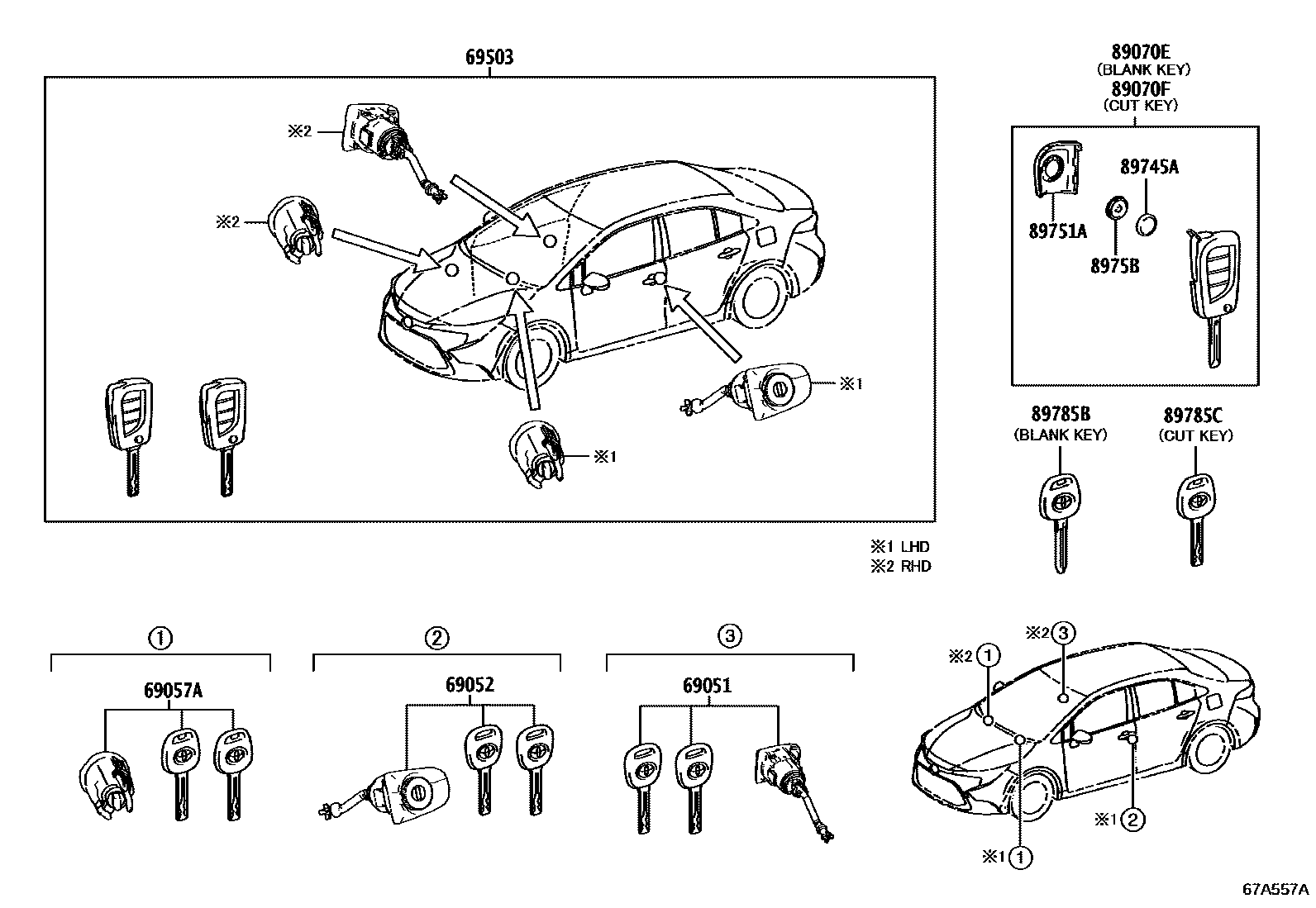

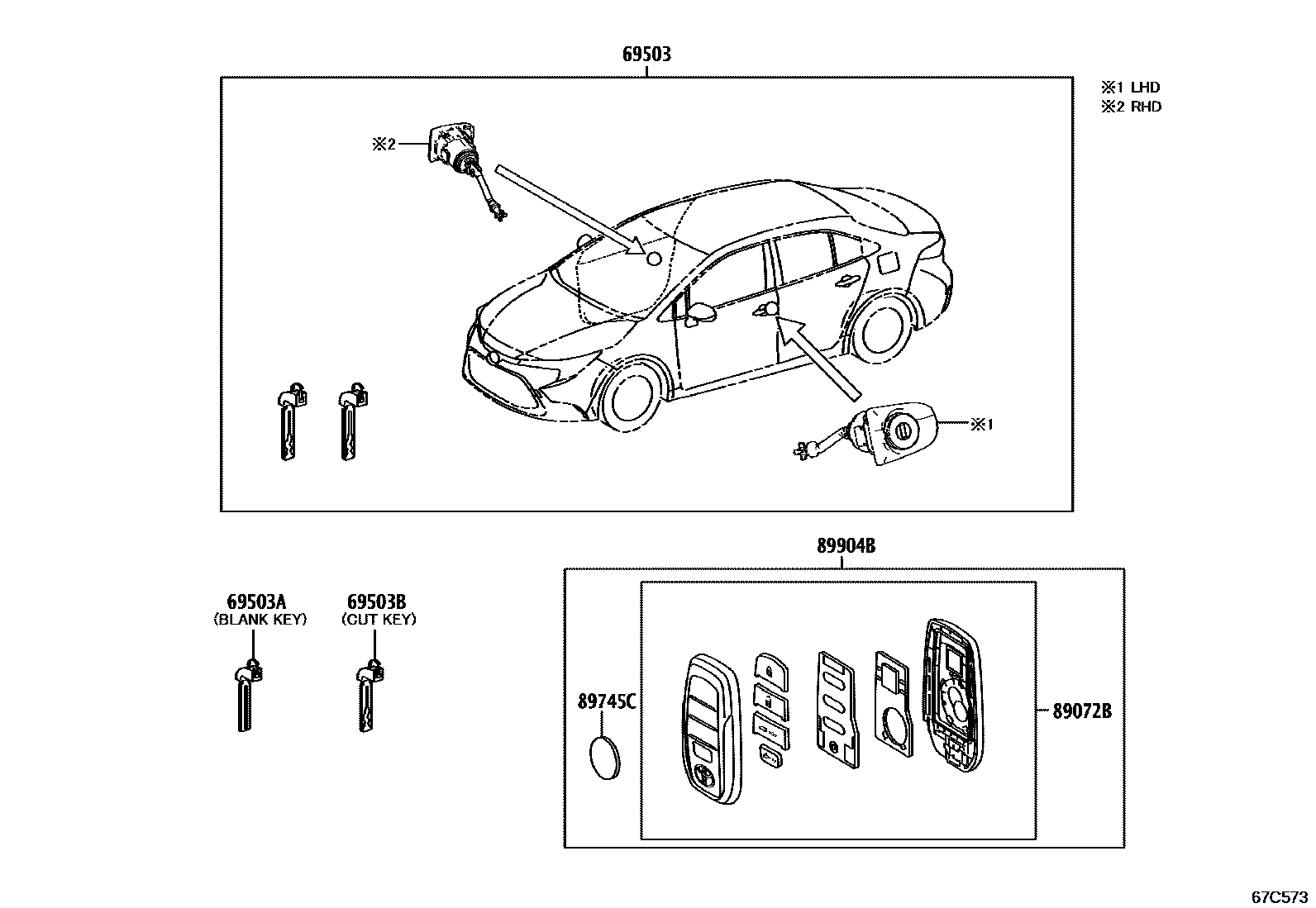

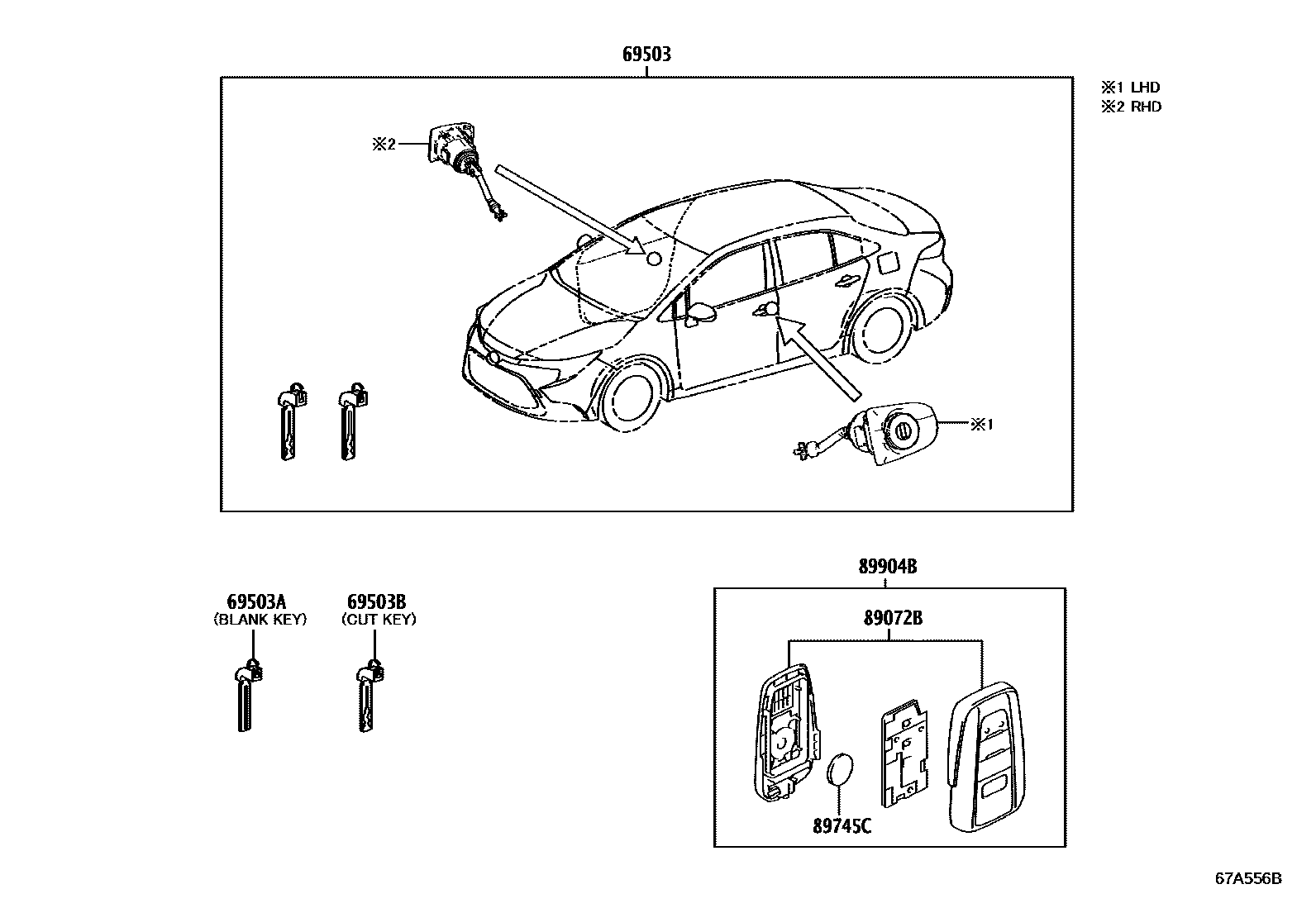

Toyota COROLLA EPC diagram 6712, 锁芯组件, with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-12840 |
| 69052 | Left door lock cylinder and key assembly | 69052-12690 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-33410 · 69057-K0020 |
| 69503 | Door lock cylinder components | 69005-12J20 · 69005-12J21 · 69005-12J40 · 69005-12J41 · 89704-12F70 · 89704-12G20 · 89704-12G21 · 89704-12G30 |
| 69503A | external tooth key | 69515-16110 · 69515-47030 · 69515-K0020 |
| 69503B | internal tooth key | 69515-16100 · 69515-47020 · 69515-K0010 |
| 89070E | Remote key assembly | 89070-12B70 · 89070-12D40 |
| 89070F | Remote key assembly (internal tooth key) | 89070-12C00 · 89070-12D50 |
| 89072B | Remote key shell assembly (for smart key) | 89072-12390 · 89072-12410 · 89072-12470 · 89072-12530 · 89072-12650 · 89072-12670 · 89072-12810 · 89072-12830 · 89072-12850 · 89072-12B20 · 89072-12C00 · 89072-12C10 |
| 89745A | Transmitter battery | 89745-50020 |
| 89745C | Transmitter battery | 89745-12020 · 89745-45010 · 89745-50020 · 89745-K0010 · 89745-K0020 |
| 89751A | Transmitter housing cover | 89751-33200 |
| 8975B | Remote control battery case cover | 8975B-33050 |
| 89785B | transceiver key master transmitter | 89785-28060 |
| 89785C | transceiver key master transmitter | 89785-28070 |
| 89904B | Electronic key transmitter sub-assembly | 8990H-12020 · 8990H-12030 · 8990H-12040 · 8990H-12050 · 8990H-12200 · 8990H-12210 · 8990H-12350 · 8990H-12351 · 8990H-12360 · 8990H-12361 · 8990H-12370 · 8990H-12371 · 8990H-12380 · 8990H-12381 · 8990H-12640 · 8990H-12650 |
