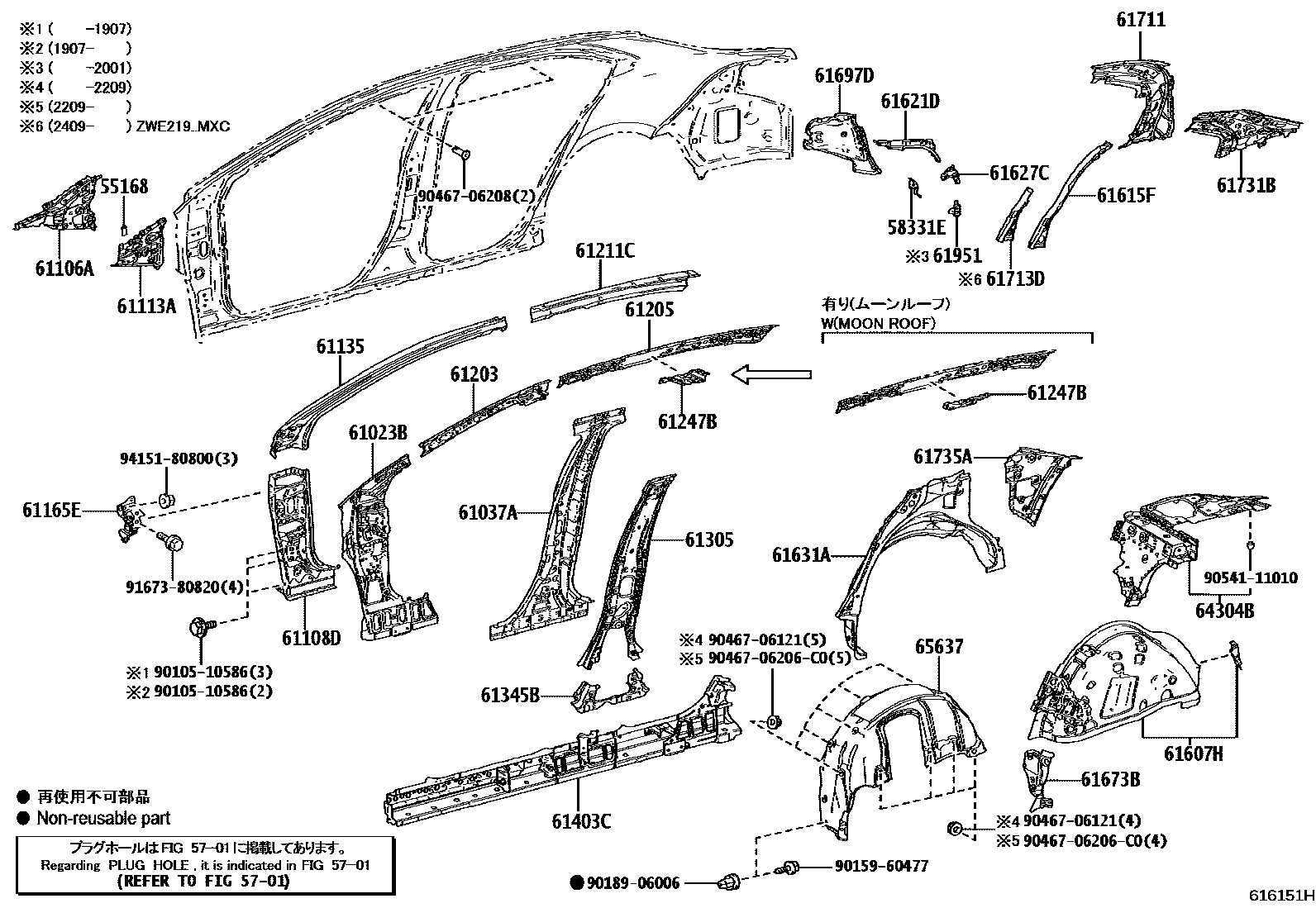

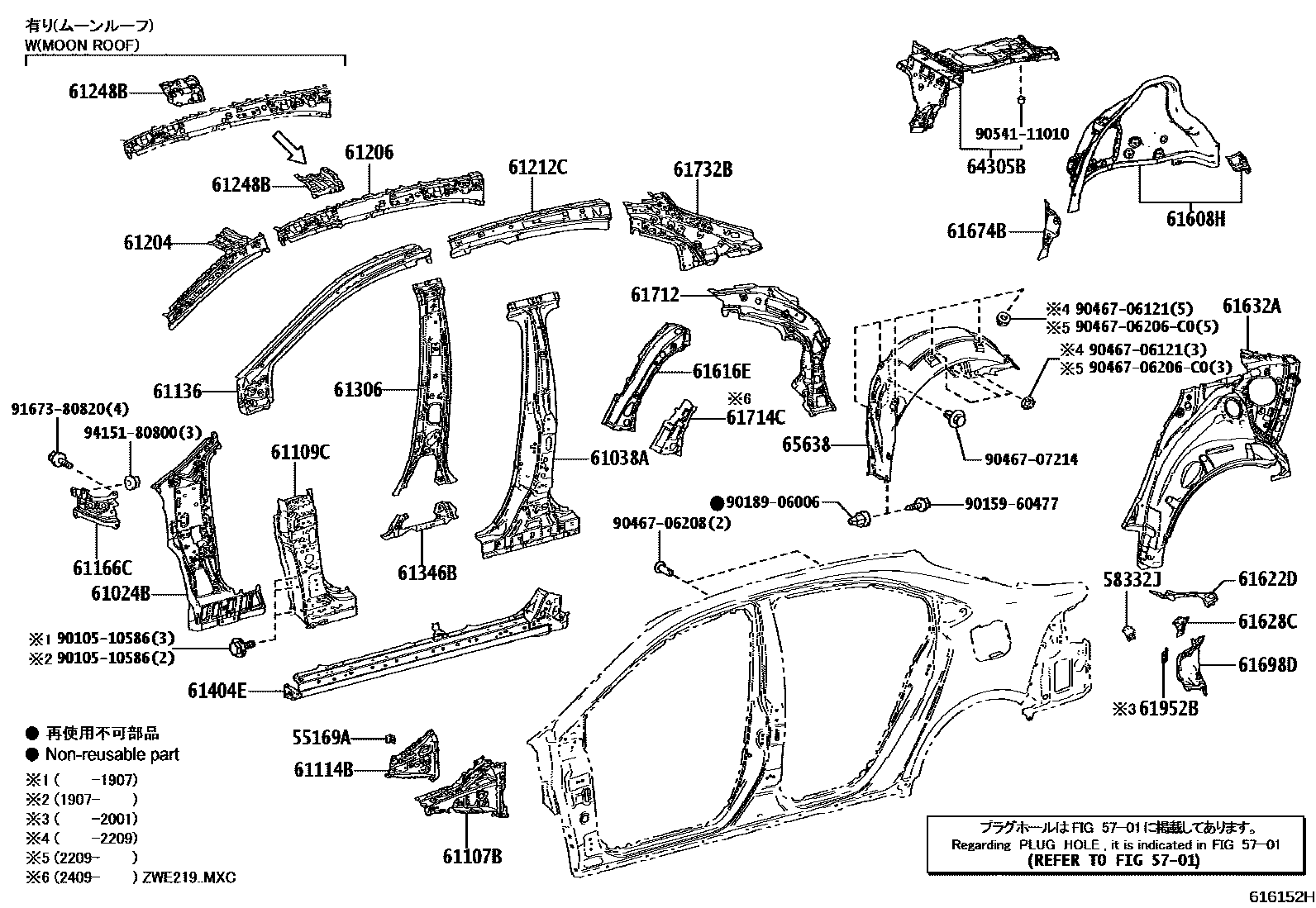

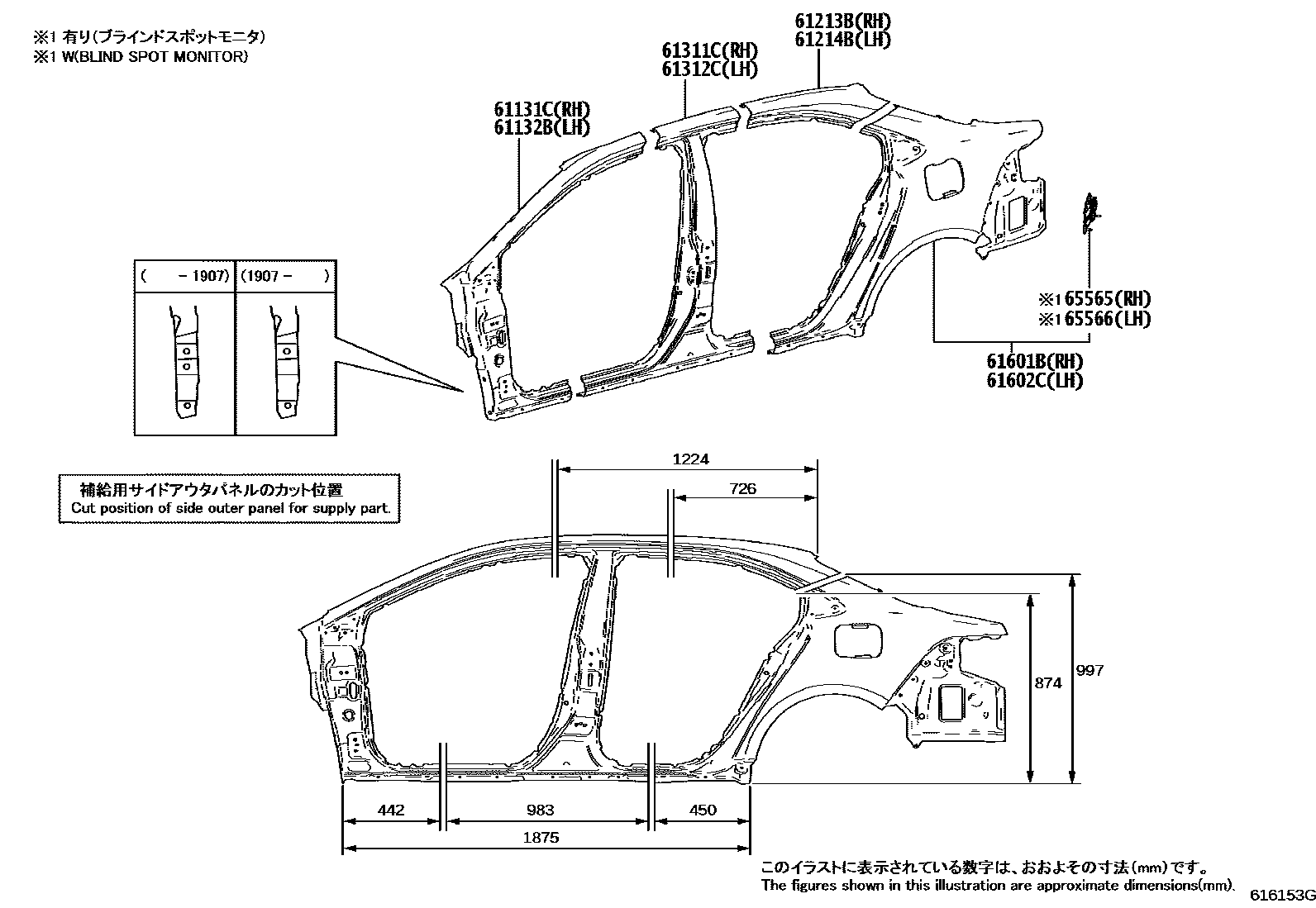

Toyota COROLLA 侧梁 — Figure 6101
Toyota COROLLA EPC diagram 6101, 侧梁, with 3 images and 69 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55168 | Right front fender mounting bracket | 53879-68020 |
| 55169A | Left front fender mounting bracket | 53879-68020 |
| 58331E | No. 1 suitcase decorative panel bracket | 58331-12100 |
| 58332J | No. 2 suitcase decorative panel bracket | 58332-12100 |
| 61023B | Right body inner front pillar sub-assembly | 61023-12460 |
| 61024B | Left body inner front pillar sub-assembly | 61024-12450 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61037-12360 · 61037-12361 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61038-12360 · 61038-12361 |
| 61106A | Right body front pillar reinforcement sub-assembly | 61106-12170 |
| 61107B | Left side body front pillar reinforcement sub-assembly | 61107-12170 |
| 61108D | Front panel right lower reinforcement sub-assembly | 61108-12330 |
| 61109C | Front panel left lower reinforcement sub-assembly | 61109-12320 |
| 61113A | No. 2 right outer panel | 61113-12020 |
| 61114B | No. 2 left outer panel | 61114-12010 |
| 61131C | Right body outer front pillar | 61101-12210 · 61101-12211 |
| 61132B | Left body outer front pillar | 61102-12180 · 61102-12181 |
| 61135 | Reinforcement member on the right front body pillar | 61135-12360 |
| 61136 | Reinforcement member on left front body pillar | 61136-12350 |
| 61165E | SUPPORT, TABLEAU BORD AU COTE AUVENT, MD | 61165-12110 · 61165-12120 |
| 61166C | SUPPORT, TABLEAU BORD AU COTE AUVENT, MG | 61166-12120 · 61166-12130 |
| 61203 | Roof right inner longitudinal beam sub-assembly | 61203-12340 |
| 61204 | Roof left inner longitudinal beam sub-assembly | 61204-12320 |
| 61205 | Right rear roof inner longitudinal beam sub-assembly | 61205-12030 |
| 61206 | Left rear roof inner longitudinal beam sub-assembly | 61206-12030 |
| 61211C | Roof right side rail | 61211-12540 |
| 61212C | Roof left side rail | 61212-12540 |
| 61213B | No. 2 longitudinal beam on the outer right side of the roof | 61213-12100 |
| 61214B | No. 2 longitudinal beam on the left side of the roof | 61214-12100 |
| 61247B | Roof right inner longitudinal beam reinforcement | 61247-12110 · 61247-12120 |
| 61248B | Roof left inner longitudinal beam reinforcement | 61248-12040 · 61248-12050 |
| 61305 | Right body center pillar lower reinforcement sub-assembly | 61305-12210 |
| 61306 | Left body center pillar lower reinforcement sub-assembly | 61306-12210 |
| 61311C | Right rear body front outer panel | 61311-12520 |
| 61312C | Left rear body front outer panel | 61312-12560 |
| 61345B | Right body inner middle and lower pillar | 61345-12070 |
| 61346B | Left side inner middle and lower pillar | 61346-12070 |
| 61403C | Right door outer sill reinforcement sub-assembly | 61403-12904 · 61403-12909 · 61403-12911 · 61403-12912 |
| 61404E | Left door outer sill reinforcement sub-assembly | 61404-12904 · 61404-12909 · 61404-12911 · 61404-12912 |
| 61601B | Right side enclosure sub-assembly | 61601-12C30 · 61601-12C31 · 61601-12C40 · 61601-12C41 · 61601-12D10 · 61601-12D20 |
| 61602C | Left side enclosure sub-assembly | 61602-12C30 · 61602-12C31 · 61602-12C40 · 61602-12C41 · 61602-12D10 · 61602-12D20 |
| 61607H | Right side wheel cover lining plate sub-assembly | 61607-12956 · 61607-12958 · 61607-12959 |
| 61608H | Left side wheel cover lining plate sub-assembly | 61608-12951 · 61608-12953 · 61608-12954 |
| 61615F | Right side enclosure outer panel reinforcement | 61615-12050 · 61615-12090 |
| 61616E | Left side enclosure outer panel reinforcement | 61616-12080 · 61616-12120 |
| 61621D | Back door right opening slot | 61621-12570 |
| 61622D | Rear door left opening slot | 61622-12570 |
| 61627C | Right side enclosure inner panel reinforcement | 61627-12220 |
| 61628C | Left side enclosure inner panel reinforcement | 61628-12210 |
| 61631A | Right wheel cover outer panel | 61631-12530 · 61631-12531 |
| 61632A | Left side wheel cover outer panel | 61606-12210 · 61606-12211 |
| 61673B | Right wheel housing lining panel reinforcement | 61673-12060 |
| 61674B | Left side wheel housing lining plate reinforcement | 61674-12090 |
| 61697D | Right side enclosure end cover | 61697-12130 |
| 61698D | Left side enclosure end cover | 61698-12130 |
| 61711 | Roof right side outer panel | 61711-12380 |
| 61712 | Roof left outer panel | 61712-12410 |
| 61713D | RENFORT, LATERAL TOIT EXT, MD | 61713-12140 |
| 61714C | RENFORT, LATERAL TOIT EXT, MG | 61714-12130 |
| 61731B | Roof right inner panel | 61731-12921 |
| 61732B | Roof left inner panel | 61732-12920 |
| 61735A | Right rear roof inner panel | 61735-12450 |
| 61951 | Right trim part bracket | 61951-12020 |
| 61952B | Left trim part bracket | 61952-12020 |
| 64304B | Glove box bracket right reinforcement sub-assembly | 64304-12160 |
| 64305B | Glove box bracket left reinforcement sub-assembly | 64305-12170 |
| 65565 | Right side panel rear end lining | 65565-50010 |
| 65566 | Left side panel rear end lining | 65565-50010 |
| 65637 | Right rear wheel house lining | 65637-12050 · 65637-12110 |
| 65638 | Left rear wheel house lining | 65638-12060 · 65638-12120 |
