Toyota COROLLA hole plug — Figure 5701

Toyota COROLLA EPC diagram 5701, hole plug, with 4 images and 0 PNC and OE references.

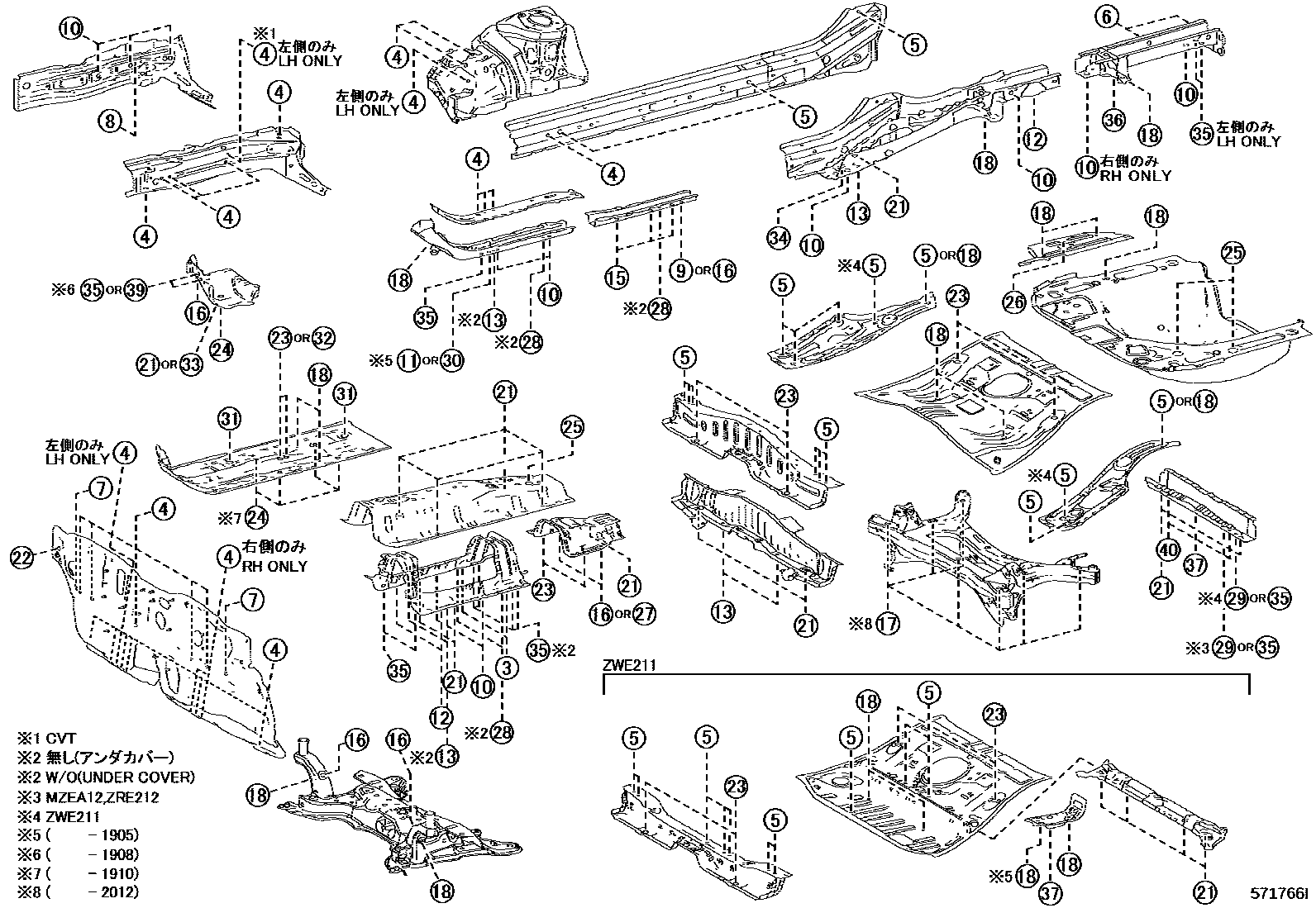

Toyota COROLLA hole plug EPC diagram — 571766I
hole plug — 571766I (201901 – 999999)

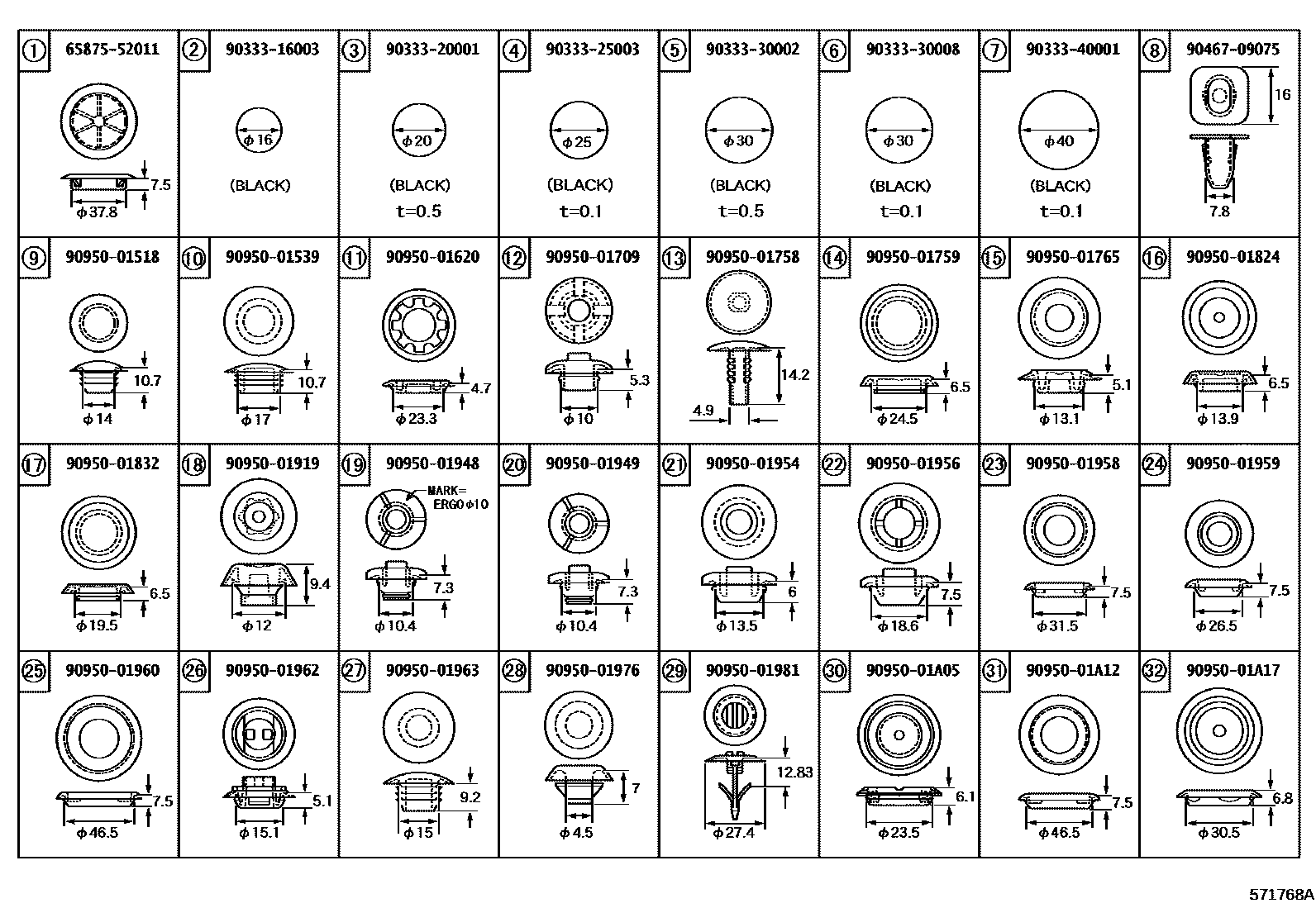

Toyota COROLLA hole plug EPC diagram — 571768A
hole plug — 571768A (201901 – 999999)

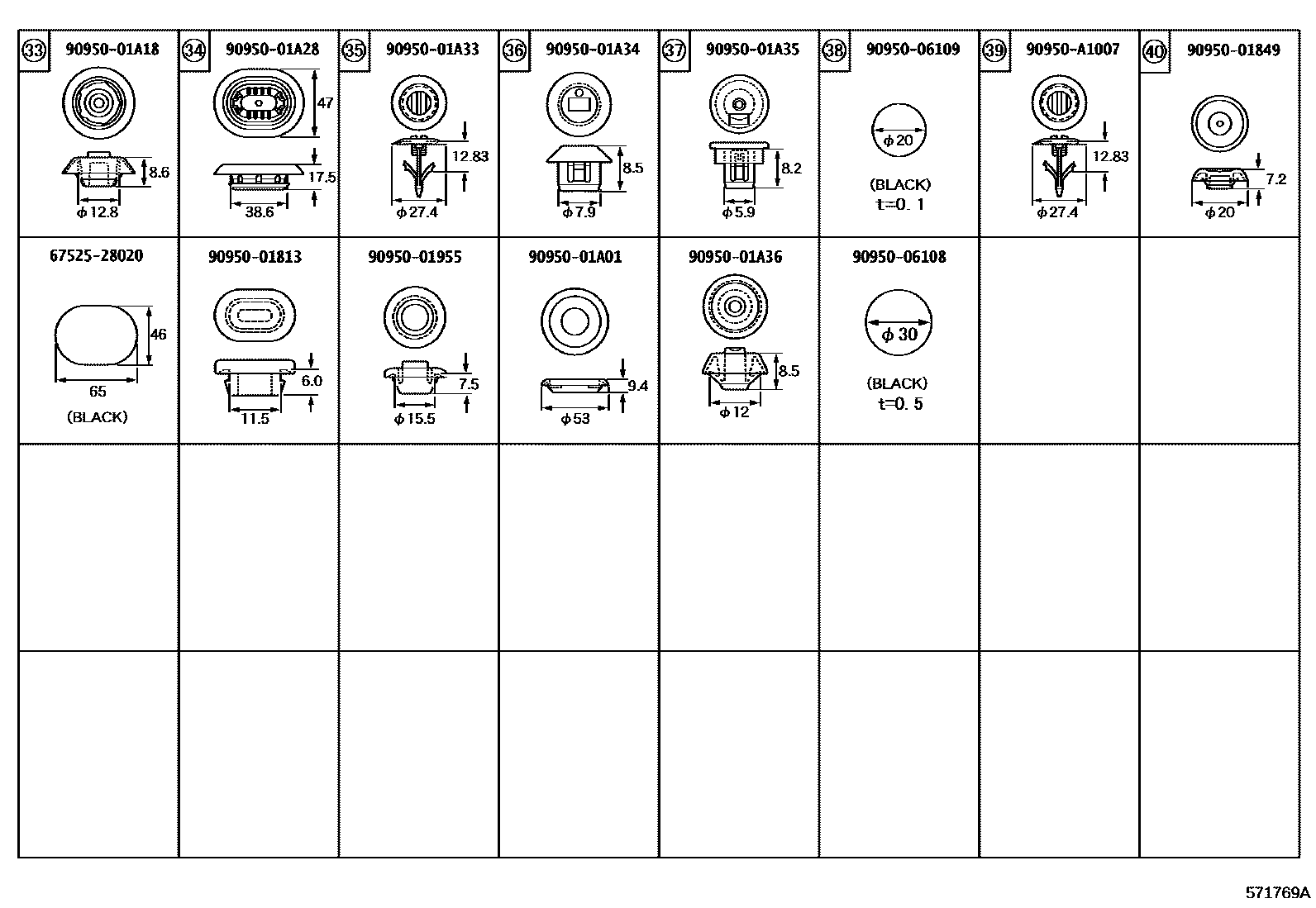

Toyota COROLLA hole plug EPC diagram — 571769B
hole plug — 571769B (201901 – 999999)

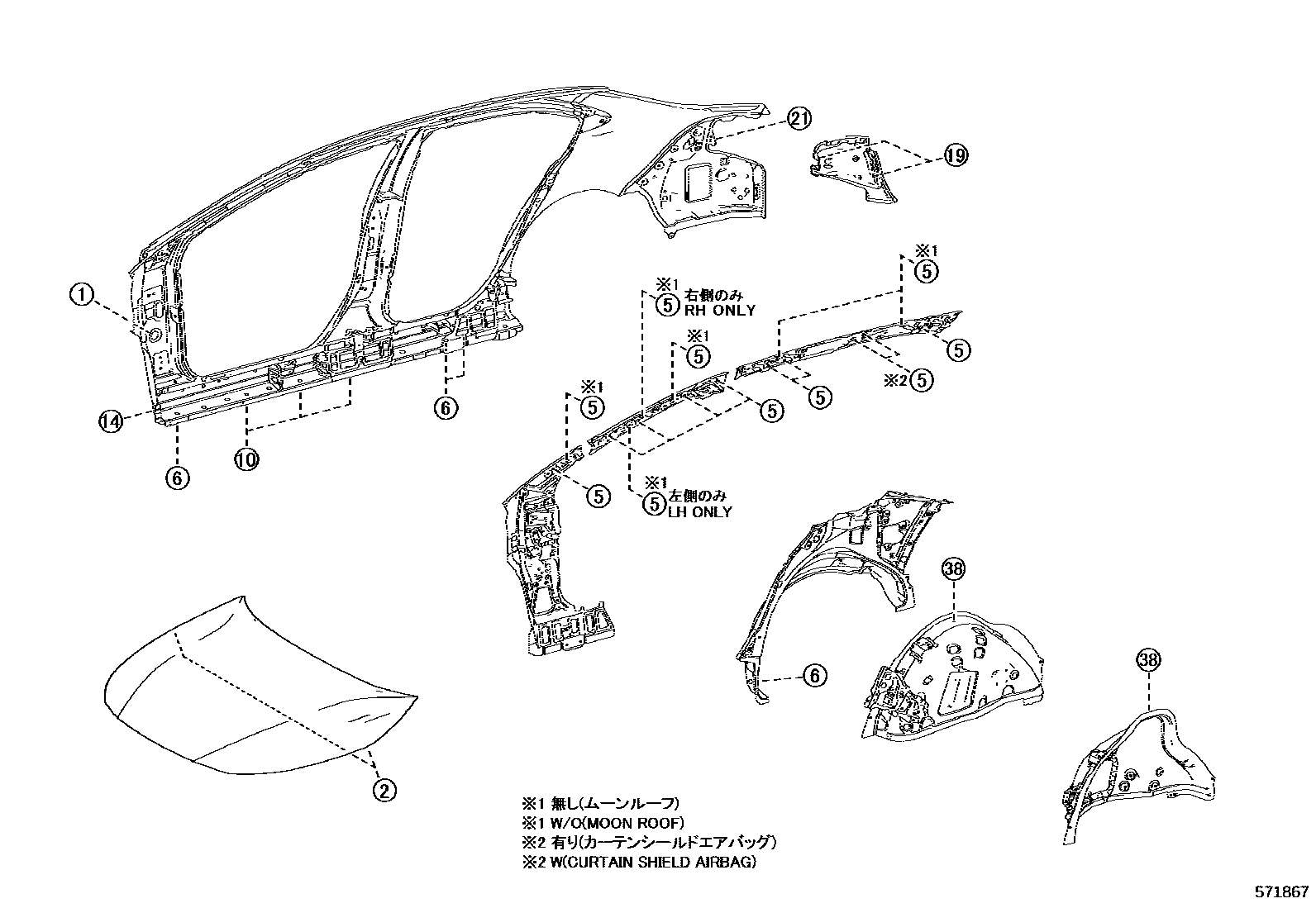

Toyota COROLLA hole plug EPC diagram — 571867
hole plug — 571867 (201901 – 999999)
