Toyota COROLLA 前翼子板挡泥板和前围板 — Figure 5304

Toyota COROLLA EPC diagram 5304, 前翼子板挡泥板和前围板, with 6 images and 62 PNC and OE references.

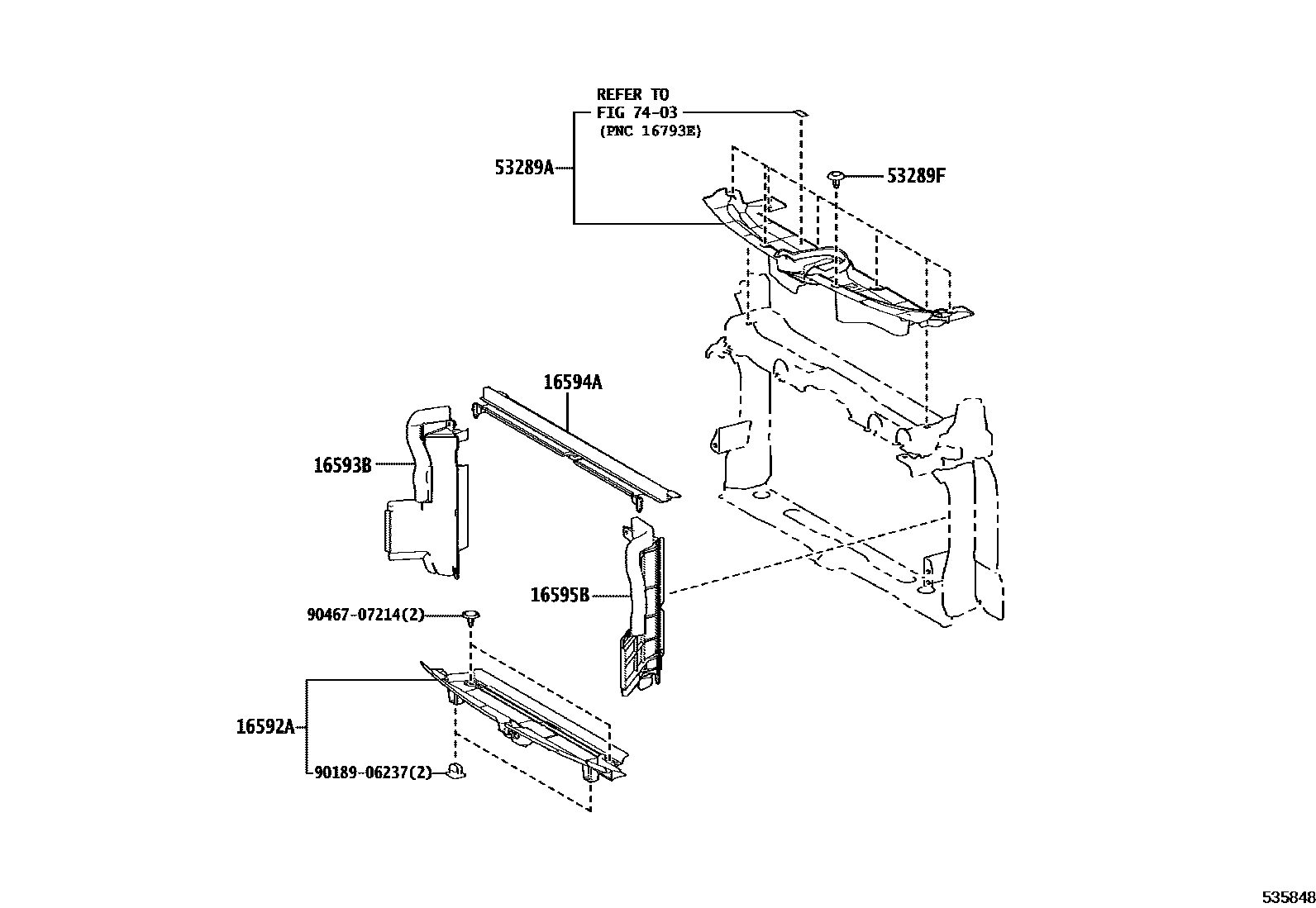

Toyota COROLLA 前翼子板挡泥板和前围板 EPC diagram — 535848
前翼子板挡泥板和前围板 — 535848 (201901 – 999999)

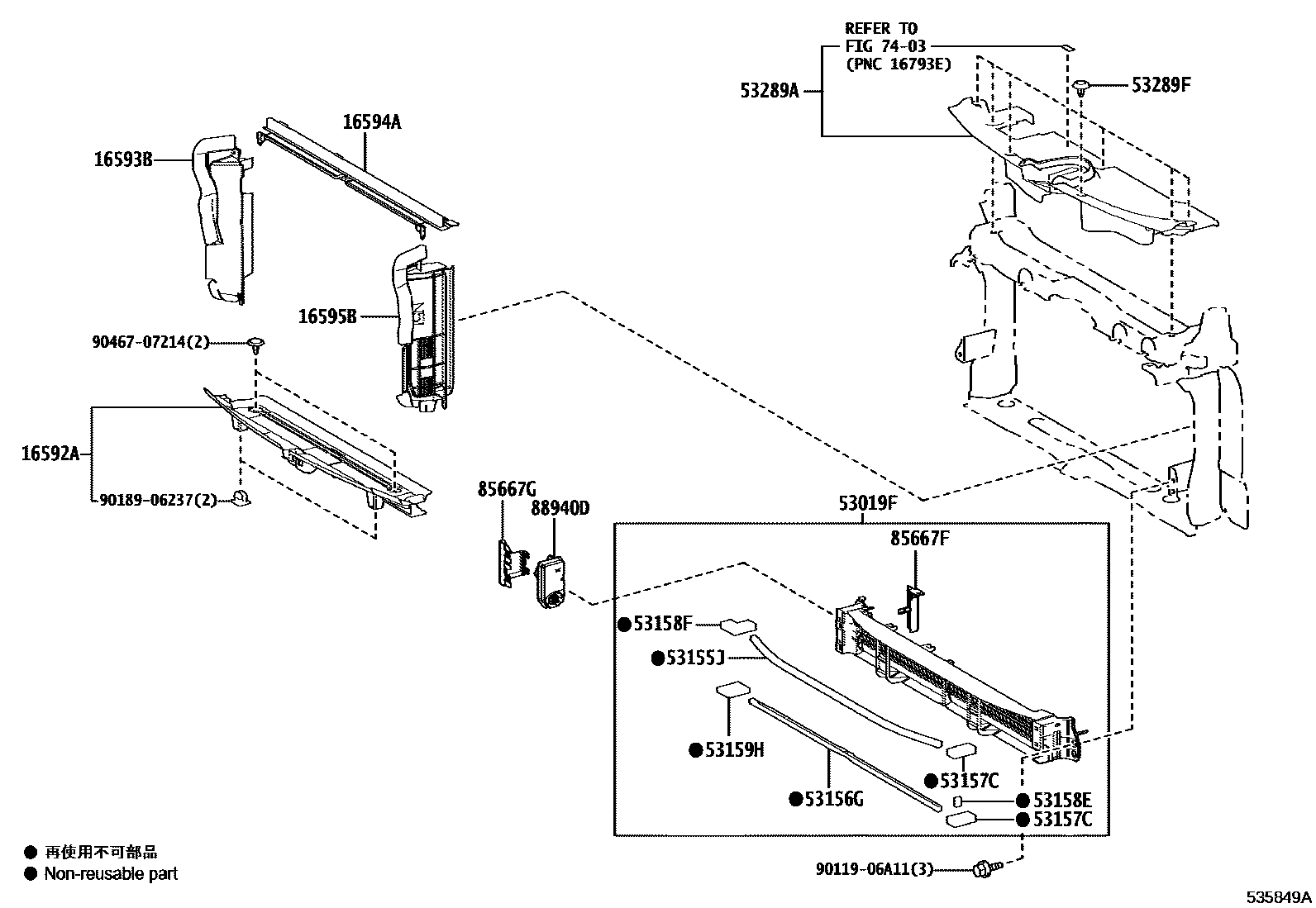

Toyota COROLLA 前翼子板挡泥板和前围板 EPC diagram — 535849A
前翼子板挡泥板和前围板 — 535849A (201901 – 999999)

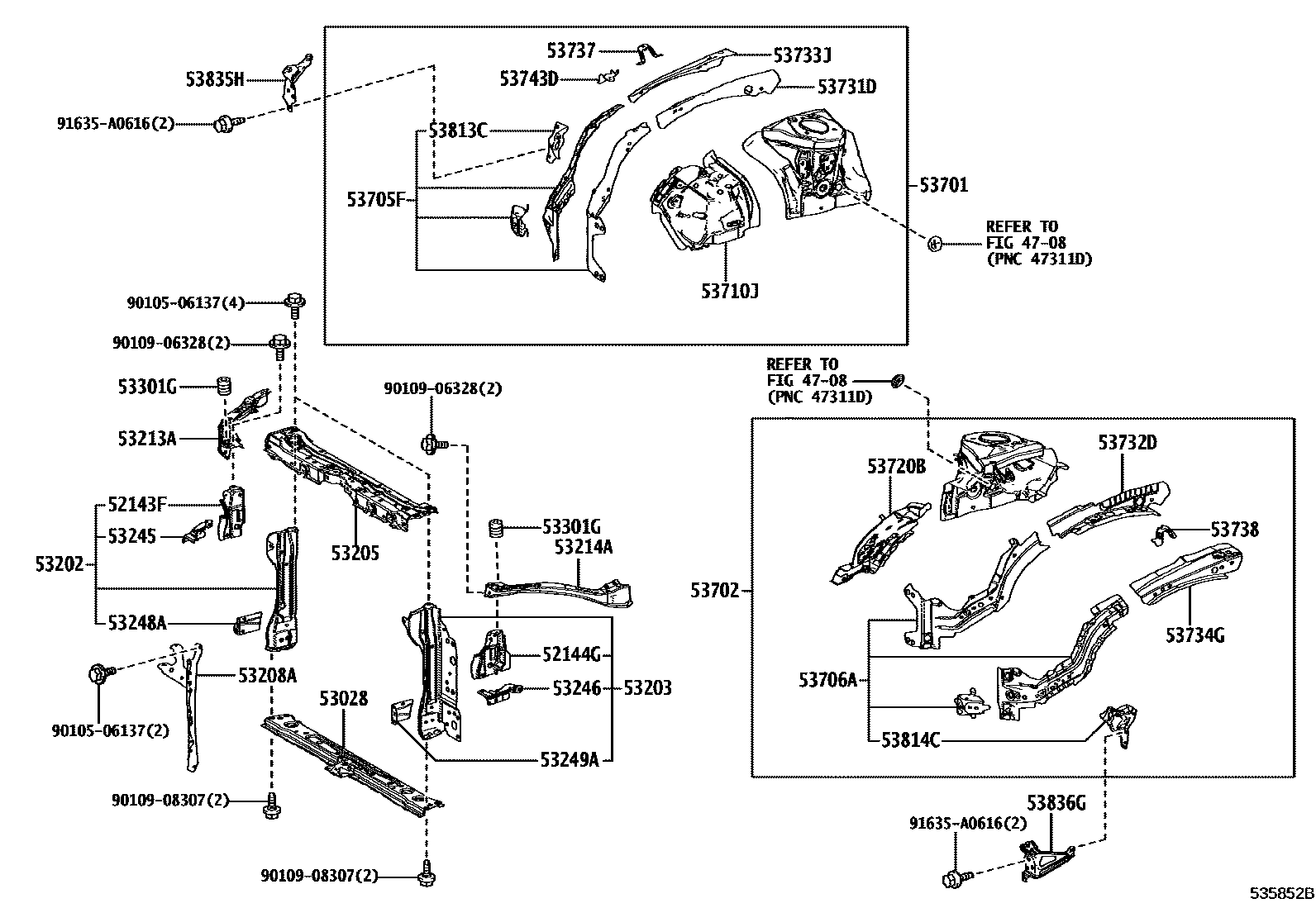

Toyota COROLLA 前翼子板挡泥板和前围板 EPC diagram — 535852B
前翼子板挡泥板和前围板 — 535852B (201901 – 999999)

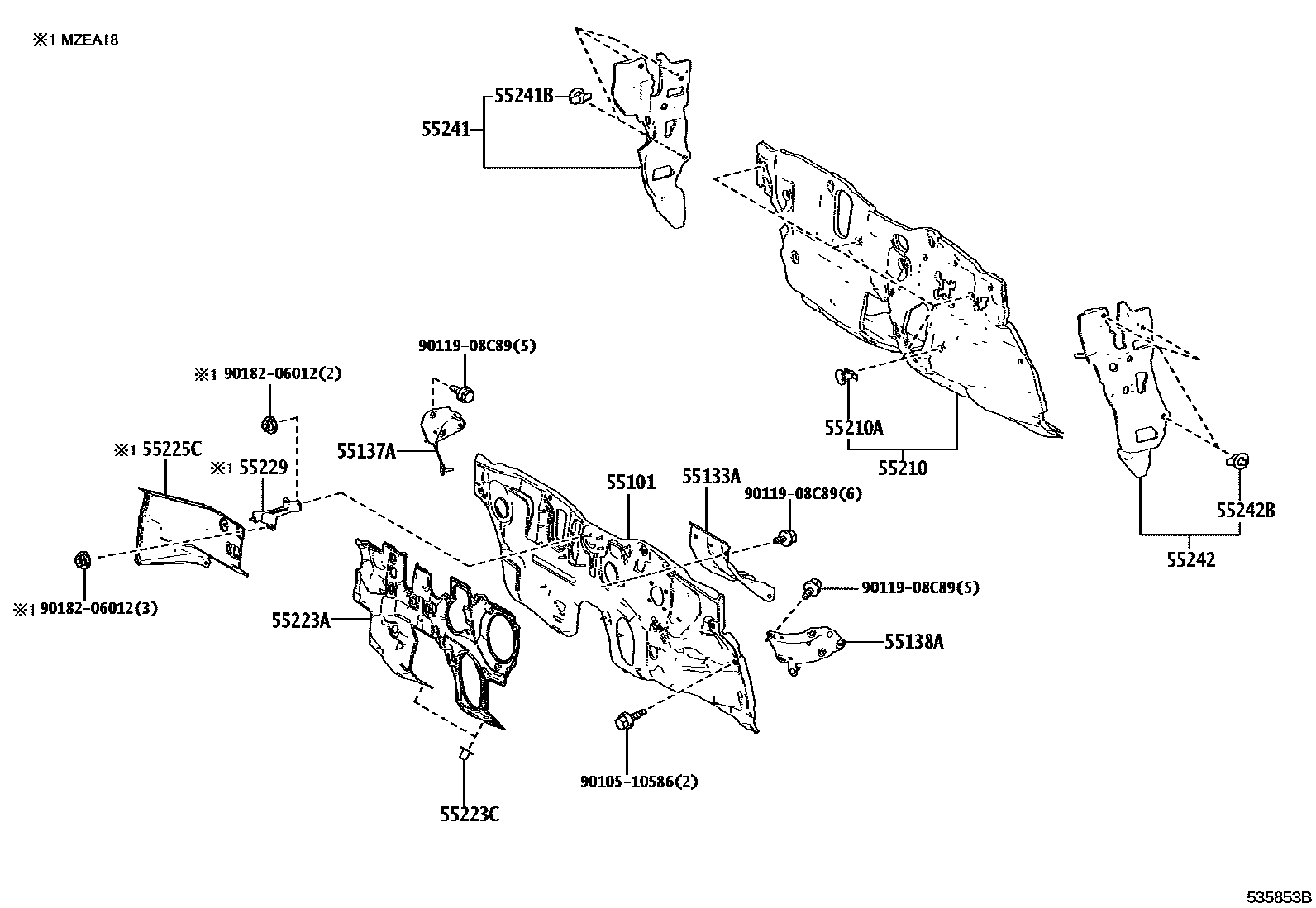

Toyota COROLLA 前翼子板挡泥板和前围板 EPC diagram — 535853B
前翼子板挡泥板和前围板 — 535853B (201901 – 999999)
Toyota COROLLA 前翼子板挡泥板和前围板 EPC diagram — 536079A
前翼子板挡泥板和前围板 — 536079A (201909 – 999999)

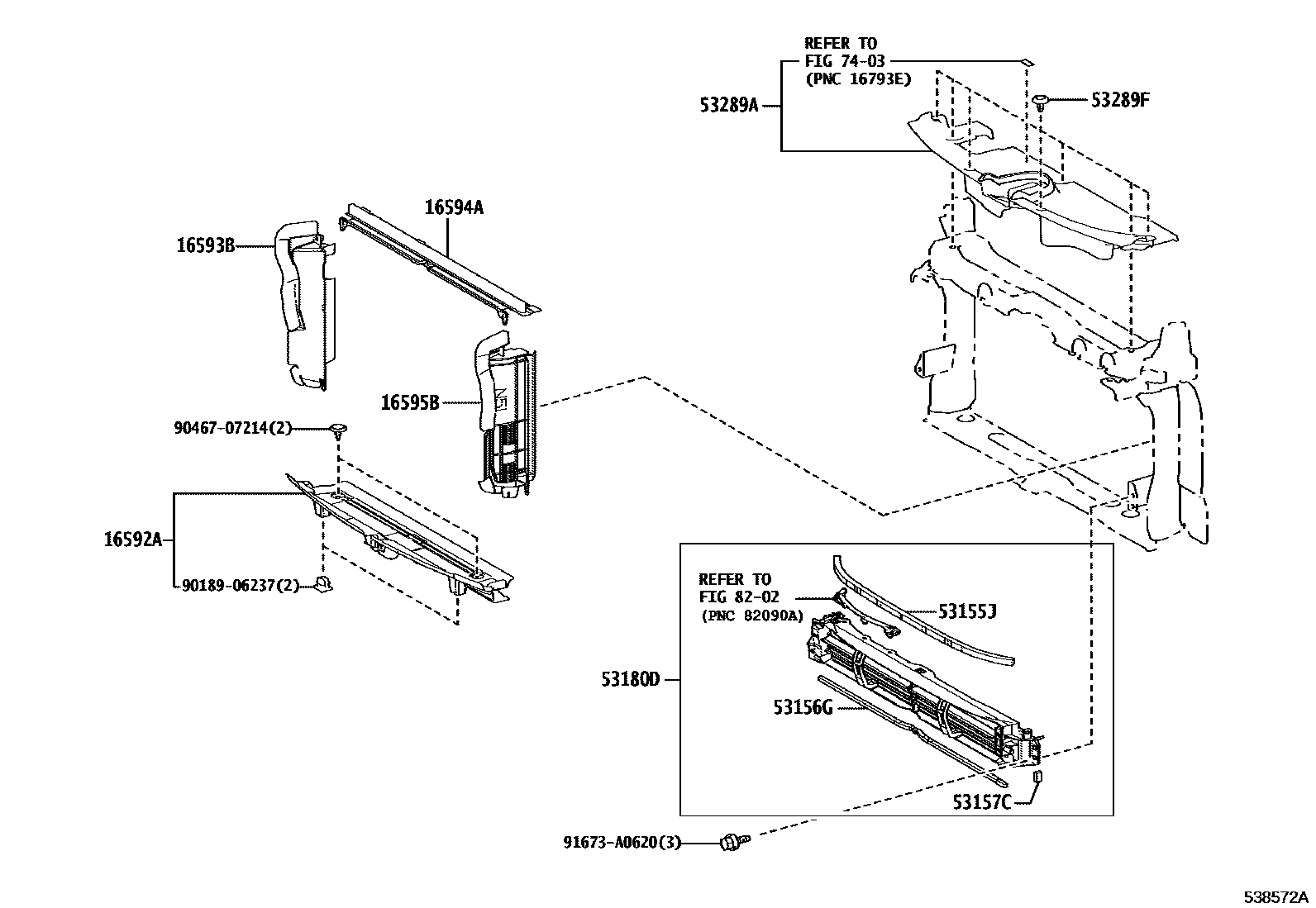

Toyota COROLLA 前翼子板挡泥板和前围板 EPC diagram — 538572A
前翼子板挡泥板和前围板 — 538572A (202209 – 999999)

PNC and OE references

PNCPart nameOE numbers
16592AGUIDE, AIR DU RADIATEUR, NO.316592-24010 · 16592-24050 · 16592-37070
16593BGUIDE, AIR DU RADIATEUR, NO.1 MD16593-24020 · 16593-37130 · 16593-37150 · 16593-37300
16594AGUIDE, AIR DU RADIATEUR, NO.216594-24010 · 16594-24040 · 16594-37010 · 16594-37040
16595BGUIDE, AIR DU RADIATEUR, NO.1 MG16595-24020 · 16595-37130 · 16595-37160 · 16595-37280
52143FFront bumper right side bracket52143-47030
52144GFront bumper left bracket52144-47050
53019FOBTURAT SS-ASS, RADIATEUR53019-12010 · 53019-12020
53028Radiator lower bracket sub-assembly53028-12040 · 53028-12050
53155JJOINT ETANCHEITE NO.1 CALANDRE RADIATEUR53155-12100 · 53155-47070
53156GJOINT ETANCHEITE NO.2 CALANDRE RADIATEUR53156-12040 · 53156-47040
53157CJOINT, GRILLE DE CALANDRE, NO.353157-12010 · 53157-47030
53158EJOINT, GRILLE RADIATEUR, NO.453158-12010
53158FJOINT, GRILLE RADIATEUR, NO.453158-47010
53159HJOINT, GRILLE DE CALANDRE, NO.553159-47030
53180DENS. DE VOLET DE RADIATEUR53180-47130 · 53180-47131
53202Radiator right side bracket sub-assembly53202-47903 · 53202-47904
53203Radiator left bracket sub-assembly53203-47903
53205Radiator upper bracket sub-assembly53205-12340 · 53205-12350 · 53205-12370
53208AEngine cover lock bracket sub-assembly53208-12580
53213ARadiator upper right bracket53213-12190 · 53213-12220
53214ARadiator upper left bracket53214-12150 · 53214-12180
53245Right headlight bracket53245-12150
53246Left headlight bracket53246-12090
53248ARadiator shutter right bracket53248-47010
53249ARadiator shutter left bracket53249-47010
53289ARadiator bracket opening cover53289-12080 · 53289-12090 · 53289-12120 · 53289-12130
53289FCLIP(POUR CACHE OUVERTURE SUPPORT RADIATEUR)90467-07214 · 90467-07217
53301Gengine cover cushion90541-15037 · 90541-15111
53701Right front fender fender sub-assembly53701-12A70
53702Left front fender fender sub-assembly53702-12A80
53705FRight fender fender bracket sub-assembly53705-47901
53706ALeft fender fender bracket sub-assembly53706-47901
53710JRight front fender fender assembly53710-47060
53720BLeft front fender fender assembly53720-47070
53731DRight front fender to cowl side upper beam53731-47031
53732DLeft front fender to cowl side upper beam53732-47020
53733JTRVRSE, TABLIER AVNT AU COTE D'AUVENT, AVNT EXTER MD53733-47020
53734GTRVRSE, TABLIER AVNT AU COTE D'AUVENT, AVNT EXTER MG53734-47020
53737Right front fender to front wall side sill53737-12140
53738Left front fender to front wall side sill53738-12100
53743DRENFORT, EXTENSION AVANT TABLIER AILE AVANT, MD53743-47020
53813CRight front fender extension53813-47050
53814CLeft front fender extension53814-47030
53835HENTRETOISE, AILE AVANT A EXTENSION DROITE53835-12140
53836GENTRETOISE, AILE AVANT A EXTENSION GAUCHE53836-12090
55101Front apron sub-assembly55101-10A01 · 55101-10A11 · 55101-12E00 · 55101-12E10
55133ARight reinforcement (front wall to floor)55133-47010
55137ARight side bracket (front wall to frame)55137-47040
55138ALeft side bracket (front wall to frame)55138-47070
55210Front wall insulation pad assembly55210-12680 · 55210-12700 · 55210-12730 · 55210-47260
55210Aclip90467-11122
55223AFront wall outer heat insulation pad55223-47090 · 55223-47100
55223Cclip90467-06197
55225CISOLANT, THERMIQUE TABLEAU BORD55225-12010 · 55225-12030
55229No. 4 heat insulation pad for front wall55229-10020
55241Front panel No. 1 right side silencer55241-12030
55241BATTACHE, SILENCIEUX COTE PANNEAU AVANT90467-13079
55242Front panel No. 1 left side silencer55242-12010
55242BATTACHE, SILENCIEUX COTE PANNEAU AVANT90467-13079
85667FCOUV, MOTEUR85667-12010
85667GCACHE, MOTEUR85667-47010
88940DACTUAT ASS, GRILL ECHANG88940-12040 · 88940-12050 · 88940-12060 · 88940-12070 · 88940-12071
